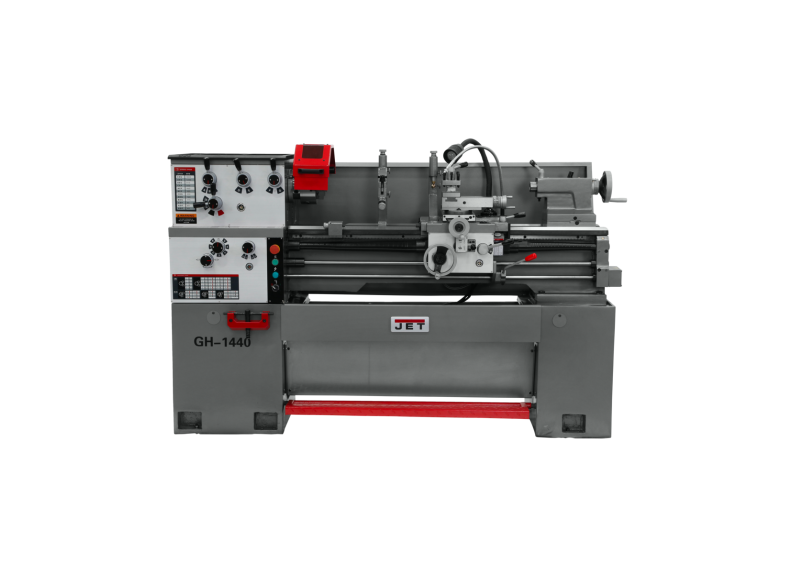

GH-1440-3 Lathe with Newall DP700 DRO and Taper Attachment
Stock Number:
JT9-323413
GH-1440-3 Lathe with Newall DP700 DRO and Taper Attachment
Manual
The new JET GH-1440-1 and GH-1440-3 Geared Head Engine Lathes weigh over one ton and come equipped with precision induction hardened ground bed-ways, spindle roller bearings, and high-quality steel hardened gears in the headstock for the ultimate working durability. The enclosed gearbox design, standard coolant system, and lead screw cover provide a smooth and quiet operation while maintaining peak performance. The GH-1440-1 and GH-1440-3 also includes an emergency stop within easy reach of the operator as well as a patented Electronic Chuck Key Docking Station that prevents startup without the chuck key when safely docked.
Compound and cross slide have backlash elimination
Front Removable Chip Tray
Full Length Splash Guard
Inch-metric dials are standard
Independent lead screw and feed rod
Safety on/off switch
Spindle actuation control is apron mounted
Spindle jog button for easy gear engagement and spindle inching
Splined, not keyed, shafts are utilized
Tailstock may be offset for turning taper
| Stock Number | JT9-323413 |
|---|---|
| Carriage Travel (In.) | 37-1/2 |
| Compound Slide Travel (In.) | 3-1/2 |
| Length of Gap (In.) | 9-3/8 |
| Max Tool Size (In.) | 5/8 x 5/8 |
| Model Number | GH-1440-3 |
| Motor (HP) | 3HP, 230/460V, 3PH |
| Number of Inch Threads | 40.0000 |
| Number of Longitudinal and Cross Feed Rates | 40 |
| Number of Metric Threads | 23.0000 |
| Number of Spindle Speeds | 12 |
| Overall Dimensions (L x W x H) (In.) | 74-4/5 x 28 x 46 |
| Prop 65 | Cancer and Reproductive Harm |
| Range of Cross Feeds (IPR) | 0.0004 - 0.0103 |
| Range of Inch Threads (TPI) | 4-112 |
| Range of Longitudinal Feeds (IPR) | 0.0012 - 0.0294 |
| Range of Metric Threads | 0.45-7.5 |
| Range of Spindle Speeds (RPM) | 40-1800 |
| Spindle Bore (In.) | 1-1/2 |
| Spindle Mount | D1-4 |
| Spindle Taper with Sleeve | MT-5 |
| Steady Rest Capacity (In.) | 3-1/2 |
| Swing Over Bed (In.) | 14 |
| Swing Over Cross Slide (In.) | 8-1/5 |
| Swing Through Gap (In.) | 20 |
| Tailstock Spindle Travel (In.) | 4-3/4 |
| Taper in Tailstock Spindle | MT-3 |
| Warranty | 2 Year |
| Weight (Lbs.) | 2336 |
| Width of Bed (In.) | 10-1/5 |
| Gross Weight | 2336.0 |
| Net weight | 2116.0 |
