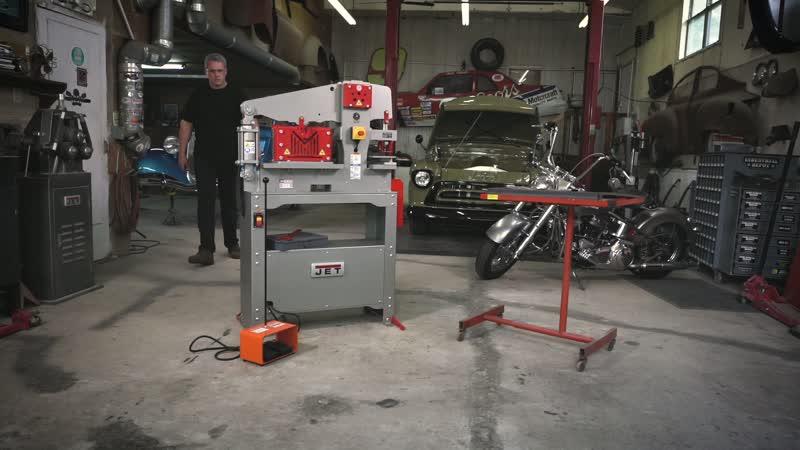

The JET 45 Ton Ironworker delivers 4 workstations to provide solutions to users needs, with a Punch workstation, a combination Flat Bar Shear and Angle Shear, and an integrated 7-size Rod Shear. Small and with a compact footprint, this Ironworker also includes a Punch & Die Holder and Slug Receptacle to keep the users work area clean and organized. This sturdy and tough Ironworker is Made in the USA and back by the JET RED Assurance 2-Year warranty.

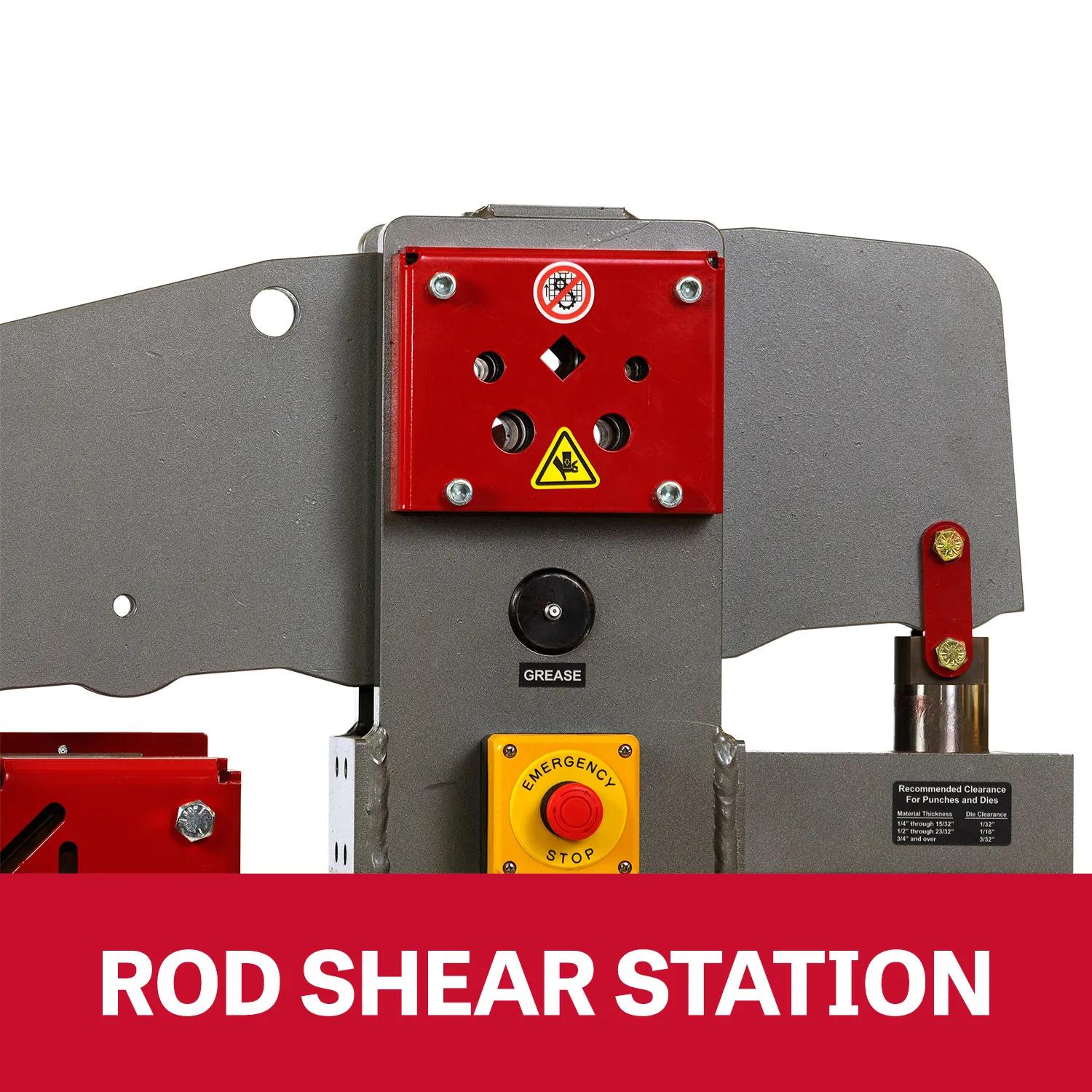

Four Workstations: Punch, Flat Bar Shear, Angle Shear & Rod Shear
Operates on 115V power allowing use almost anywhere
ANSI Compliant Guarding on the Angle & Rod Shears

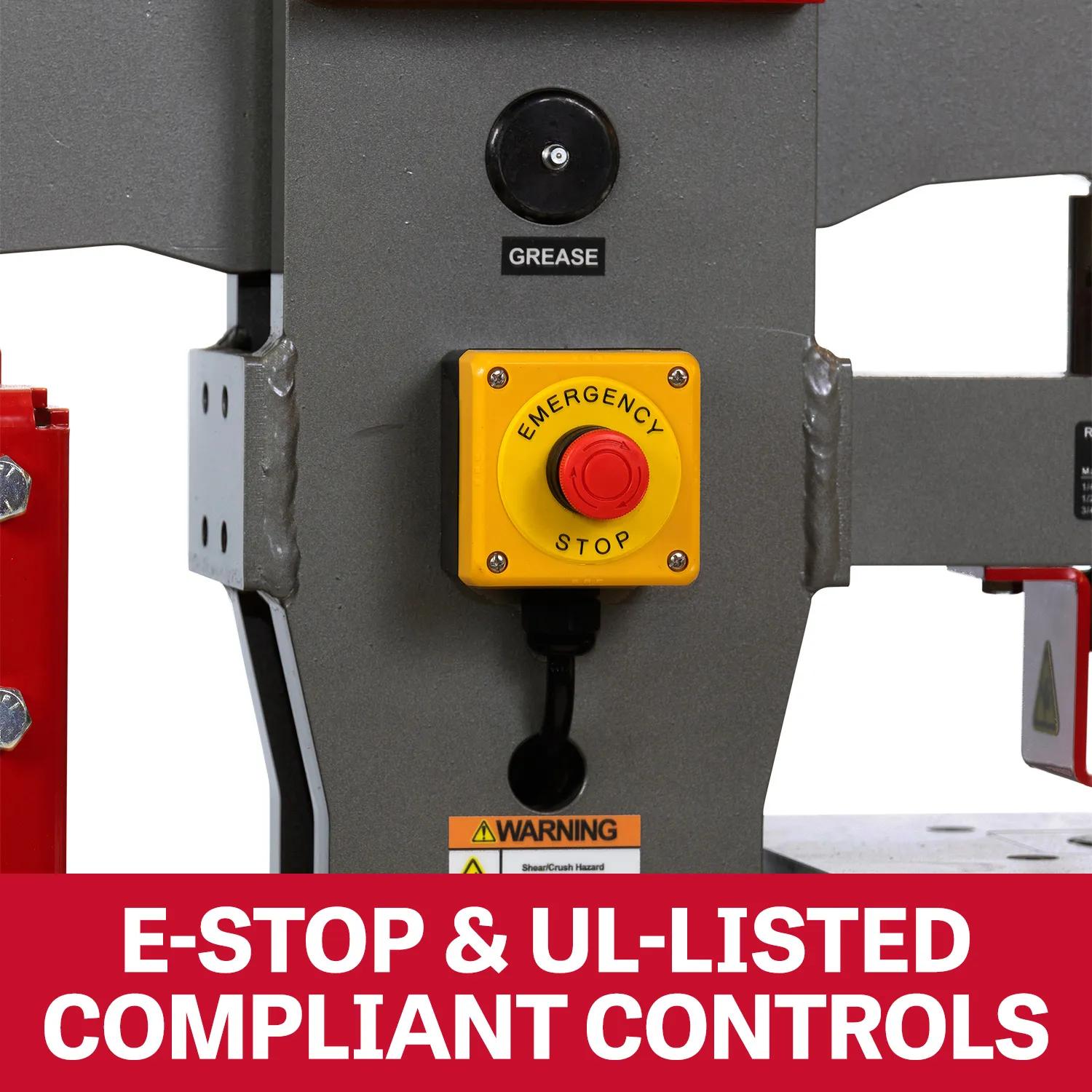

E-stop with UL Listed compliant controls providing additional operator safety

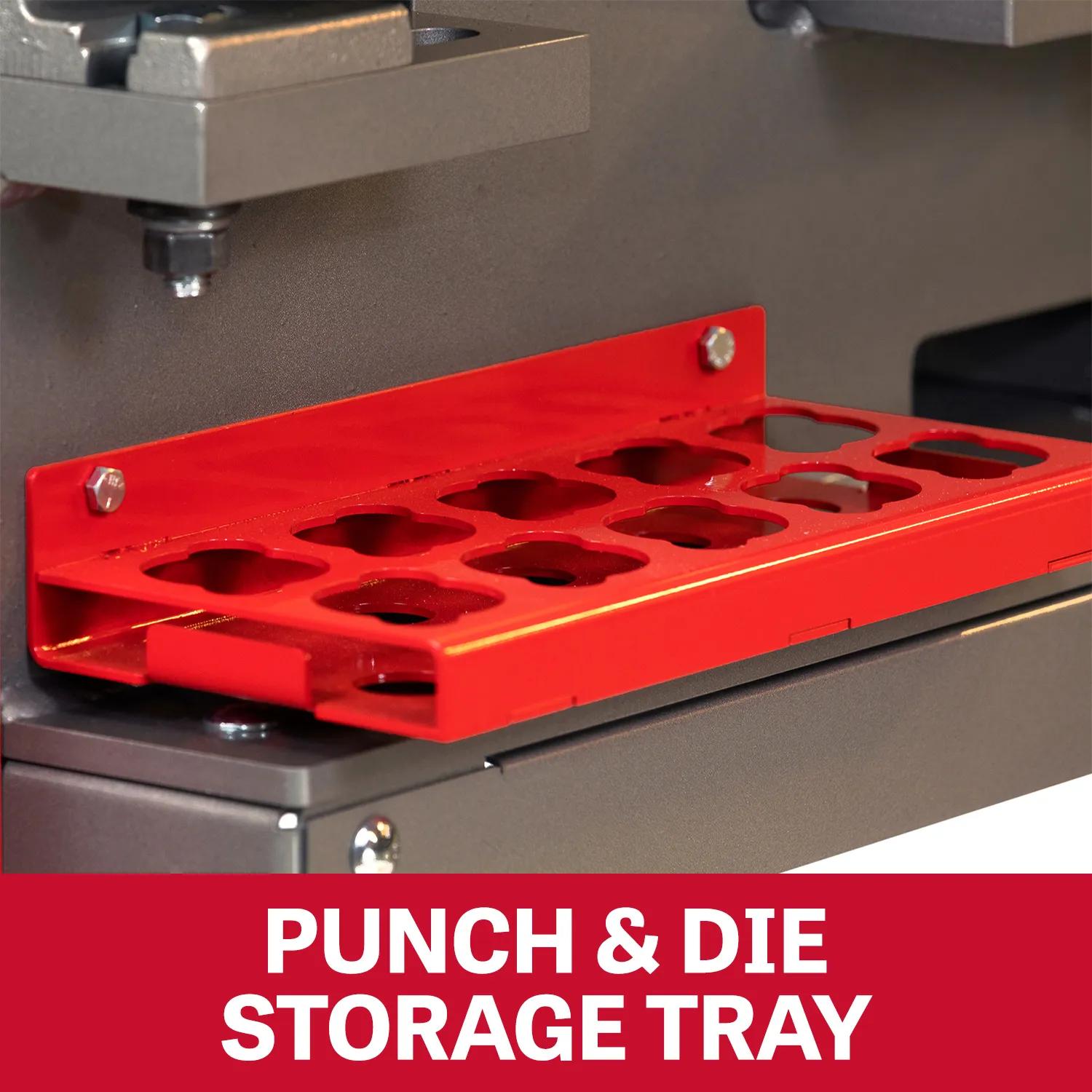

Includes a Punch & Die Storage Tray able to hold up to 10 Punch & Die Sets

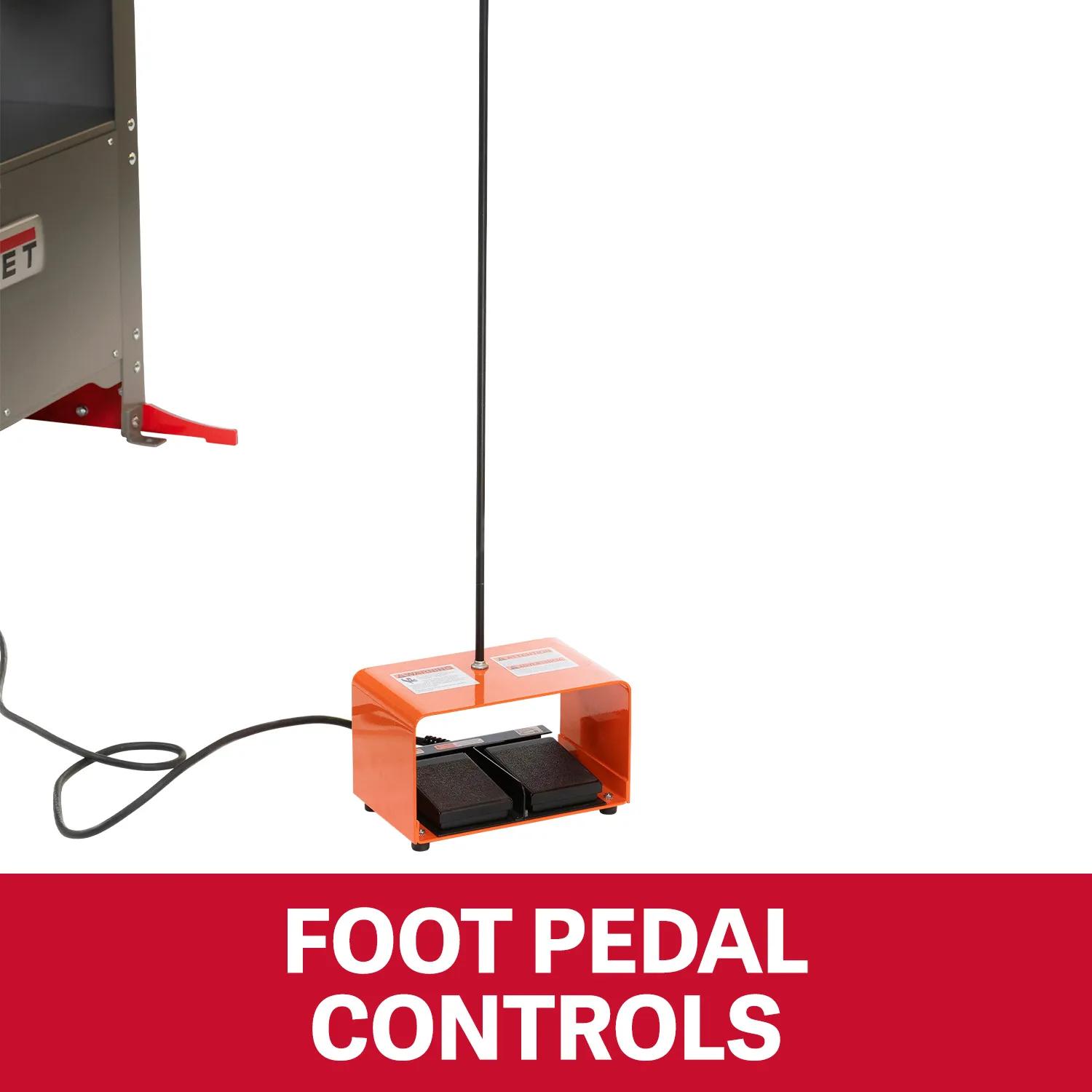

Convenient foot control with handle is easy to move between workstations
Optimized workstation heights reduce user fatigue

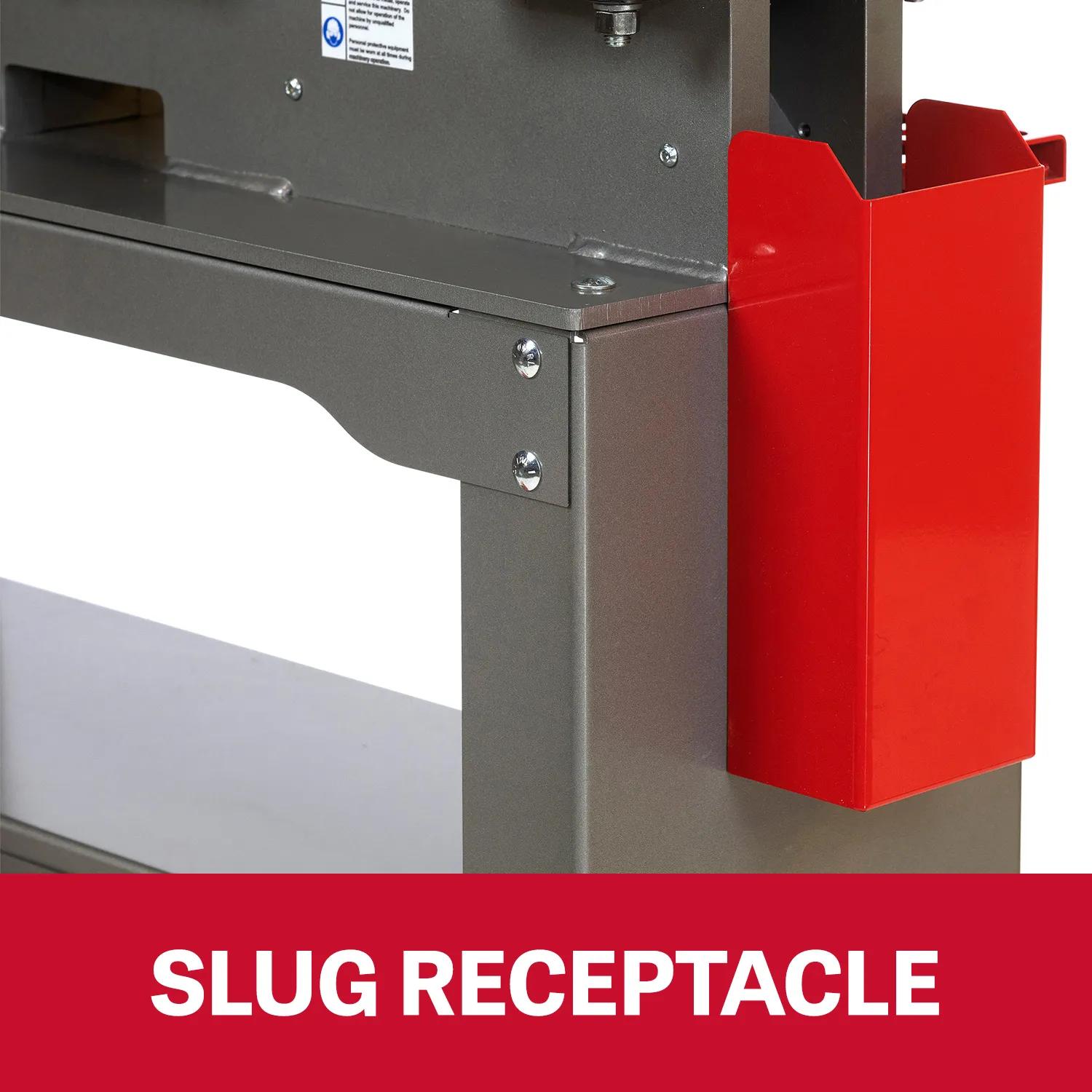

Slug receptacle collects all punch slugs keeping work area clear

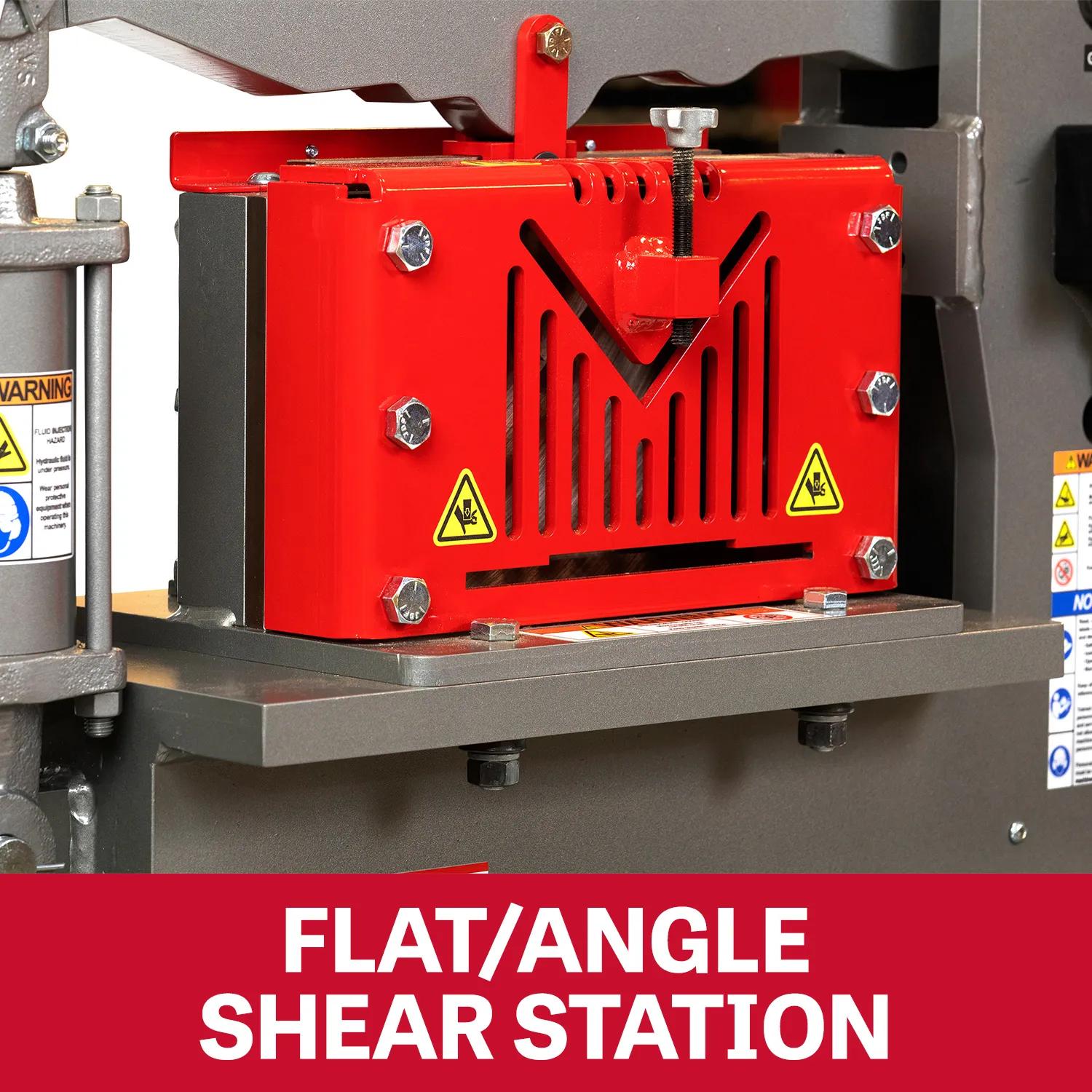

Blades for the Flat Bar, Angle and Rod Shear are made of precision machined, high-quality tool steel with 2 cutting edges for extended life
Compatible with most Edwards Punch & Die Sets including round, square, oblong, hex, and metric
| Stock Number | JT9-756100 |
|---|---|
| Angle Shear Max Capacity 1/4" | 3 x 3 |
| Angle Shear Max Capacity (In.) | 3 x 3 x 1/4 |
| Cylinder (In) | 3-1/2" Ram |
| Flat Bar Shear Max Capacity 1/4" | 8 |
| Flat Bar Shear Max Capacity 3/8" | 4 |
| Flat Bar Shear Rating (Tons) | 45 |
| Flat Bar Shear Work Height (In.) | 40 |
| Gross Weight (Lbs) | 802 |
| Model Number | JIW-45T |
| Motor Amps | 14 |
| Motor (HP) | 1-1/2 HP, 115V, 1Ph |
| Motor Speed (RPM) | 3500 |
| Overall Dimensions (L x W x H) (In.) | 40 x 24 x 58 |
| Overall Height (In.) | 58 |
| Prop 65 | Cancer and Reproductive Harm |
| Punch Max Capacity (In.) | 1 diam. In. 1/2 mild steel |
| Punch Rating (Tons) | 45 |
| Punch Stroke (In.) | 1-1/2 |
| Punch Work Height (In.) | 41 |
| Rating (Tons) | 45 |
| Rod Shear Max Round (In) | 3/4 |
| Rod Shear Max Square (In) | 5/8" |
| Rod Shear Work Height (In) | 54 |
| Shipping Dimensions (L x W x H) (In.) | 51 x 45 x 64 |
| Valve Pressure (PSI) | 2800 |
| Warranty | 2 Year |
| Weight (Lbs.) | 698 |
| Gross Weight | 802.0 |
| Net weight | 698.0 |
| Throat Depth (In.) | 5-3/4 |
