BDB-919 Belt Drive Bench lathe
Stock Number:
JT9-321378
BDB-919 Belt Drive Bench lathe
Manual
The BDB-919 benchtop lathe is perfect for the most versatile shops. Engineered with precision induction hardened ground bed-ways and precision tapered roller bearings, the BDB-919 delivers the smooth operation and rigidity needed to craft professional pieces.

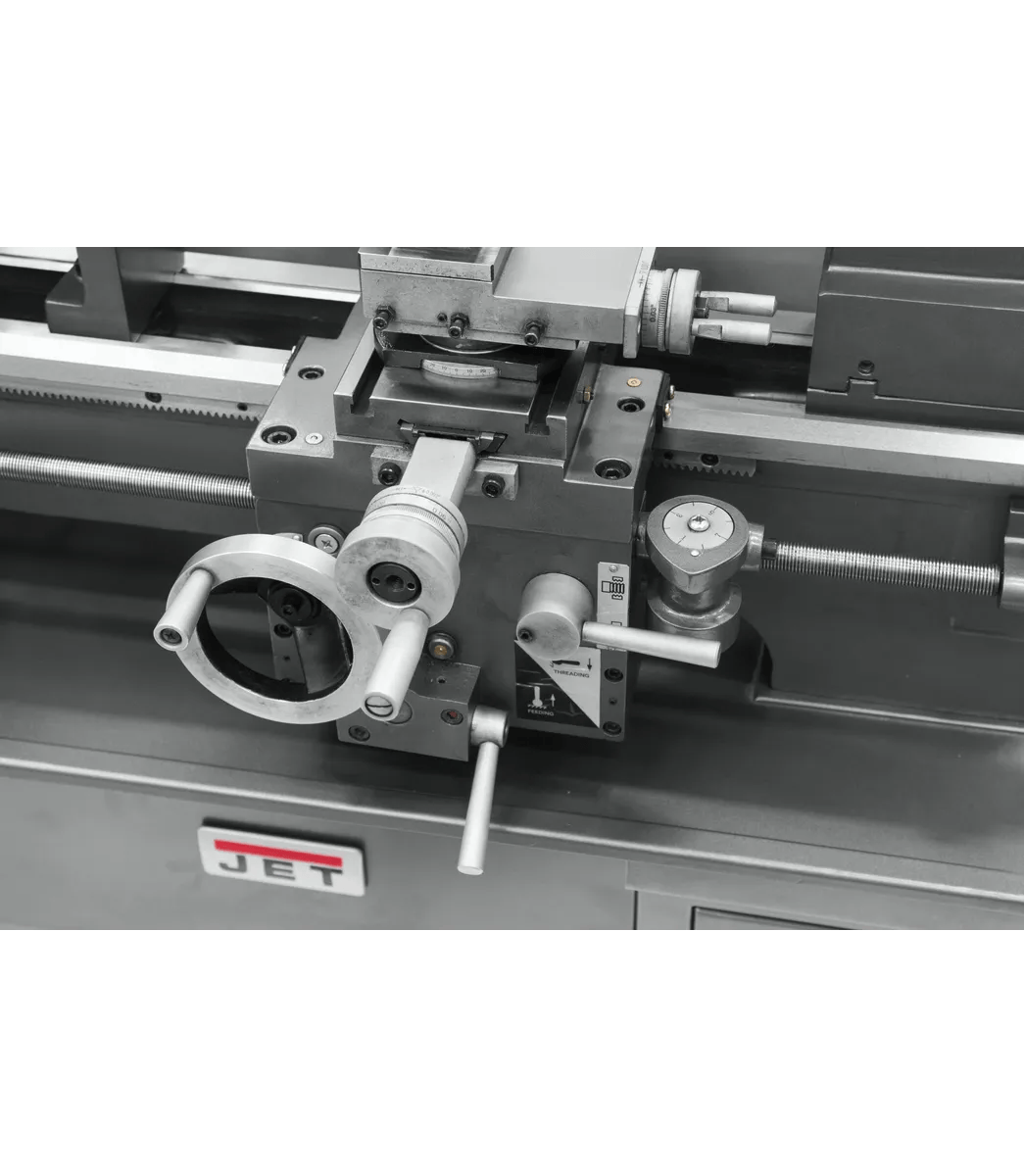

Backlash adjustments provided throughout the carriage

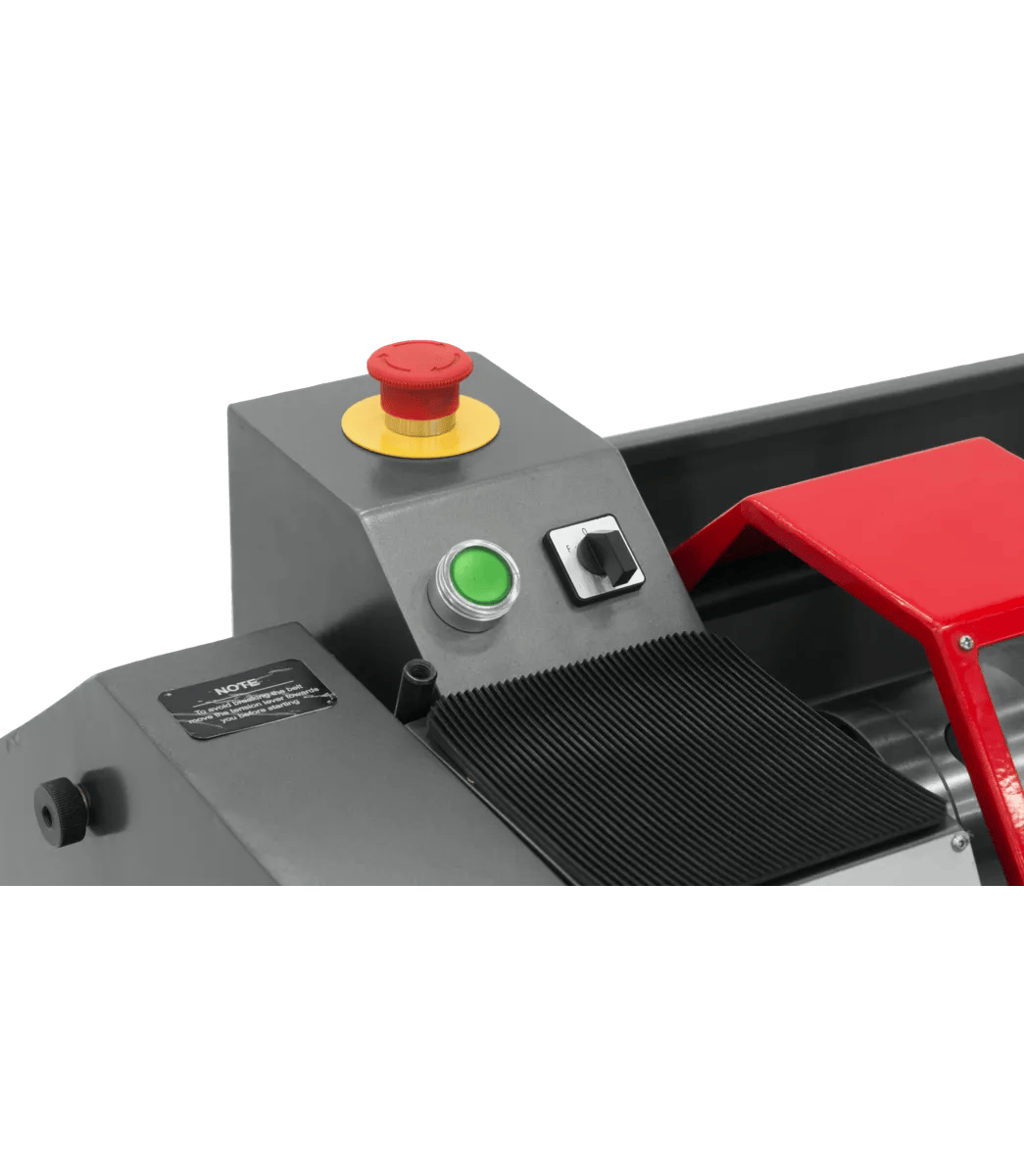

Emergency stop within easy reach of the Operator
Full Length Splash Guard
Power longitudinal feed allows threading and reverse threading

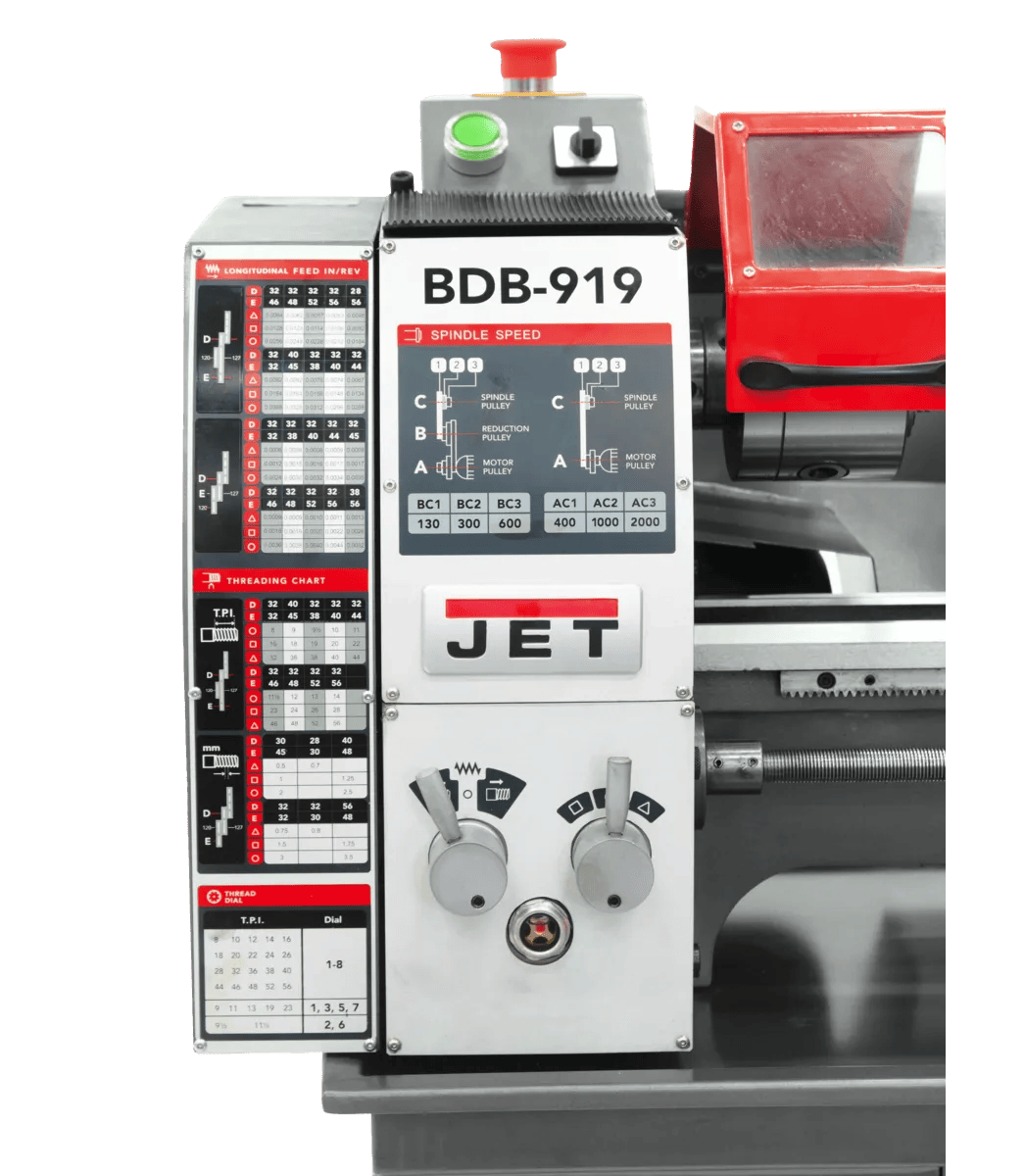

Quick change gearbox provides wide range of inch and metric threads
Reversing switch for added versatility
Safety on/off switch
Some images show lathe with optional stand
Standard Accessories
| Stock Number | JT9-321378 |
|---|---|
| Carriage Travel (In.) | 17.5 |
| Compound Slide Travel (In.) | 1-7/8 |
| Max Tool Size (In.) | 1/2 |
| Model Number | BDB-919 |
| Motor (HP) | 3/4 HP, 115V, 1PH |
| Number of Inch Threads | 27.0000 |
| Number of Longitudinal and Cross Feed Rates | 60 |
| Number of Metric Threads | 12.0000 |
| Number of Spindle Speeds | 6 |
| Overall Dimensions (L x W x H) (In.) | 41x22x20 |
| Prop 65 | Cancer and Reproductive Harm |
| Range of Inch Threads (TPI) | 8 - 56 |
| Range of Longitudinal Feeds (IPR) | 0.0006-0.0368 |
| Range of Metric Threads | 0.5 - 3.5 |
| Range of Spindle Speeds (RPM) | 130-2000 |
| Spindle Bore (In.) | 3/4 |
| Spindle Mount | 1-1/2 x 8TPI |
| Spindle Taper with Sleeve | MT-3 |
| Steady Rest Capacity (In.) | 1-3/4 |
| Swing Over Bed (In.) | 8-3/4 |
| Swing Over Cross Slide (In.) | 5 |
| Tailstock Spindle Travel (In.) | 1-9/16 |
| Taper in Tailstock Spindle | MT-2 |
| Warranty | 2 Year |
| Weight (Lbs.) | 250 |
| Width of Bed (In.) | 4-1/2 |
| Gross Weight | 304.0 |
| Net weight | 269.0 |
