1/2" Capacity, Benchtop Mortise , 1725 RPM, 1/2HP, 115V 1PH(JBM-5)
1/2" Capacity, Benchtop Mortise , 1725 RPM, 1/2HP, 115V 1PH(JBM-5)
1/2" Capacity, Benchtop Mortise , 1725 RPM, 1/2HP, 115V 1PH(JBM-5)
1/2" Capacity, Benchtop Mortise , 1725 RPM, 1/2HP, 115V 1PH(JBM-5)
1/2" Capacity, Benchtop Mortise , 1725 RPM, 1/2HP, 115V 1PH(JBM-5)
1/2" Capacity, Benchtop Mortise , 1725 RPM, 1/2HP, 115V 1PH(JBM-5)
1/2" Capacity, Benchtop Mortise , 1725 RPM, 1/2HP, 115V 1PH(JBM-5)
1/2" Capacity, Benchtop Mortise , 1725 RPM, 1/2HP, 115V 1PH(JBM-5)
1/2" Capacity, Benchtop Mortise , 1725 RPM, 1/2HP, 115V 1PH(JBM-5)

1/2" Capacity, Benchtop Mortise , 1725 RPM, 1/2HP, 115V 1PH(JBM-5)

Stock Number: JT9-708580

0 Reviews

No reviews yet.

  • 0.5 HP, 115V, single-phase
  • Mortise capacity for joinery
  • Heavy-duty frame
  • Production-grade construction
BUY NOW
Fetching Data...

Product Details

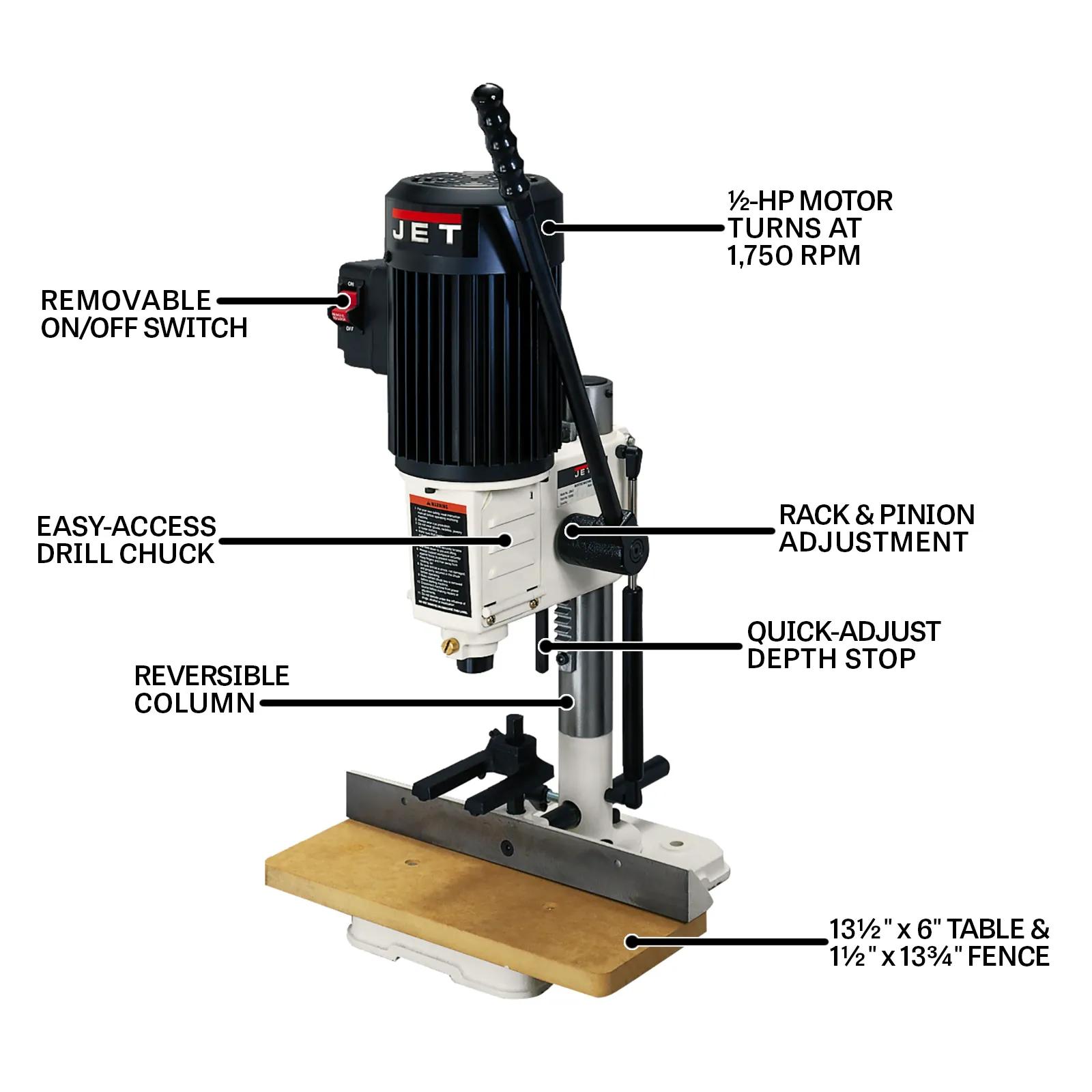

Where joinery starts: clean, repeatable mortises. Built around cabinet shops and furniture makers running production joinery, the JBM-5 delivers production-grade results. Equipped with a 0.5 HP motor and industrial-grade construction throughout, it handles full-capacity operation across long production cycles. JET warranty coverage stands behind every clean mortise.

Features

  • Industrial 0.5 HP induction motor: transmitting power without the maintenance brush-motor designs require, designed for industrial shop floors.
  • Production-grade mortise capacity — covering the joinery envelope production cabinet making generates across cabinet and furniture production.
  • Engineered specialty-machine geometry — delivering consistent results.
  • Hardened and matched gears — holding tolerance well past the warranty period, sized for finish quality across long production runs.
  • CSA/cUS listing simplifies safety compliance for the safety paperwork EHS managers actually verify.
  • Heavy-duty rating delivers the working envelope for the duty cycle this machine targets.

Specifications

  • SKU
    JT9-708580
  • Assembled Dimensions
    30 x 21 in.
  • Base Size
    12-3/16 x 7-5/8 in.
  • Bushing Size
    5/8 and 3/4 in.
  • Chisel Center to Fence
    3/16 in.

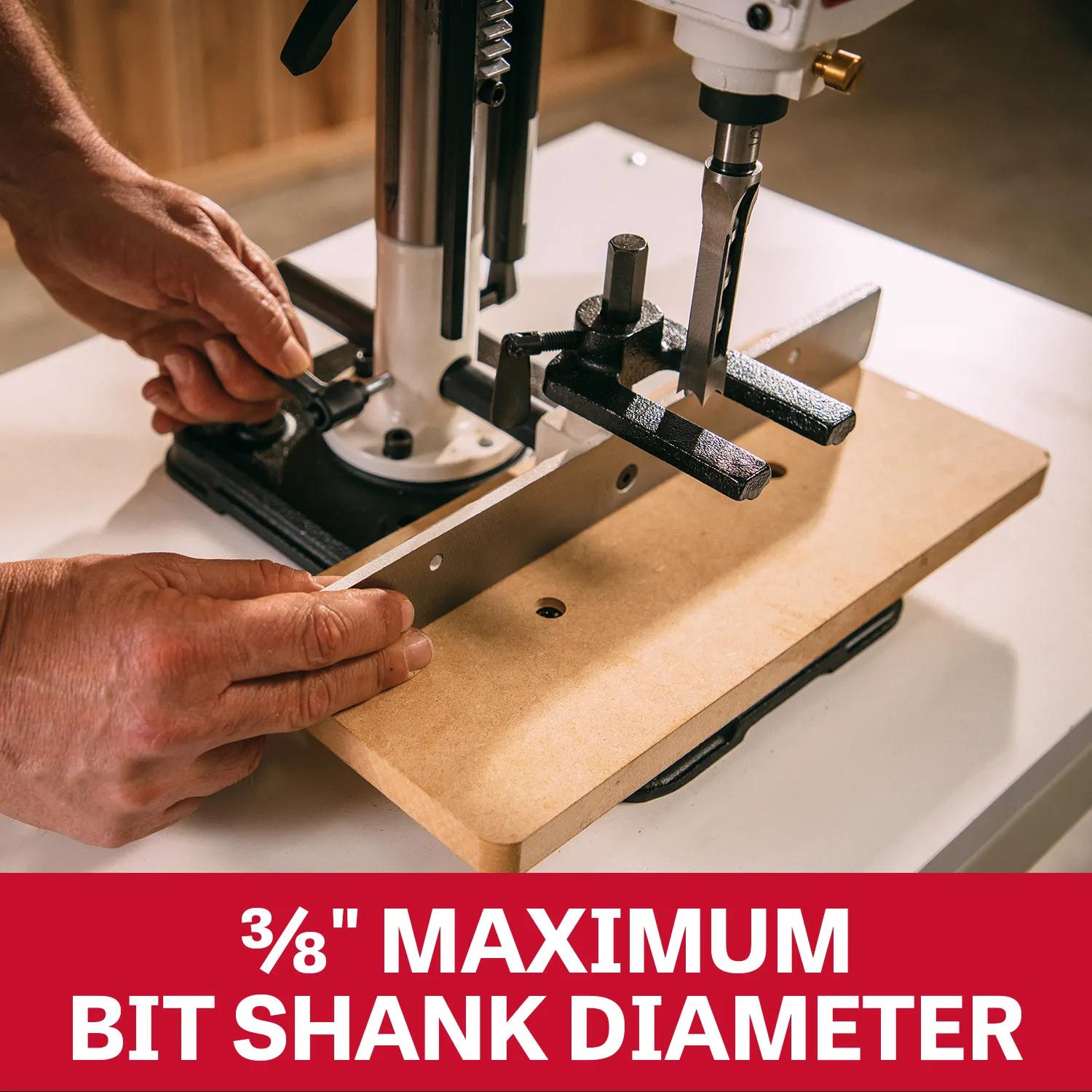

  • Chisel Shank Capacity
    5/8 and 3/4 in.
  • Chisel Stroke
    4-3/4

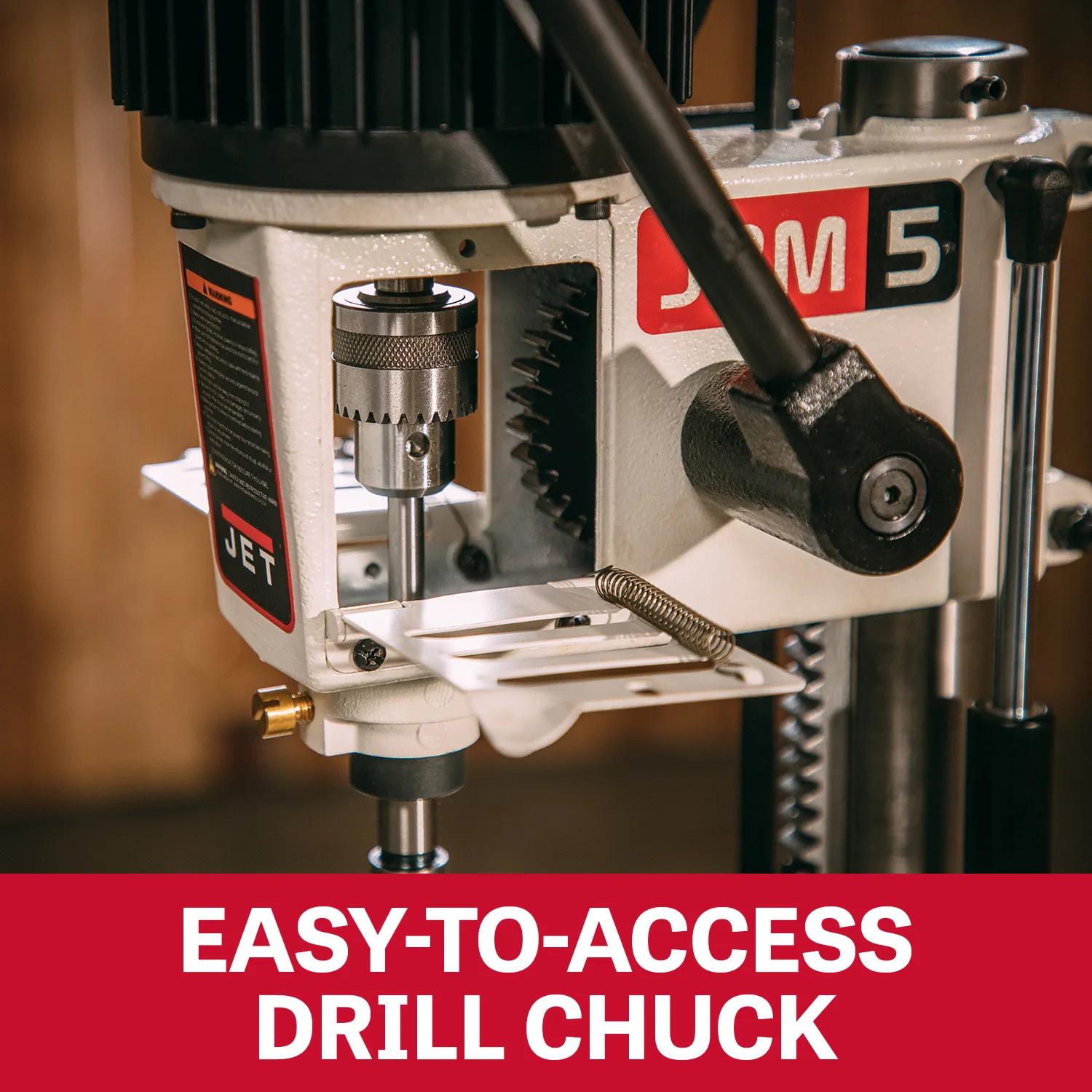

  • Chuck Size
    3/8 in.
  • Fence Size L X H
    13-3/4 x 19-16 in.
  • Input Power
    115 V 1 Ph
  • Model Number
    JBM-5
  • Motor Amps
    6 A
  • Motor HP
    0.5 HP
  • Motor Phase
    Single
  • Motor Voltage
    115 V
  • Old Material Number
    708580
  • Prewired Voltage
    115 V
  • Product Type
    Machines
  • Prop 65
    Cancer and Reproductive Harm
  • SAP Gross Weight
    52.8
  • SAP Net weight
    50.6
  • Spindle Speed
    1725 RPM
  • Style Type
    Benchtop
  • Table Size
    13-1/2 x 6 in.
  • Under Hold Down
    4 in.
  • UPC
    662755139536
  • Warranty
    Five Years
