1 x 42, Bench Belt & Disc Sander, 0.33HP, 115V 1PH(J-4002)

Stock Number: JT9-577003

0 Reviews

No reviews yet.

  • VERSATILE: Hinged idler wheel cover and removable platen allows for sanding of outside curves or odd-shaped work pieces on the belt.
  • STURDY: Main body consists of cast iron construction, while the base is constructed from heavy-duty steel.

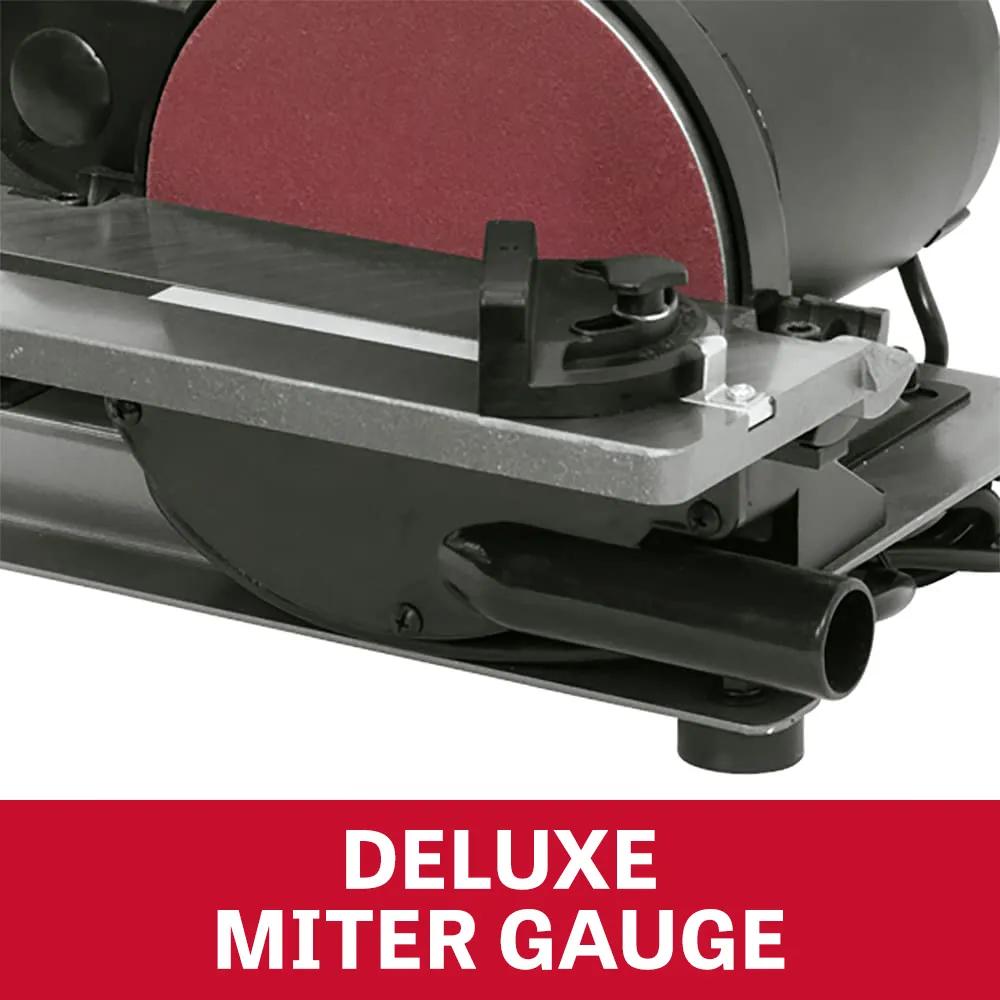

  • MITER GAUGE: Turns and locks for common angles, 45° both left and right.
  • DUST COLLECTION: Two 1-1/4" ports can be hooked up to a dust collection system.
BUY NOW
Loading Banner

Product Details

Another JET combination Bench Belt and Disc Sander designed to deliver the superior finish. The design of this machine permits sanding, grinding and finishing of outside curves or odd-shaped pieces. Heavy-duty base, cast construction and cast iron tilting table means you are getting the very best JET has to offer.

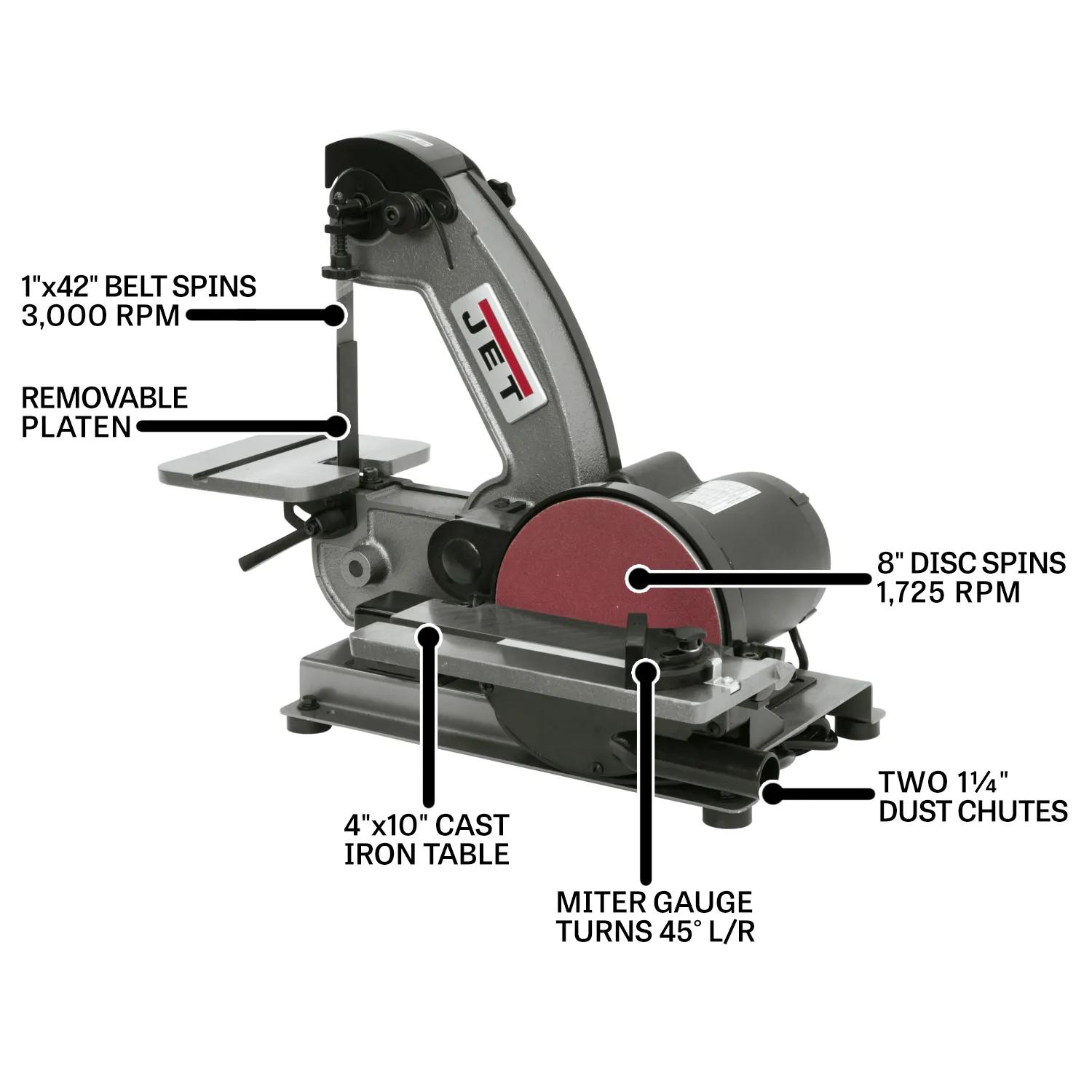

Features

  • Abrasive belt unit removes material and finishes at the same time, allowing the operator to get into small openings, plus handle odd shapes and angles
  • Adjustable dust deflector and dust chute
  • Cast iron construction
  • Deluxe miter gauge that turns and locks for common angles, 45° both left and right
  • Heavy-duty steel base and rubber feet
  • Hinged idler wheel cover
  • Removable platen allows for sanding, grinding or finishing of outside curves or odd shaped work pieces on the belt

Specifications

  • SKU
    JT9-577003
  • Abrasive Type
    Belt/Disc
  • Assembled Dimensions
    21 x 22 x 14 in.
  • Belt Size
    1 x 42 in.
  • Belt Table Size
    6-1/8 x 7-1/8 in.
  • Belt Tilt Range
    45 Deg. Out
  • Disc Diameter
    8 in.
  • Disc Table Size L X W
    4 x 10 in.
  • Disc Table T-slot Width
    5/8 in.
  • Dust Port Outside Diameter
    1-1/2 in.
  • Model Number
    J-4002
  • Product Type
    Machines
  • Table Slots
    0.625 in.
  • UPC
    662756093653
