6" x 48" Industrial Combination Belt & 12" Disc Finishing , 1.5HP, 230V 1PH(J-4200A-2)
6" x 48" Industrial Combination Belt & 12" Disc Finishing , 1.5HP, 230V 1PH(J-4200A-2)
6" x 48" Industrial Combination Belt & 12" Disc Finishing , 1.5HP, 230V 1PH(J-4200A-2)
6" x 48" Industrial Combination Belt & 12" Disc Finishing , 1.5HP, 230V 1PH(J-4200A-2)

6" x 48" Industrial Combination Belt & 12" Disc Finishing , 1.5HP, 230V 1PH(J-4200A-2)

Stock Number: JT9-414552

0 Reviews

No reviews yet.

  • 1.5 HP, 230V, single-phase
  • Heavy-duty belt drive
  • Cast iron base
  • Precision-balanced disc
BUY NOW
Fetching Data...

Product Details

Material removal sized for production, finish quality sized for delivery. Designed for industrial finishing environments running long abrasive cycles, the J-4200A-2 stands up to the duty cycle. Equipped with a 1.5 HP motor and industrial-grade construction throughout, it handles full-capacity operation across long production cycles. JET warranty coverage backs every production-grade finish.

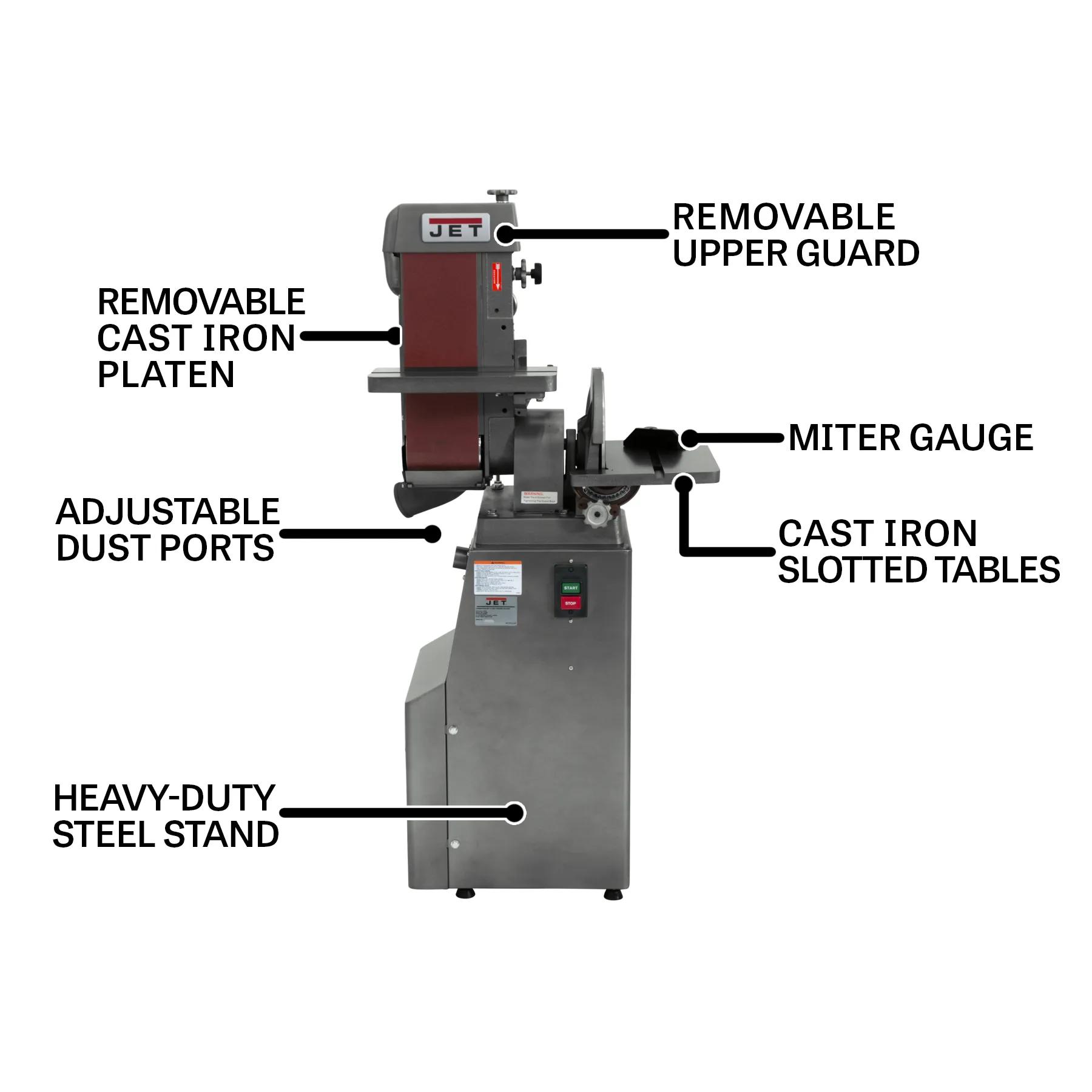

Features

  • The 1.5 HP induction motor — running tens of thousands of hours without service intervention for sustained-load operation production work demands.
  • Factory-tested abrasive belt drive — handling the abrasive media library production finishing uses across industrial sanding environments.
  • Industrial-spec belt design handles the abrasive cycle counts for the belt-length production finishing depends on.
  • Disc surface delivers flat grinding geometry for consistent surface finish at full RPM.
  • Professional-grade tilting table — delivering angle-grinding authority production finishing demands across production grinding.
  • Cast iron main castings hold reference flat for the rigidity precision work demands.

Specifications

  • SKU
    JT9-414552
  • Abrasive Type
    Belt/Disc
  • Assembled Dimensions
    25-1/2 x 16 x 43 in., 19 x 16 x 57-1/2 in.
  • Belt Size
    6 x 48 in.
  • Belt Speed
    2850 SFPM
  • Belt Table Size
    7-3/8 x 14-3/4 in.

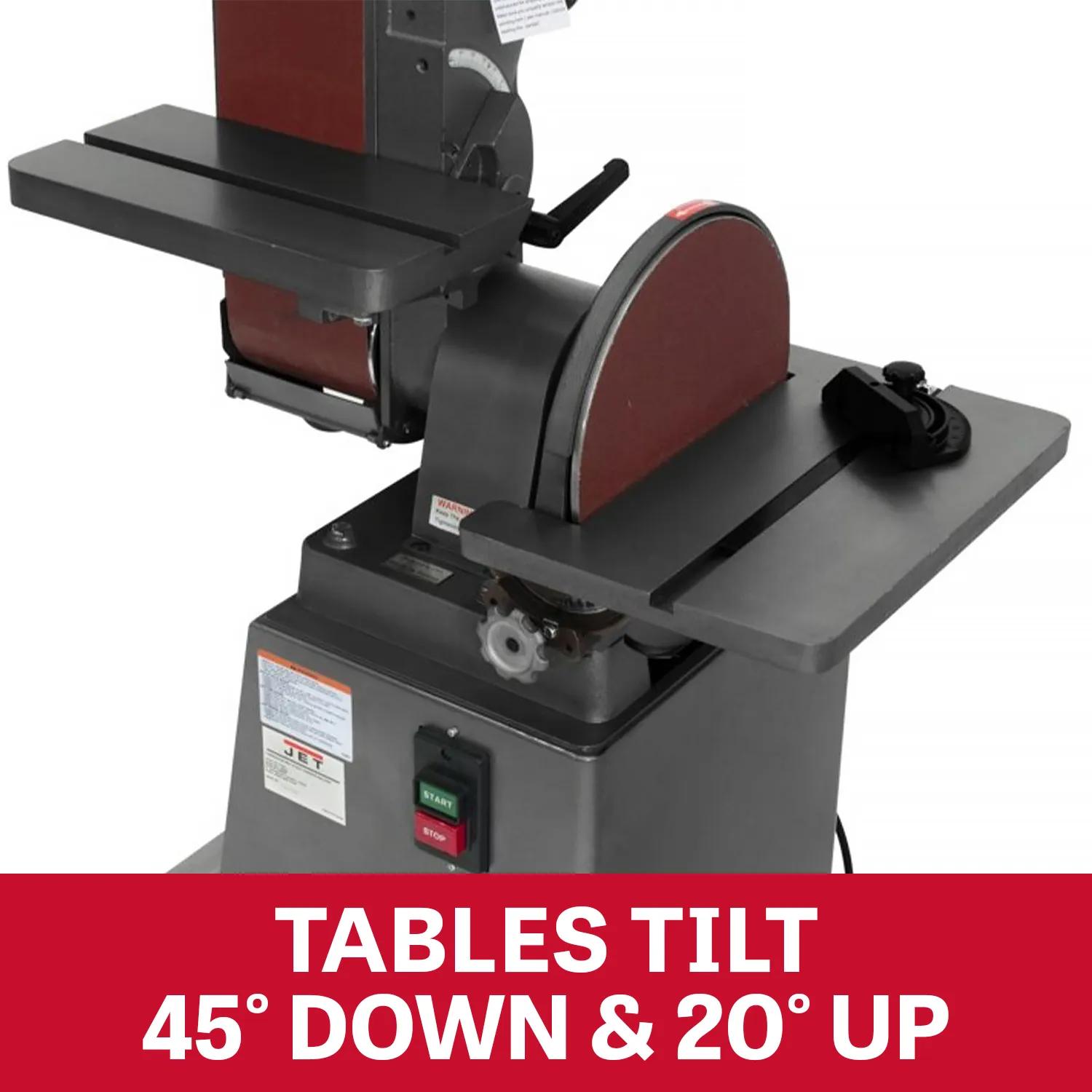

  • Belt Tilt Range
    20 Deg. Up, 45 Deg. Down
  • Disc Diameter
    12 in.
  • Disc Speed
    1960 RPM
  • Disc Table Size L X W
    12 x 16-3/8 in.
  • Disc Table Tilt
    45 Deg. down, 20 Deg. up
  • Dust Port Outside Diameter
    3 in.
  • Horse Power
    1.5 HP
  • Input Power
    115/230 V 1 Ph
  • Miter Gauge Groove
    3/8 x 3/4 in.
  • Model Number
    J-4200A-2
  • Motor Amps
    12/6 A
  • Motor HP
    1.5 HP
  • Motor Phase
    Single
  • Motor Voltage
    230 V
  • Old Material Number
    414552
  • Platen Size
    6-1/4 x 14-3/4 in.
  • Prewired Voltage
    220 V
  • Product Type
    Machines
  • Prop 65
    Cancer and Reproductive Harm
  • Recommended Circut Size Amp
    6 A
  • Required Cfm
    300 - 300 CFM
  • SAP Gross Weight
    300
  • SAP Net weight
    250
  • Sound Rating Db
    80 dB
  • UPC
    662755111358
  • Warranty
    Two Years
