JBOS-5, Benchtop Oscillating Spindle Sander, 1/2HP, 1Ph 115V
Stock Number:
JT9-708404
JET JBOS-5 Benchtop Oscillating Spindle Sander, 1/2 HP, 1PH 115V (708404)
Manual

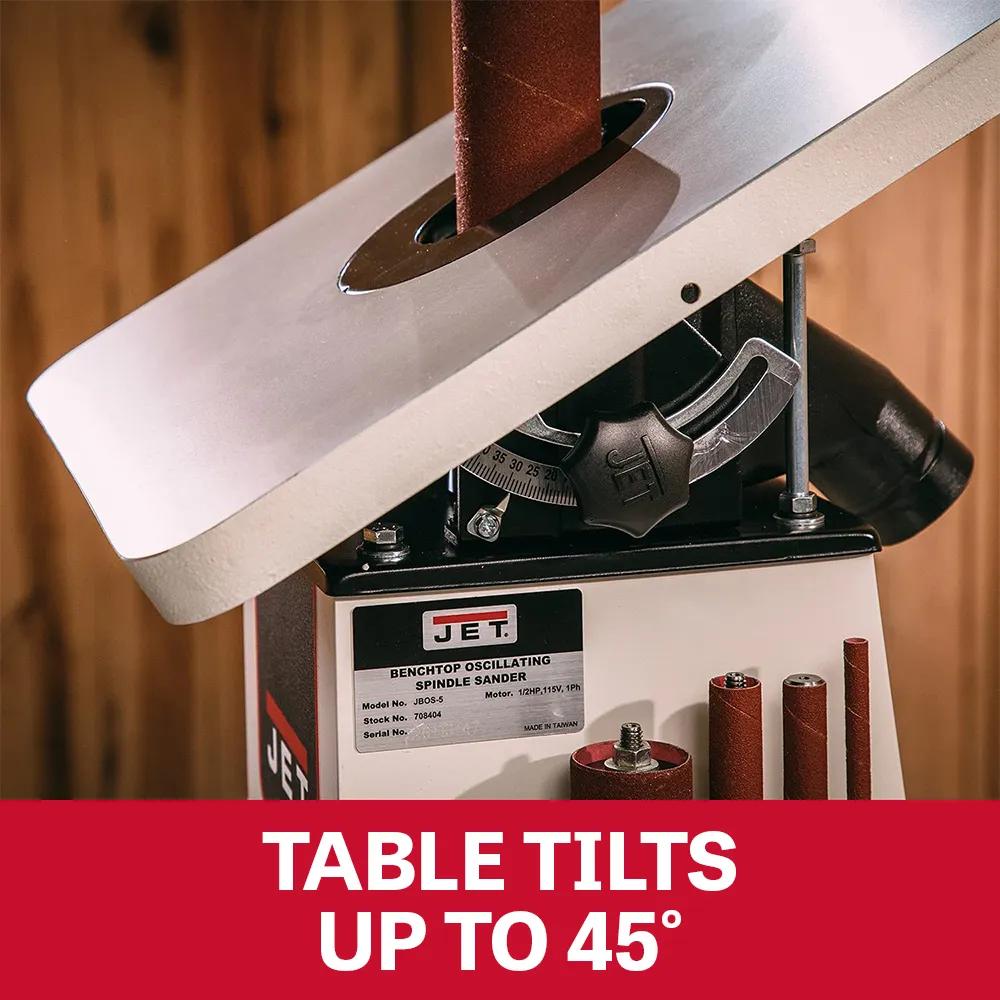

The JBOS-5 Benchtop Spindle Sander has a powerful 1/2HP induction motor and a large 14-1/2” table that tilts to 45° which easily handles the toughest sanding projects. A heavy-duty worm gear system provides one-inch oscillating action, which prolongs sleeve life and helps prevent burnishing of the workpiece. Four inserts are provided, and 5 spindles with sanding sleeves.
1" Oscillating action reduces friction heat to protect wood and prolong sleeve life
Built-in storage racks keep spindles and table inserts handy
Four table inserts are provided (3/4" and 1" Oblong, 3/4" and 1" Round), to prevent dust and debris from falling into the motor and help protect operator

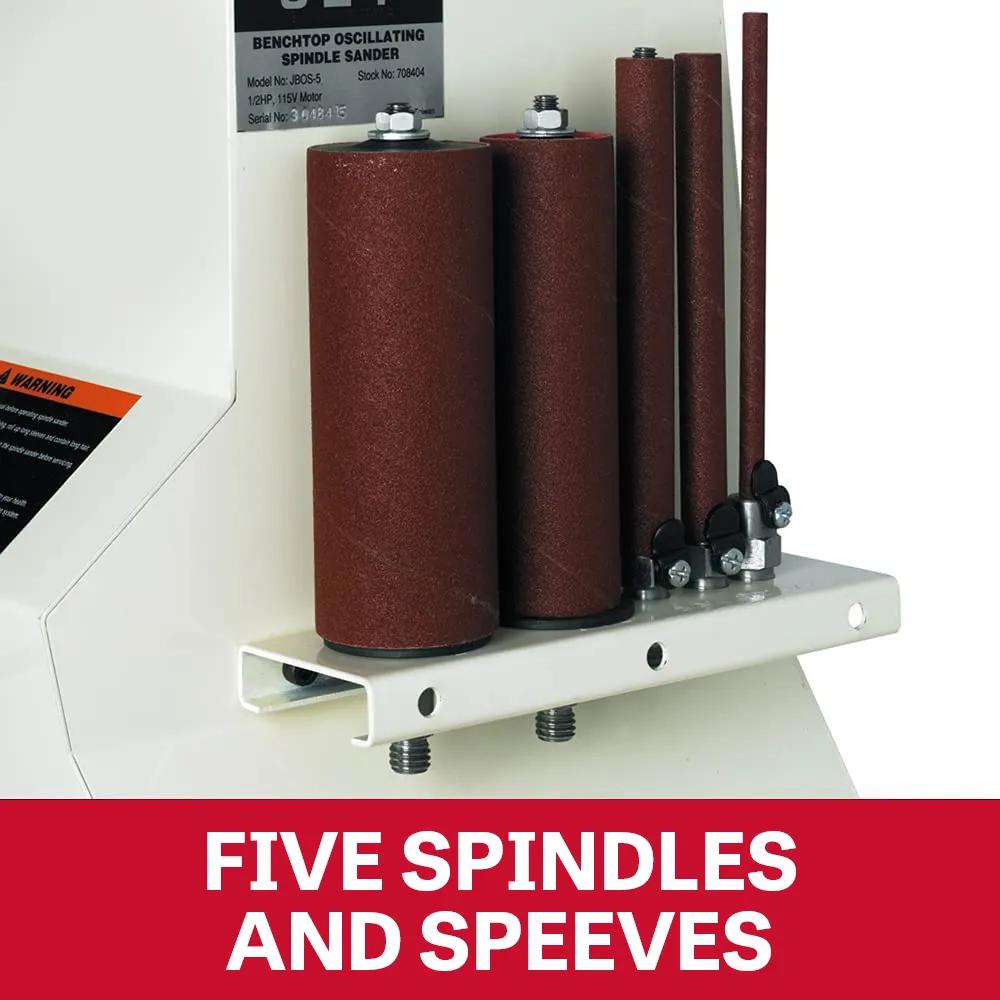

Includes 1/4", 1/2", 5/8", 1-1/2", 2" spindle assemblies with 100 grit paper
Includes four non-skid rubber feet keep machine stable during use
Main spindle support runs on precision ball bearings and is oscillated by a heavy-duty worm and gear mechanism for consistent performance
Oscillation gears run in a sealed lubricated box to prolong their life and durability
Spindles have threaded ends for quick, easy changes
| Stock Number | JT9-708404 |
|---|---|
| Model Number | JBOS-5 |
| Warranty | 5 Year |

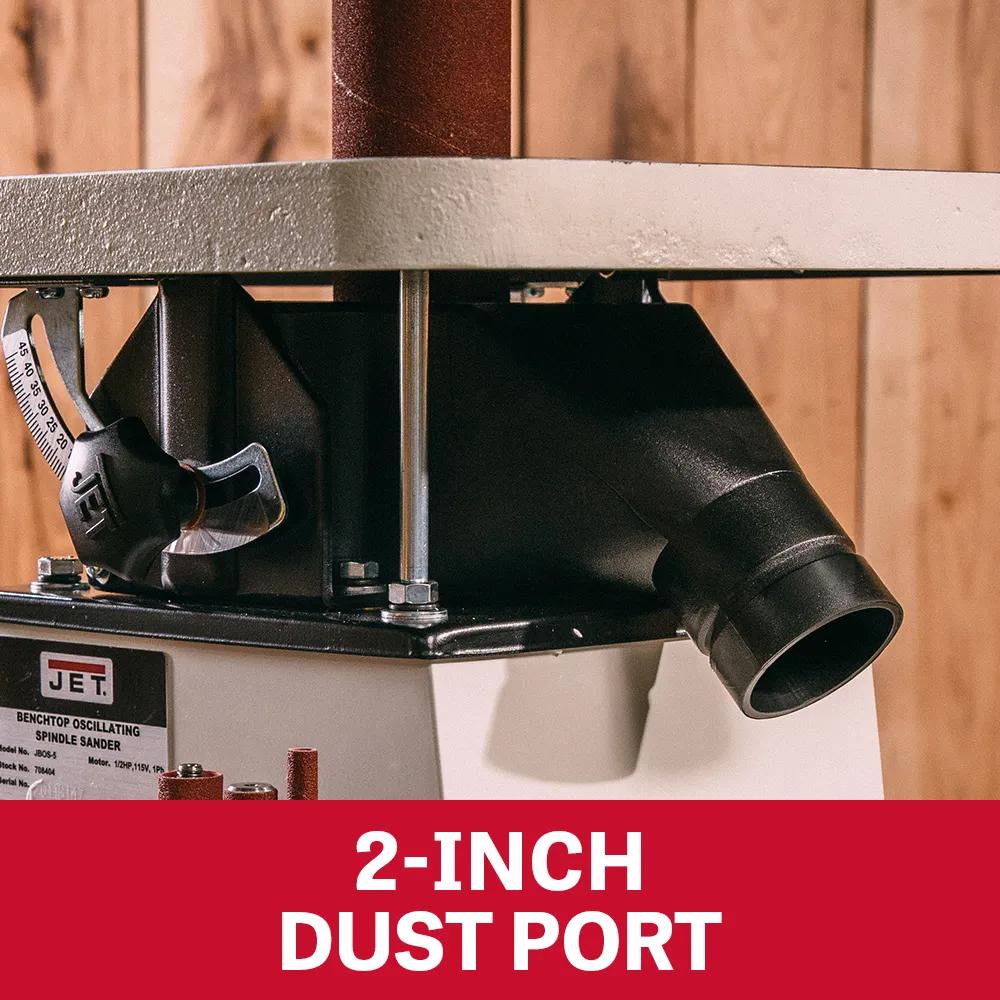

| Dust Port Outside Diameter (In.) | 2 |
| Spindle Speed (RPM) | 1,725 |
| Oscillations Per Minute | 30 |
| Oscillation Stroke (In.) | 1 |
| Table Size (L x W) (In.) | 14-1/2 x 14-1/2 |
| Motor Amps | 3 |
| Motor Phase | 1 |
| Motor Power (HP) | 1/2 |
| Prop 65 | Cancer and Reproductive Harm |
| Style (Type) | Benchtop |
| Gross Weight | 82.0 |
| Net weight | 75.6 |
