13" x 40" Gear Head Lathe, 230V 1 PH (GH-1340)
The JET GH-1340 Gear Head Lathe is built for shops that demand precision, durability, and operator safety without compromise. Designed for MRO, fabrication, and precision machining environments, this 13” x 40” manual lathe delivers powerful cutting performance, industry-leading safety features, and the support backing of JET’s nationwide service network.
With a large 2” spindle bore, rigid cast iron construction, and 8-speed gear head drive, the GH-1340 is engineered for reliable turning across a wide range of materials and applications.
Built for Safer Operation
Unlike many competitor machines that treat safety as an add-on, the GH-1340 includes critical safety features as standard equipment:
- JET Electronic Chuck Key Holder (E-Chuck Key) to reduce the risk of leaving a key in the chuck
- Foot Brake for rapid spindle stopping
- Emergency Stop
- Chuck Guard
- Leadscrew Cover to prevent debris buildup and reduce maintenance issues
- UL 987 Certified Electrical System
These integrated safety features help reduce shop-floor hazards and protect both new and experienced operators.
Productivity That Maximizes Uptime
The GH-1340 is designed to keep your shop running:
- Rigid Cast-Iron Base for reduced vibration and improved accuracy
- 2 HP Motor (230V, 1 Phase) for dependable cutting power
- 8 Spindle Speeds (70–2000 RPM) for material flexibility
- Integrated Coolant System
- Full-Length Splash Guard
- Chip Tray for Easy Cleanup
- Halogen Work Light
Every GH-1340 undergoes a 30-Point Pre-Shipment Inspection to verify setup and operation before it reaches your shop, reducing installation time and startup headaches.
Backed by a 2-Year Parts & Labor Warranty, the GH-1340 offers predictable ownership costs and long-term reliability.
Industries Served
MRO (Maintenance, Repair & Operations)
- Utilities
- Institutional maintenance shops
- Manufacturing facilities
Ideal for repairing and reverse-engineering cylindrical components.
Fabrication & Contract Shops
- Construction
- Infrastructure
- Job shops
Perfect for turning, facing, and threading custom components.
Precision Machining
- Aerospace
- Automotive
- Defense
- Medical device manufacturing
- Technical education programs
Engineered for repeatable accuracy and reliable performance.
Why Choose the JET GH-1340?
Shops choose JET because the GH-1340 solves real-world frustrations:
- Safer standard features — not costly add-ons
- Verified electrical compliance (UL 987 Certified)
- Larger 2” spindle bore for increased versatility
- 30-point inspection before shipment
- 2-year parts & labor warranty
- Nationwide service network with 250+ authorized service centers
JET wins by delivering safer, more powerful, and more durable turning solutions.

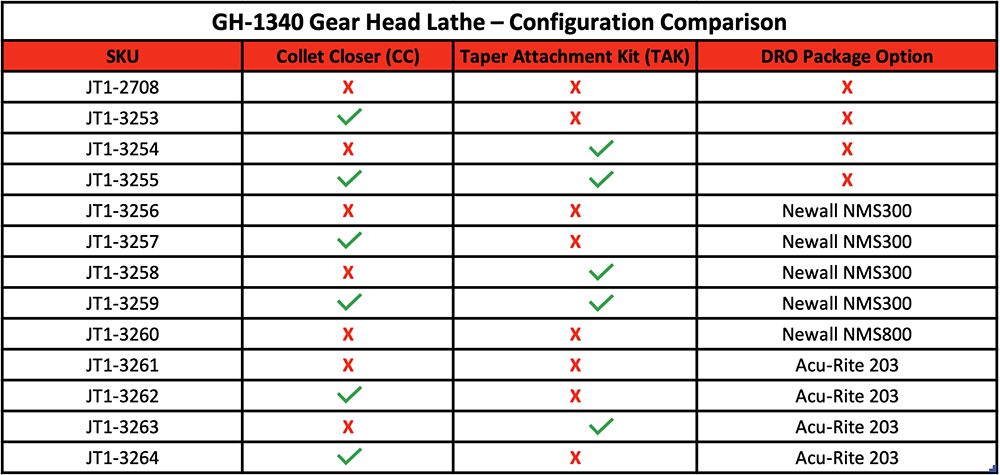

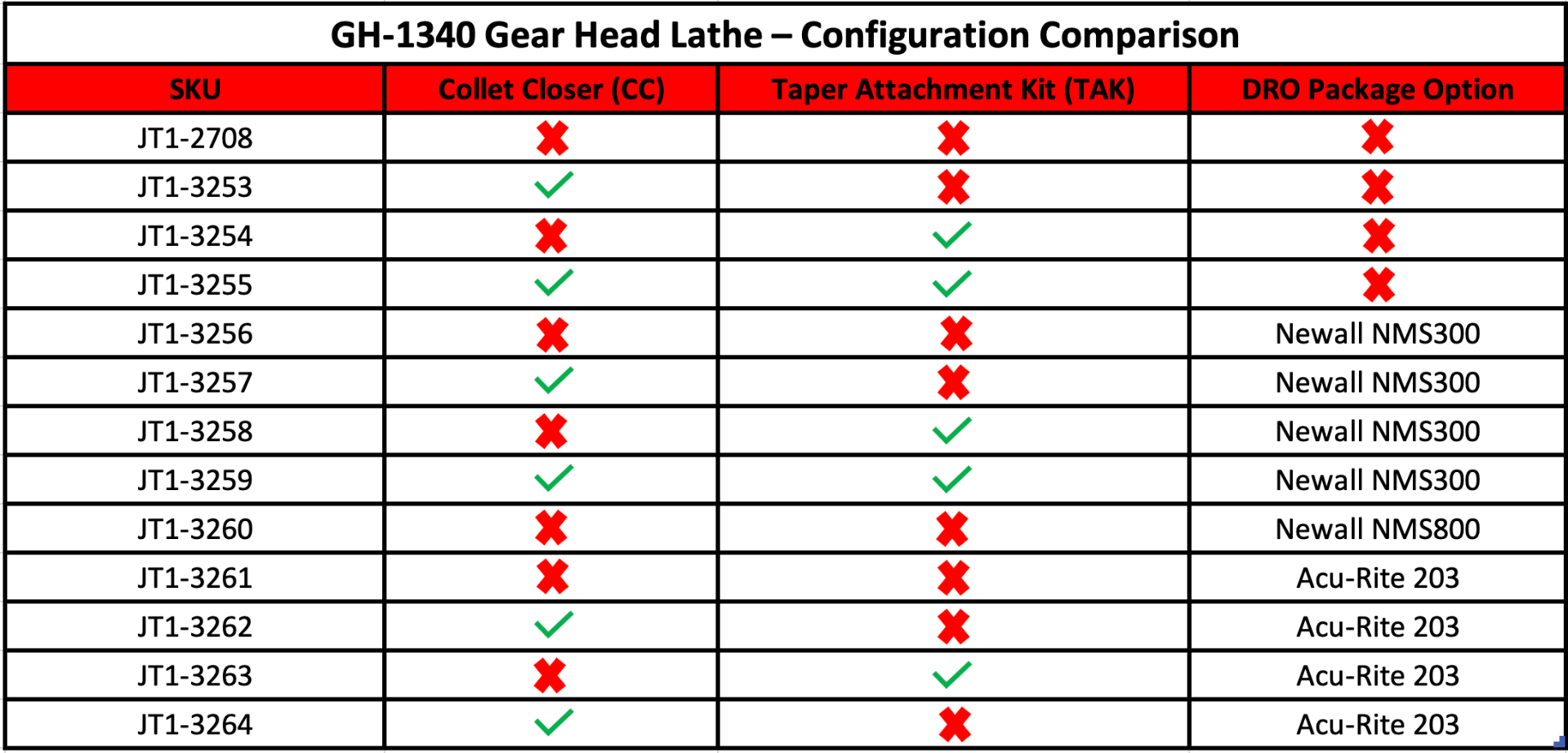

Available Options & Accessories
Customize the GH-1340 to match your workflow:
- 2-Axis Digital Readout (DRO) – Optional
- Collet Closer – Optional
- Taper Attachment Kit – Optional
These upgrades allow shops to increase precision, efficiency, and capability as production demands grow.
| Stock Number | JT1-2708 |
|---|---|
| Carriage Travel (In.) | 35 |
| Compound Slide Travel (In.) | 2-11/16 |
| Drive | Geared Head |
| Length of Gap (In.) | 8 |
| Max Tool Size (In.) | 5/8 x 5/8 |
| Model Number | GH-1340 |
| Motor (HP) | 2 HP, 230V, 1Ph |
| Number of Inch Threads | 38.0000 |
| Number of Longitudinal and Cross Feed Rates | 40 |
| Number of Metric Threads | 23.0000 |
| Number of Spindle Speeds | 8 |
| Overall Dimensions (L x W x H) (In.) | 79 x 28-1/2 x 30 |
| Prop 65 | Cancer and Reproductive Harm |
| Range of Cross Feeds (IPR) | .0006 - .0130 |
| Range of Inch Threads (TPI) | 3-1/2 - 80 |
| Range of Longitudinal Feeds (IPR) | .0018 - .0374 |
| Range of Metric Threads | .45 - 10 |
| Range of Spindle Speeds (RPM) | 70 - 2,000 |
| Size | 13 x 40 |
| Spindle Bore (In.) | 1-3/8 |
| Spindle Mount | D1-4 |
| Spindle Taper with Sleeve | MT-5 (MT-3) |
| Steady Rest Capacity (In.) | 2-3/4 |
| Style (Type) | Bench - Geared Head |
| Swing Over Bed (In.) | 13 |
| Swing Over Cross Slide (In.) | 7-25/32 |
| Swing Through Gap (In.) | 18-3/4 |
| Tailstock Spindle Travel (In.) | 3-3/4 |
| Taper in Tailstock Spindle | MT-3 |
| Warranty | 2 Year |
| Width of Bed (In.) | 7-3/8 |
| Gross Weight | 1236.0 |
| Net weight | 1154.0 |
