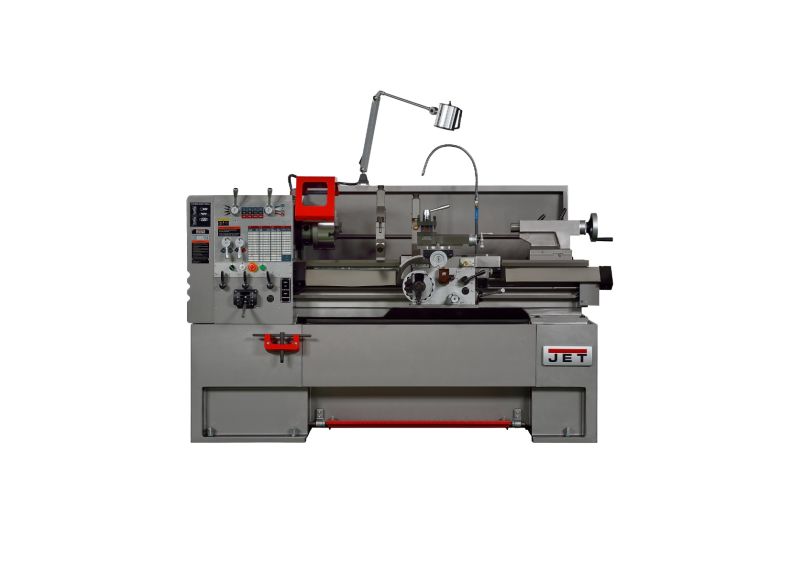

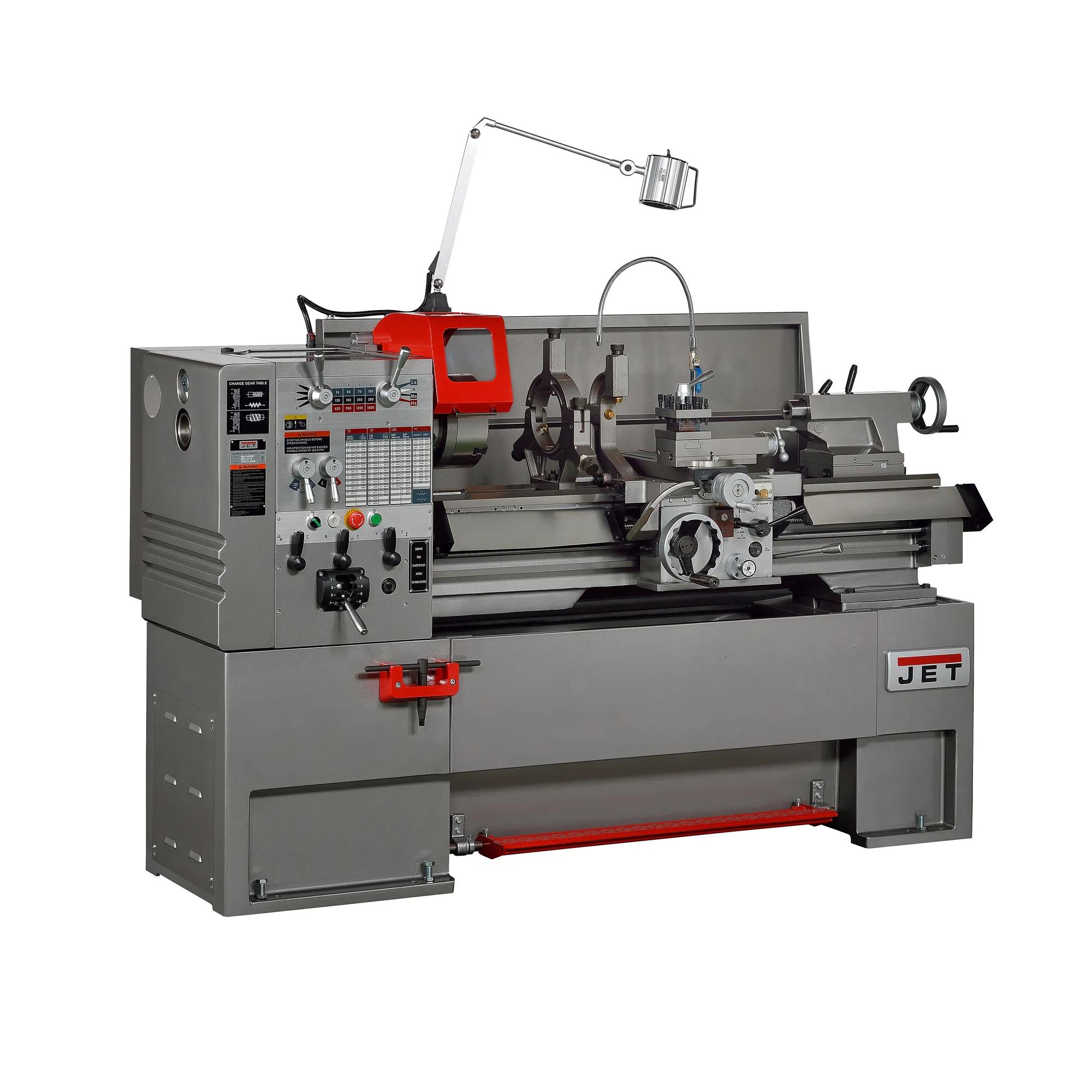

14" x 40" Large Spindle Bore Gear Head Lathe (GH-1440ZX)
The JET GH-1440ZX is a 14" x 40" large spindle bore gear head lathe engineered for serious turning in fabrication, maintenance, energy, and industrial machining environments. Built with a rigid one-piece cast iron base, a powerful 5HP 3-phase motor, and a 2.55" spindle bore, this machine delivers the strength, control, and repeatability required for heavy cuts and consistent results.
Designed to reduce secondary operations and increase shop throughput, the GH-1440ZX allows larger stock to pass directly through the headstock, minimizing cutoffs and re-chucking. With 12 spindle speeds ranging from 36–1800 RPM, operators gain the flexibility needed for turning, facing, threading, boring, grooving, knurling, and parting operations across a wide range of materials.
Safety and uptime are built in — not added on. The GH-1440ZX is UL 987 Certified, includes a standard foot brake, chuck guard, lead screw cover, electronic chuck key holder, and is backed by JET’s industry-leading 2-year parts and labor warranty.
Every machine undergoes a documented 30-Point Inspection before shipment to ensure accuracy, safety validation, and operational readiness.
For shops upgrading legacy equipment or expanding turning capacity, the GH-1440ZX delivers the capability of a large bore lathe with the confidence of certified safety and national service support.
OPTIONAL ACCESSORIES
- Collet Closer
- Taper Attachment
- 2-Axis DRO
| Stock Number | JT1-2711 |
|---|---|
| Carriage Travel (In.) | 35 |
| Compound Slide Travel (In.) | 4.9" |
| Cross Slide Travel (In.) | 8.6" |
| Distance Between Centers (In.) | 40" |
| Drive | Geared Head |
| Length of Gap (In.) | 7-2/3 |
| Max Tool Size (In.) | 5/8 x 5/8 |
| Model Number | GH-1440ZX |
| Modular Pitch Threads Number | 18 |
| Modular Pitch Threads Range | 0.3 - 3.5 |
| Motor Phase | 3 |
| Motor Power (HP) | 5 |
| Motor Voltage (V.) | 230 |
| Number of Inch Threads | 45 |
| Number of Longitudinal and Cross Feed Rates | 40 |
| Number of Metric Threads | 39 |
| Number of Spindle Speeds | 12 |
| Prop 65 | Cancer and Reproductive Harm |
| Range of Cross Feeds (IPR) | 0.001" - 0.034" |
| Range of Inch Threads (TPI) | 2-72 |
| Range of Longitudinal Feeds (IPR) | 0.002" - 0.067" |
| Range of Metric Threads | 0.2 - 14mm |
| Range of Spindle Speeds (RPM) | 36-1800 RPM |
| Size | 14 x 40 |
| Spindle Bore (In.) | 2.55" |
| Spindle Mount | D1-6 |
| Spindle Taper | MT6 |
| Spindle Taper with Sleeve | MT-4 |
| Style (Type) | Engine - Large Spindle Bore |
| Swing Over Bed (In.) | 14" |
| Swing Over Cross Slide (In.) | 8.1" |
| Swing Through Gap (In.) | 21" |
| Tailstock Spindle Travel (In.) | 6" |
| Taper in Tailstock Spindle | MT 4 |
| Warranty | 2 Year |
| Width of Bed (In.) | 10-1/4 |
| Gross Weight | 3410 |
| Net weight | 3340 |
