JMD-15 Mill/Drill With R-8 Taper 115V1Ph
Stock Number:
JT9-350017
JMD-15 Mill/Drill With R-8 Taper 115V 1Ph
Manual
Mill drills are a lighter alternative to a milling machine. These combine a belt driven drill press with the dual coordinate abilities of the milling machine's table for flexibility and efficiency. A locking collet prevents the cutting tool from falling away from the spindle when lateral forces are experienced against the bit. Although light in construction, the JMD Milling Drilling Machines possess the advantages of space-saving versatility, affordability and light machining capability.
1/2” Drill chuck, chuck arbor
360° head swivel
Adjustable carbide facemill
Base taper allows for easier clean up
Easy to read external depth gauge
Mill Drill Stand, p/n 350045, shown in some images, is optional
One-piece cast iron column for added support
UL Listed
| Stock Number | JT9-350017 |
|---|---|
| Base Dimensions (In.) | 12-1/2 x 19-3/4 |
| Column Diameter (In.) | 3-5/8 |
| Drilling Capacity (In.) | 1 |
| Max Distance Spindle to Table (In.) | 14-1/2 |
| Model Number | JMD-15 |
| Motor (HP) | 1 HP, 115/230V, 1Ph |
| Number of Spindle Speeds | 12 |
| Overall Dimensions (L x W x H) (In.) | 38 x 37-1/2 x 42 |
| Prop 65 | Cancer and Reproductive Harm |
| Quill Diameter (In.) | 2-7/16 |

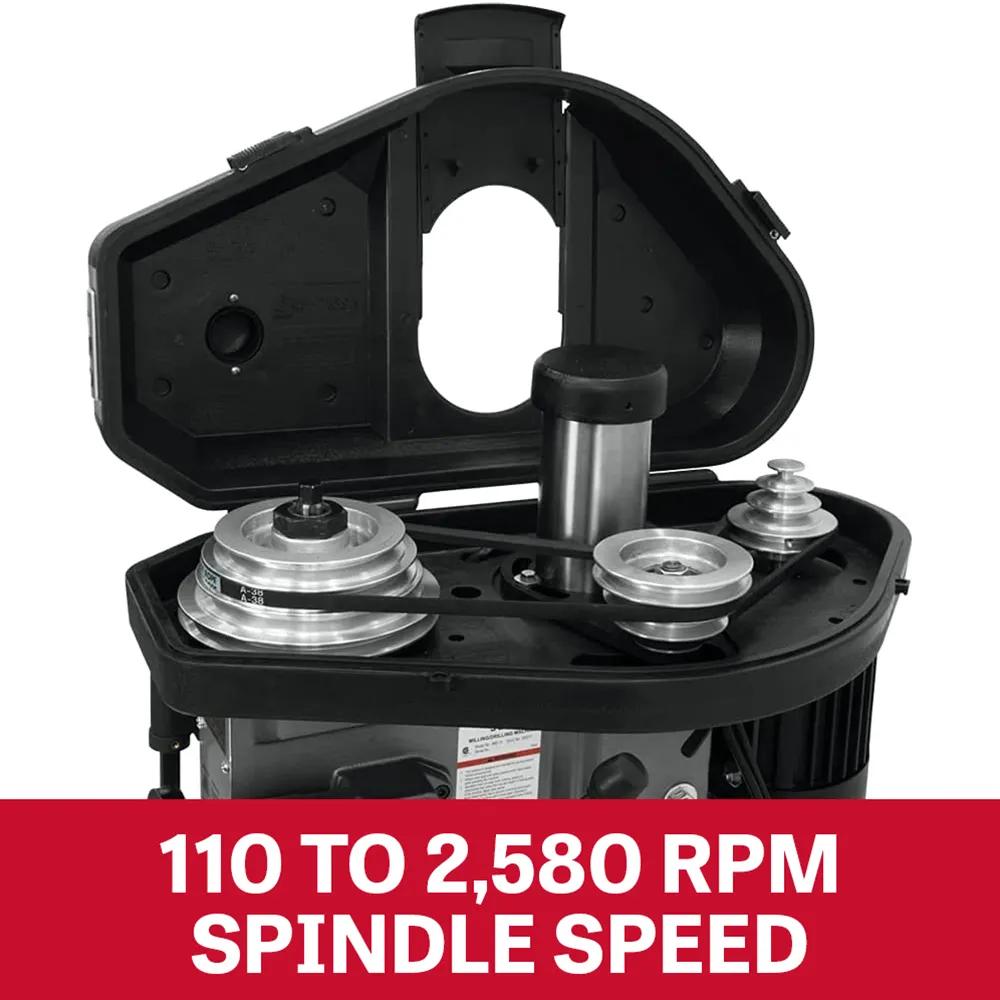

| Range of Spindle Speeds (RPM) | 110 - 2,580 |
| Spindle Taper (In. x TPI) | R-8 |
| Spindle Travel (In.) | 3-1/2 |
| Swing (In.) | 14-1/2 |
| T-Slot Centers (In.) | 1-13/16 |
| T-Slots Number and Size (In.) | 4 and 9/16 |
| Table Longitudinal Travel (In.) | 14 |

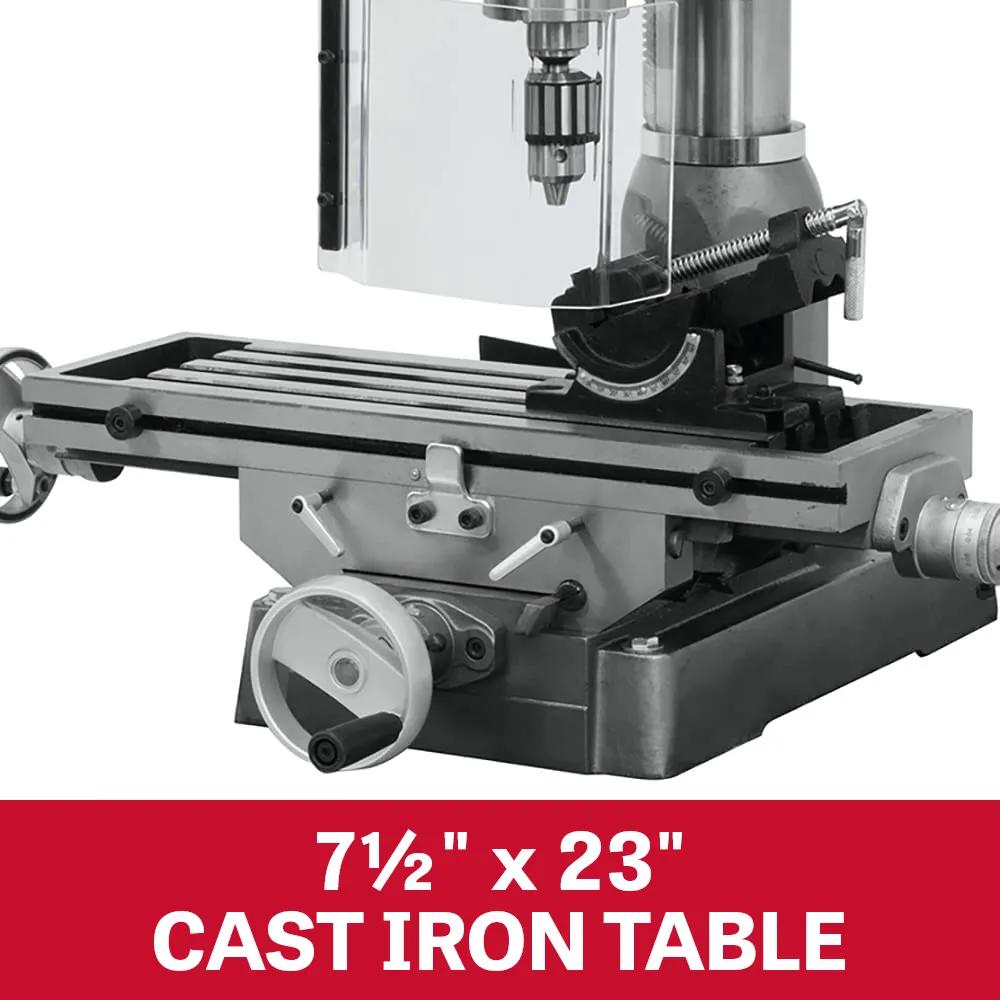

| Table Size (L x W) (In.) | 7-1/2 x 23 |
| Warranty | 2 Year |
| Weight (Lbs.) | 440 |
| Work Table Weight Capacity (Lbs.) | 350 |
| Gross Weight | 457.0 |
| Net weight | 370.0 |
