10" Open Stand Bandsaw, 0.5HP, 115V 1PH(JWB-10)

Stock Number: JT9-714000

0 Reviews

No reviews yet.

  • 0.5 HP, 115V, single-phase

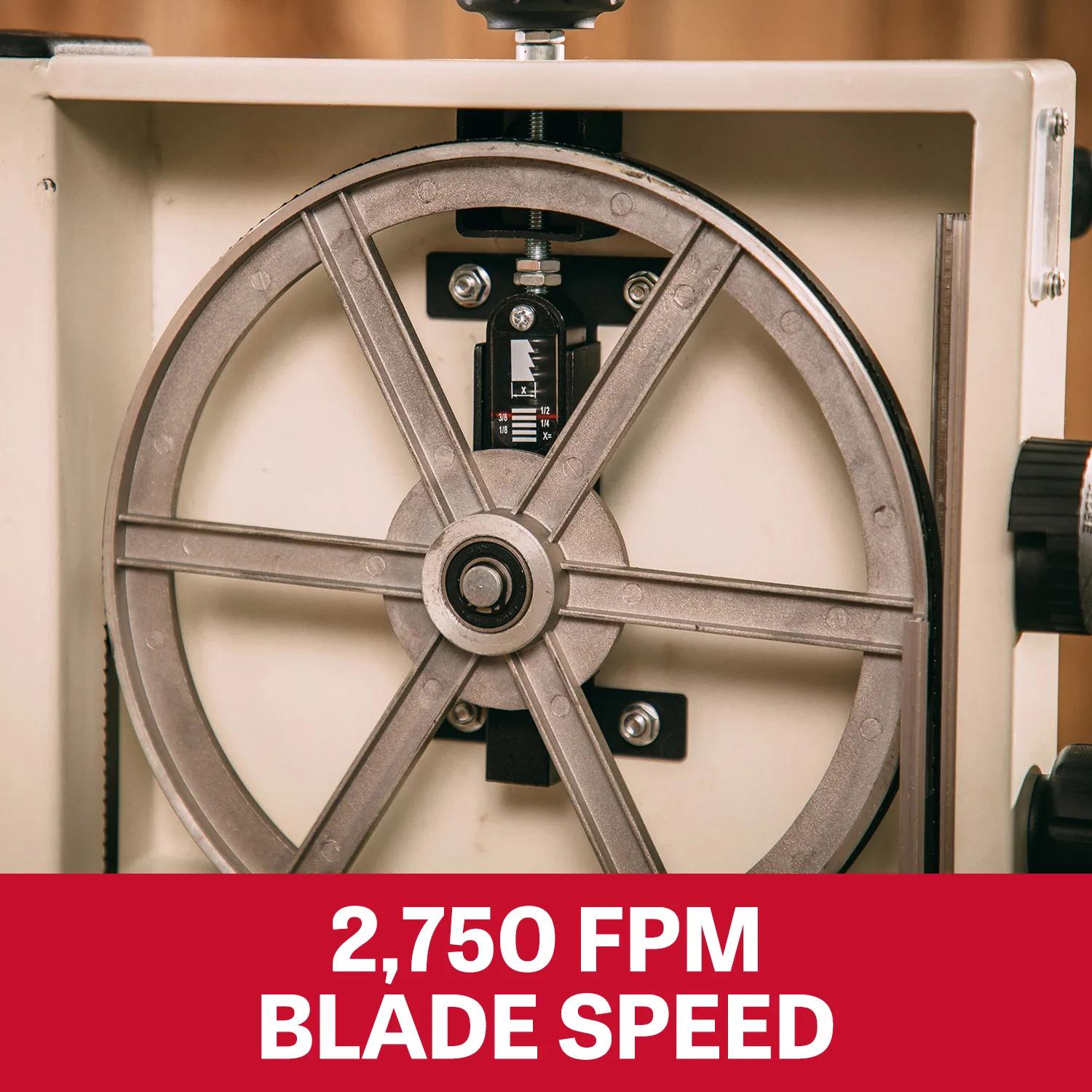

  • 2750 FPM
BUY NOW
Loading Banner
Loading Need Parts Banner

Product Details

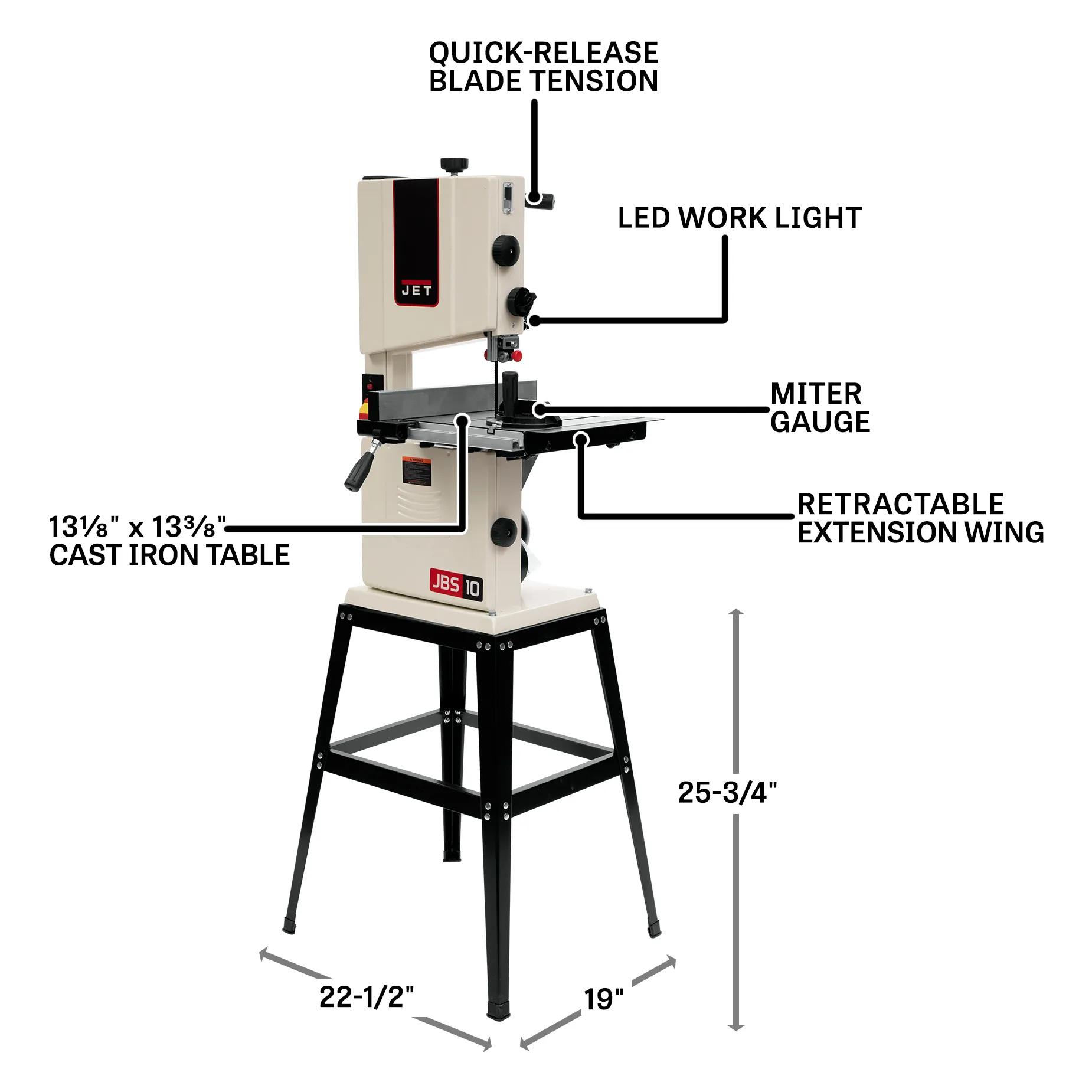

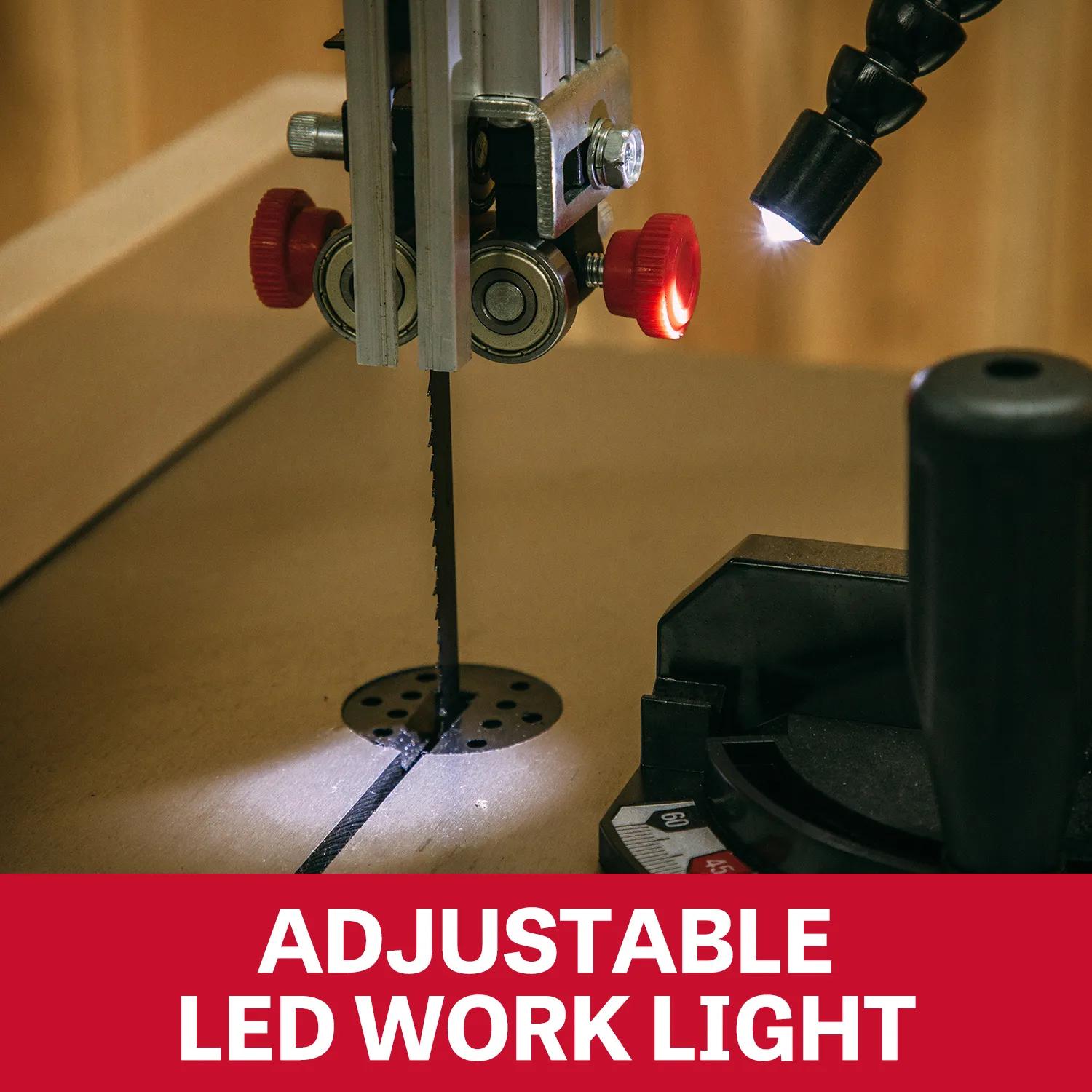

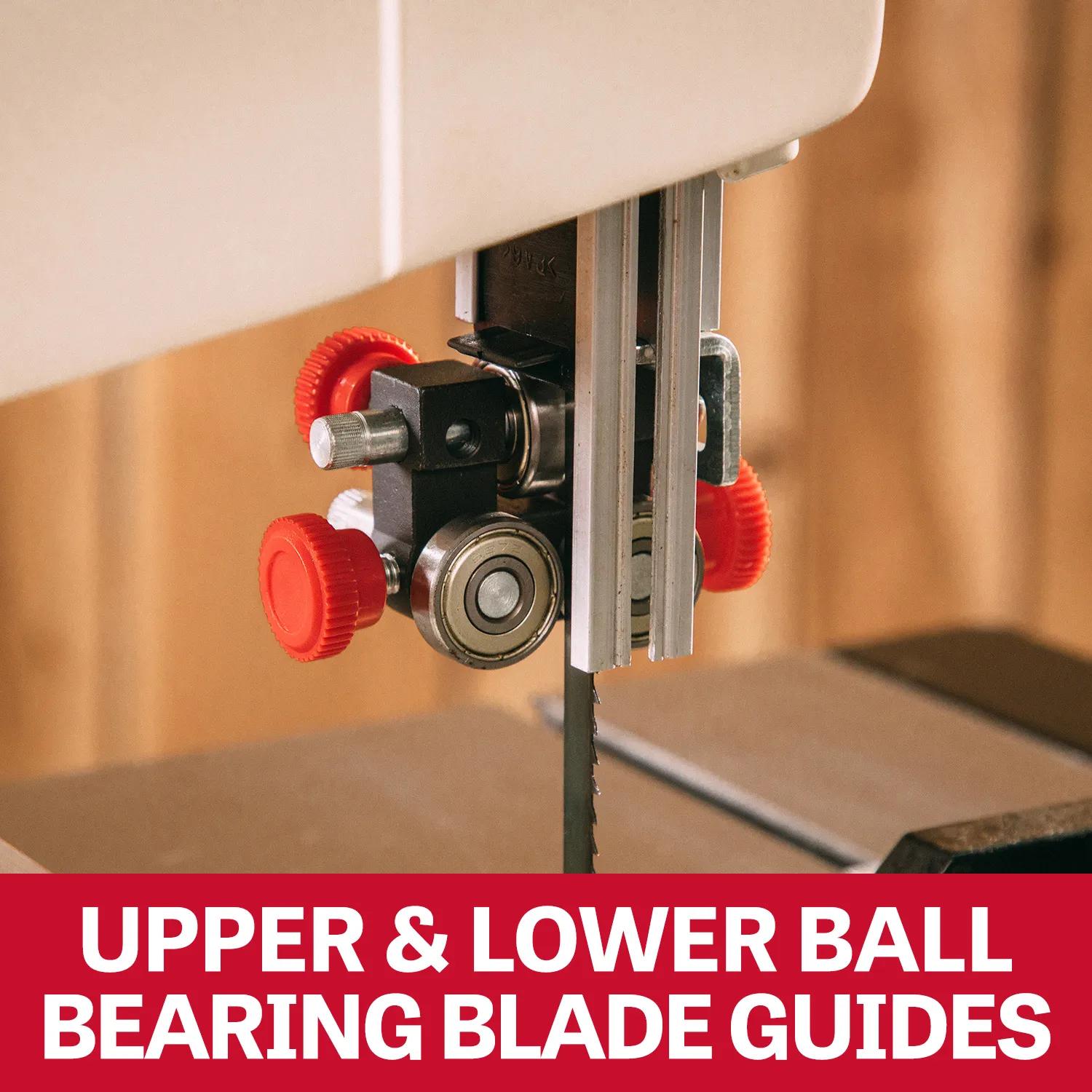

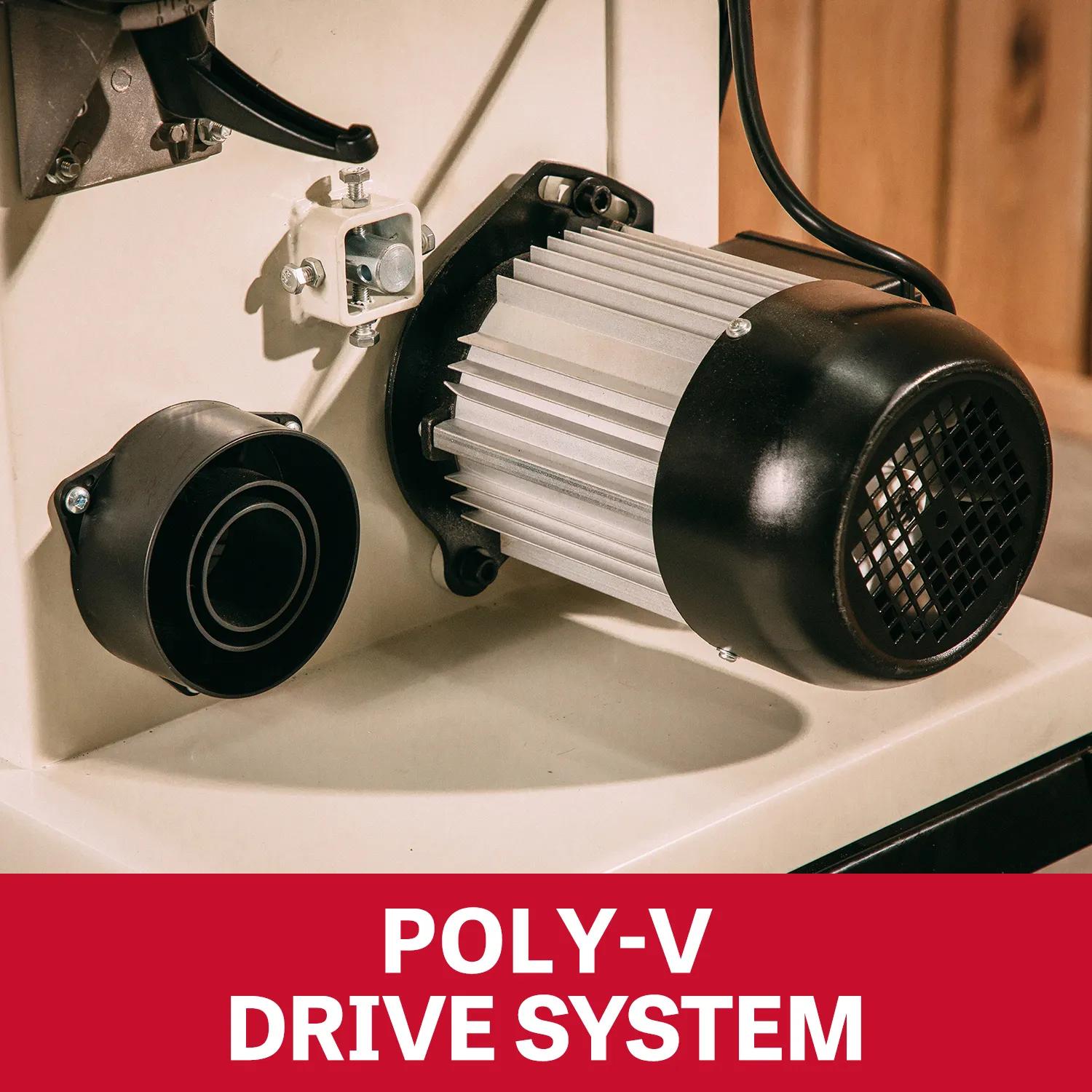

If space is at a premium in your shop, this is the bandsaw for you. The compact benchtop design allows for easy transport to different shop locations, while the Poly-V drive system provides maximum power transfer from motor to blade and reduces vibration. With quick release blade tension, upper and lower ball bearing blade guides, an extra-large cast iron tilting table, and an easily adjustable LED work light, this well-equipped bandsaw has all the features you're used to on bigger bandsaws.

Features

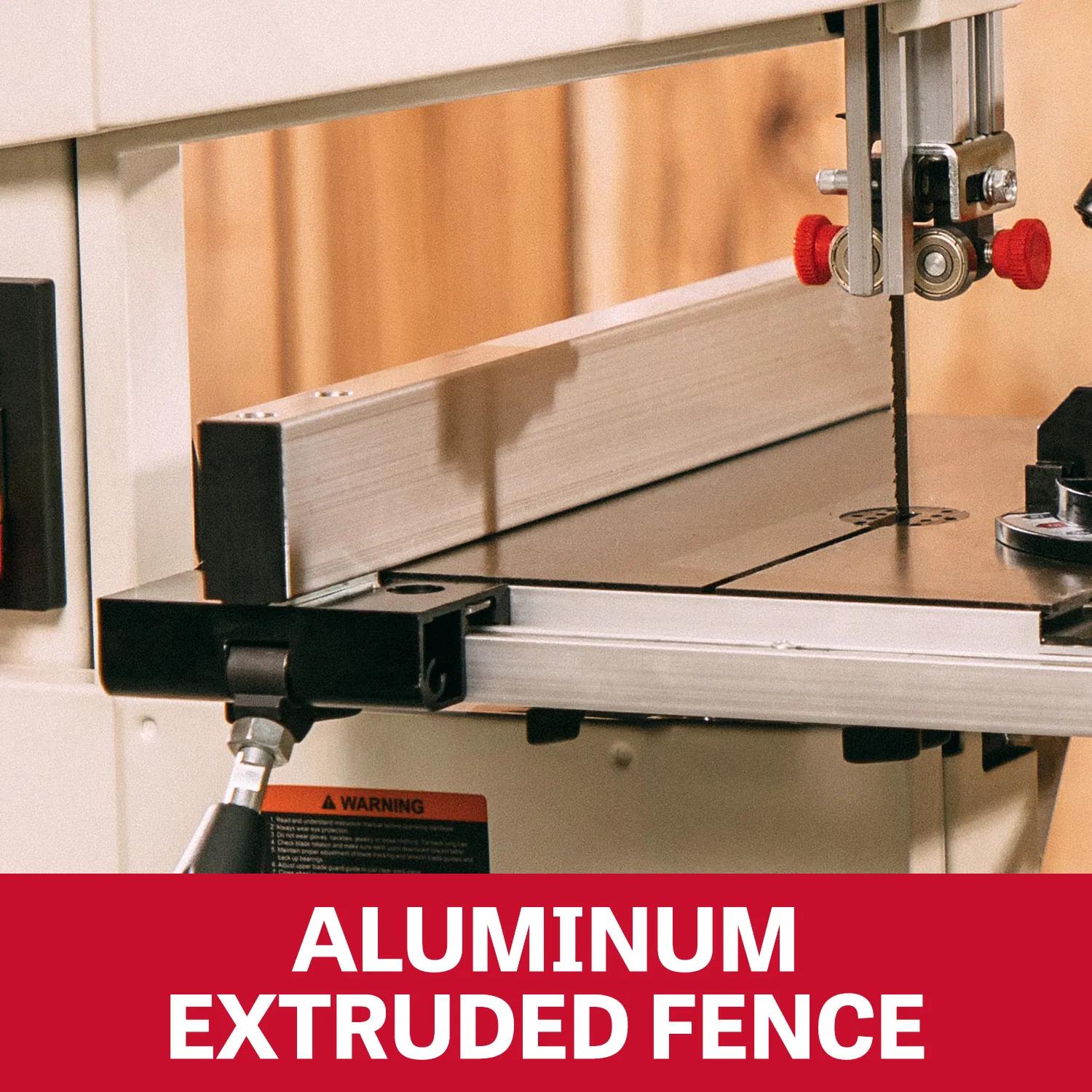

  • Aluminum extruded fence ensures smooth sliding action
  • Blade site window to view blade tracking
  • Dust port accepts multiple size hoses

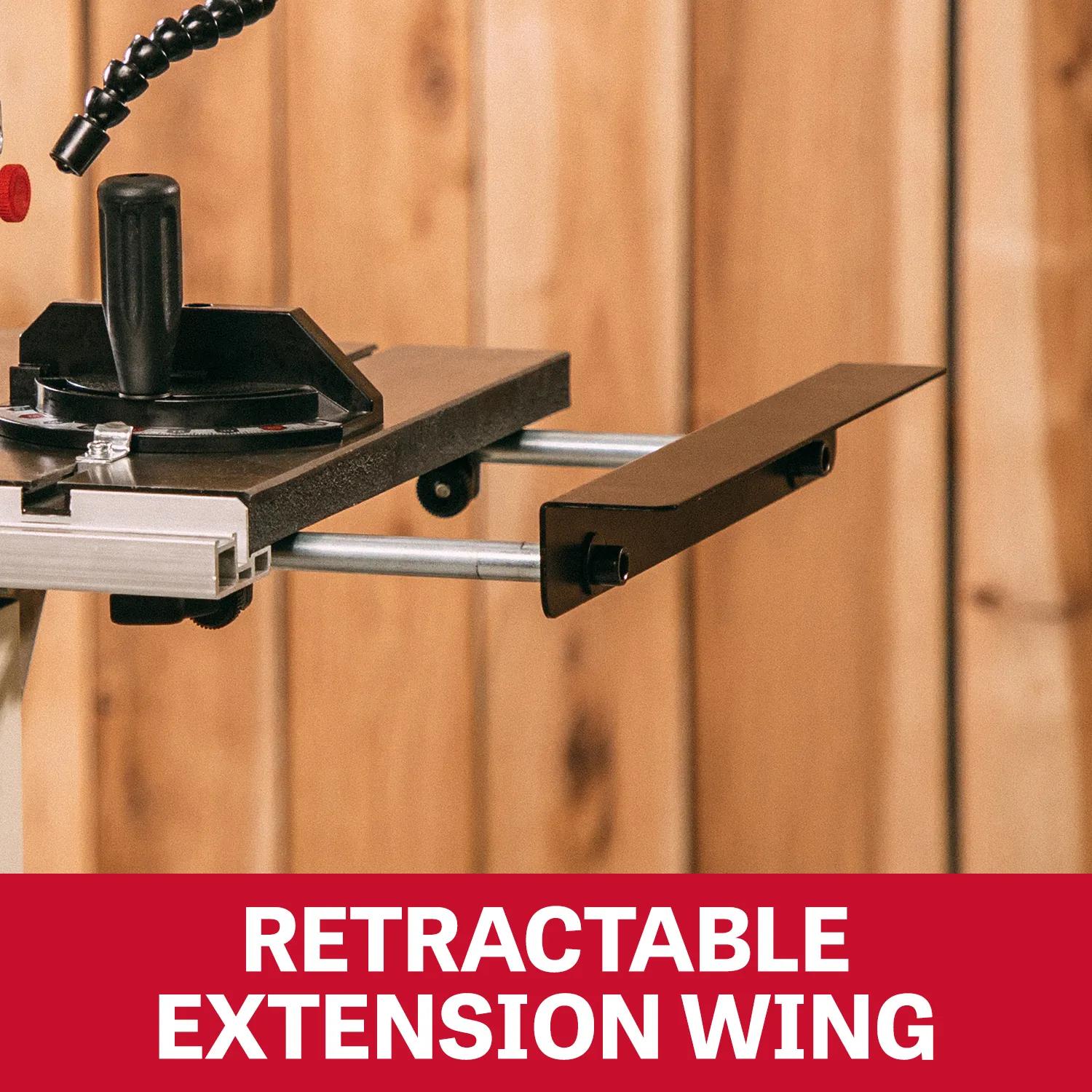

  • Extra large cast iron table with retractable extension wing provides additional work piece support
  • Magnifying cursor enlarges measurement scale for precise fence location
  • One piece welded frame design reduces machine vibration and flex

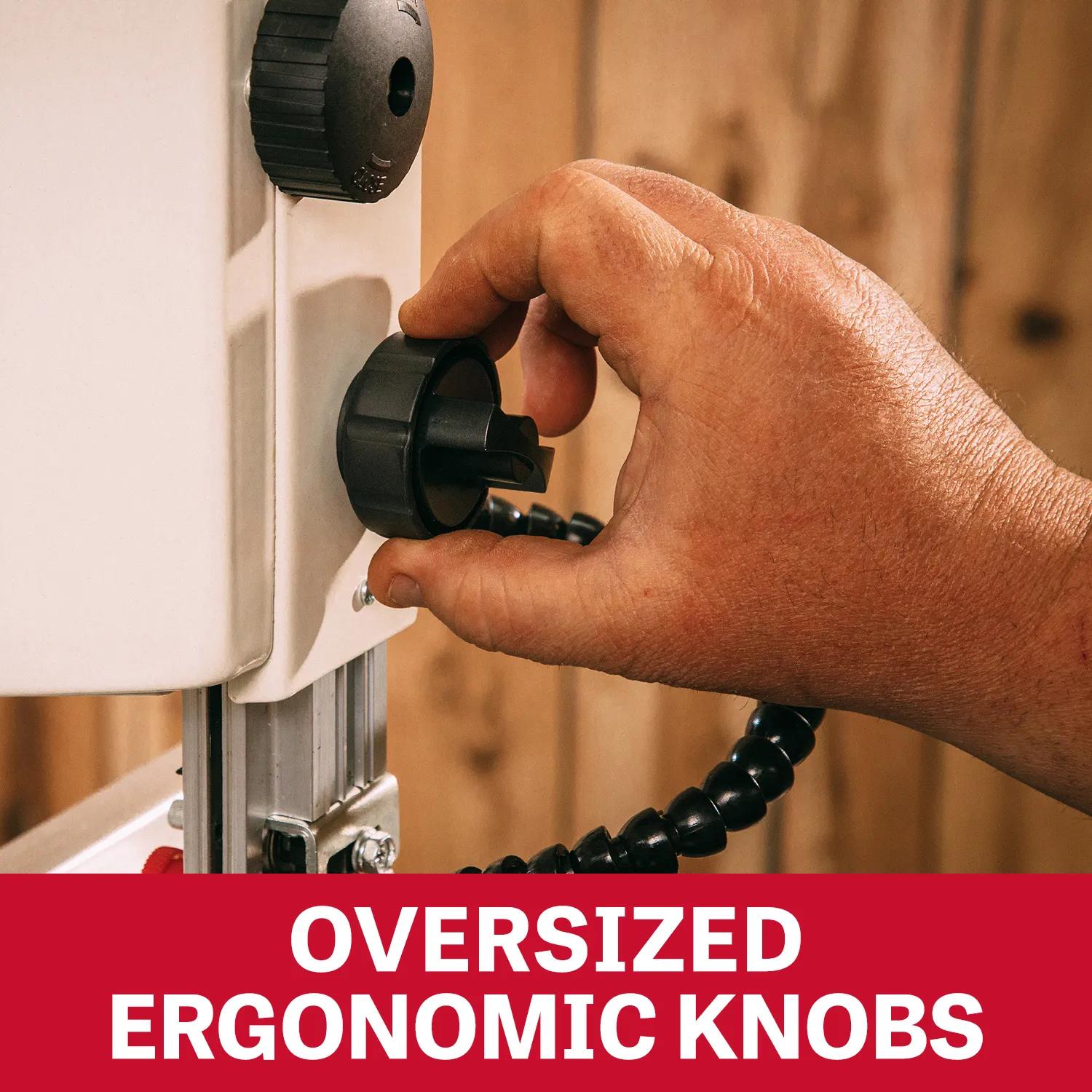

  • Oversized, ergonomic knobs provide ease of use and maximum control
  • Rack and pinion blade guide adjustment with integrated locking knob for precise height control

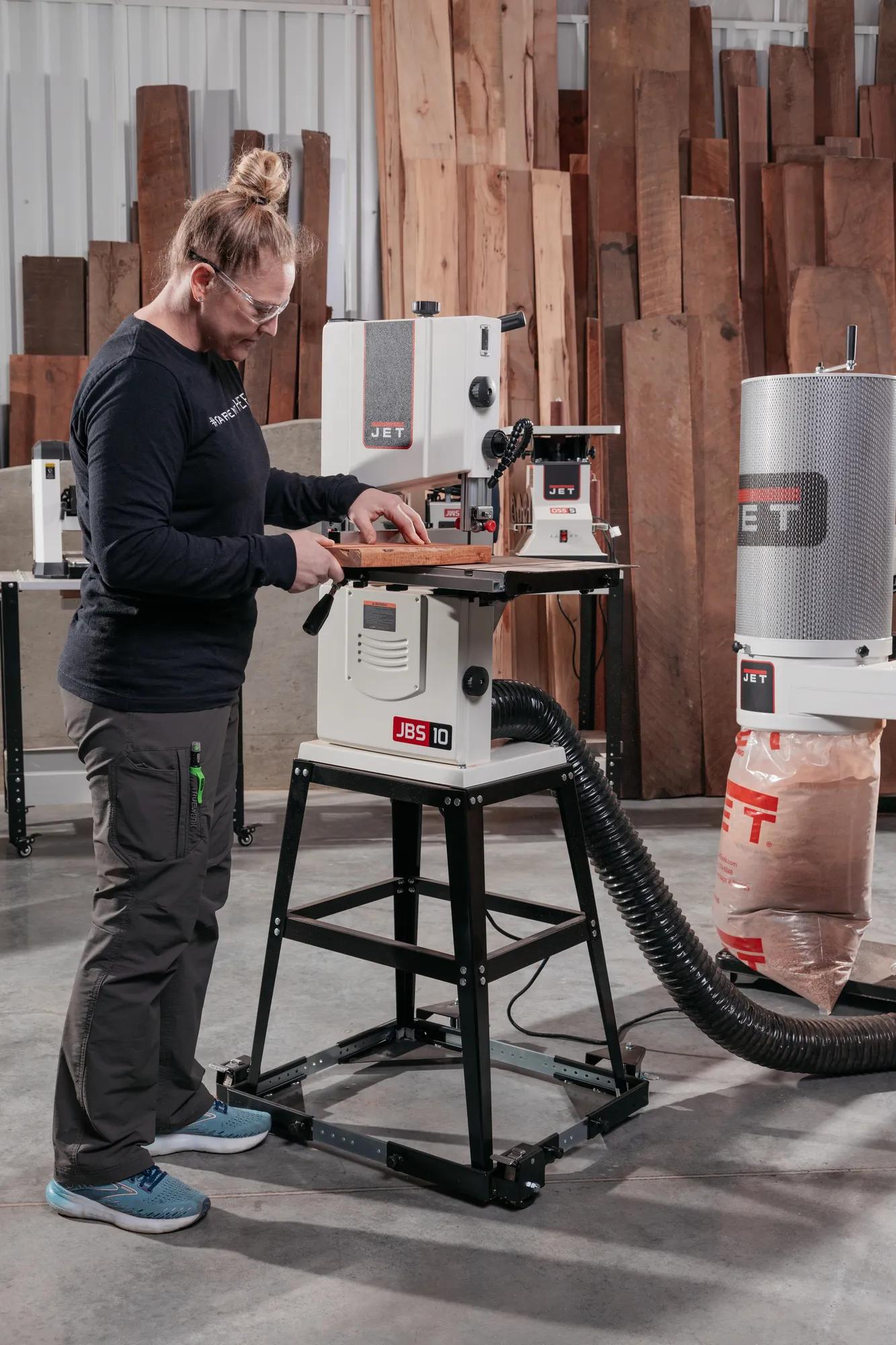

  • Rigid steel stand allows bandsaw to transition from the benchtop to the floor

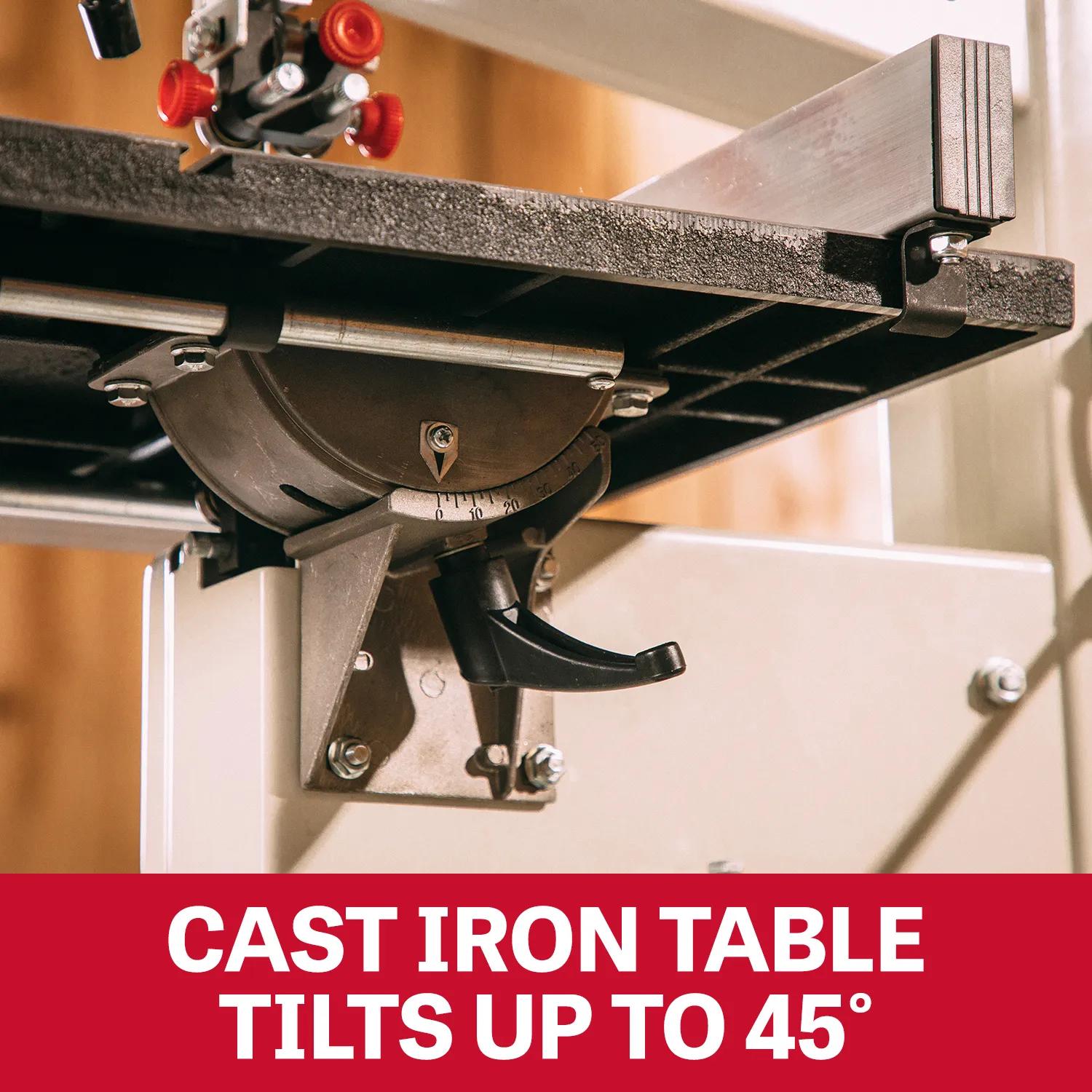

  • Table tilting trunnion allows working angles from 0° to 45°

Specifications

  • SKU
    JT9-714000
  • Assembled Dimensions
    30 x 19-1/2 x 59-1/2 in.
  • Base Size
    22-1/2 x 19 in.
  • Blade Diameter
    10 in.
  • Blade Length
    67-1/2 in.
  • Blade Size (In.)
    67-1/2 in.
  • Dust Port Outside Diameter
    4 in.
  • Height
    59-1/2 in.
  • Maximum Blade Width
    1/2 in.
  • Minimum Saw Blade Width
    1/8 in.
  • Model Number
    JWB-10
  • Overall Assembled (Bow Lowered)
    30 x 19-1/2 x 59-1/2 in.
  • Product Type
    Machines
  • Style Type
    Benchtop
  • Table Height
    41-1/2 in.
  • Table Size
    13-1/8 x 13-3/8 in.
  • Table Size Fully Extended L X W
    13-1/8 x 19 in.
  • Table T-Slot
    3/4 in.
  • Throat Depth
    9-1/2 in.
  • UPC
    731325455878
  • Wheel Diameter
    10 in.
