JWS-35X5-1 Industrial Shaper 5HP, 1Ph
Stock Number:
JT9-708326
JET JWS-35X5-1 Woodworking Shaper, 5HP, 230V 1Ph (708326)
Manual

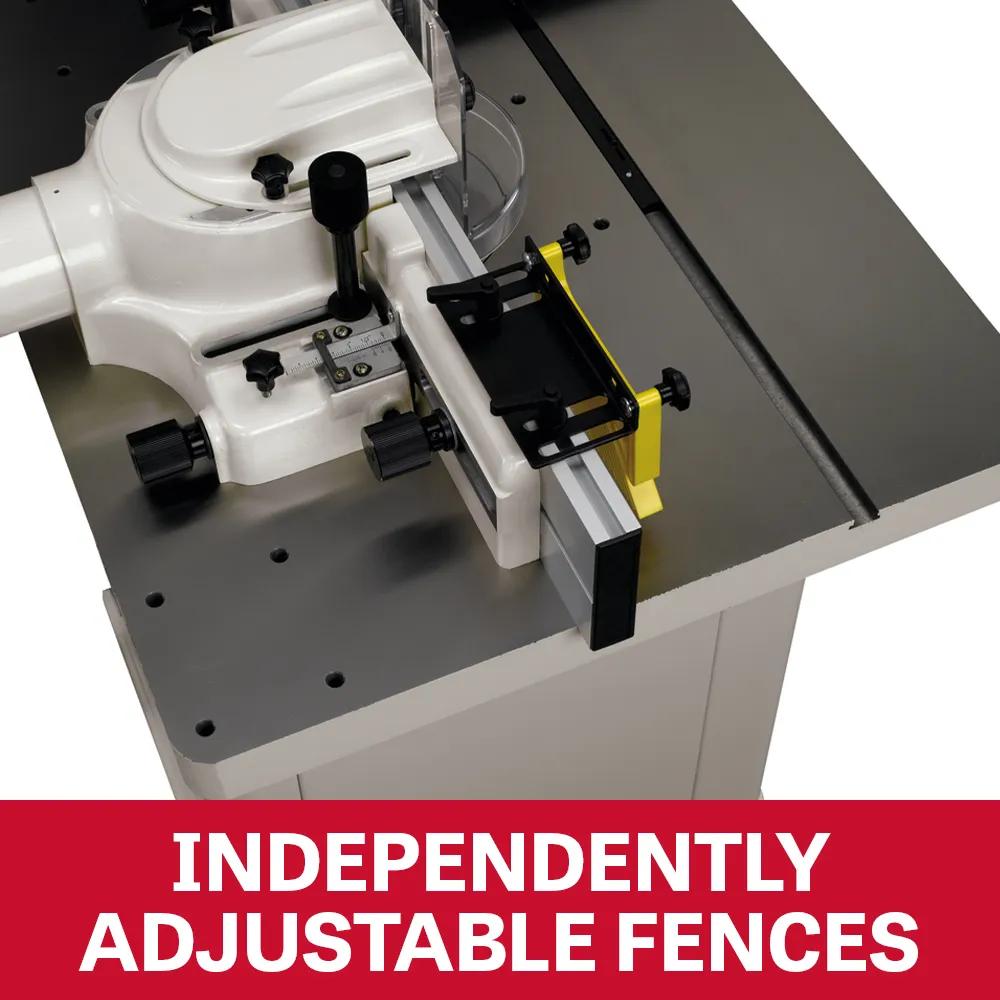

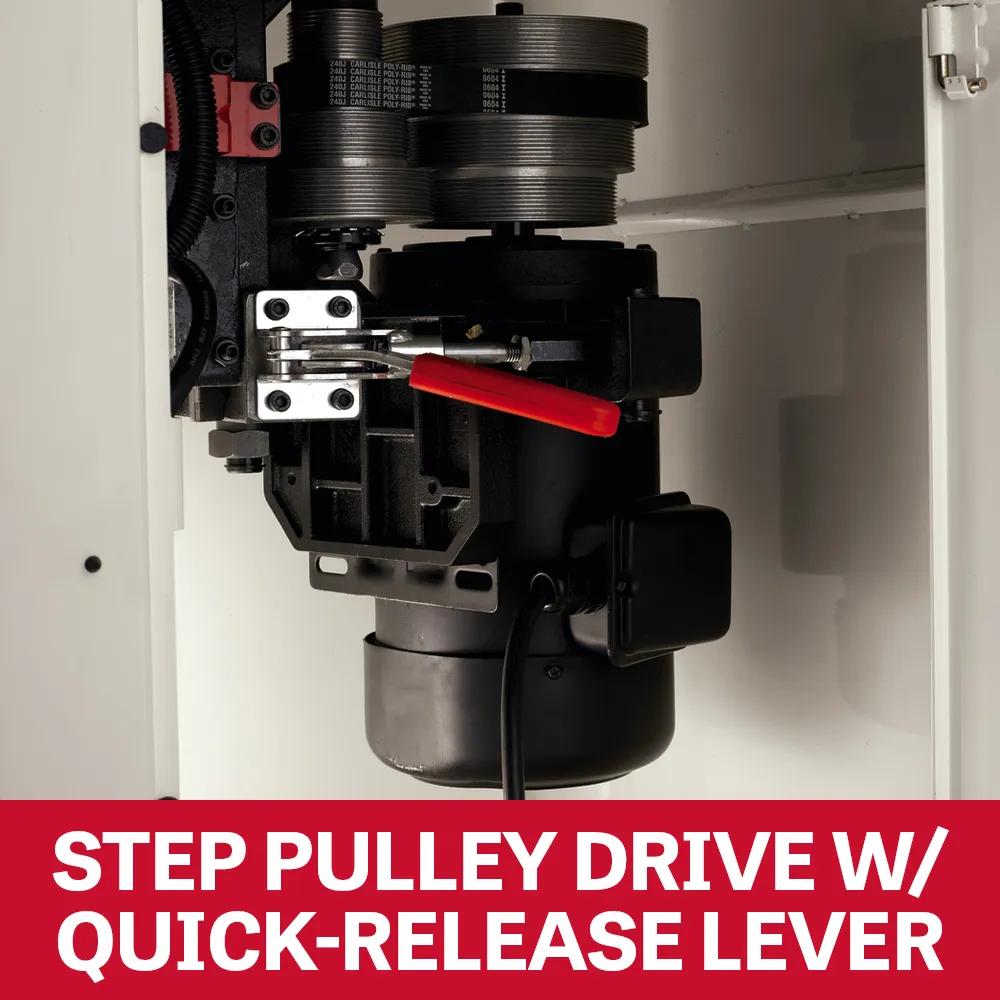

This heavy-duty JET Shaper is available with a powerful 5HP, 1Ph motor with magnetic controls. The four-speed (4000, 6000, 8000, 10000 RPM) step pulley drive with quick release lever allows you to select the best speed and torque for different cutter diameters. The spindle is reversible, and receives maximum power transfer from the v-belt. The independently adjustable fences have micro adjust controls for precise positioning.

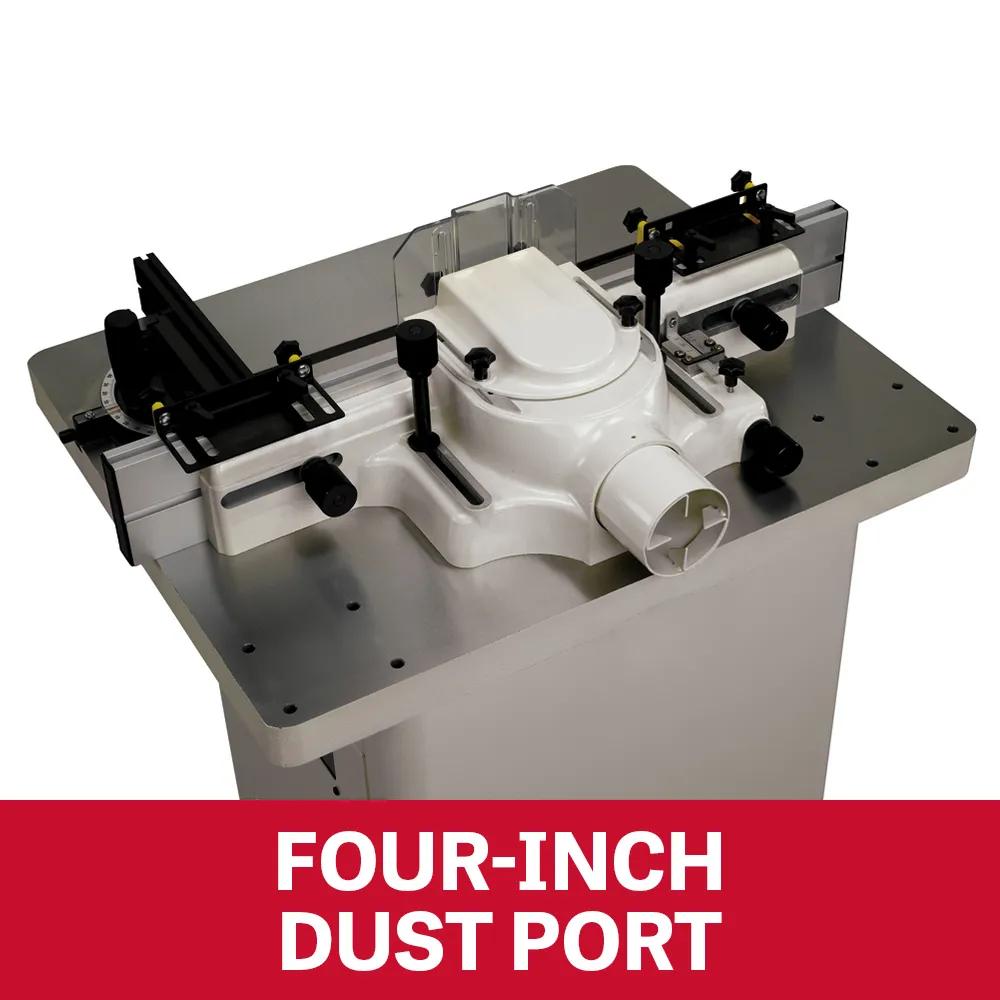

4" Dust port built into fence for convenient hookup to any dust collection system
Extra-large chrome handwheel is conveniently located for fast, easy, and accurate spindle height adjustments

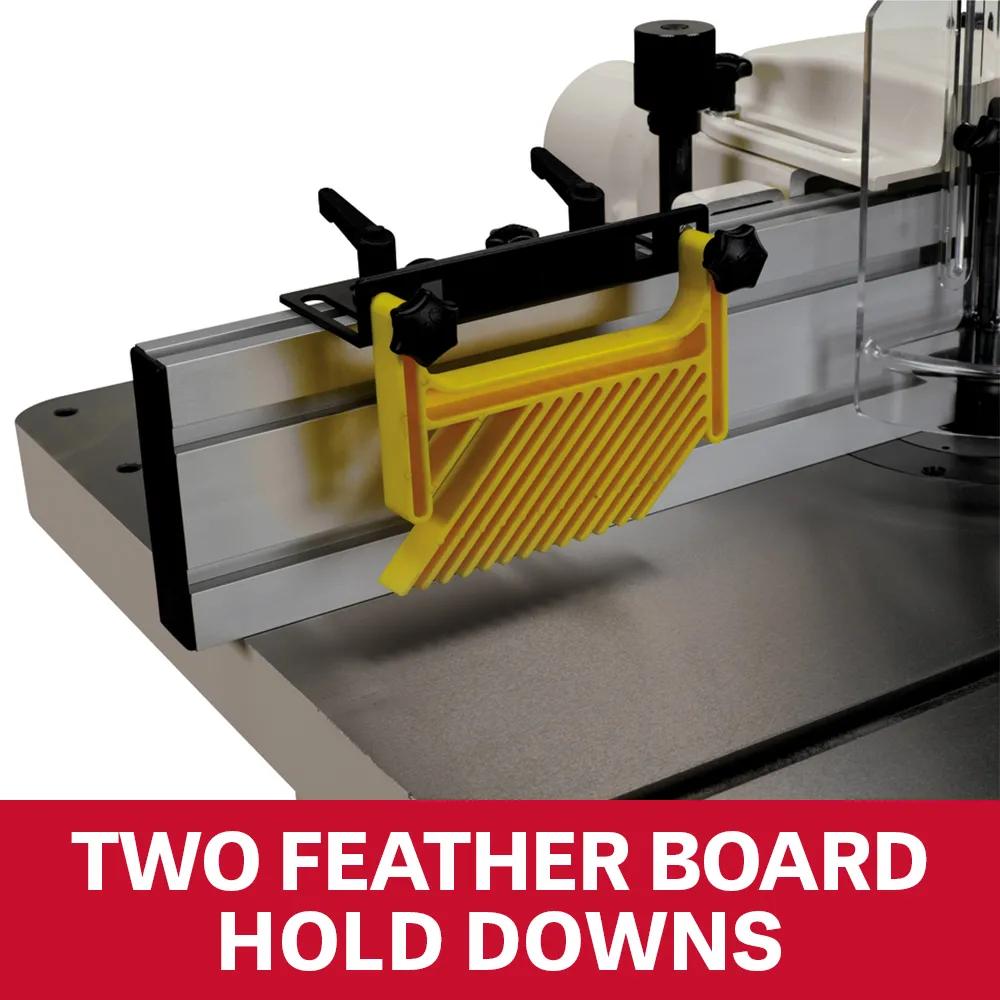

Extruded aluminum fence comes with T-Slots and 2 feather board hold-downs
Four RPM speeds (4000, 6000, 8000, 10000) let you select the best speed and torque for different cutter diameters

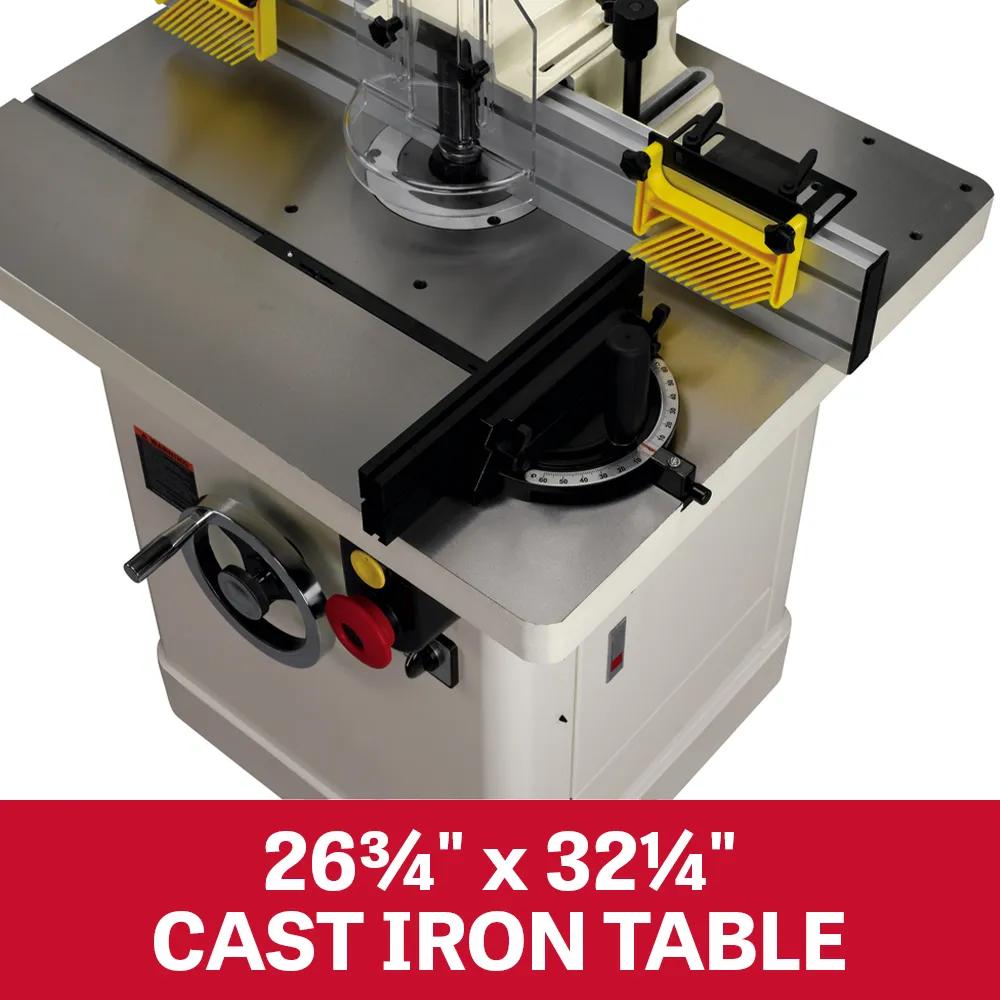

Large 26-3/4” x 32-1/4” precision-ground cast iron table provides a durable work area and is predrilled for power feeder
Poly-V-belt transfers maximum power to the spindle

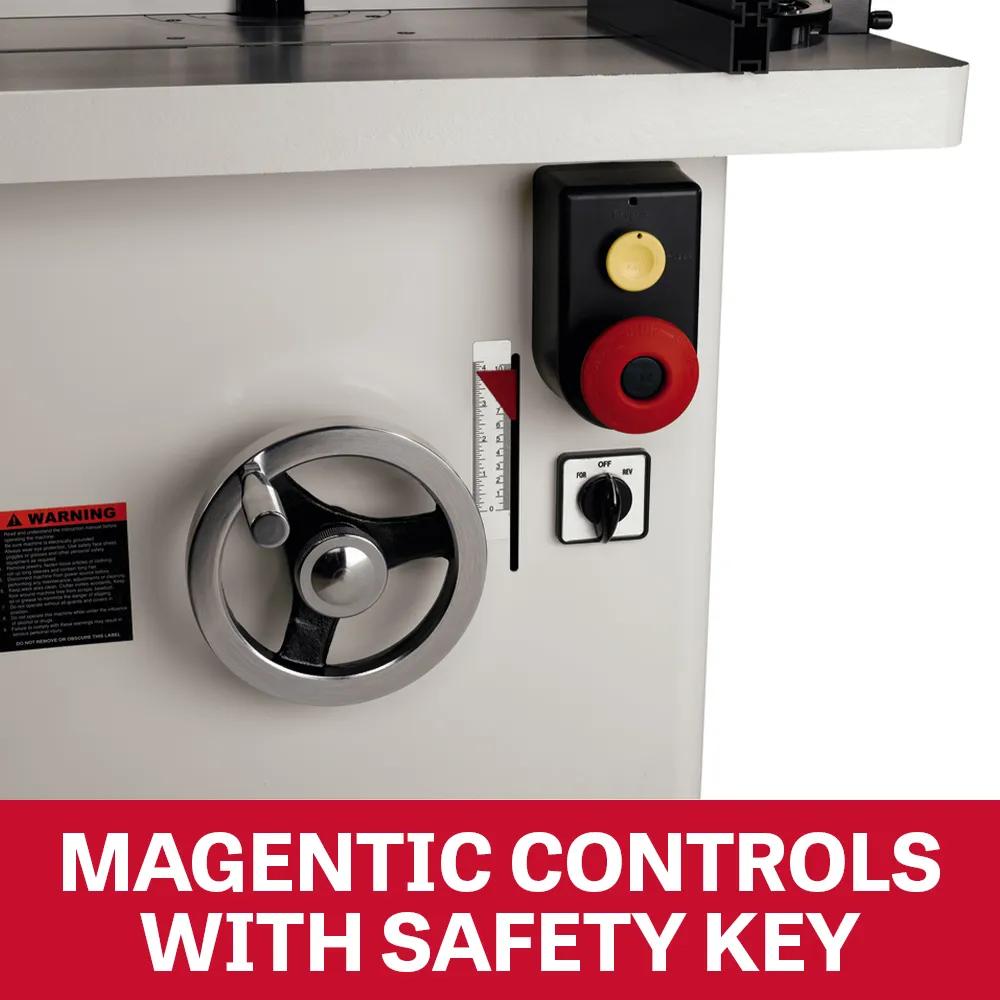

Powerful 5HP, 1Ph motor with magnetic controls
Reversible spindle speeds for diverse shaping jobs
Starting Pins for irregular shaping
V-belt transfers maximum power to the spindle
| Stock Number | JT9-708326 |
|---|---|
| Dust Collection Minimum CFM Required (CFM) | 600 |
| Dust Port Outside Diameter (In.) | 4 |

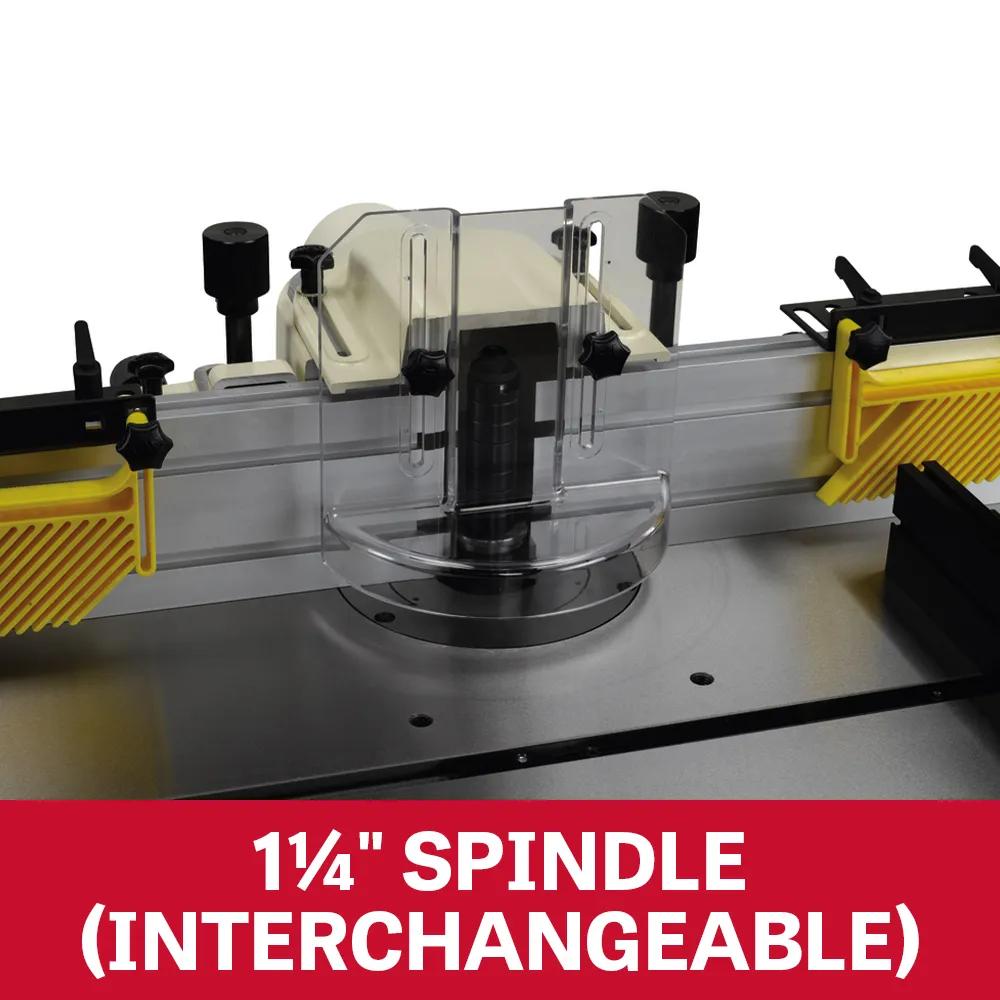

| Maximum Spindle Diameter (In.) | 1-1/4 |
| Model Number | JWS-35X5-1 |
| Motor Amps | 17 |
| Motor Power (HP) | 5 |
| Motor Voltage (V.) | 230 |
| Prewired Voltage (V.) | 230 |
| Prop 65 | Cancer and Reproductive Harm |
| Spindle Size Under Nut (In.) | 4 |
| Spindle Travel (In.) | 4 |
| Table Height from Floor (In.) | 33-1/4 |
| Table Inserts (In.) | 2 |
| Table Opening Diameter (In.) | 6-19/64 |
| Table Size (L x W) (In.) | 32-1/4 x 26-3/4 |
| Warranty | 5 Year |
| Gross Weight | 550.0 |
| Net weight | 473.0 |
