Specifications Print
1/2-PT, 1/2-Ton Heavy Duty Manual Trolley
Stock Number:
JT9-252005
JET 1/2-PT 1/2-Ton Heavy-Duty Manual Trolley (252005)
Manual (1)

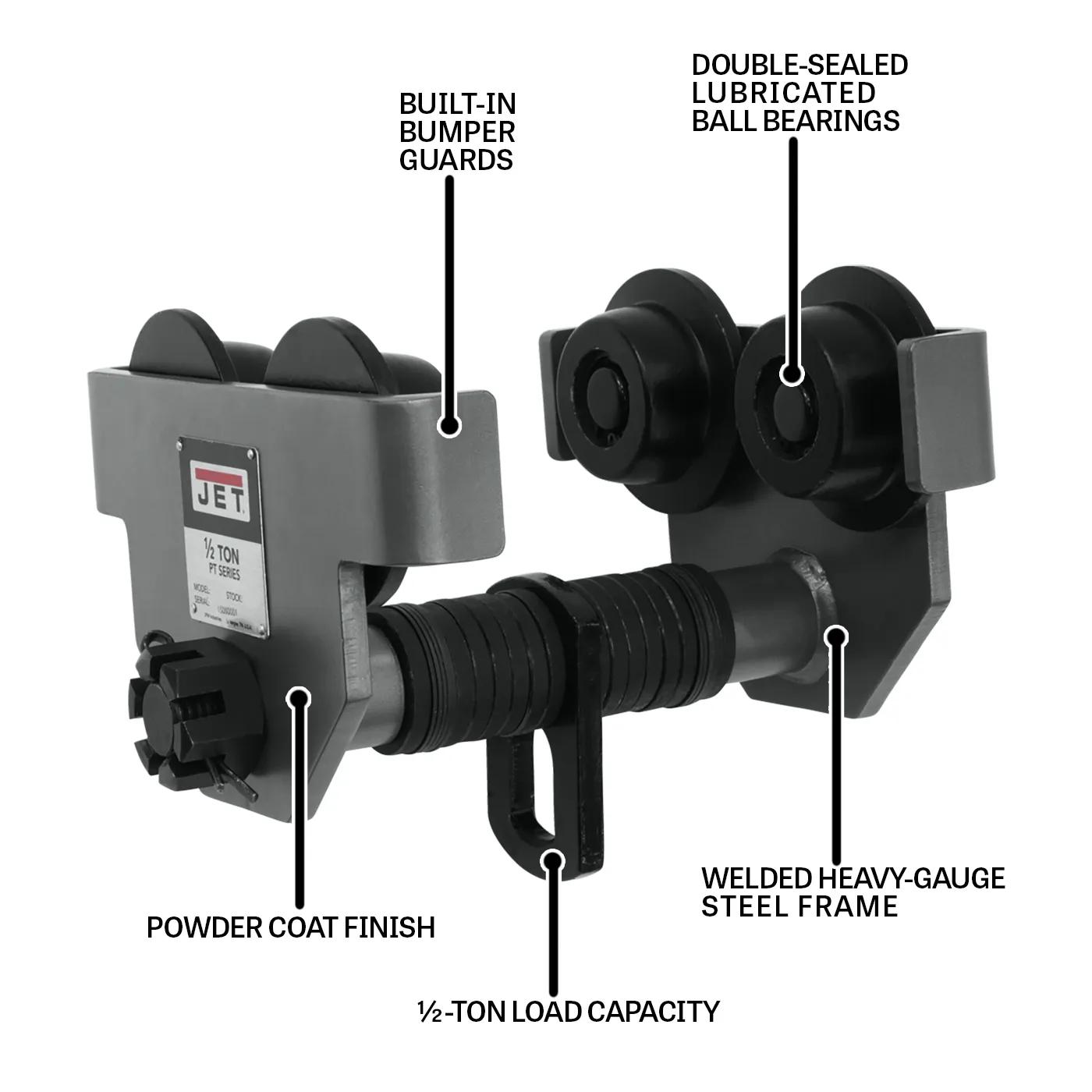

JET® PT Series heavy duty Manual Trolleys are available in capacities from 1/2 ton to 10 Tons. Built with heavy gauge steel for increased durability, the large steel wheels and thicker bearings provide smooth movement on a variety of beams. The built in bumper guards increase user safety and extend the life of the trolley. Each JET® Manual Trolley conforms to OSHA regulations, and ANSI / ASME standards.
Built-in bumper guards on the side plates increase safety and extend trolley life
Complies with OSHA Regulations, ANSI / ASME B30.11 and B30.17 standards
Easily adjustable to wide-flange H-beams, standard I-beams, or curved track with the included spacer washers
Hardened large steel wheels and thicker double sealed lubricated ball bearings provide smooth movement
Welded heavy gauge steel frame and powder coat finish provide maximum durability and protection
| Stock Number | JT9-252005 |
|---|---|
| Capacity (Lbs.) | 1100 |
| Hook Mount Headroom (In.) | 4-4/9 |
| Load Capacity (Tons) | 1/2 |
| Maximum Beam Flange Width (In.) | 8 |
| Minimum Beam Curve Radius (In.) | 39 |
| Minimum Beam Flange Width (In.) | 2-1/2 |
| Minimum Beam Height (In.) | 4 |
| Model Number | 1/2-PT |
| Prop 65 | Cancer and Reproductive Harm |
| Warranty | 2 Year |
| Weight (Lbs.) | 19 |
| Wheel Diameter (In.) | 2-2/7 |
| Gross Weight | 18.85 |
| Net weight | 18.85 |
| Max. Hook Size (W/in.) | 15/16 |
| Minimum Beam Height (In.) | 4 |
| Overall Dimensions (L x W x H / in.) | 8-1/3 x 12-2/7 x 5-1/8 |
