1/8-Ton Electric Chain Hoist 1-Phase 20' Lift | JSH-275-20
JET JSH-275-20, 1/8-Ton Electric Chain Hoist, 20' Lift (110120)
Manual

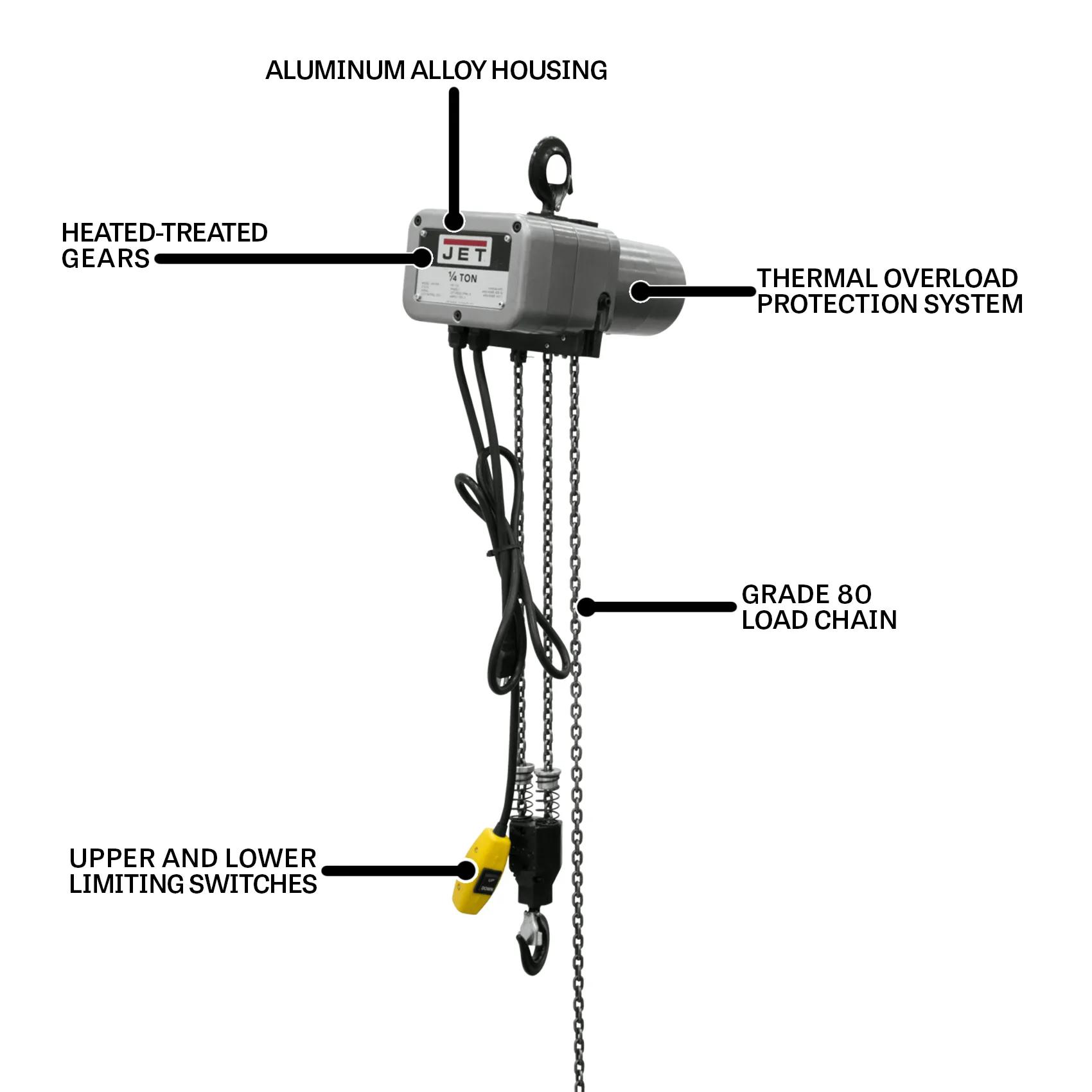

JET® JSH Series Electric Hoists combines safety, durability and portability to operate in light duty commercial and industrial applications. The die cast Aluminum housing keeps the hoist lightweight and easily portable. All models incorporate a slip clutch overload protection mechanism that prevents the hoist from lifting damaging loads above its rated capacity. They have a built-in thermal overload protection system that keeps the hoist from overheating. The industry proven magnetic disk brake increases safety by ensuring rapid stops and securing the load. The maintenance-free gear train incorporates a sealed oil bath, eliminating maintenance. The JET® JSH Series Electric Hoist is available in 1/8-Ton and 1/4-Ton capacities with standard lifts of 10, 15, and 20 feet (custom lifts available).
| Stock Number | JT9-110120 |
|---|---|
| Capacity (Lbs.) | 250 |
| Duty Cycle (%) | 25 |
| Duty Cycle Rating | H3 |
| Lift (Ft.) | 20 |
| Lifting Speed (FPM) | 16 |
| Load Capacity (Tons) | 1/8 |
| Max. Number of Starts (Per Hr.) | 150 |
| Max. On Time (Min. / Hr.) | 15 |
| Model Number | JSH-275-20 |
| Motor (HP) | 1/6 HP, 115V, 1 Ph |
| Prop 65 | Cancer and Reproductive Harm |
| Weight (Lbs.) | 33.9 |
| Headroom (In.) | 15-1/4 |
| Overall Width (In.) | 8.61 |
| Motor Current (Amps) | 3 |
