10 x 18 Semi-Auto Variable Speed Dual Mitering Saw With Hydraulic Vise | EHB-1018VMH
EHB-1018VMH, 10 x 18 Semi-Auto Variable Speed Dual Mitering Saw With Hydraulic Vise
Manual

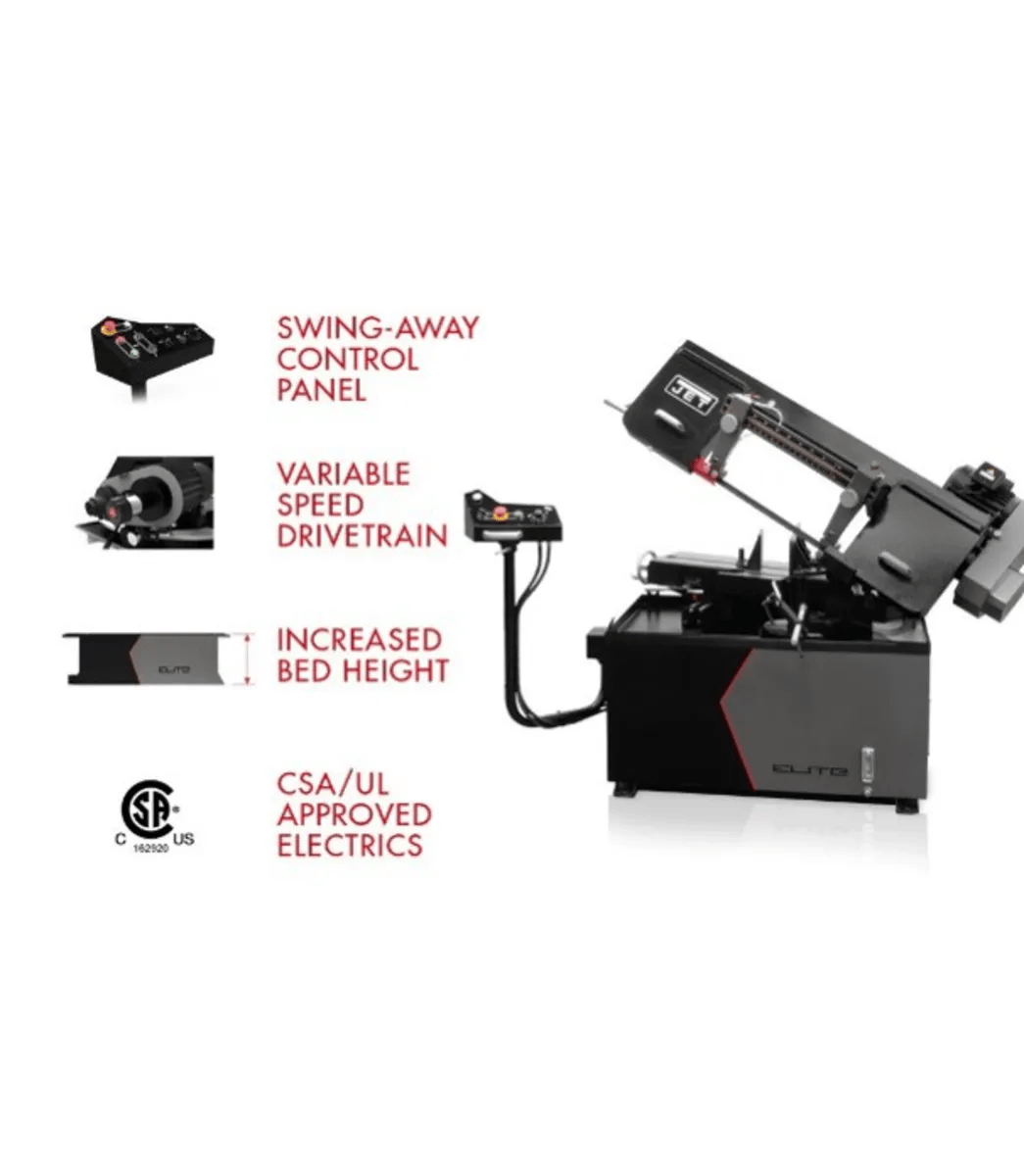

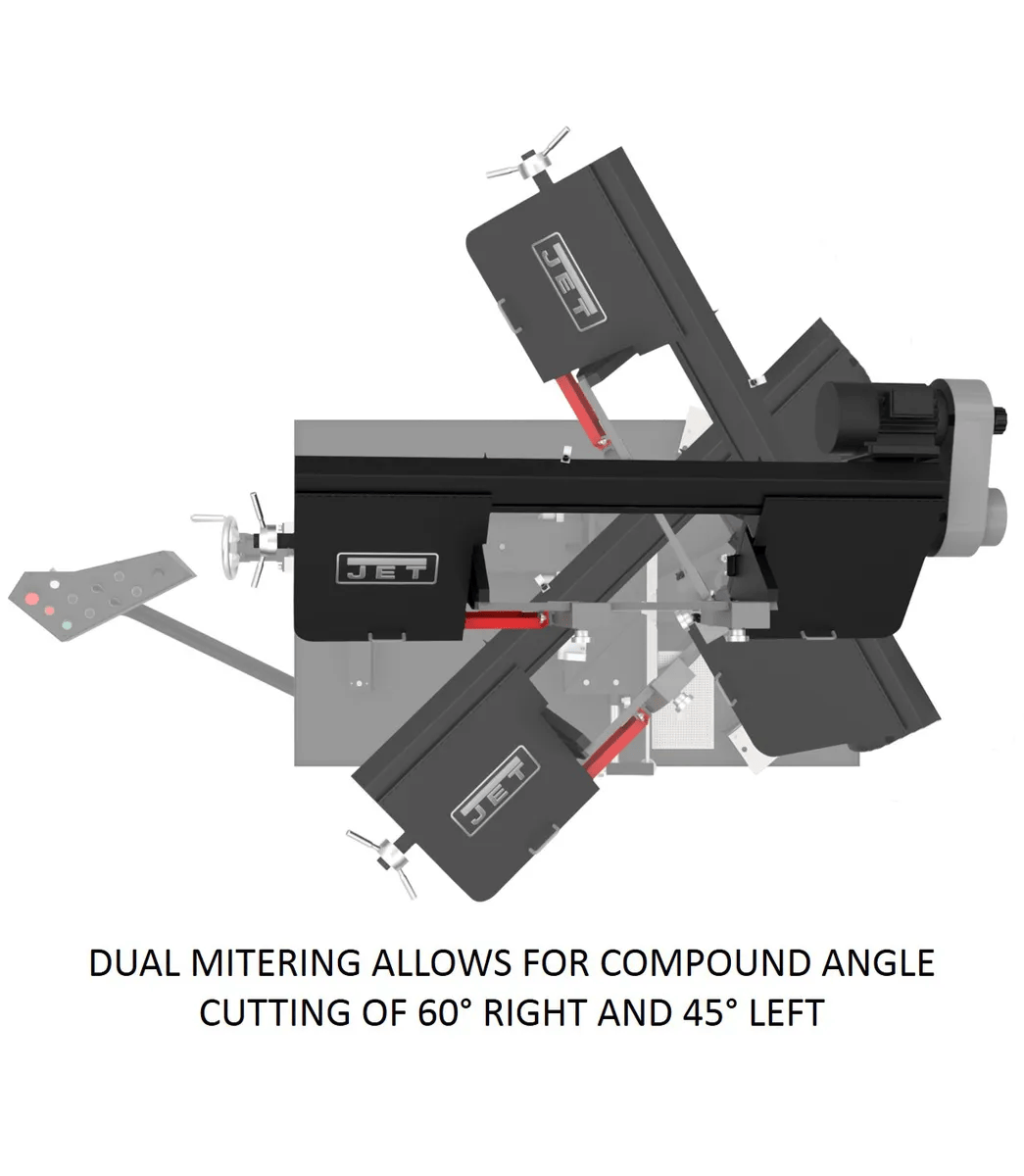

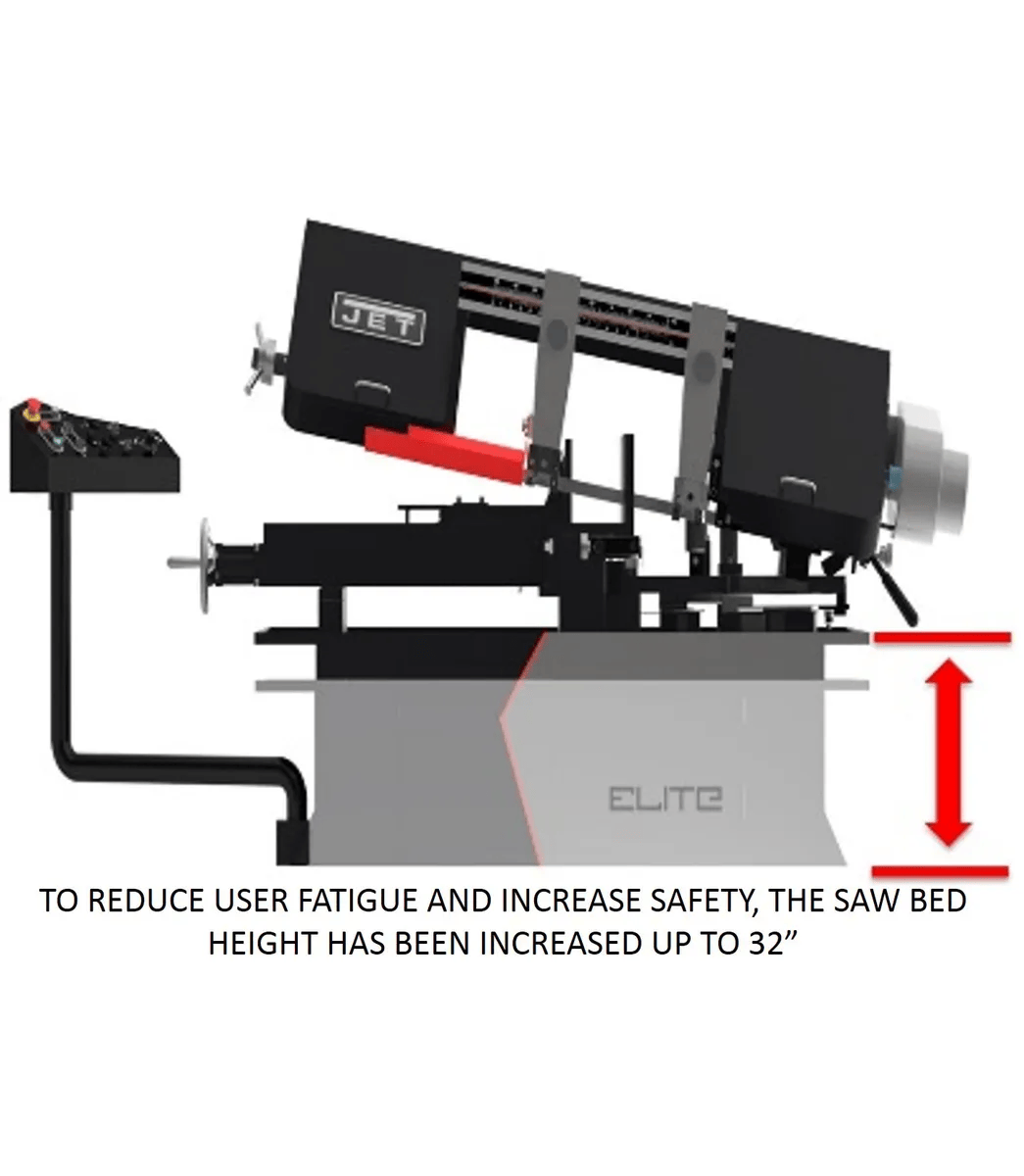

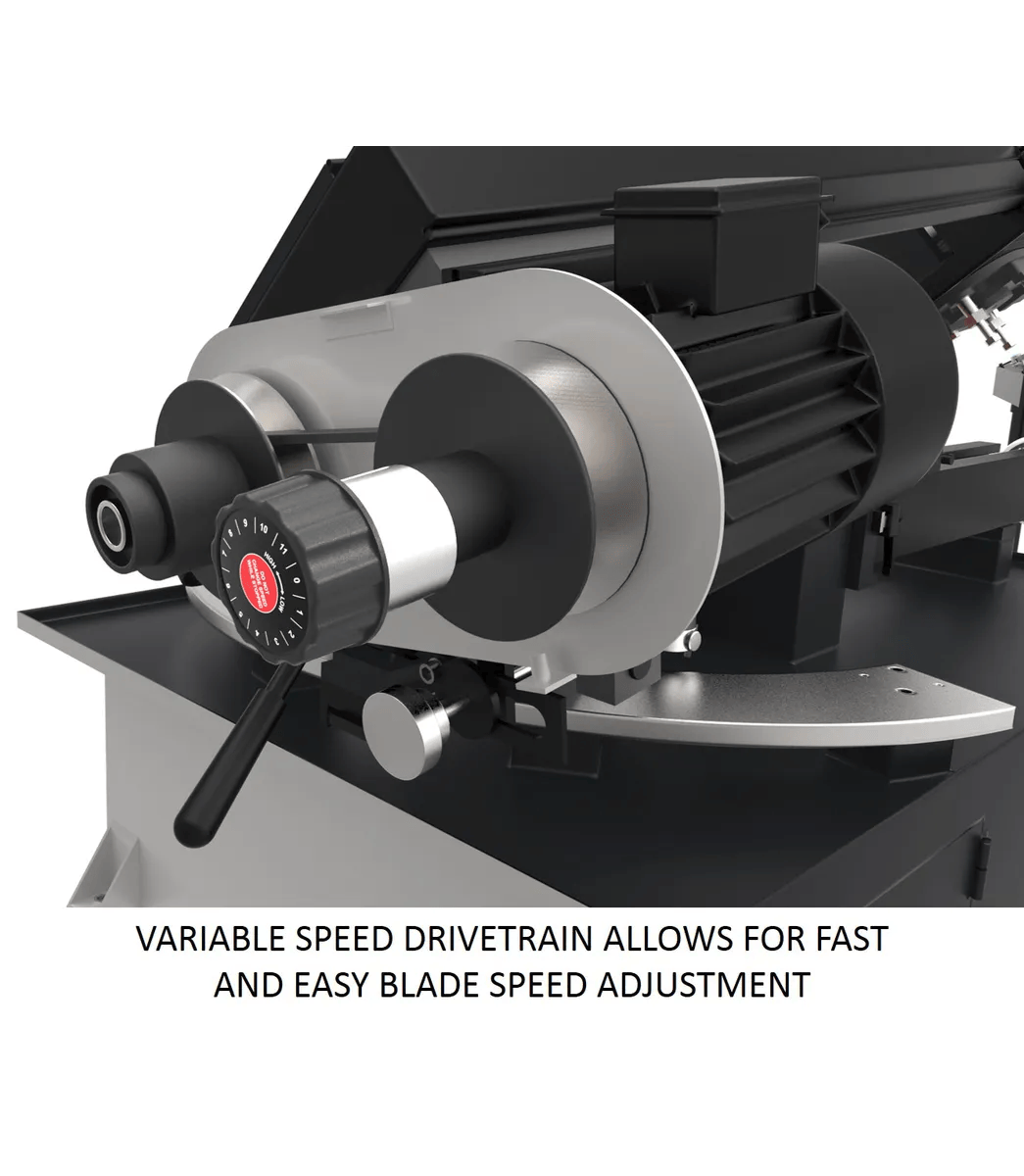

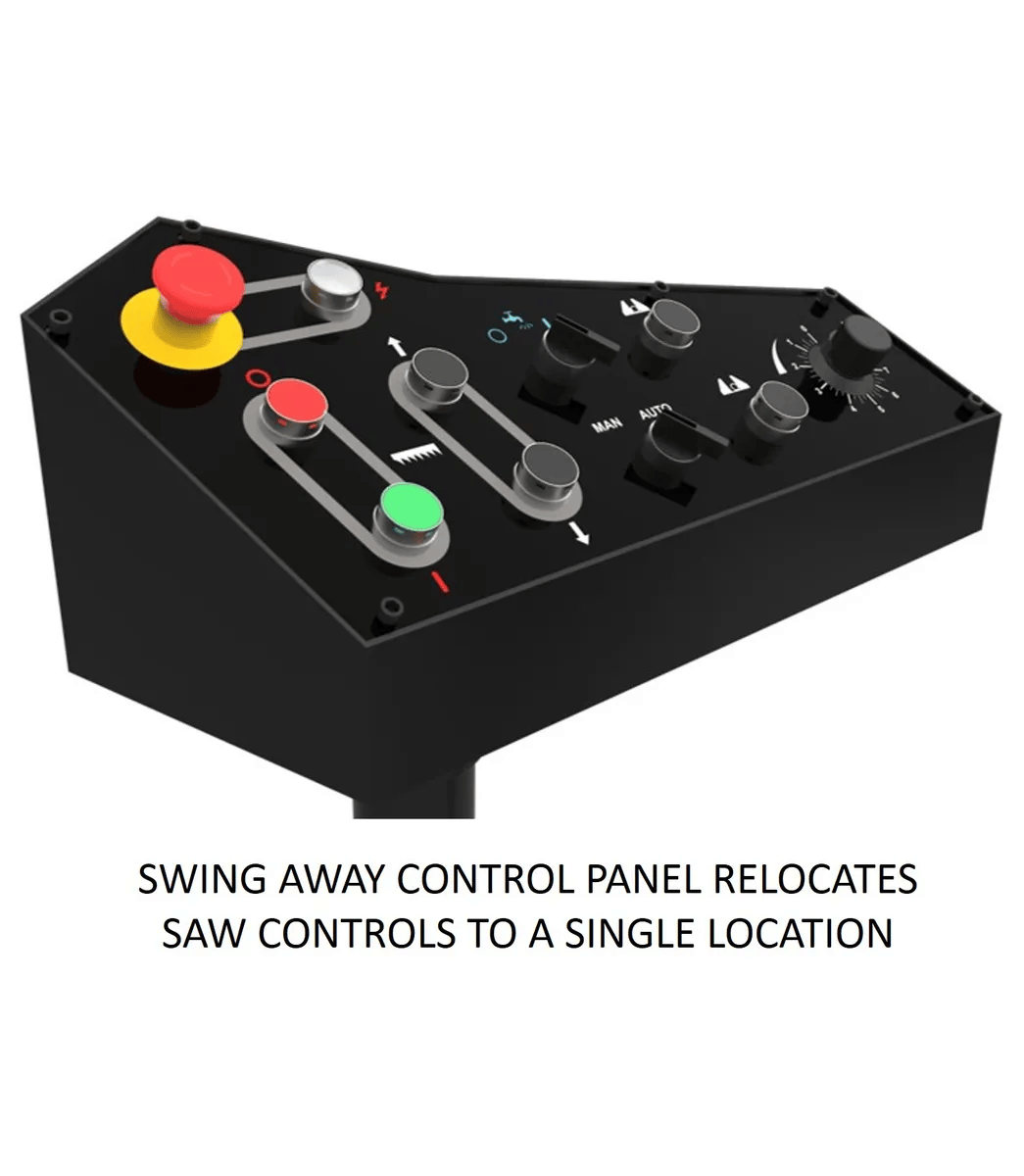

A new legacy of saws. Saws that need to demonstrate new kinds of flexibility, are counted on to last longer, and operate more safely at the same time. Designed with heavy-duty construction, these saws reduce vibration and deflection. Mitering and dual mitering saws bring added level of capabilities with dual mitering allowing for compound angle cutting of 60° right and 45° left. All saws come standard with variable speed drive train that allows the operator to fine tune the blade speed fast and easily. Table heights have been optimized, and a completely redesigned swing away control panel. The ELITE swing away panel relocates saw controls to a single location, offering finger-tip Bullets operation of most major saw functions. These are the most precise, most durable, and safest bandsaws you could ever put into your shop.
| Stock Number | JT9-891080 |
|---|---|
| Bed Height (In.) | 27 |
| Blade Length (In.) | 144 |
| Blade Speed (SFPM) | 53-257 |
| Blade Speeds (SFPM) | 53 - 257 |
| Blade Wheel Diameter (In.) | 14 |
| Drive | Variable Speed |
| Electrics | 2HP, 230/460V/ 3-Ph |
| Gross Weight (Lbs) | 1144 |
| Head Movement (Deg.) | 60 |
| Model Number | EHB-1018VMH |
| Motor (HP) | 2 HP, 230/460V, 3Ph |
| Net Weight (Lbs.) | 1034 |
| Overall Dimensions (L x W x H) (In.) | 85 x 40 x 44 |
| Overall Height (In.) | 44 |
| Prewired Voltage (V.) | 230 |
| Prop 65 | Cancer and Reproductive Harm |
| Rectangle at 45 Degrees (In.) | 10 x 12 |
| Rectangle at 60 Degrees (In.) | 6 x 5 |
| Rectangle at 90 Degrees (In.) | 10 x 17 |
| Round at 45 Degrees (In.) | 10 |
| Round at 60 Degrees (In.) | 6 |
| Round at 90 Degrees (In.) | 10 |
| Shipping Weight (Lbs.) | 1144 |
| Square at 45 Degrees (In.) | 10 x 10 |
| Square at 60 Degrees (In.) | 5-1/2 x 5-1/2 |
| Square at 90 Degrees (In.) | 10 x 10 |
| Vise Swivels (Deg.) | 45 |
| Warranty | 3 Year Elite |
| Weight (Lbs.) | 1144 |
| Gross Weight | 1210.0 |
| Blade Size (In.) | 1 x .035 x 144 |
