3-Ton Two Speed Electric Chain Hoist 3-Phase 15' Lift | TS300-460-015

Stock Number
JT9-144011

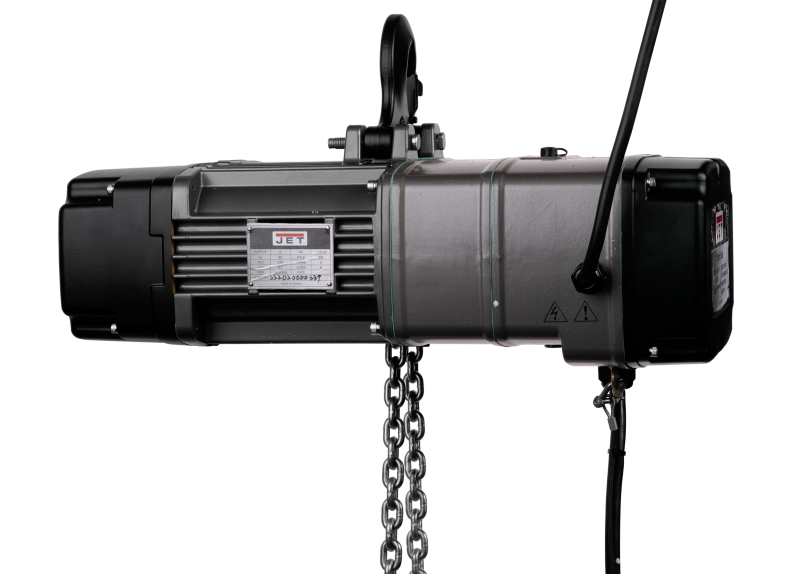

TS300-460-015, 3-Ton Two Speed Electric Chain Hoist 3-Phase 15' Lift

JET® TS Series Electric Hoist is designed and built for safety, durability, and efficient operation in the toughest industrial applications. Designed with two speeds you can move materials quickly and safely. Allowing your material to then slow down to be placed exactly where you need it without the excessive bump firing. Additionally, a two in one mechanical brake and overload protection assures you of safety first on the jobsite. This new system will brake quickly while providing protection from overloading the hoist. We engineered this hoist to keep the operator safe and prolong the life of your tool. Lastly a patented gear limit switch will allow precise control of the stopping point in both directions. This feature will prolong the life of the hoist and help avoid possible damage to the unit. All of this with safe lifting speeds up to 33 feet per minute and as low as 3 feet per minute to give you the ability to be more efficient with every load. The TS Series is available from 1/2-Ton to 5-Ton capacities. Let’s Get to Work!


The 2 in 1 design of the Mechanical Brake and Overload Protection ensure operator safety and extended product life
Patented gear limit switch ensures the product switches off power instantly in the case of over lifting or lowering position
DC Motor Brake actuates instantly in the event of a power failure to ensure operator safety
Two Speed Motor ensures the correct speed for the job with a click of a button
IP55 TEFC Motor with Class F insulation for working in harsh environments
5 Pocket Chain Sprocket provides reduced vibration, smoother operation, and reduced chain wear during long lifting or lowering of loads
Pendant Control is IP65 rated and is fully water-proof, insulated and impact resistant for years of service
Built in heat protection will not allow lifting if internal temperatures exceed 285° F (+/-40°). Load will be allowed to be lowered until unit cools. This saves internal components and extends the life of the product.
Comes with 10ft power supply cord
More Information
Stock NumberJT9-144011
Capacity (Lbs.)6600
Duty Cycle (%)40 / 20
Duty Cycle RatingH4
Lift (Ft.)15
Lifting Speed (FPM)21 / 5
Load Capacity (Tons)3
Max. Number of Starts (Per Hr.)240
Max. On Time (Min. / Hr.)30
Model NumberTS300-460-015
Motor (HP)5HP, 460V, 3PH
Motor Phase3
Prop 65Cancer and Reproductive Harm
Warranty2 Year
Weight (Lbs.)366
Gross Weight421.0
Net weight366.0
Headroom (In.)41-1/3
Overall Width (In.)20-7/8
Motor Current (Amps)4.2 / 8.4
