5-Ton Aluminum Hand Chain Hoist with 30ft of Lift | AL100-500-30
Stock Number:
JT9-133530

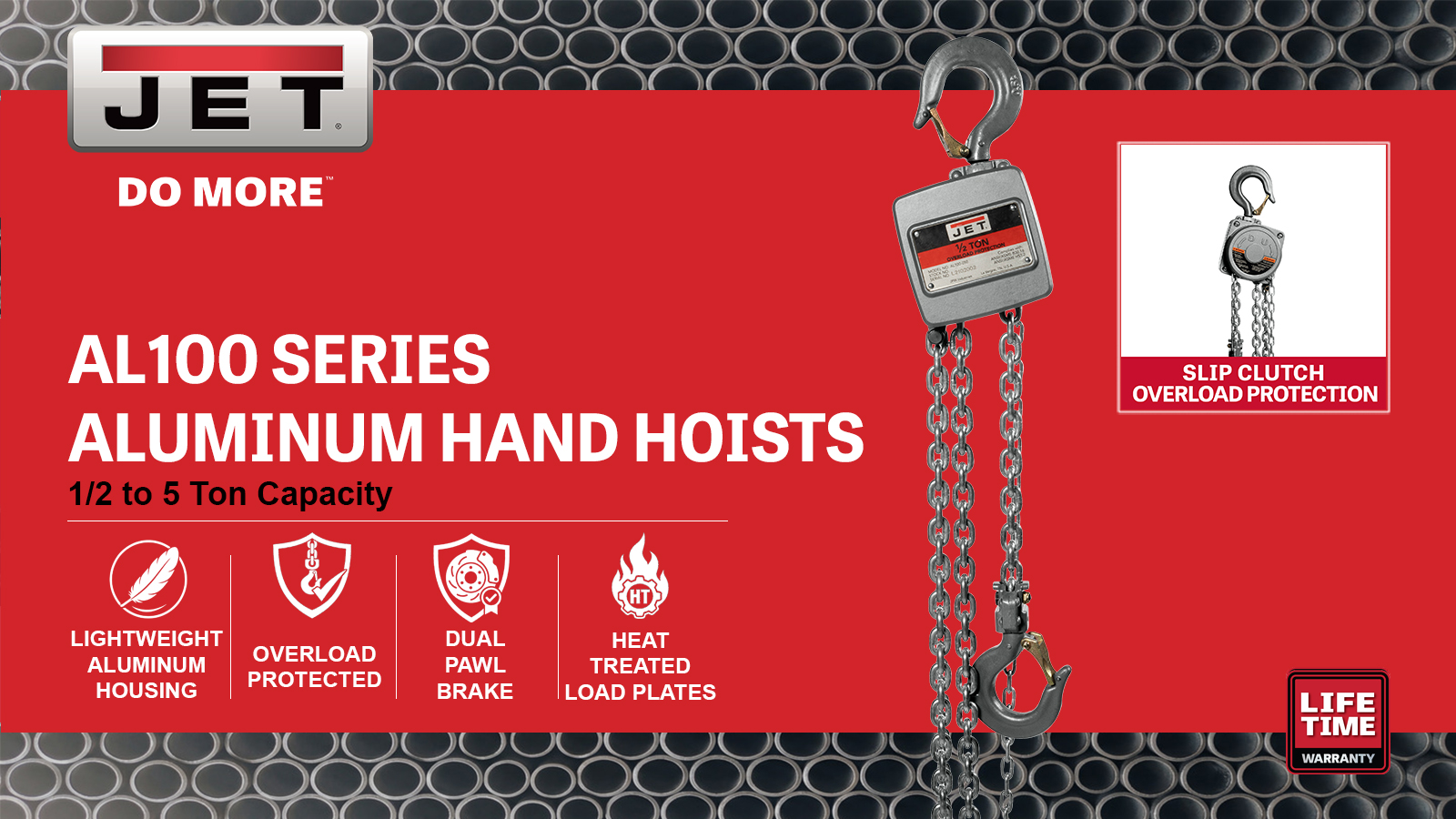

5 Ton Aluminum Hand Chain Hoist with 30ft of Lift
Manual Chain Hoists have been around for decades, with one main advantage: they help lift heavy materials. Now, JET is changing the game. With the all new JET AL100 Series Manual Chain Hoist, lifting heavy material just got easier. How? The AL100 Series is 20% lighter, 20% thinner, and offers the smallest head room compared to the closest competitor on the market.
Extra large hand chain opening for side chain pulling
Sealed housing to provide extra protection against the elements
Complies with ANSI/ASME B30.16 and HAST-2 Standards
Cast steel safety latches
Dual pawl Weston style brake
Grade 100 load chain is heat treated for additional strength and zinc plated for corrosion resistance
Patented Fused Brake Design provides durability and increases safety backed by a lifetime replacement warranty
Stock Number | JT9-133530 |
---|---|
Hand Chain To Lift Load 1 ft. | 191 |
Capacity (Lbs.) | 11200 |
Lift (Ft.) | 30 |
Load Capacity (Tons) | 5 |
Load Chain Dimensions dia/mm) | 9 x 27 |
Model Number | AL100-500-30 |
Prop 65 | Cancer and Reproductive Harm |
Warranty | Lifetime |
Weight (Lbs.) | 131.63 |
Lbs. of Pull to Lift Capacity | 82.0000 |
Gross Weight | 131.63 |
Headroom (In.) | 22-13/16 |
