5-Ton Hand Chain Hoist with 15' Lift & Overload Protection | L-100-500WO-15

Stock Number
JT9-208115

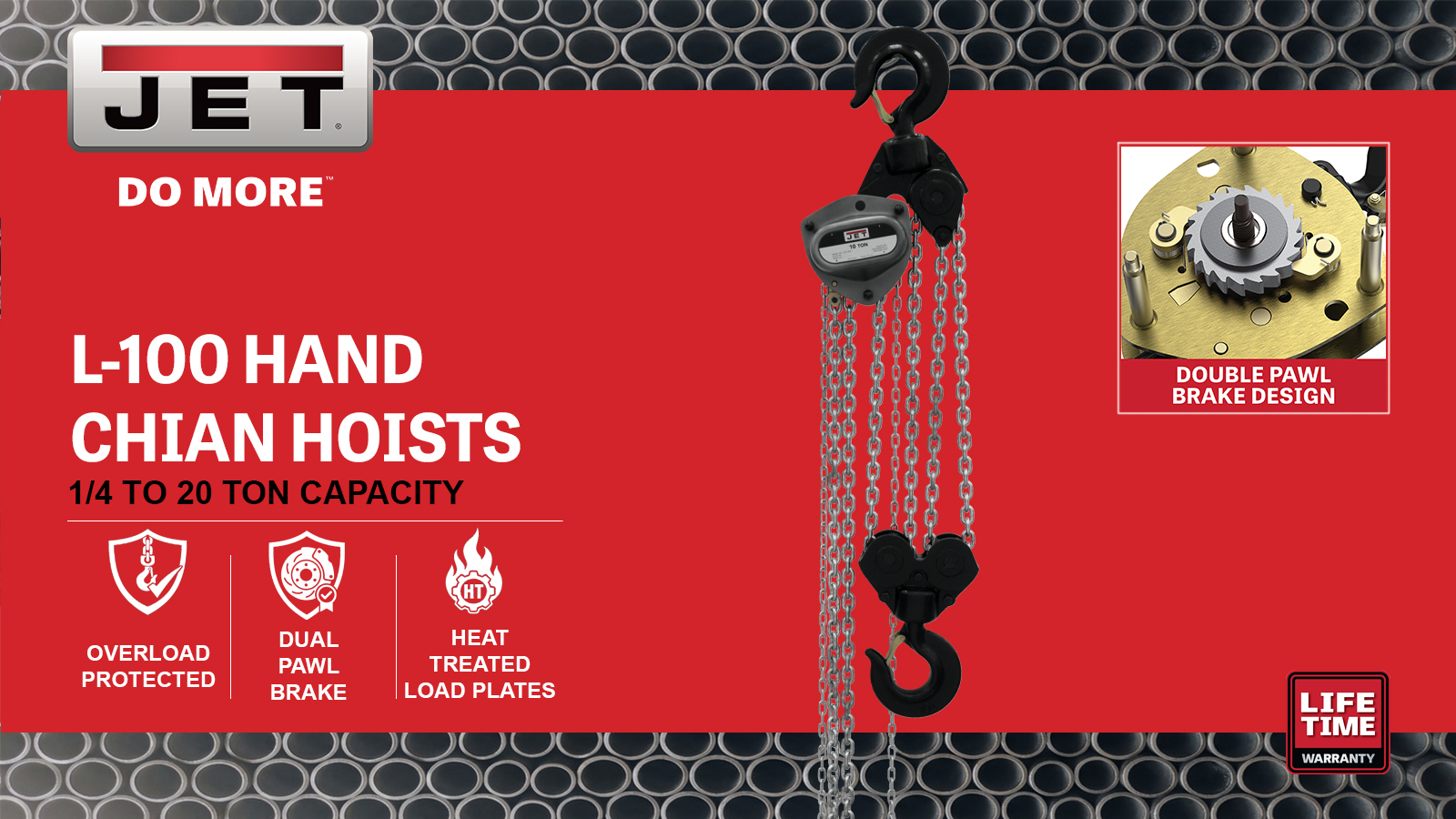

L-100-500WO-15, 5 Ton Hand Chain Hoist With 15' Lift & Overload Protection

JET® L-100 Series Hand Chain Hoist is designed with all steel construction and integrates safety, durability and innovation enabling it to operate in the most demanding industrial environments. Safety features such as the slip clutch style overload protection that prevents the hoist from lifting damaging loads beyond its rated capacity. The JET® exclusive innovation showcased in the patented fused brake system reduces maintenance costs and limits downtime. JET® is so confident in the durability of the fused brake design we back it with an industry leading lifetime replacement warranty. The JET® L-100 is available in ¼ ton to 20 ton capacities and standard lifts of 10, 15, 20, and 30 feet (custom lifts available). Regardless of how harsh the environment, the JET® L-100 Series Hand Chain Hoist is engineered to perform.


Double sealed ball bearings support the load sheave to increase efficiency and promote smooth operation
Grade 100, corrosive resistant plated load chain is a smaller, more compact link that is 20% stronger than Grade 80 load chain
Heat Treated Load Plates
Industrial rated alloy steel hooks rotate 360 degrees for easy rigging and slowly stretch to indicate an overload situation
Intended for the harshest environments, the heat treated load plates and case hardened corrosive resistant internal parts extend the life of the hoist
Secured with Allen screws and lock nuts, the cast-steel safety latches are more durable than stamped steel latches and will not bend out of compliance with lifting regulations
The lightweight design and smaller body are ideal for confined areas and low headroom applications
Weston style double ratchet pawl brake design splits the load to opposite sides of the ratchet gear for greater load security
More Information
Stock NumberJT9-208115
Hand Chain To Lift Load 1 ft.198
Capacity (Lbs.)11000
Lift (Ft.)15
Load Capacity (Tons)5
Load Chain Dimensions dia/mm)9 x 27
Model NumberL-100-500WO-15
Prop 65Cancer and Reproductive Harm
WarrantyLifetime
Weight (Lbs.)105
Lbs. of Pull to Lift Capacity75.0000
Gross Weight108.0
Net weight105.0
Headroom (In.)23-5/8
