5SS-1C-15, 5-Ton Electric Chain Hoist 1-Phase 15' Lift

Stock Number
JT9-511500

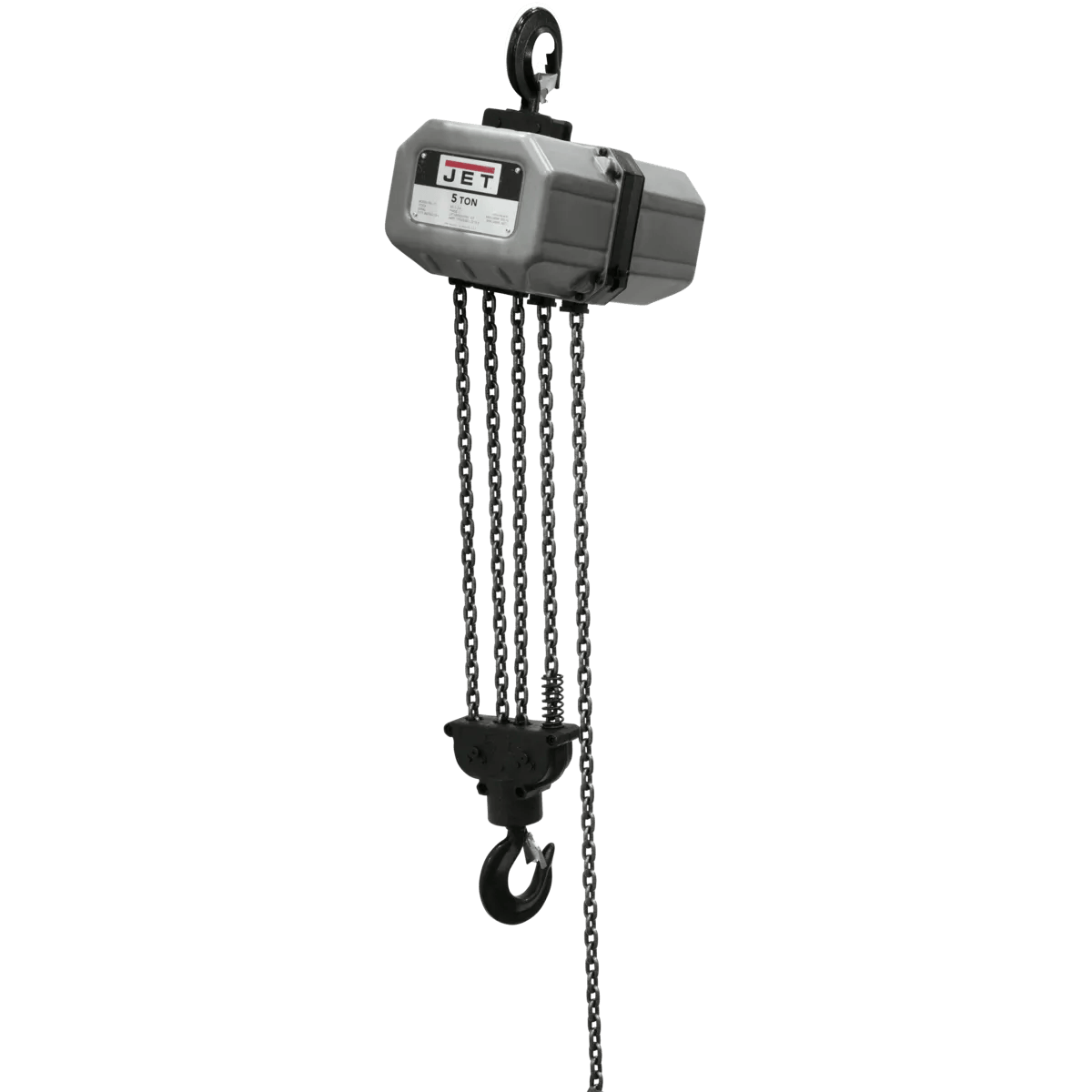

JET 5SS-1C-15 5-Ton Electric Chain Hoist, 1-Phase, 15' Lift (511500)

JET® SSC Series Electric Hoists combines safety and durability to operate in commercial and industrial applications. All models incorporate a slip clutch overload protection mechanism that prevents the hoist from lifting damaging loads above its rated capacity. They are available in single or three phase configurations to suit your electrical needs. Single phase models have a thermal overload protection design that keeps the hoist from overheating, while the three phase models feature a reverse phase relay that protects the hoist from incorrect wiring. The industry proven DC electro-magnetic brake increases safety by holding the load even when power is interrupted. The maintenance-free gear train incorporates a sealed oil bath, for reliability and durability. The JET® SSC Series Electric Hoist is available in ½ ton to 5 ton capacities with standard lifts of 10, 15, and 20 feet (custom lifts available).


24 volt push button controller with cable strain relief system for durability and reliability
All steel construction
NEMA 4X compliant push button control pendants
Durable powder coat finish
Grade 80 Load Chain- Grade 80 black oxide coated load chain for durability
Limit Switches- Upper and lower limiting switches increase safety by preventing the load chain from over traveling
Sealed Gear Train- Maintenance-free gear train incorporates a sealed oil bath that eliminates upkeep
Thermal overload protection
More Information
Stock NumberJT9-511500
Capacity (Lbs.)6600
Duty Cycle (%)25
Duty Cycle RatingH3
Lift (Ft.)15
Lifting Speed (FPM)4.9
Load Capacity (Tons)5
Max. Number of Starts (Per Hr.)150
Max. On Time (Min. / Hr.)15
Model Number5SS-1C-15
Motor (HP)1-3/4 HP, 230V, 1 Ph
Motor Phase1
Prop 65Cancer and Reproductive Harm
Warranty2 Year
Weight (Lbs.)238
Gross Weight257.0
Net weight238.0
Headroom (In.)30-11/16
Overall Width (In.)11.81
Motor Current (Amps)16
