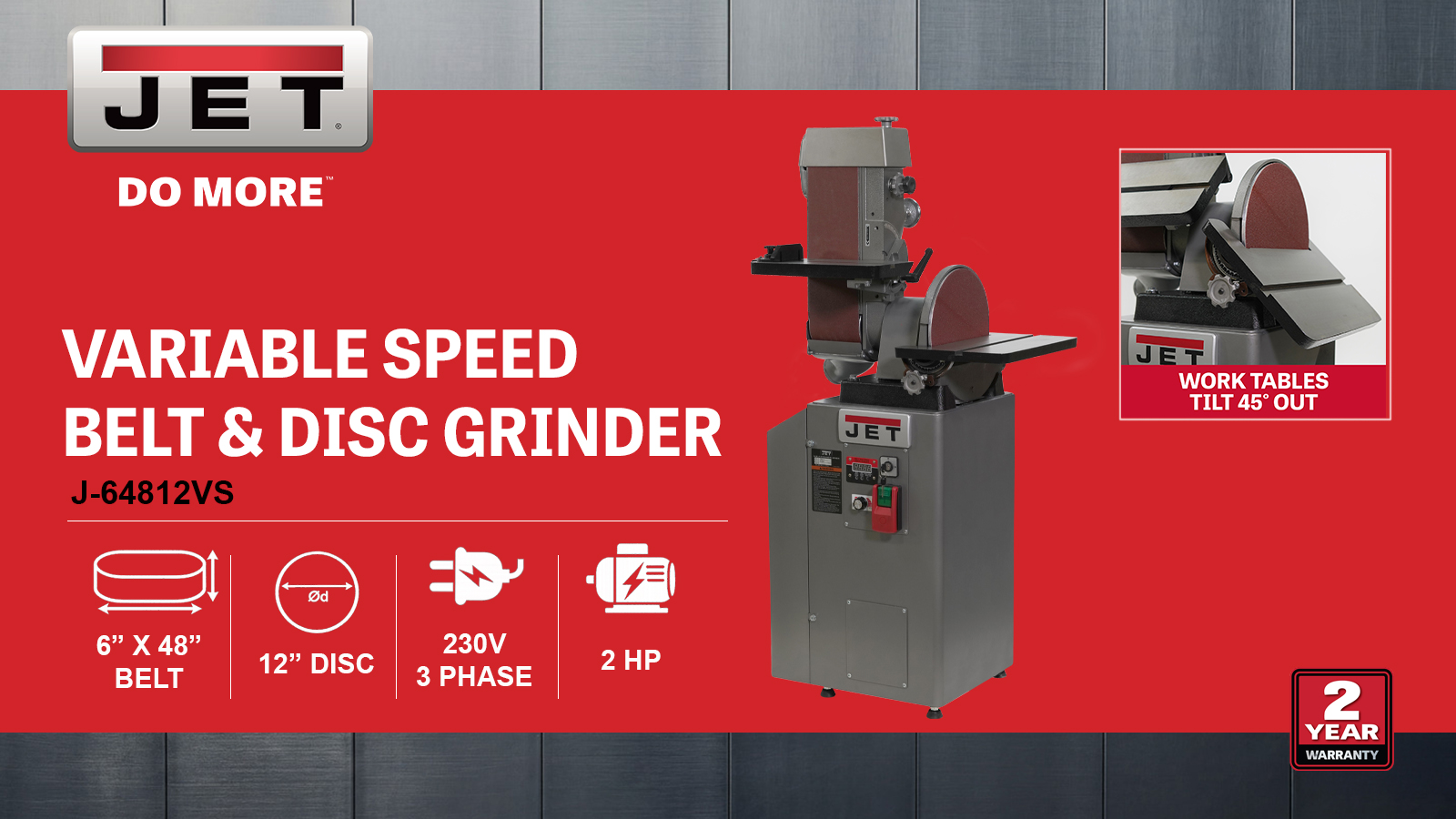

J-64812VS, 6" x 48" Variable-Speed Belt and 12" Disc Finishing/Grinding Machine
Stock Number:
JT1-112
Manual

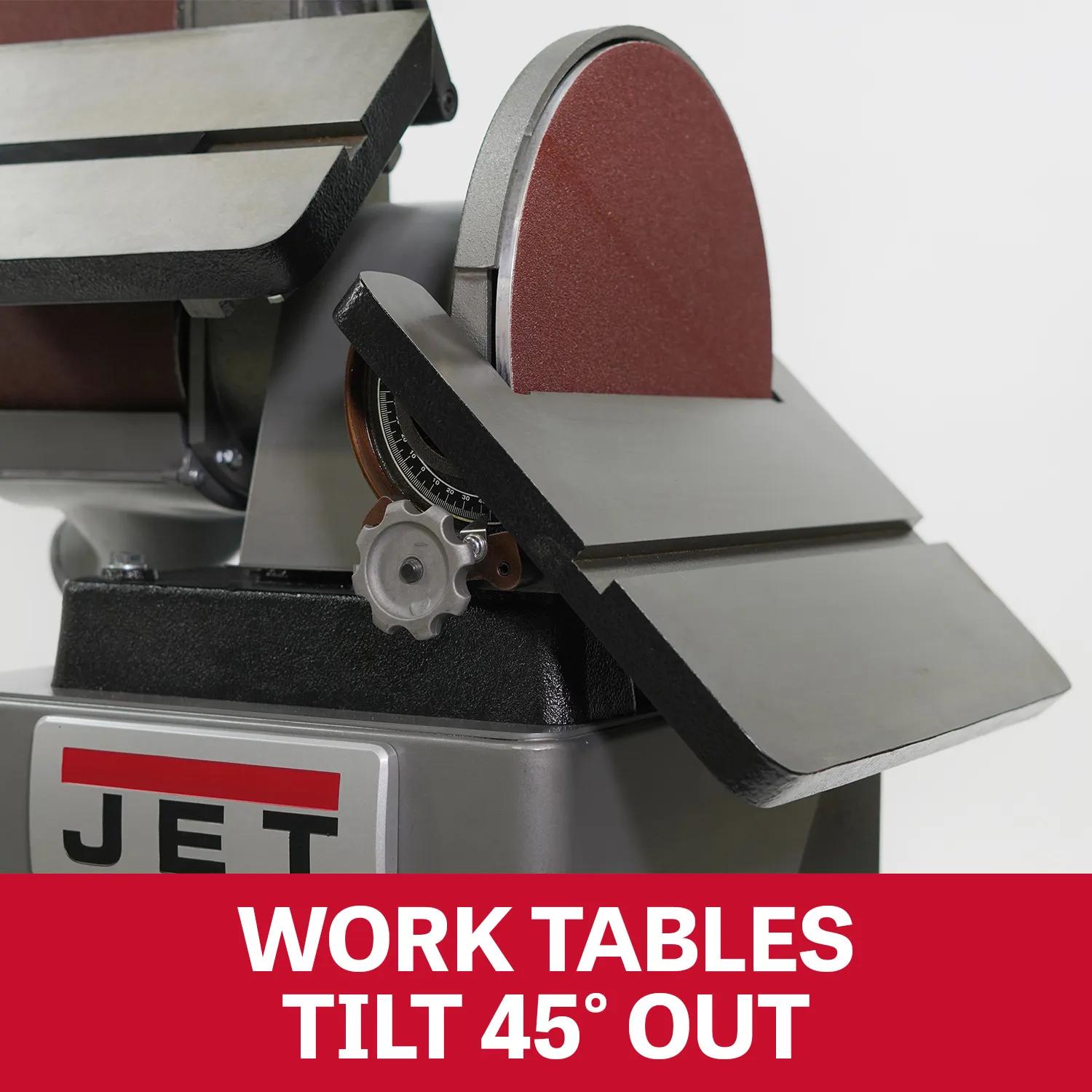

JET’s Variable Speed combination Belt & Disc machine conveniently grinds and finishes delivering the top characteristics and benefits of both a belt and a disc finishing system in one machine. This workhorse features a compact footprint (20.5”x27”x58") and provides a variable speed solution to finish or grind a wider range of material including mild steel, aluminum, and even plastics. Remove material with precision thanks to speeds ranging from 2200-4000 SFPM (Belt) and 1547-2813 RPM (Disc). Both worktables tilt 45 degrees for added versatility and are quickly dialed in with the included measurement gauge. We even fine-tuned the design for reduced vibration and a quieter operating level to make your next project nearly effortless.

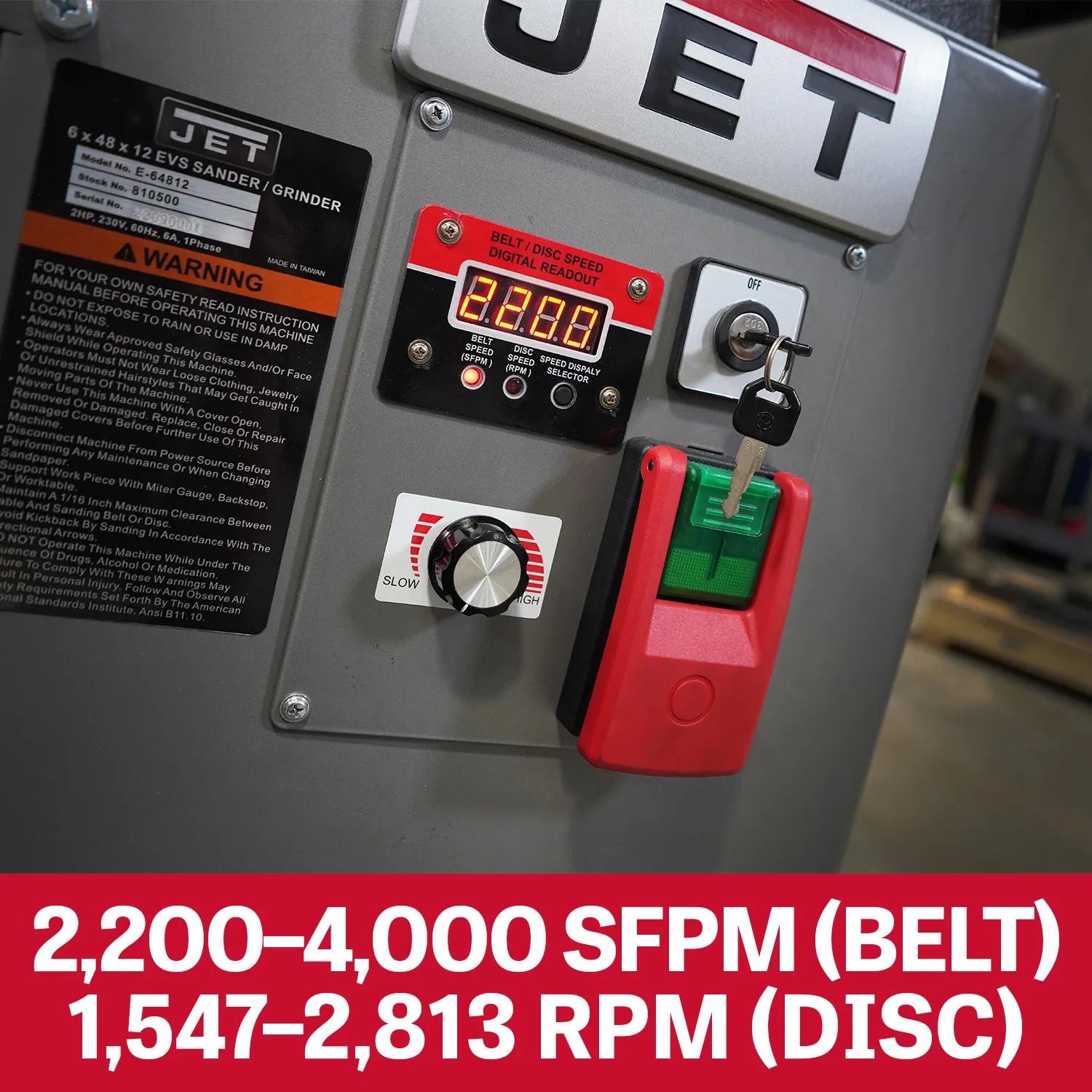

Variable speed range from 2200-4000 SFPM (Belt) and 1547-2813 RPM (Disc) allows users to finish or grind a wider range of material including mild steel, aluminum, and even plastic by changing abrasive belt & disc grits
The belt head is capable of both vertical and horizontal adjustments, allowing operation at any angle
Contour finishing, mitering, flat finishing, beveling and precision finishing are simple

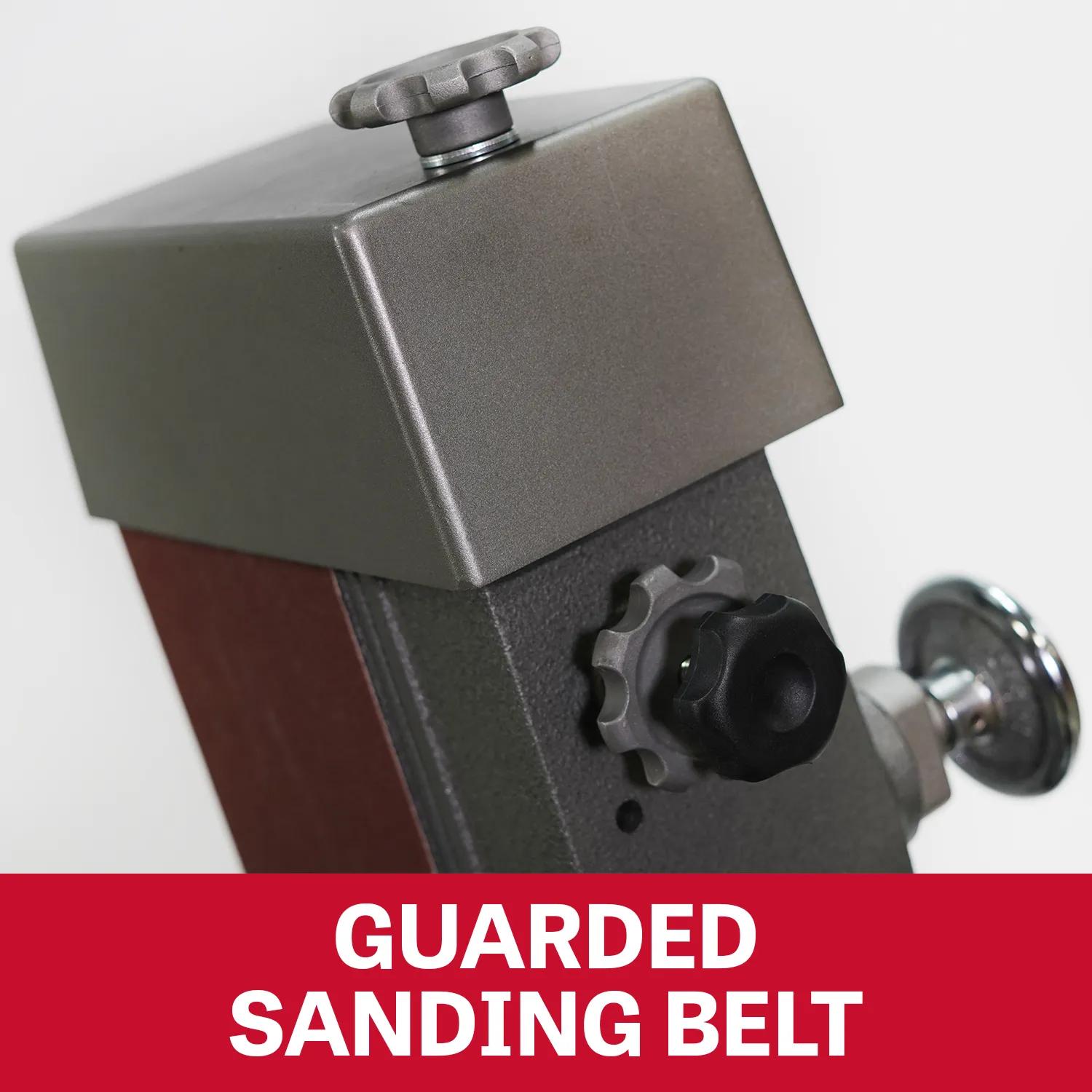

The drums are fully enclosed, and the sanding belt is guarded for safety
Maximizing the operator's safety, the inverter allows for quick stopping of the belt and disc
Variable position locks that can be used to create a sturdy work surfaces
A fully machined and balanced disc runs smoothly without any vibration

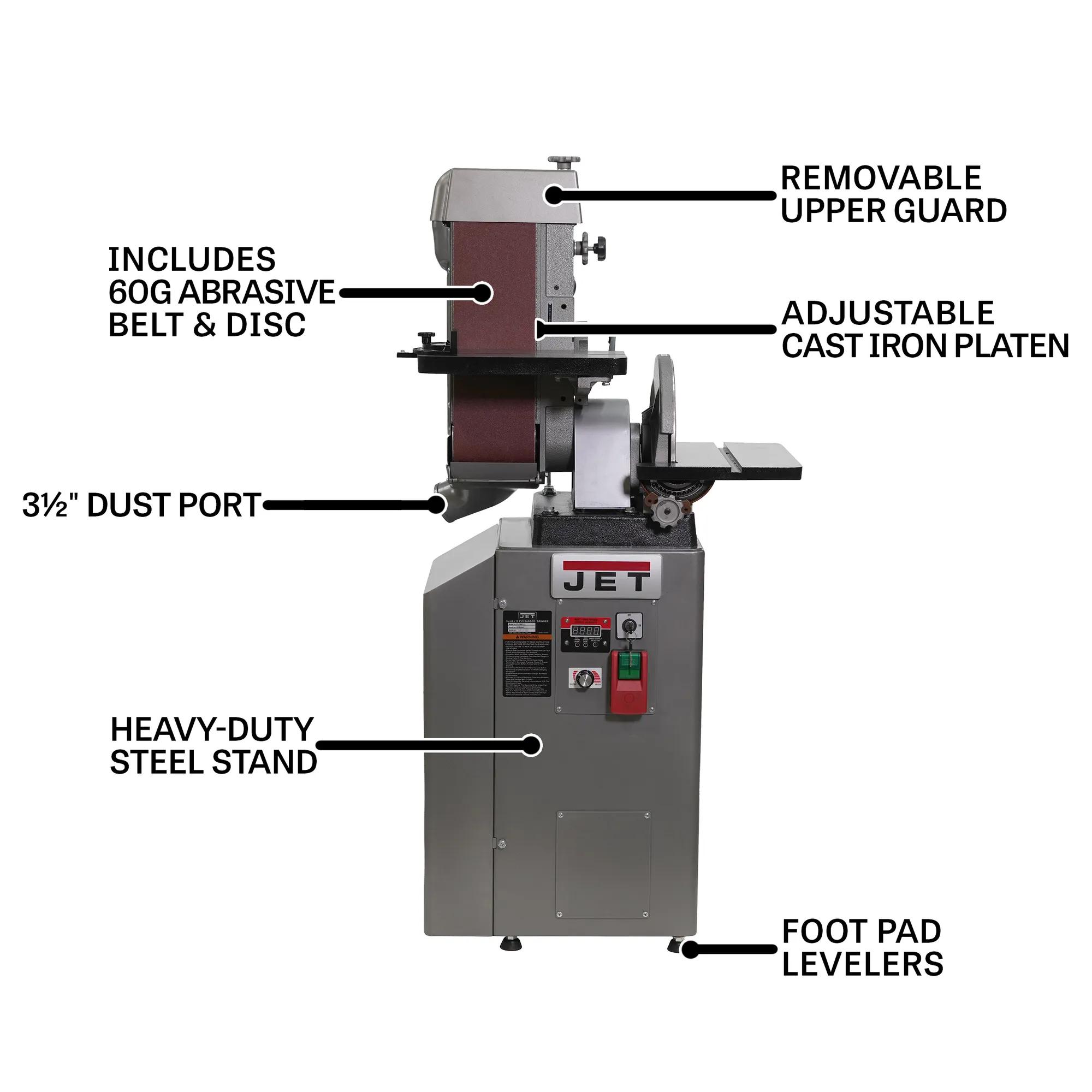

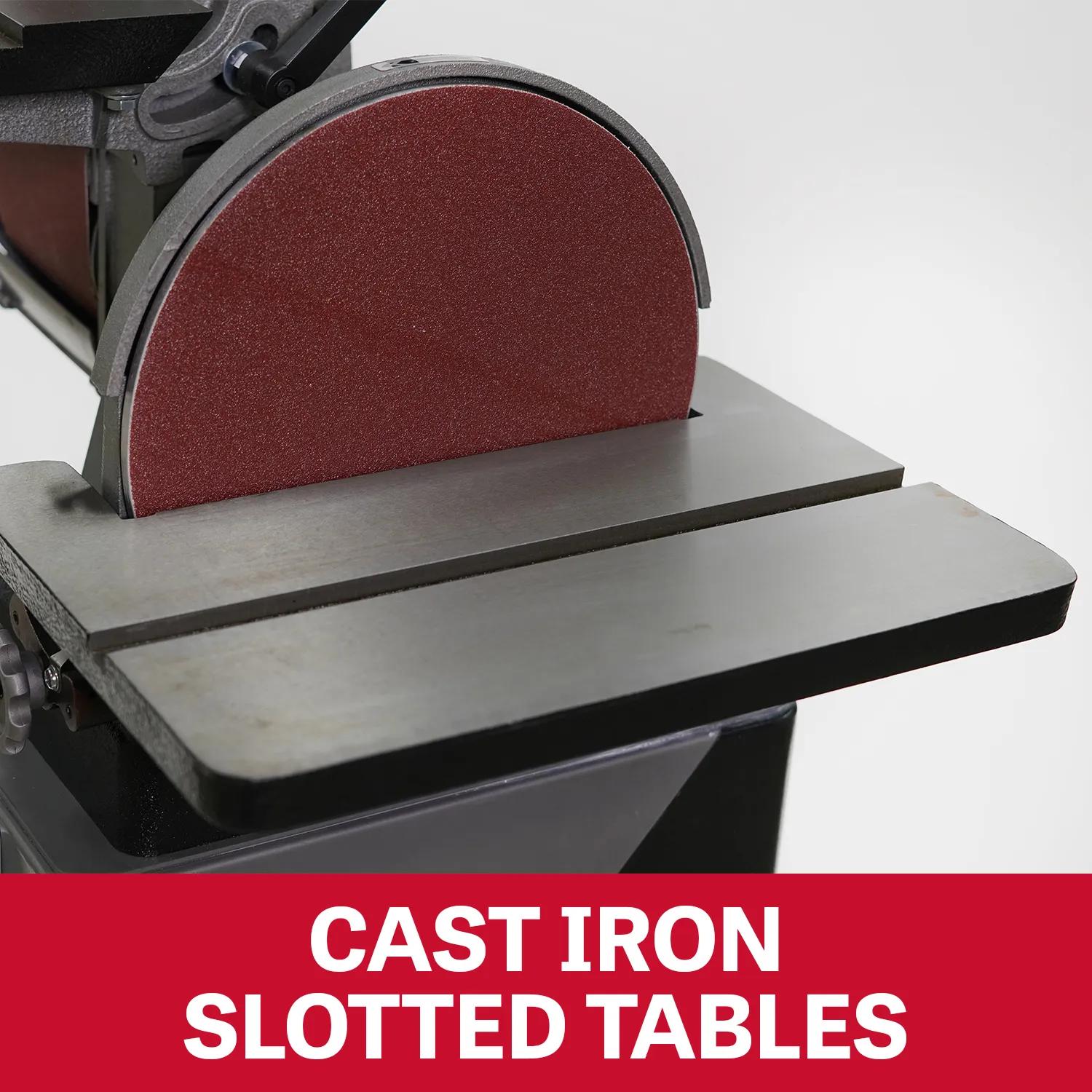

The heavy-duty cast iron platen is both adjustable and removable.

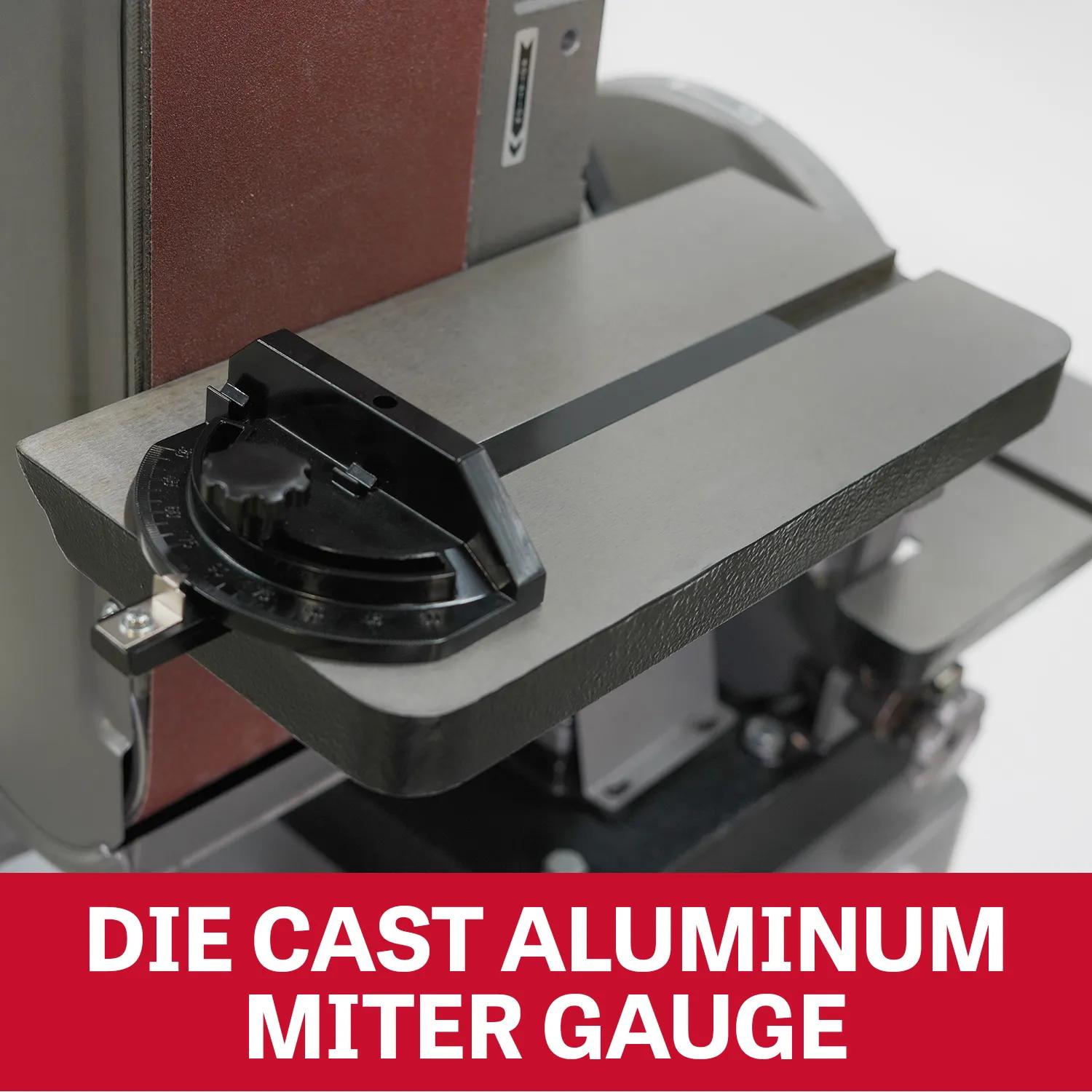

The standard die-cast aluminum miter gauge allows for easy attainment of both plain and compound miters

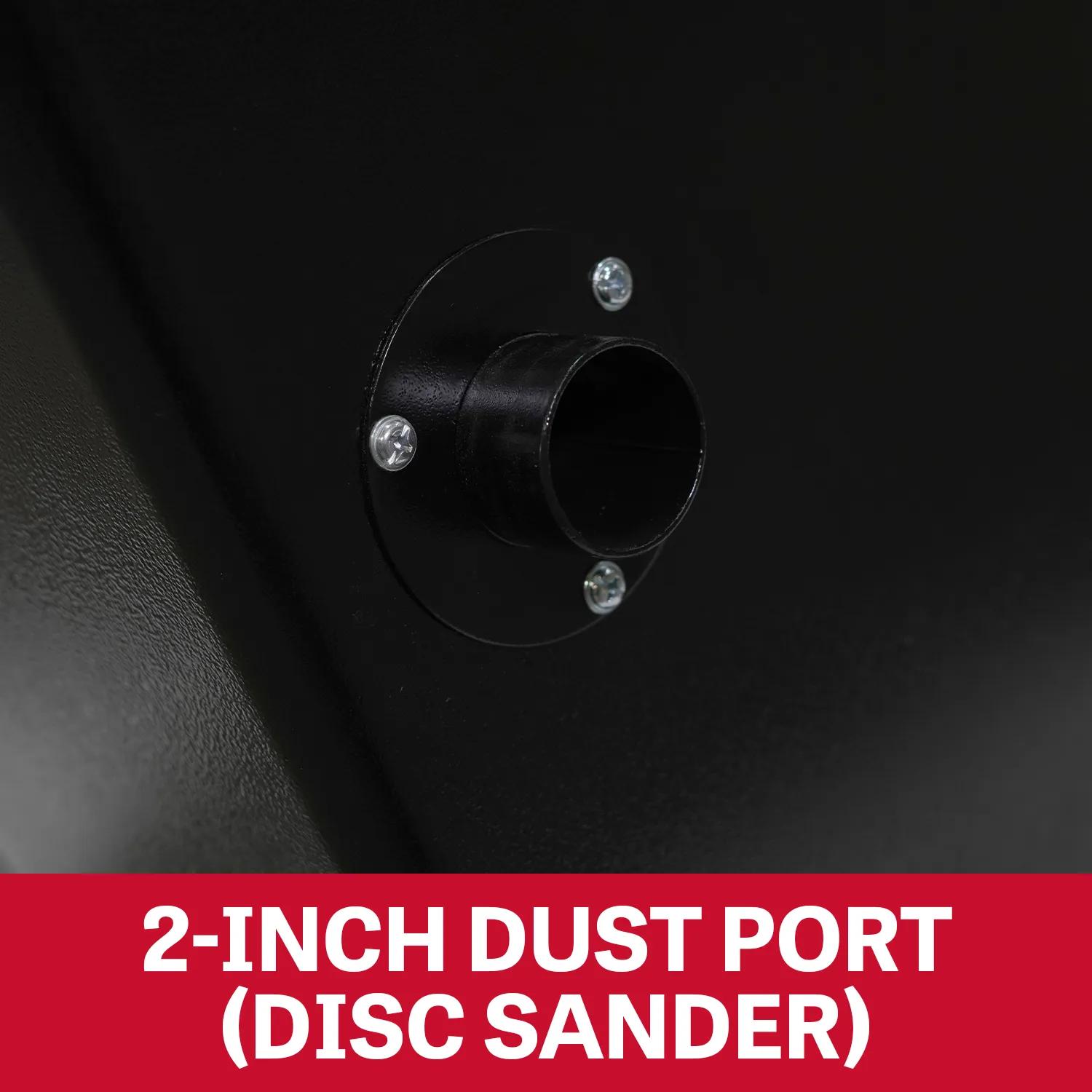

Both the dust collector and dust chute are adjustable to maximize collection
| Stock Number | JT1-112 |
|---|---|
| Model Number | J-64812VS |
| Belt Size (W x L) (In.) | 6 x 48 |
| Belt Speed (SFPM) | 2200-4400 |
| Belt Table Size (In.) | 7-1/16” x 14-11/16" |
| Belt Grit | 80.0000 |
| Disc Diameter (In.) | 12.0000 |
| Motor Speed (RPM) | 1720 |
| Belt Table Tilt (Deg.) | 45 Out |
| Disc Table Size (L x W) (In.) | 16-1/2 X 9 |
| Dust Port Size (In.) | 3 |
| Motor Phase | 3 |
| Motor Voltage (V.) | 230 |
| Overall Dimensions (L x W x H) (In.) | 31-1/2 x 22-27/32 x 49-3/16 |
| Gross Weight (Lbs) | 385 |
| Warranty | 2 Year |
| Prop 65 | Cancer and Reproductive Harm |
| Wheel Diameter (Dia. x W) (In.) | 12 |
| Gross Weight | 385.0 |
| Net weight | 350.0 |
| Dust Port Outside Diameter (In.) | 3-1/4 |
