Specifications Print
8 x 13 Variable Speed Bandsaw | EHB-8VS
Stock Number:
JT9-891015

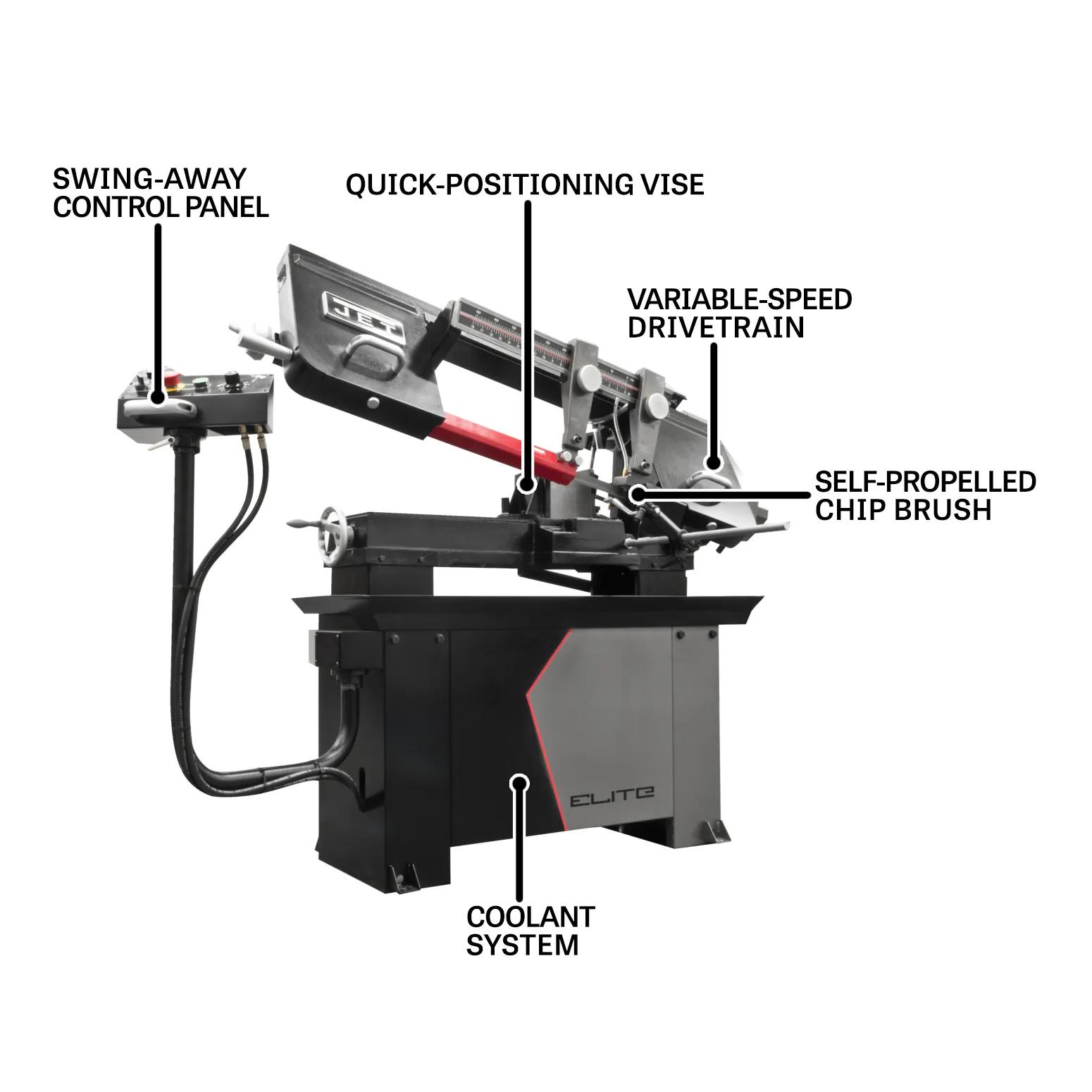

JET EHB-8VS 8"x13" Variable-Speed Horizontal Bandsaw (891015)
Manual

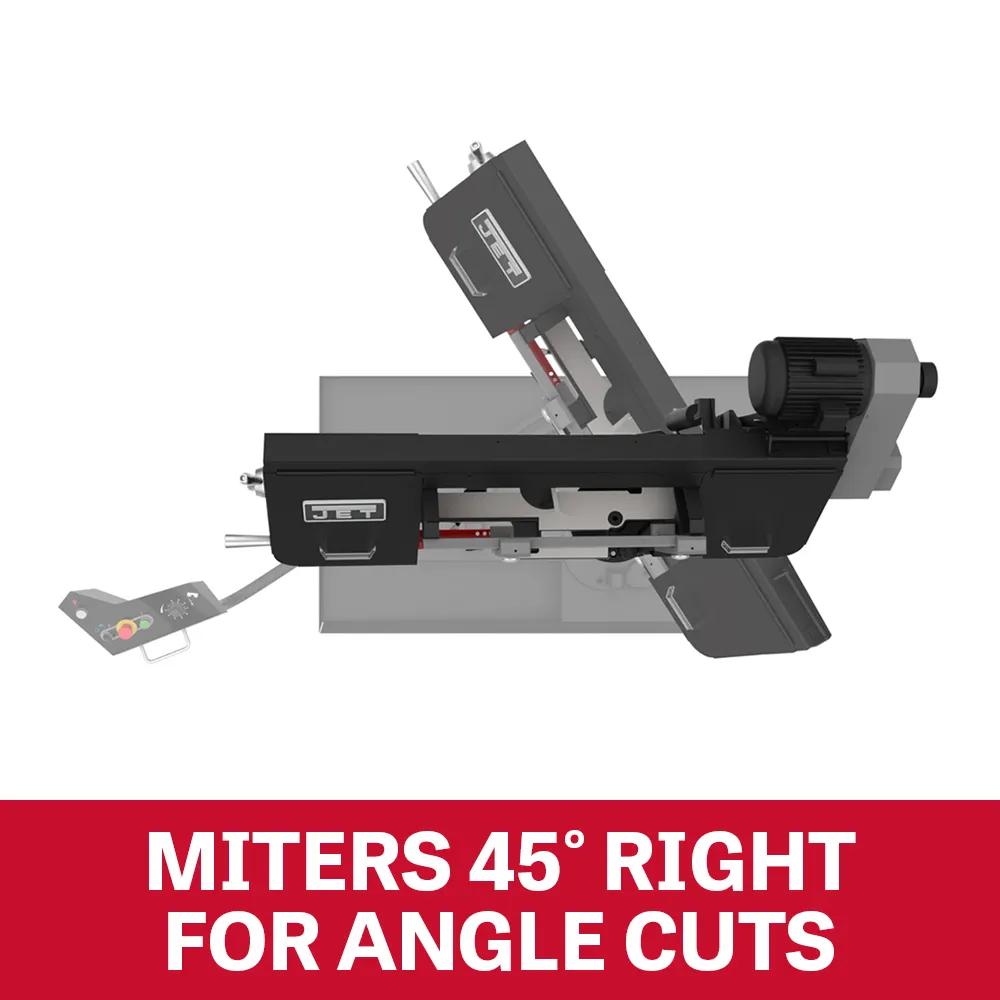

A new legacy of saws. Saws that need to demonstrate new kinds of flexibility, are counted on to last longer, and operate more safely at the same time. Mitering and dual mitering bring an added level of capabilities. All saws come standard with variable speed. Table heights have been optimized, and a completely redesigned swing away control panel. These are the most precise, most durable, and safest bandsaws you could ever put into your shop.
Adjustable Material Stop
Automatic blade shut off switch stops the sawing process
Built-in, self-propelled chip brush prevents chip build up in blade guides

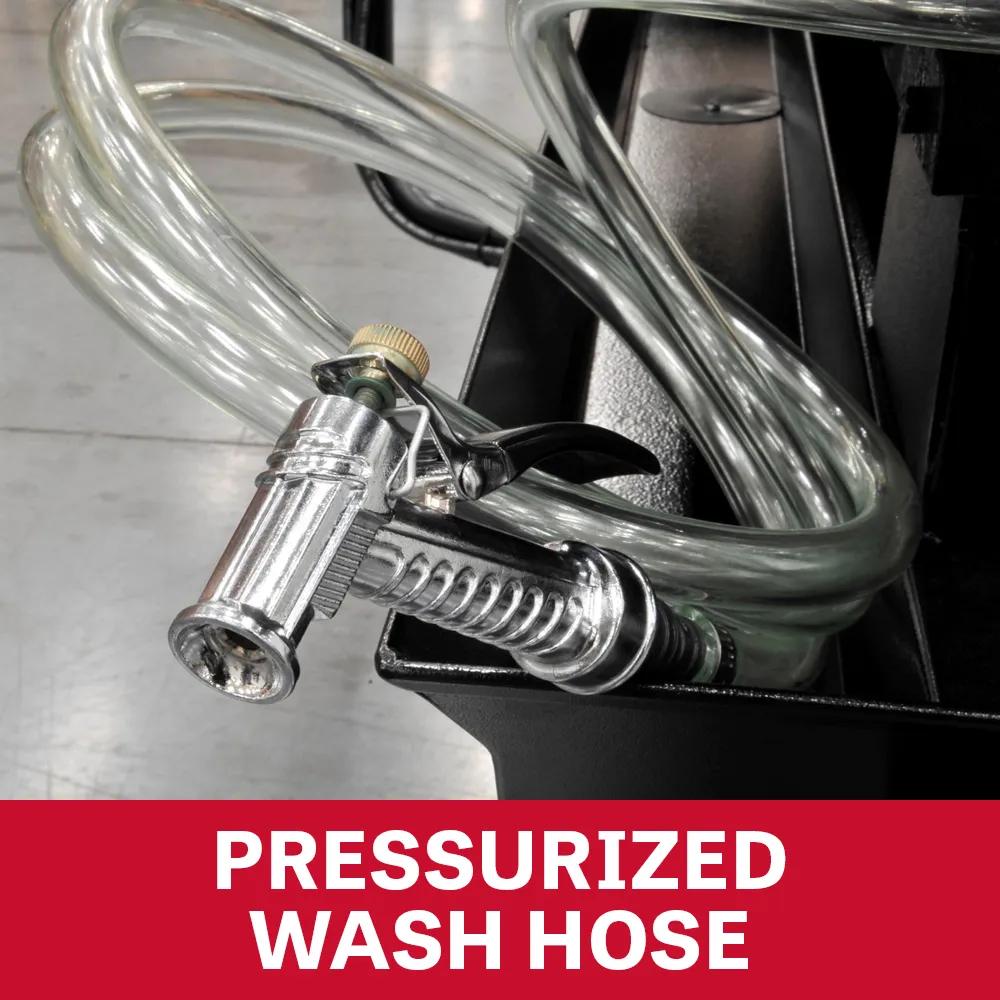

Integrated pressurized wash hose for easy machine cleaning

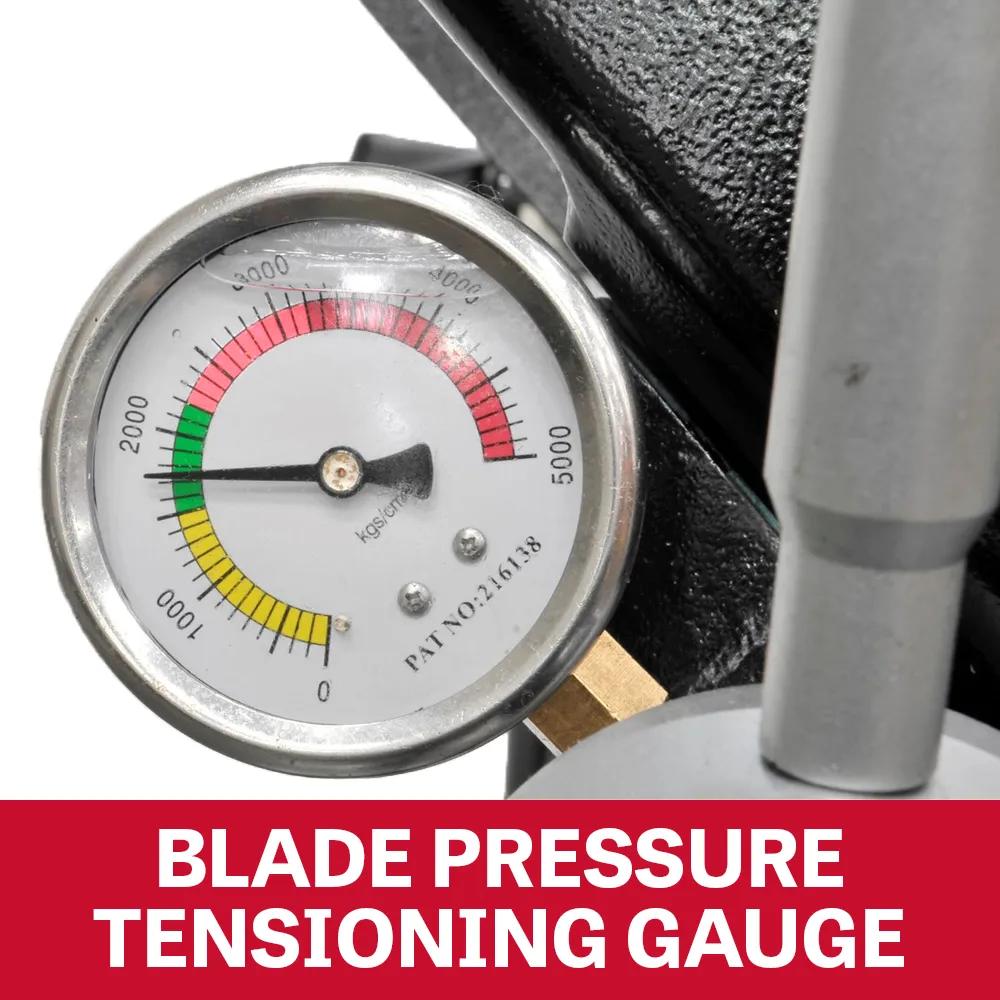

Large handwheel with blade tensioning gauge accurately measures blade pressure
Quick positioning vise for clamping of materials

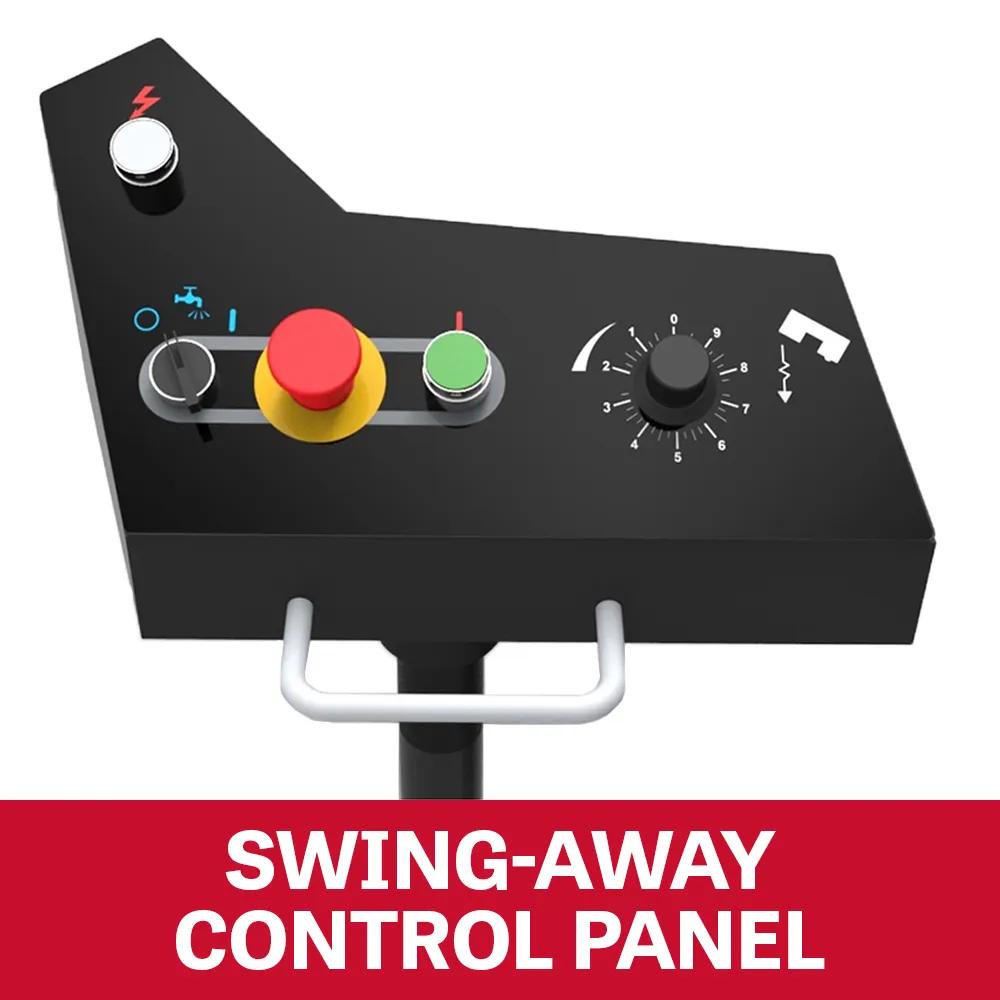

The ELITE swing away panel relocates saw controls to a single location, offering finger-tip operation of most major saw functions

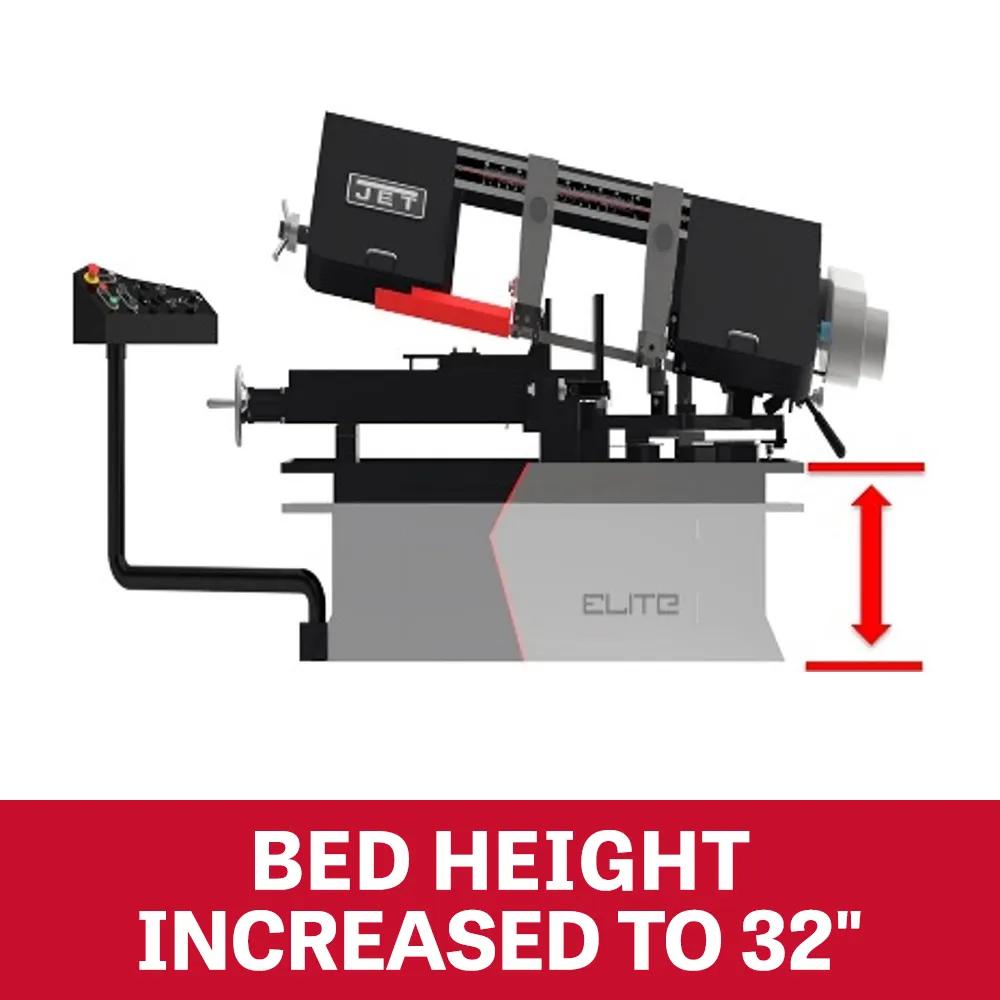

To reduce user fatigue and increase safety of the worker, we increased the saw bed height to up to 32 in.

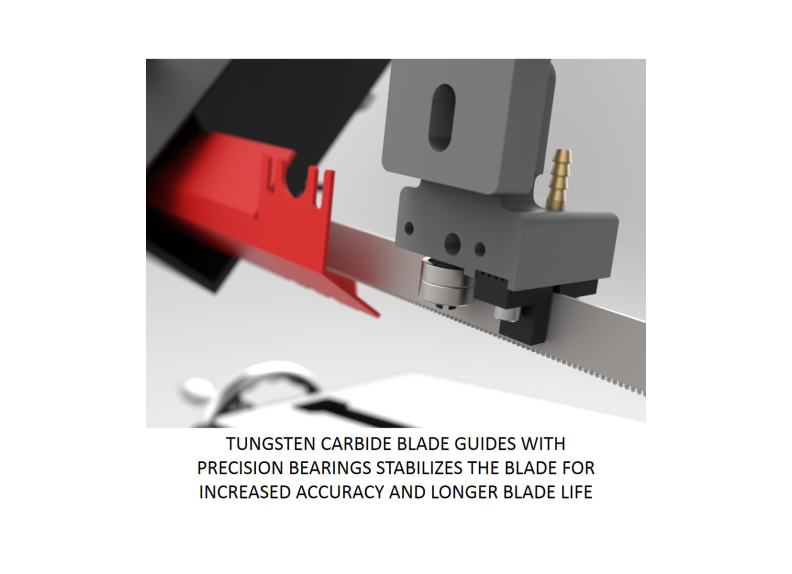

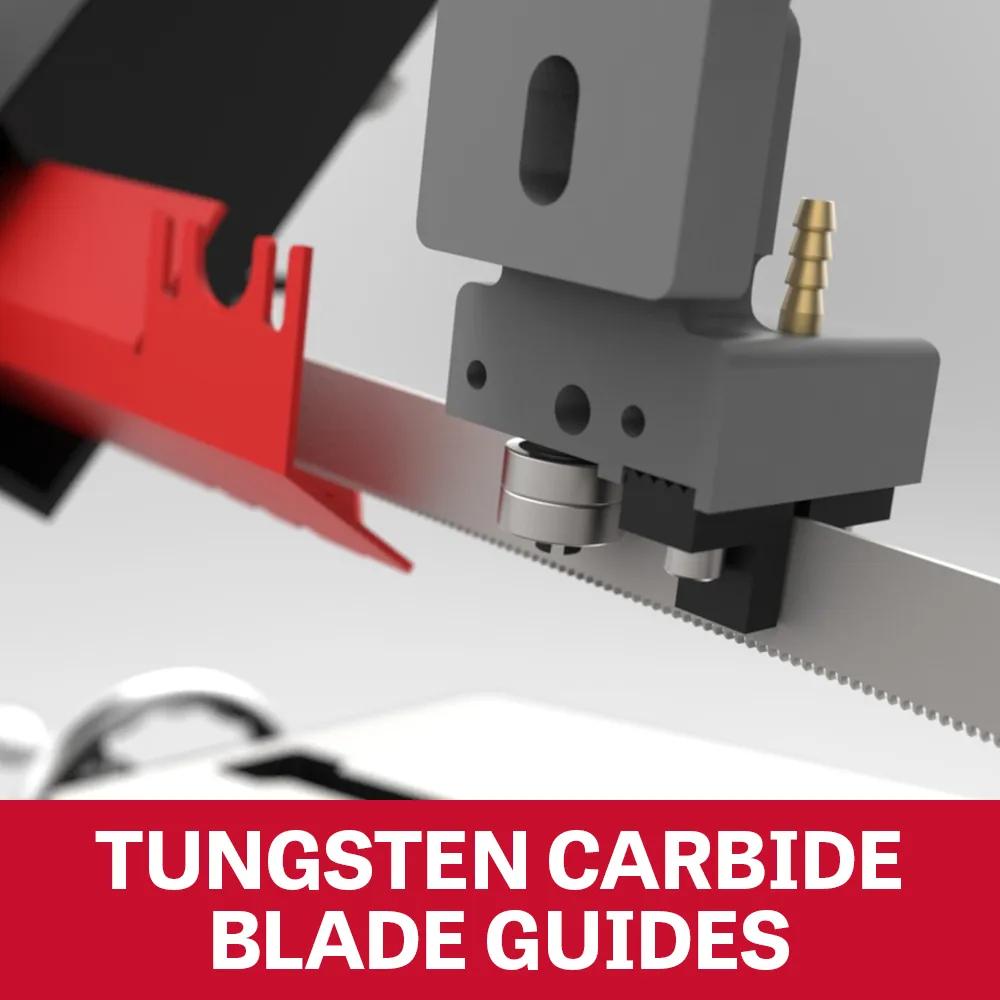

Tungsten carbide blade guides with precision bearings, stabilizes the blade for increased accuracy and extends blade life

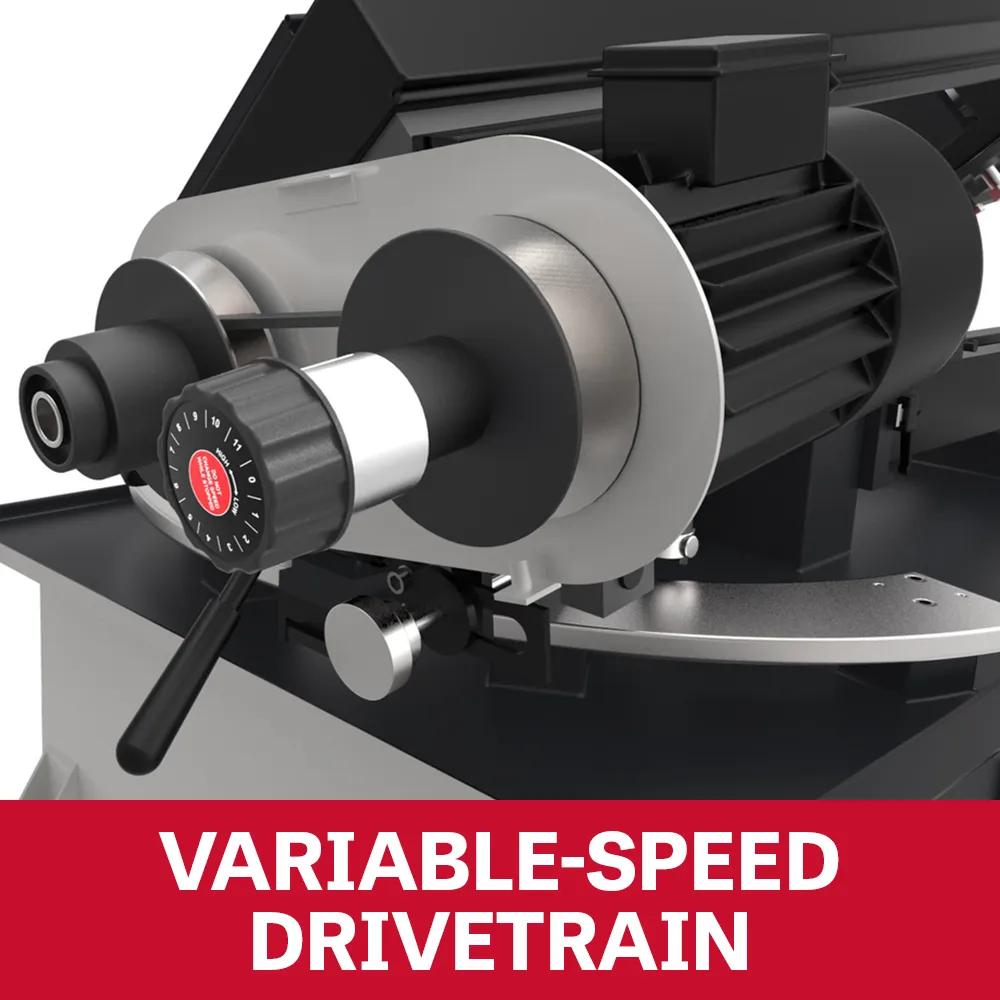

Variable speed drive train allows operator to fine tune the blade speed fast and easily
| Stock Number | JT9-891015 |
|---|---|
| Amperage Draw @ 115V 1Ph | 23 |
| Bed Height (In.) | 32 |
| Blade Length (In.) | 114-1/2 |
| Blade Speed (SFPM) | 82-310 |
| Blade Speeds (SFPM) | 82 - 310 |
| Blade Wheel Diameter (In.) | 11-5/8 |
| Drive | Variable Speed |
| Electrics | 1-1/2HP, 115/230V, 1-Phase |
| Gross Weight (Lbs) | 770 |
| Head Movement (Deg.) | 0 |
| Model Number | EHB-8VS |
| Motor (HP) | 1-1/2 HP, 115/230V, 1Ph |
| Overall Dimensions (L x W x H) (In.) | 62-1/2 x 23 x 48 |
| Prewired Voltage (V.) | 115 |
| Prop 65 | Cancer |
| Rectangle at 45 Degrees (In.) | 8 x 8 or 2 x 9-1/2 |
| Rectangle at 90 Degrees (In.) | 13 x 5-1/4 / 13-1/4 x 2 |
| Round at 45 Degrees (In.) | 8 |
| Round at 90 Degrees (In.) | 8 |
| Shipping Weight (Lbs.) | 770 |
| Square at 45 Degrees (In.) | 8 x 8 |
| Vise Swivels (Deg.) | 45 |
| Warranty | 3 Year Elite |
| Weight (Lbs.) | 770 |
| Gross Weight | 770.0 |
| Net weight | 680.0 |
| Blade Size (In.) | 1 x 0.35 x 114-1/2 |
