AHJ-12, 12-Ton Air / Hydraulic Bottle Jack
Stock Number:
JT9-456612

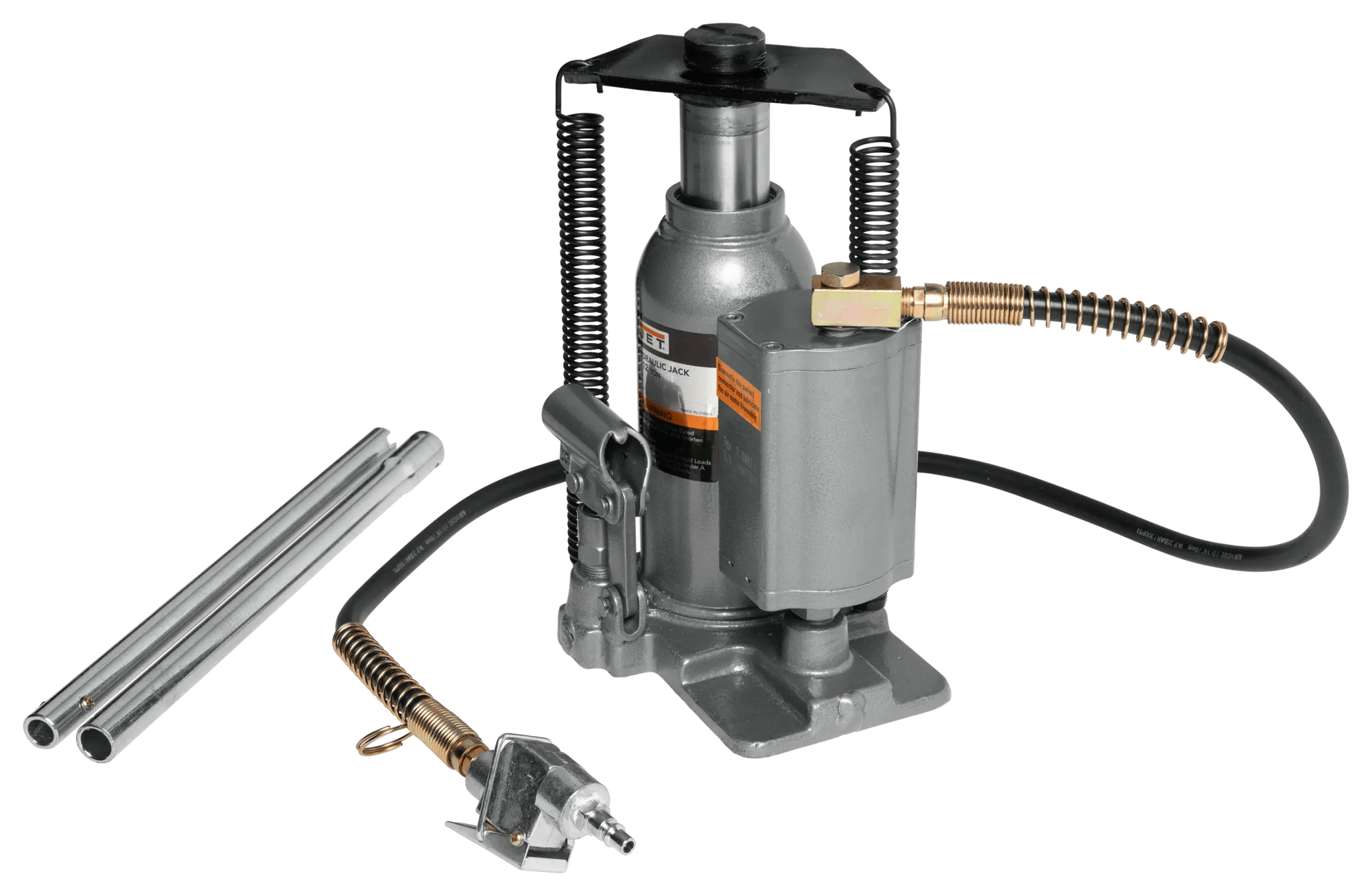

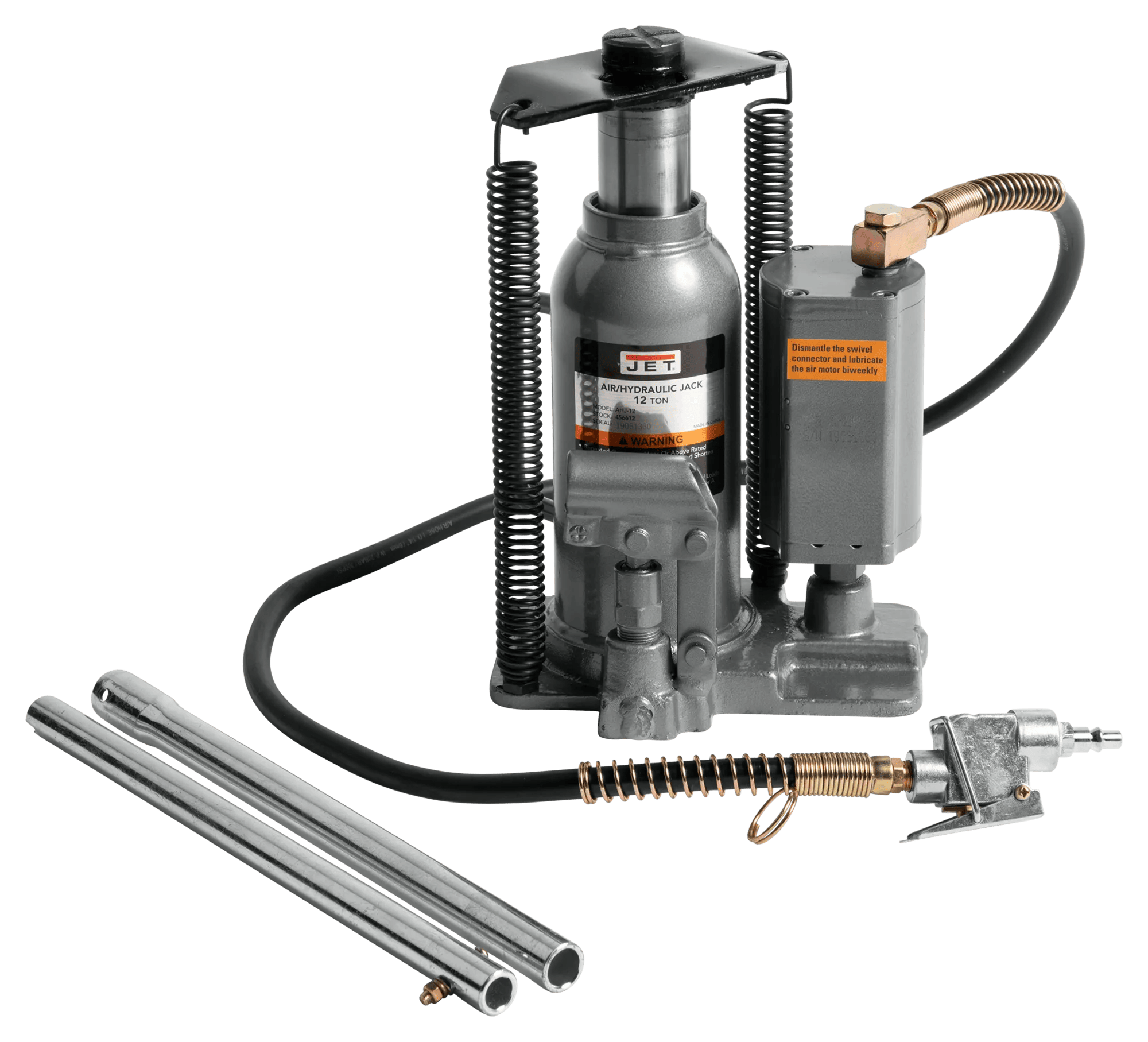

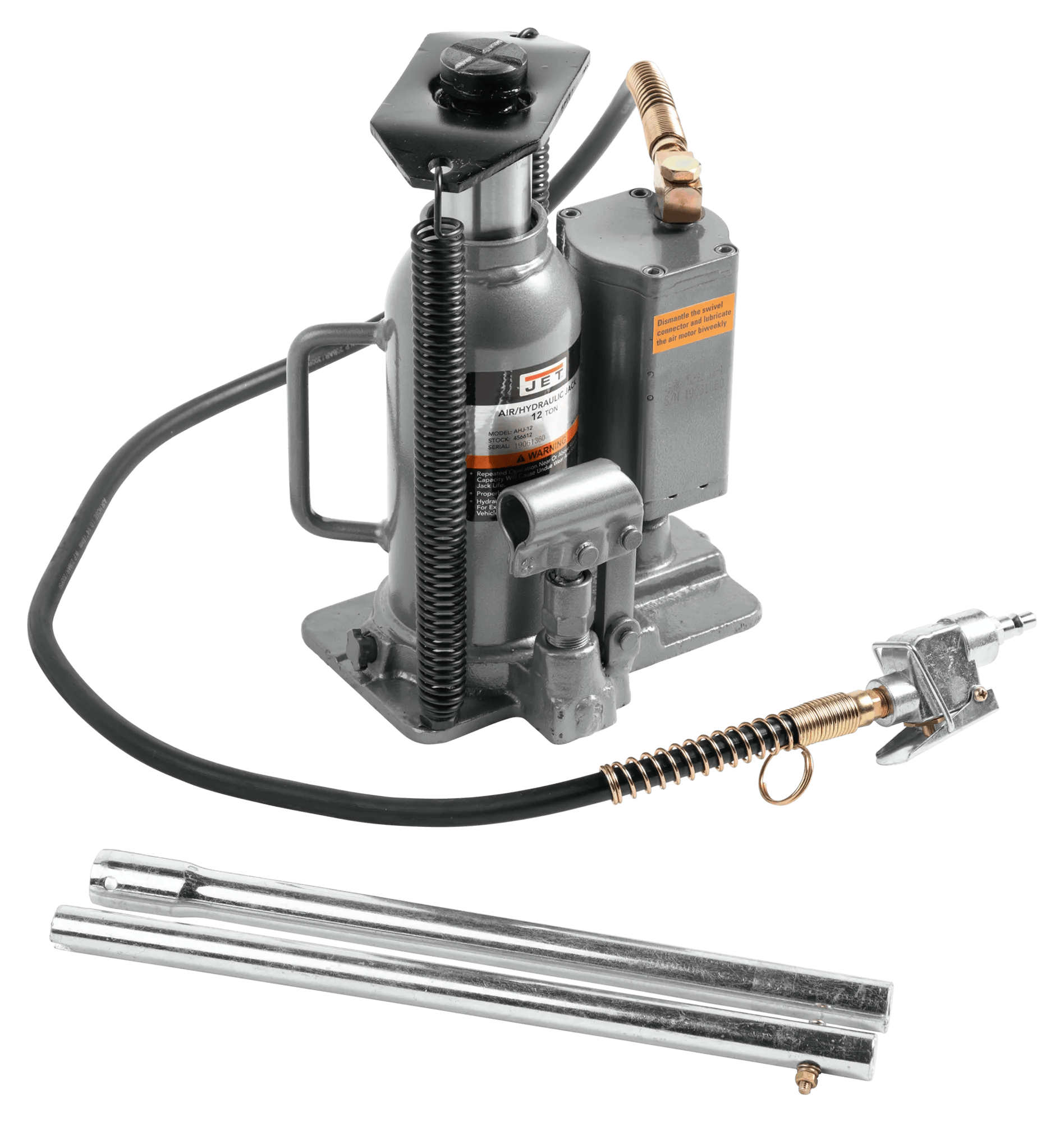

JET AHJ-12, 12-Ton Air/Hydraulic Bottle Jack (456612)
JET® AHJ Series Air/Hydraulic Bottle Jacks have a capacity of 12 or 20 tons, and is the ideal solution for lifting, pushing, spreading, bending, pressing or straightening. Each model functions in upright, angled or horizontal positions for increased versatility. JET AHJ Series Air/Hydraulic Bottle Jacks comply with ANSI/ASME B30.1 and PALD-1 standards.
Complies with ANSI/ASME B30.1 and PALD-1 Standard

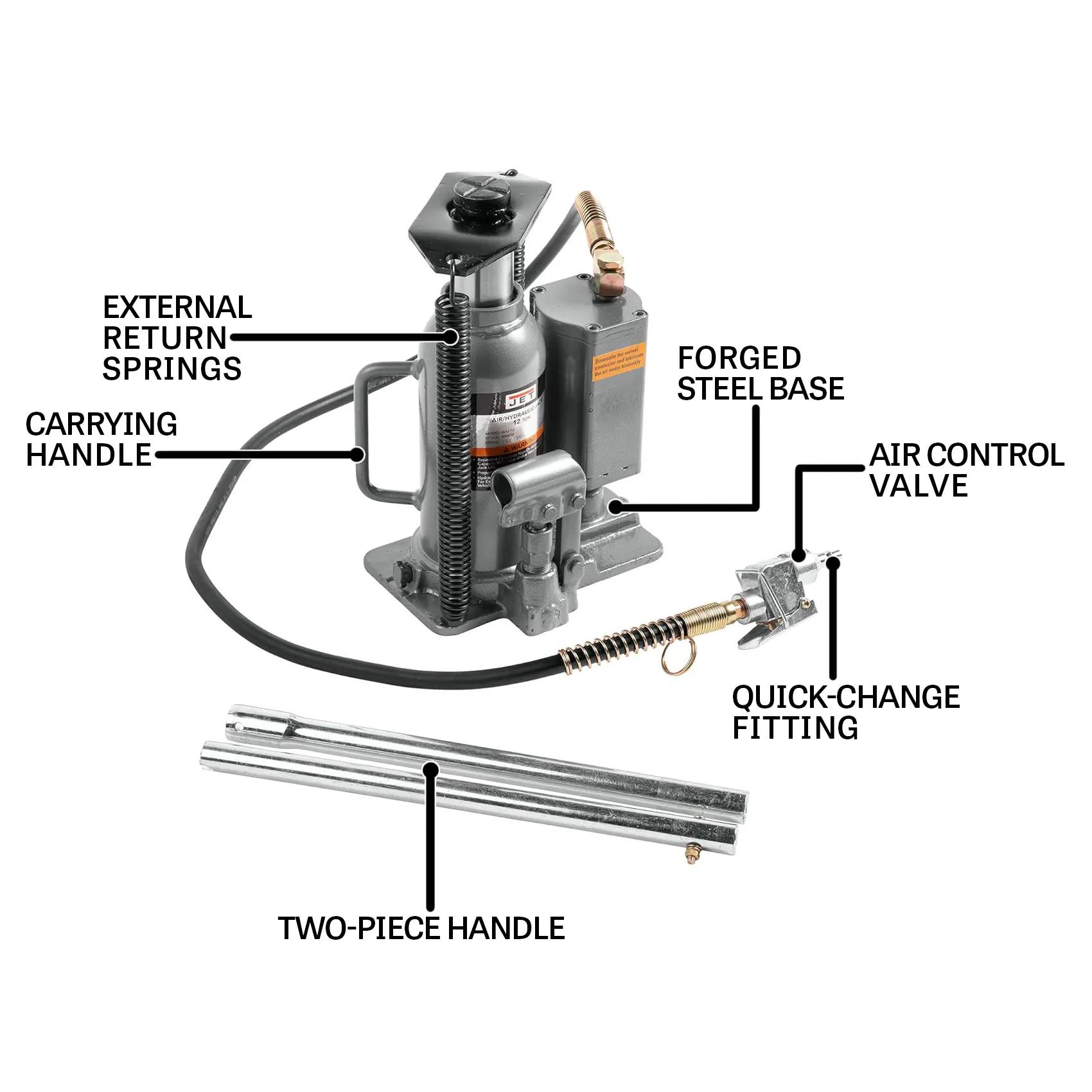

Electric welded bases and cylinders virtually eliminating leaks for proven reliability
Labor saving air pump that connects to a pneumatic source for increased lifting speed
Lifting, pushing, spreading, bending, pressing or straightening capabilities
Lifting, pushing, spreading, bending, pressing or straightening capabilities for multi-function use
Stock Number | JT9-456612 |
---|---|
Air Pressure Required (PSI) | 90-145 |
Base Dimensions (L x W) (In.) | 8-1/4 x 6-2/7 |
Load Capacity (Tons) | 12 |
Maximum Height (In.) | 18-2/3 |
Minimum Height (In.) | 9-2/3 |
Model Number | AHJ-12 |
Piston Lift (In.) | 4-1/2 |
Prop 65 | Cancer and Reproductive Harm |
Warranty | Limited |
Weight (Lbs.) | 25 |
Gross Weight | 34.05 |
Net weight | 30.0 |
