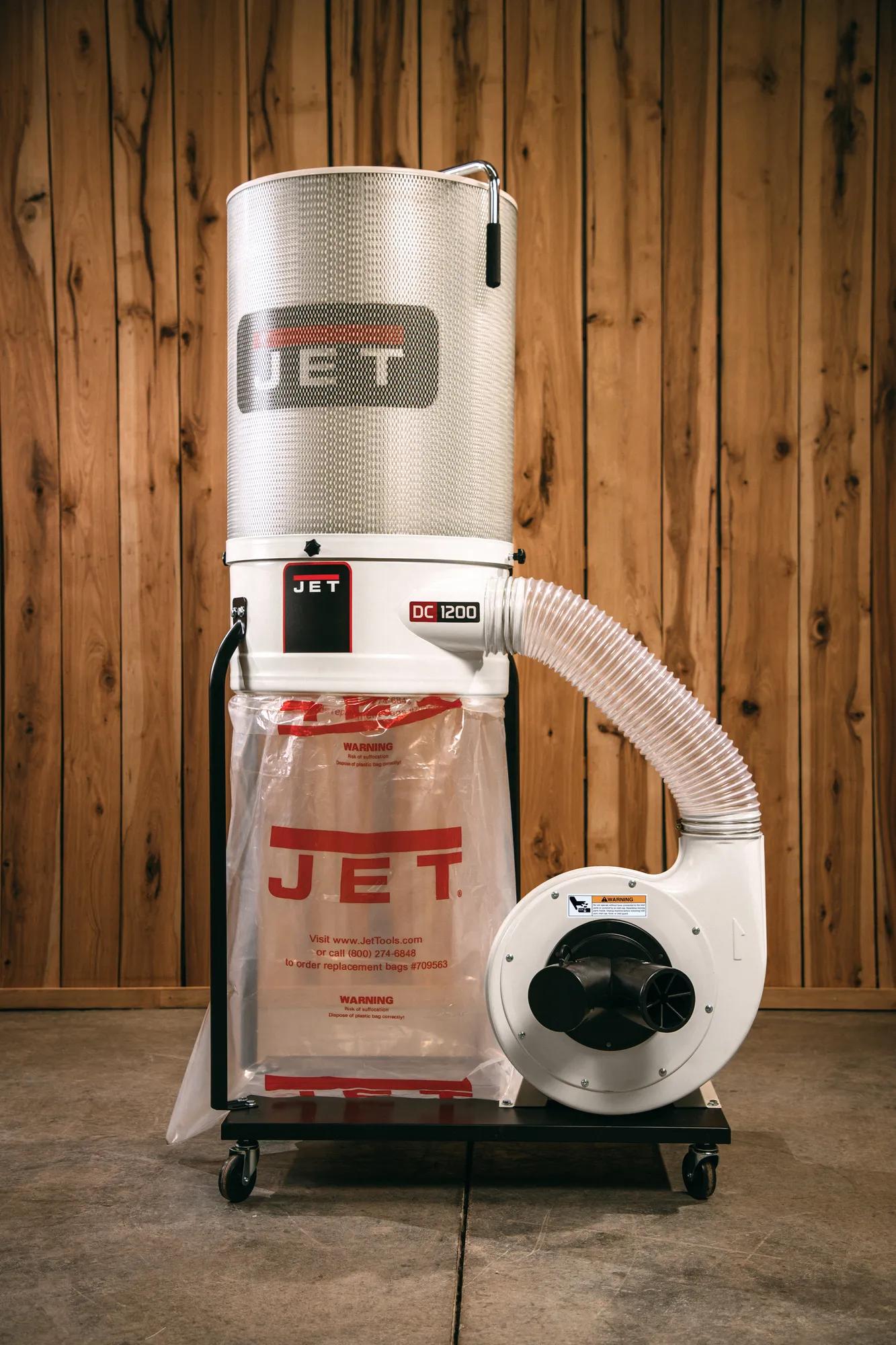

DC-1200VX-BK3 Dust Collector, 2HP 3PH 230/460V, 30-Micron Bag Filter Kit
Stock Number:
JT9-710703K
JET DC-1200VX-BK3 Dust Collector, 2 HP, 3PH 230/460V, 30-Micron Bag Filter Kit (710703K)
Manual
The JET® DC-1200VX features the exclusive Vortex Cone™ which improves chip separation to prevent clogging of the filter, and increases packing efficiency of the collector bag. The high air velocity (CFM) stands up to any competitive specifications, and the industrial controls are designed for years of durable use. Collection bags have a snap ring for fast installation and removal. Casters offer maneuverability within the shop.

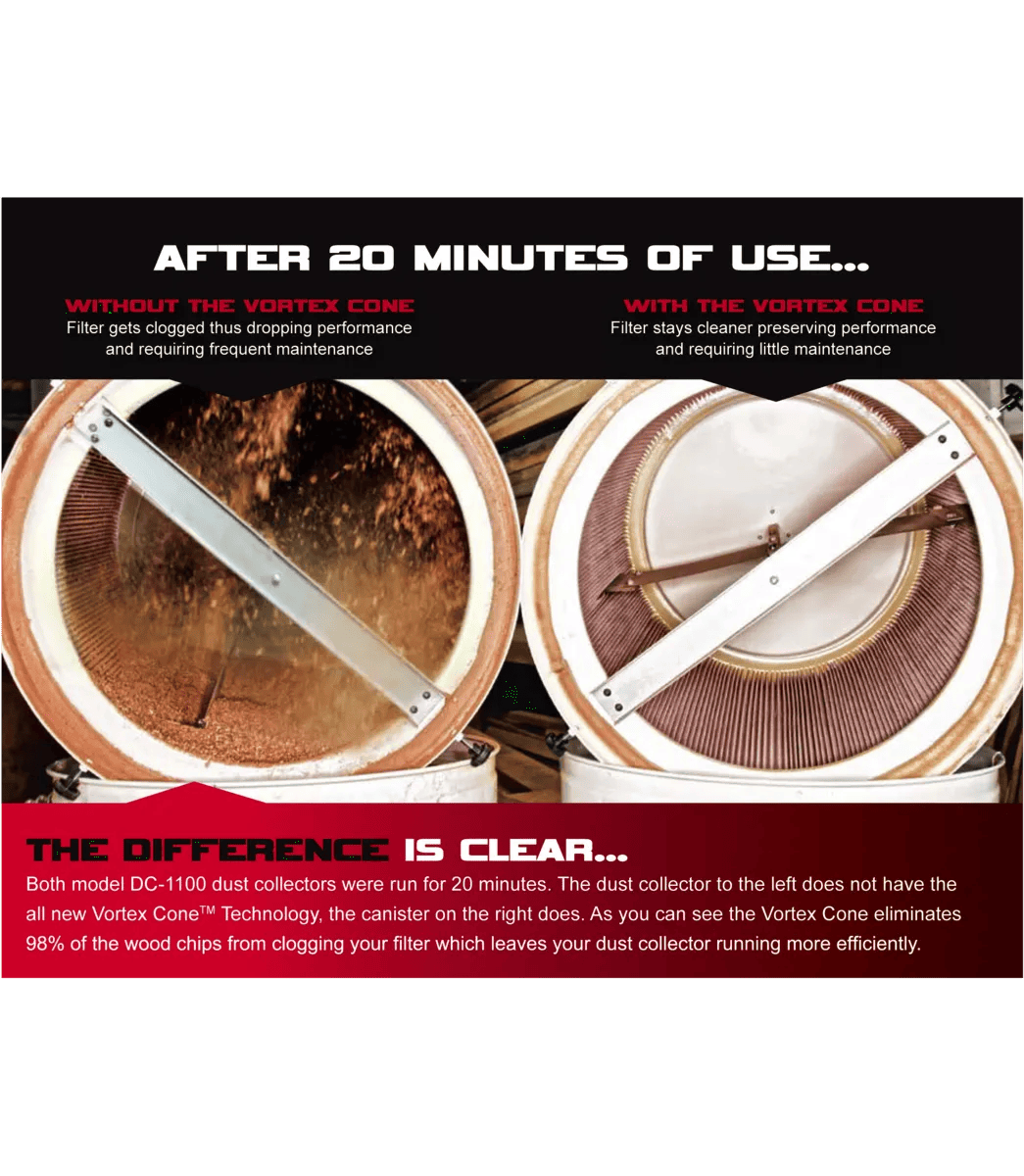

Eliminates premature filter clogging for sustained performance
High air velocity (CFM) design stands up to any competitive specifications
Includes four casters for maneuverability and total portability
Industrial controls designed for years of trouble-free use
Permanently lubricated, totally enclosed, fan-cooled motors are rated for continuous-duty
Quick-connect collection bags with elastic band for fast, easy installation and removal
Single-stage design for economical and quiet operation

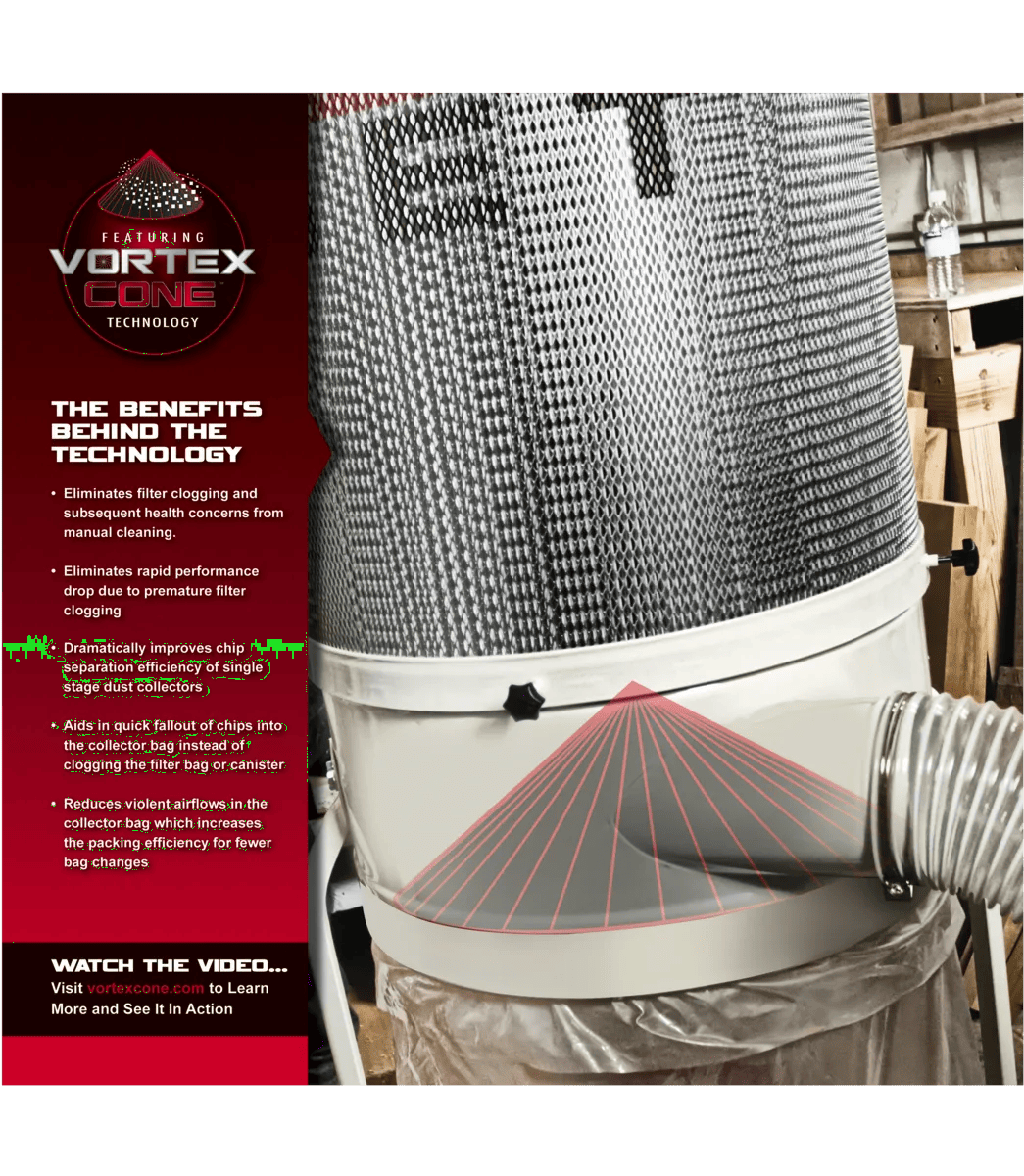

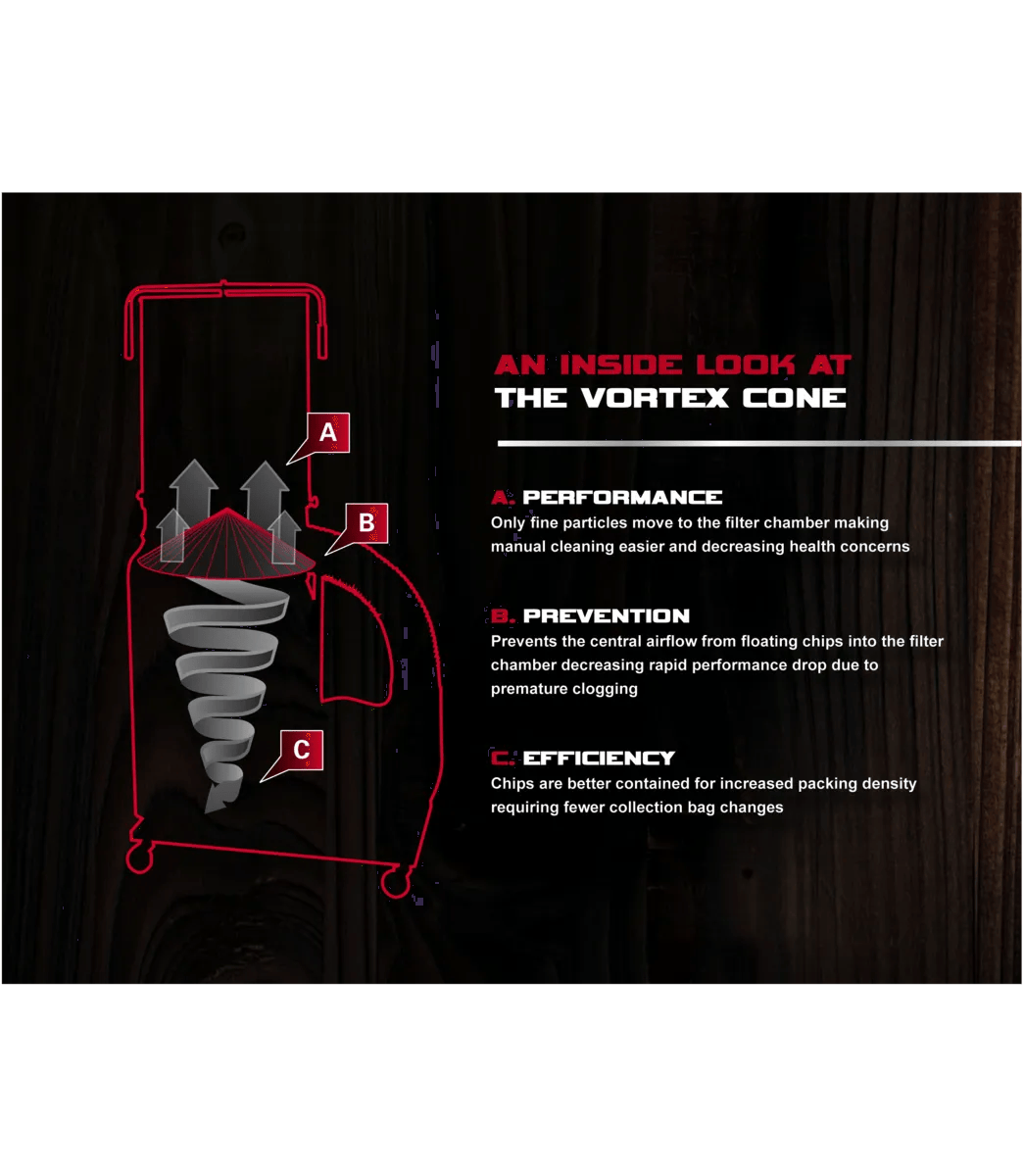

Vortex Cone improves chip separation and collector bag packing efficiency
| Stock Number | JT9-710703K |
|---|---|
| 1-Hose Connection Diameter (In.) | 6 |
| 2-Hoses Connection Diameter (In.) | 4 |
| Air Flow @ 4" (CFM) | 1200 |
| Bag Diameter (In.) | 20 |
| Collection Bag Capacity (Cu. Ft.) | 5-3/10 |
| Collection Bag Length (In.) | 29 |
| Efficiency (Micron) | 30 |
| Impeller Diameter (In.) | 12 |
| Impeller Material | Steel |
| Model Number | DC-1200VX-BK3 |
| Motor Amps | 6/3 |
| Motor Power (HP) | 2 |
| Prewired Voltage (V.) | 230 |
| Prop 65 | Cancer and Reproductive Harm |
| Sound Rating (Db.) | 80 - 85 |
| Static Pressure (Wc.) | 11-1/2 |
| Style (Type) | Bag |
| Velocity @ 4" (FPM) | 13,745 |
| Warranty | 5 Year |
| Gross Weight | 150.0 |
