DC650 w/ 5M Bag Filter Kit
Manual

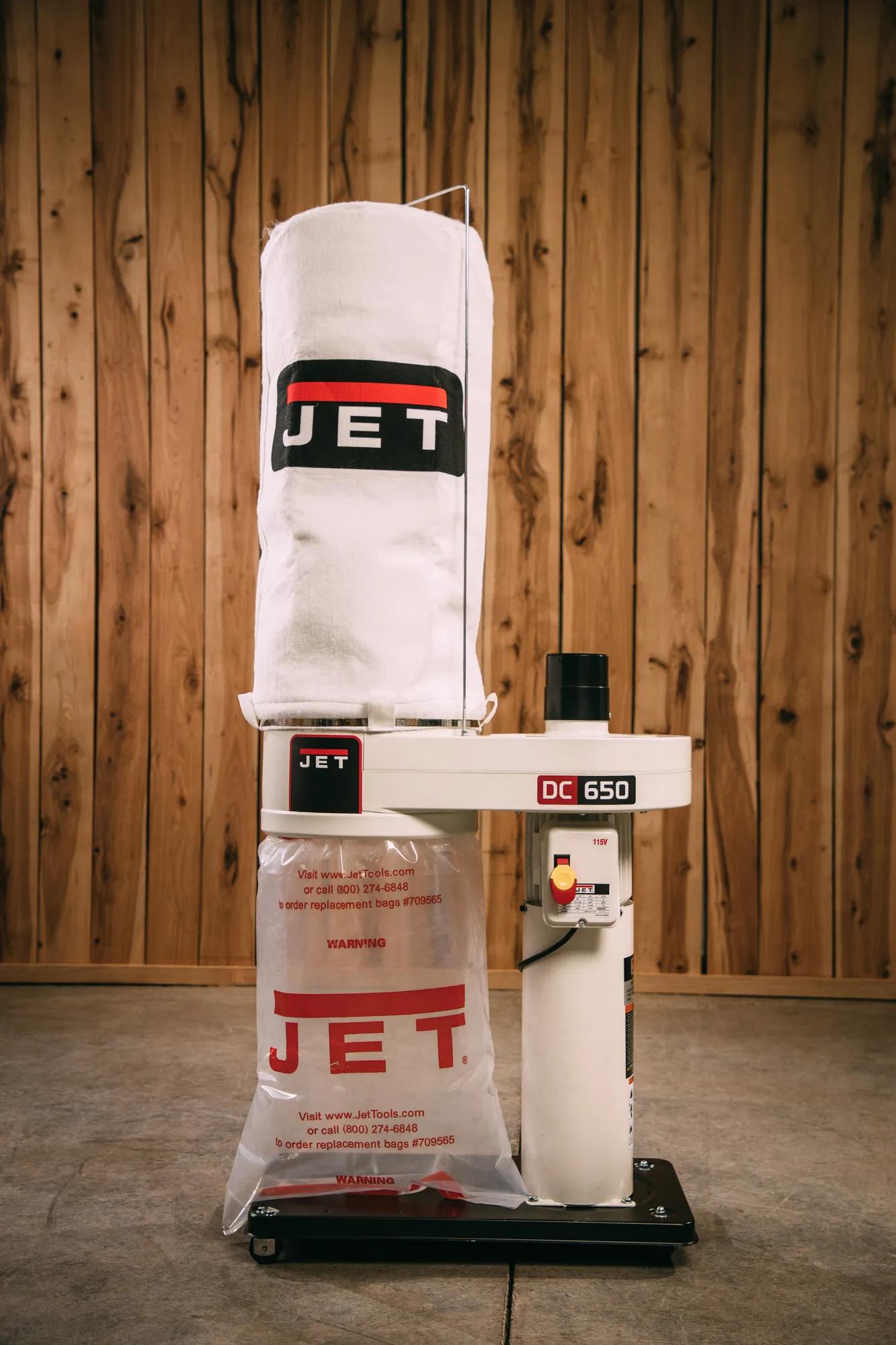

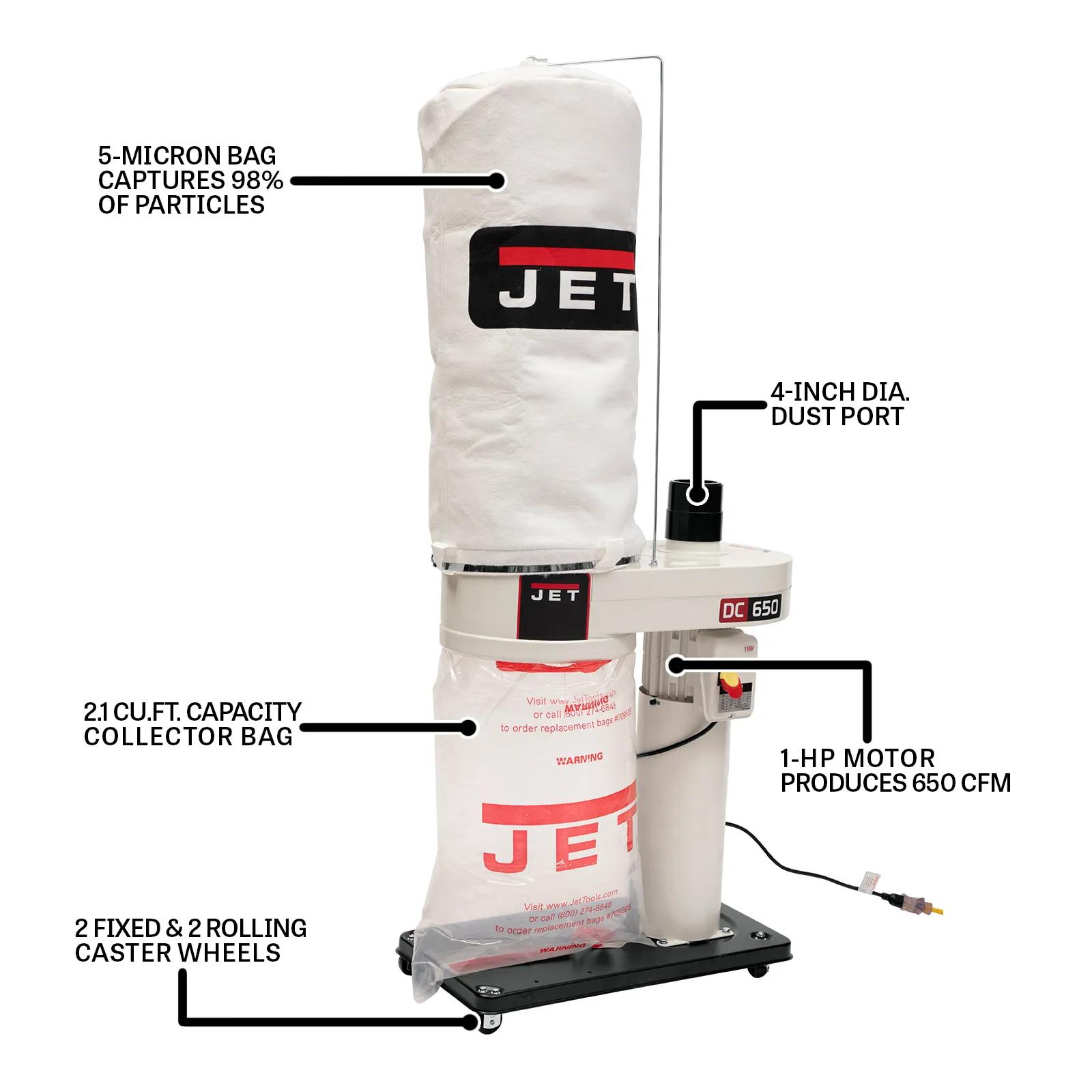

The JET® 650 Series Dust Collector connects to your machines via a 4-inch dust port, effectively capturing debris for a cleaner, safer work environment. It features a single-stage filtration system for efficient operation, a quick-install collection bag for hassle-free changes, and four smooth-rolling casters for easy mobility. The fully enclosed, fan-cooled motor ensures long-lasting, continuous operation with minimal maintenance. An optional radio-frequency remote control allows convenient operation from anywhere in the shop—no direct line of sight required.
Powered by a 1HP motor and equipped with a 2-micron canister filter, this dust collector delivers exceptional suction while capturing finer dust particles, improving both filtration efficiency and air quality.
| Stock Number | JT9-708642MK |
|---|---|
| 1-Hose Connection Diameter (In.) | 4 |
| Air Flow @ 4" (CFM) | 650 |
| Bag Diameter (In.) | 14 |
| Collection Bag Capacity (Cu. Ft.) | 2-1/10 |
| Collection Bag Length (In.) | 21-1/2 |
| Impeller Material | Steel |
| Model Number | DC650M |
| Motor Amps | 11/5.5 |
| Motor Power (HP) | 1 |
| Prewired Voltage (V.) | 115 |
| Prop 65 | Cancer and Reproductive Harm |
| Sound Rating (Db.) | 65 - 70 |
| Static Pressure (Wc.) | 6-1/2 |
| Style (Type) | Bag |
| Warranty | 5 Year |
| Gross Weight | 91.0 |
| Net weight | 86.0 |
