Dust Collector, 1.5HP 1PH 115/230V, 5-Micron Bag Filter Kit | DC-1100VX-5M
Stock Number:
JT9-708658K
Manual

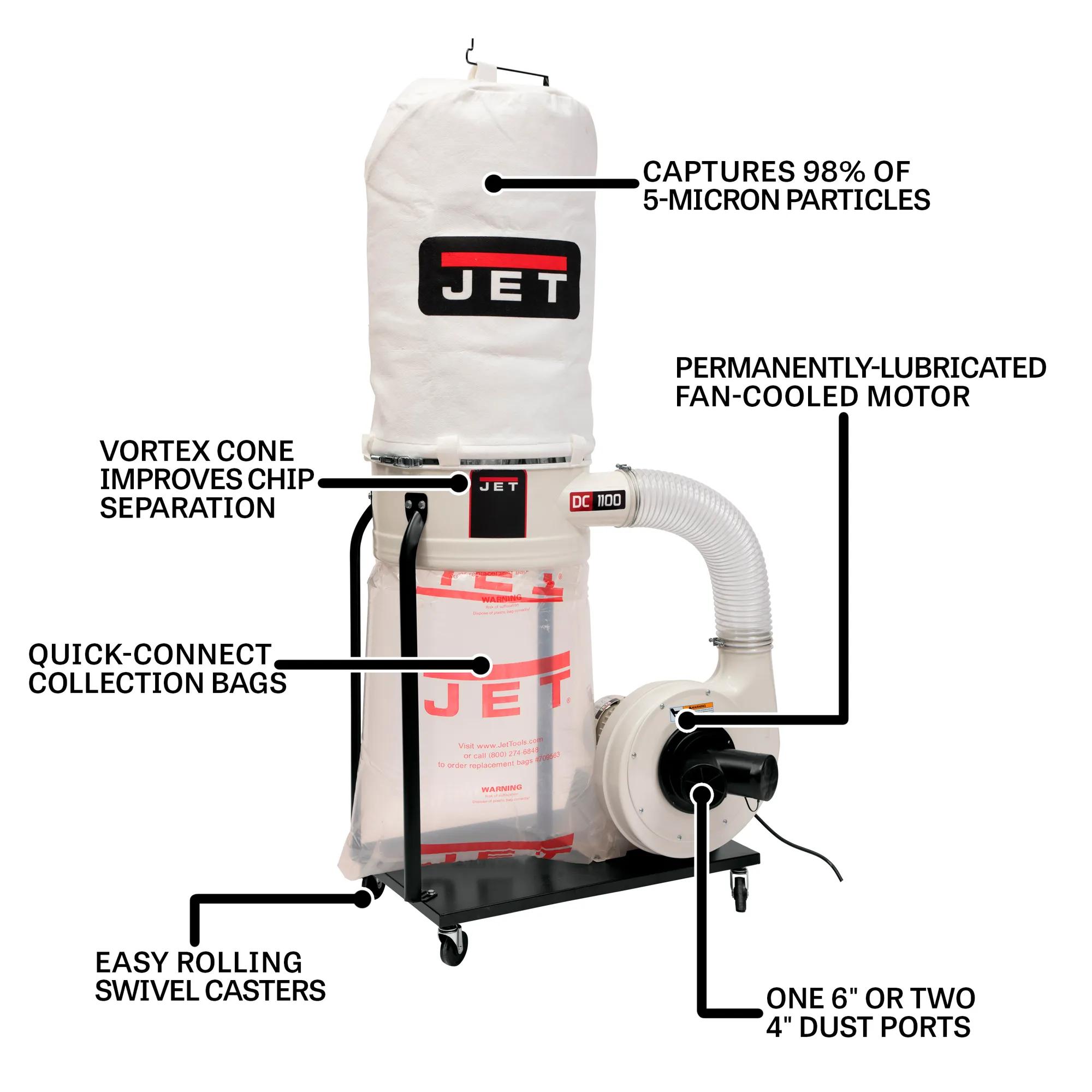

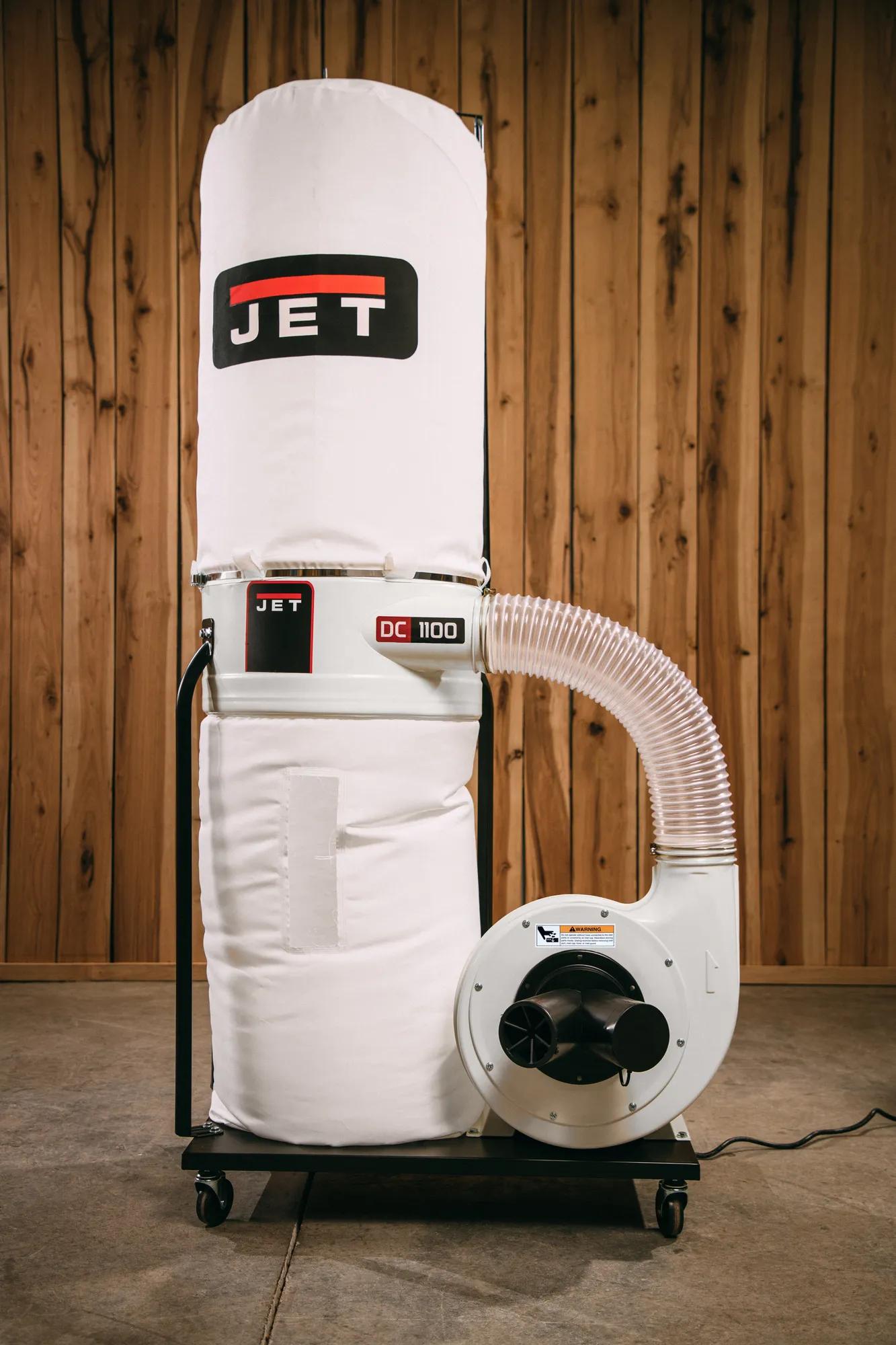

The JET® DC-1100VX-5M features the exclusive Vortex Cone™ which improves chip separation to prevent clogging of the filter, and increases packing efficiency of the collector bag. The filter bag captures up to 98% of 5-micron particles. The high air velocity (CFM) stands up to any competitive specifications, and the industrial controls are designed for years of durable use. Collection bags have a snap ring for fast installation and removal. Casters offer maneuverability within the shop.

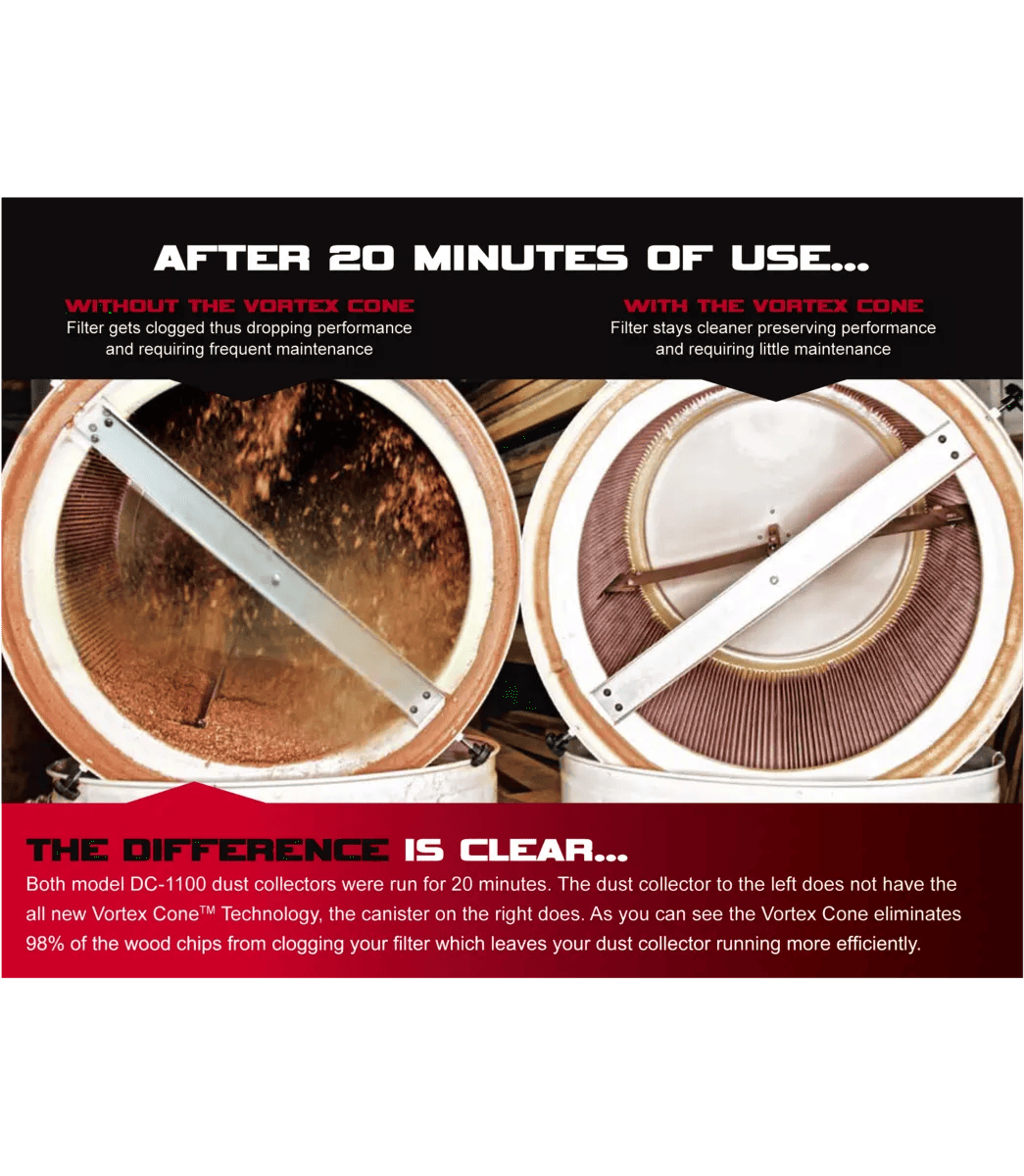

Eliminates premature filter clogging for sustained performance
High air velocity (CFM) design stands up to any competitive specifications
Includes four casters for maneuverability and total portability
Industrial controls designed for years of trouble-free use
Permanently lubricated, totally enclosed, fan-cooled motors are rated for continuous-duty
Quick-connect collection bags with elastic band for fast, easy installation and removal
Single-stage design for economical and quiet operation

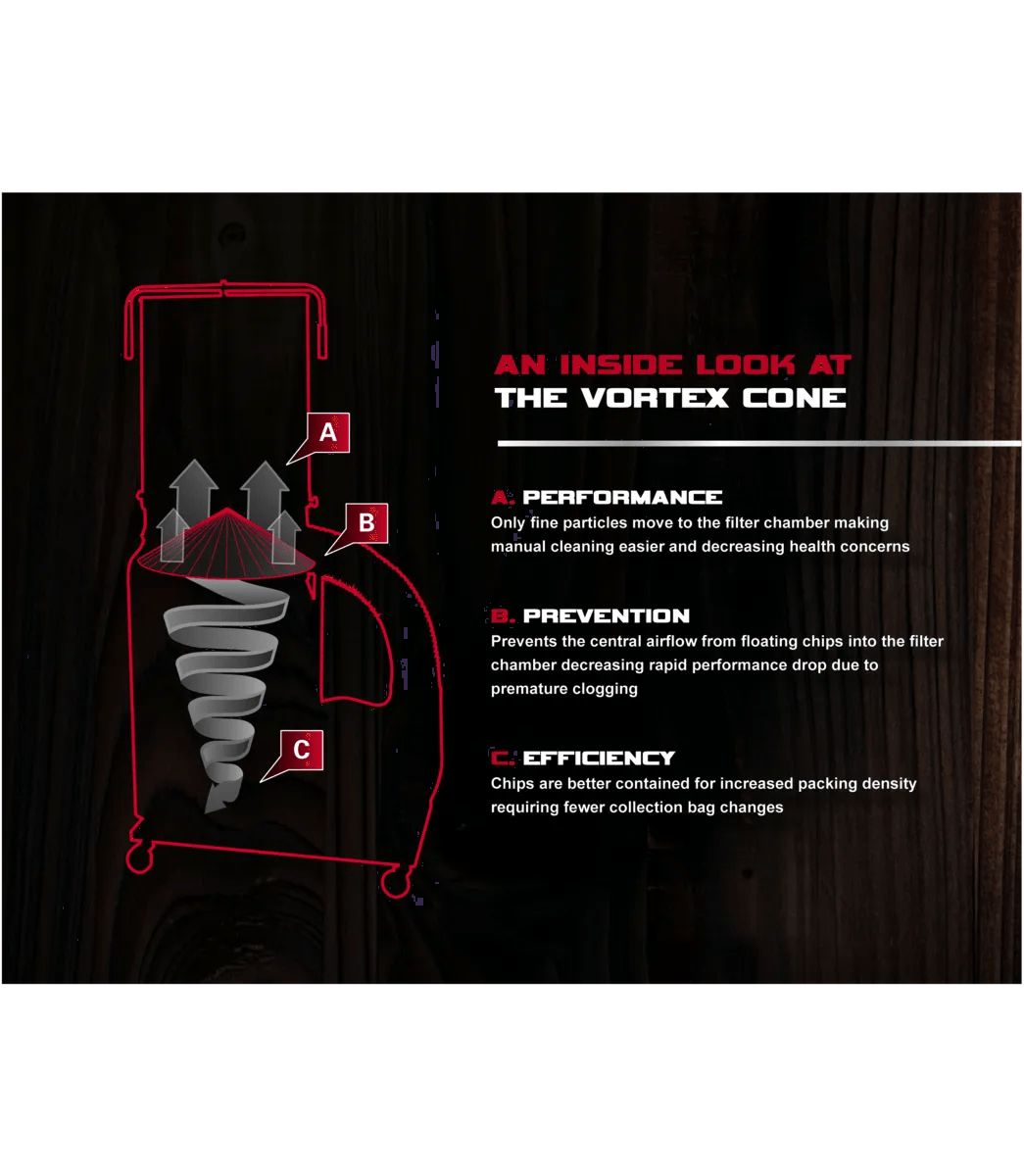

Vortex Cone improves chip separation and collector bag packing efficiency
| Stock Number | JT9-708658K |
|---|---|
| 1-Hose Connection Diameter (In.) | 6 |
| 2-Hoses Connection Diameter (In.) | 4 |
| Air Flow @ 4" (CFM) | 1100 |
| Bag Diameter (In.) | 20 |
| Collection Bag Capacity (Cu. Ft.) | 5-3/10 |
| Collection Bag Length (In.) | 30 |
| Efficiency (Micron) | 5 |
| Impeller Material | Steel |
| Model Number | DC-1100VX-5M |
| Motor Amps | 11/5.5 |
| Motor Phase | 1 |
| Motor Power (HP) | 1-1/2 |
| Motor Voltage (V.) | 115/230 |
| Overall Dimensions (L x W x H) (In.) | 37" x 28" x 79" |
| Prewired Voltage (V.) | 115 |
| Prop 65 | Cancer and Reproductive Harm |
| Sound Rating (Db.) | 70 - 80 |
| Static Pressure (Wc.) | 10-1/2 |
| Style (Type) | Bag |
| Velocity @ 4" (FPM) | 12,571 |
| Warranty | 5 Year |
| Gross Weight | 143.0 |
| Net weight | 130.0 |
