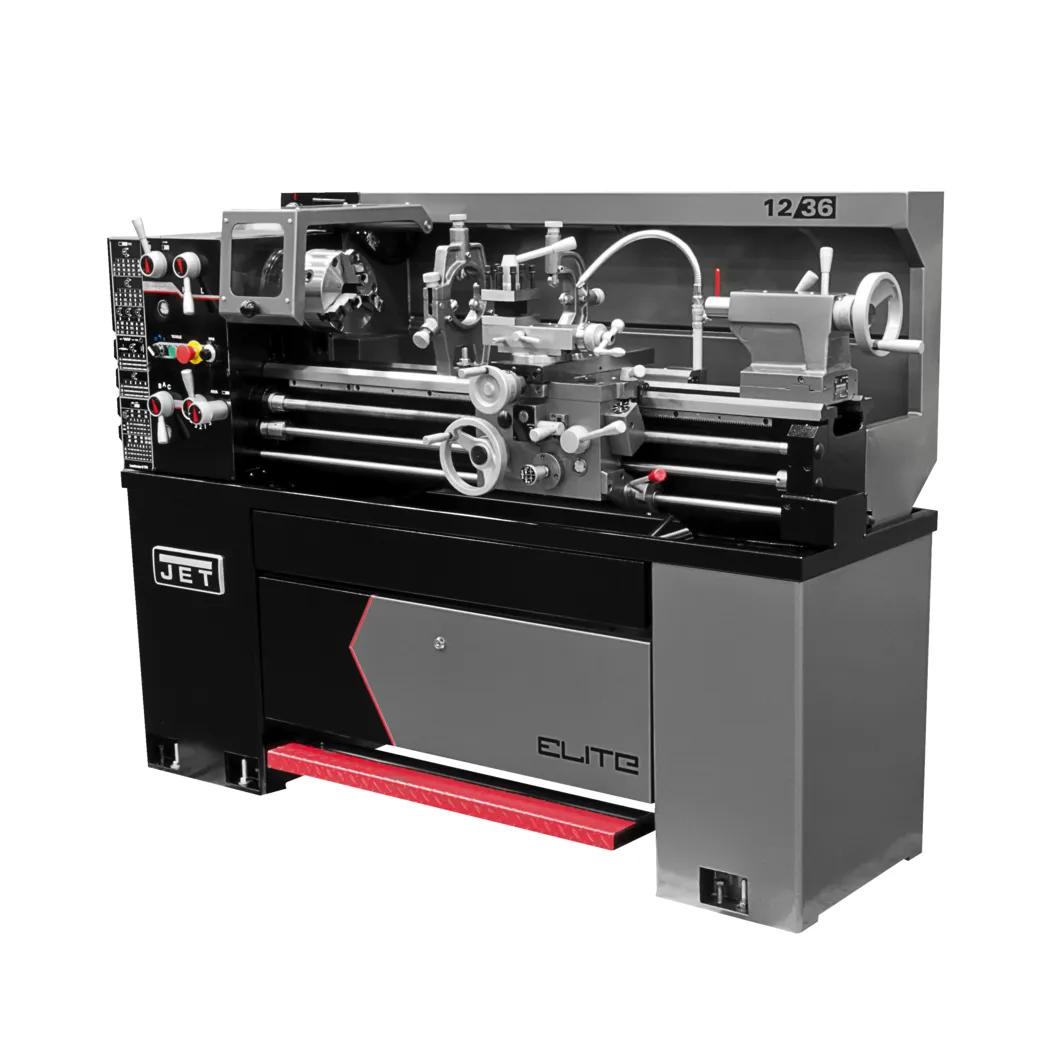

E-1236VS With Newall DP700 DRO With Taper Attachment and Collet Closer
Stock Number:
JT9-892322
E-1236VS With Newall DP700 DRO With Taper Attachment and Collet Closer
Compact, powerful, perfection. Elite EVS lathes pack large features into compact footprints that make them perfect for schools, small shops, and engineering labs. Featuring certified Meehanite® castings, an electro-magnetic brake, three jaw chuck, ball bearing-mounted steady and follow rests, and CNC Style Lighting with enclosed splash guard, these lathes are truly Elite! CSA/CUS Certified.
4-Position Carriage Stop

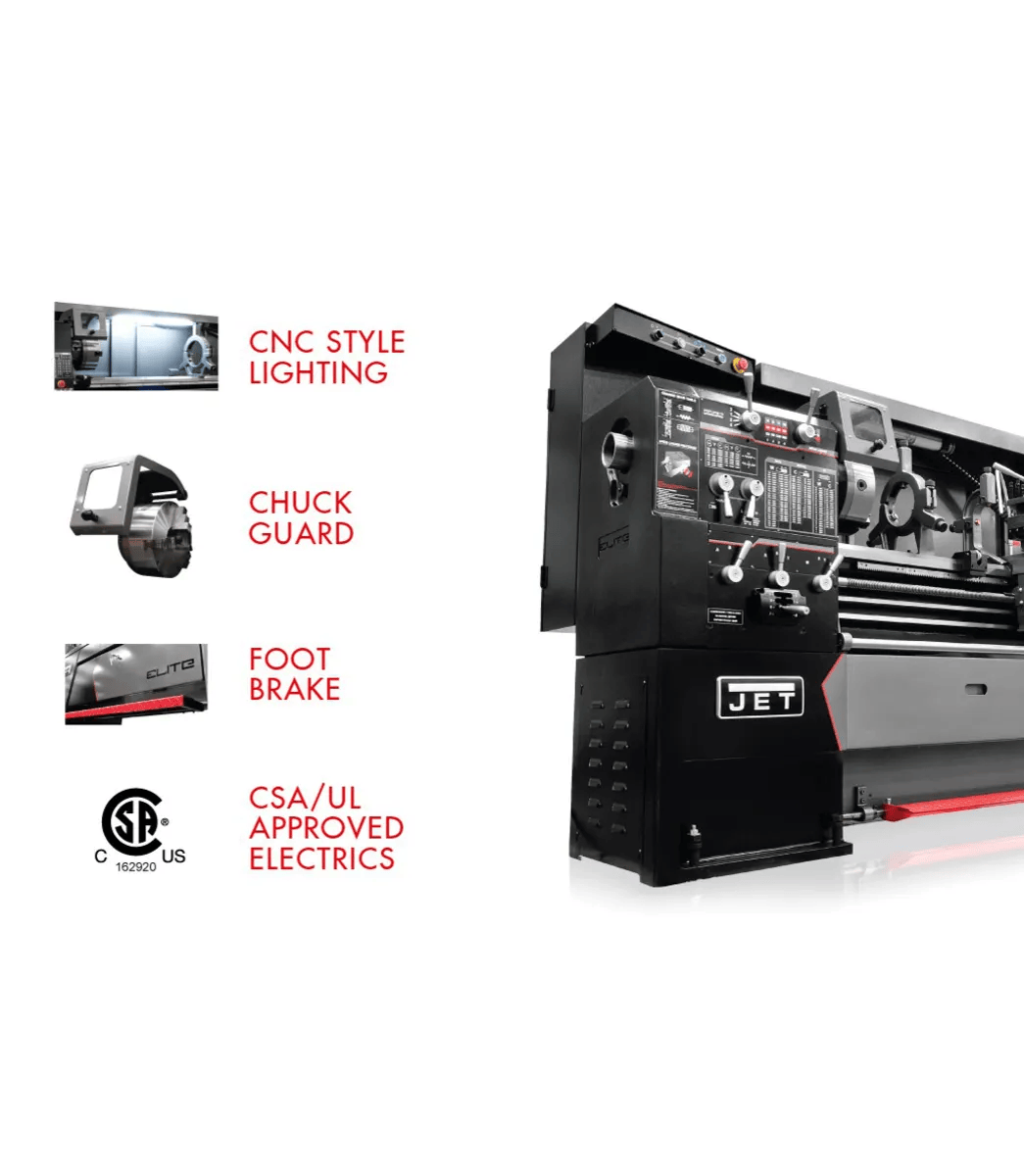

Chuck guards are standard equipment on all ELITE lathes for increased safety
Front facing chip pan allows easy chip removal from the front of the machine

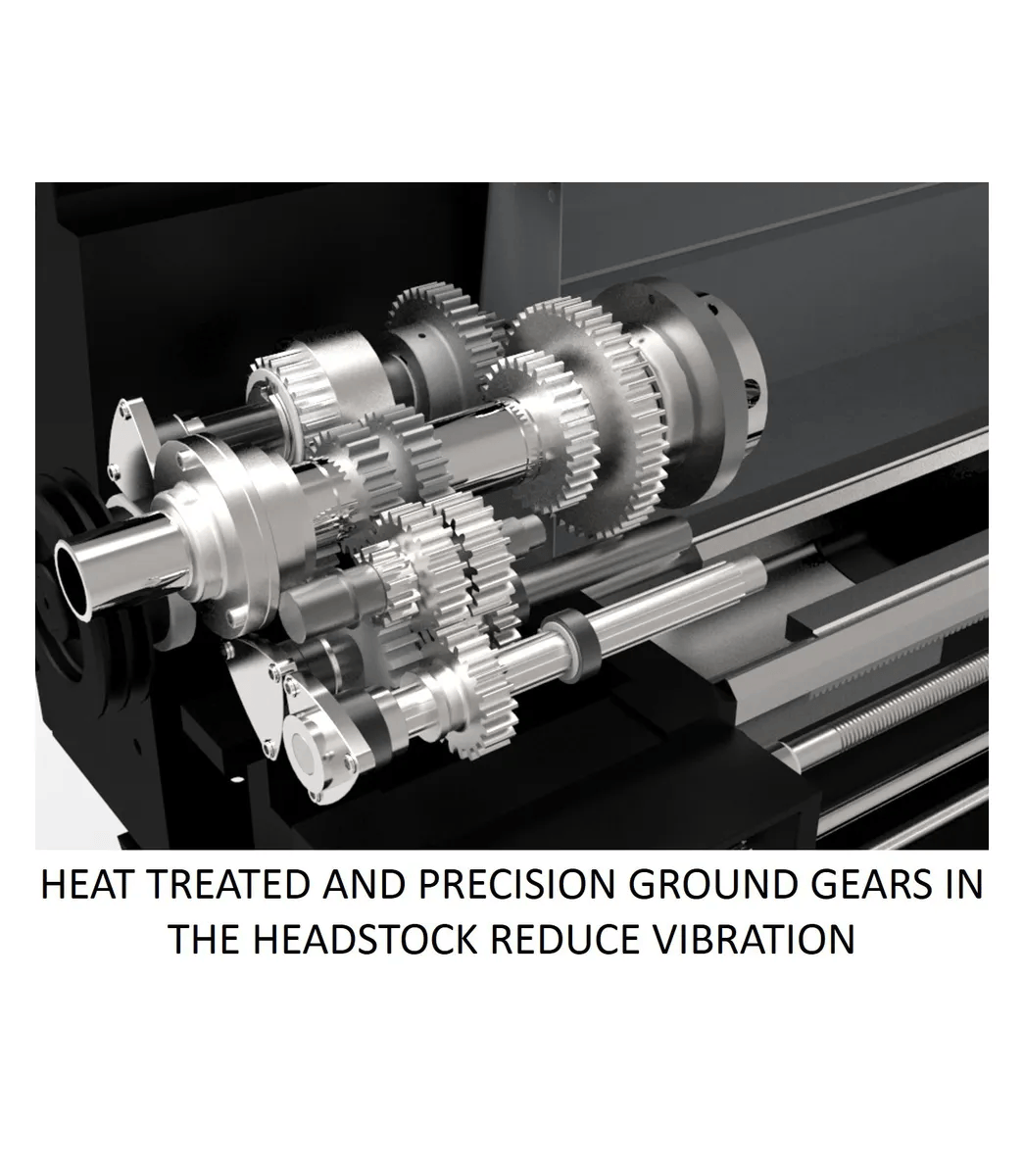

Hardened and ground gears in headstock reduce vibration and deflection
Integrated locking tool cabinet in stand on 12" Lathe
Inverter drive system provides infinitely variable spindle speeds
LED RPM readout allows for precise turning speeds
Two speed gearbox allows low speeds from 40-365 RPM to high speeds from 165-2000 RPM
Stock Number | JT9-892322 |
---|---|
Model Number | E-1236VS |
Motor (HP) | 2HP, 230V,3ph |
Prop 65 | Cancer and Reproductive Harm |
Warranty | 3 Year |
Weight (Lbs.) | 1212 |
Gross Weight | 1477.0 |
SAP Net weight | 1213.0 |
