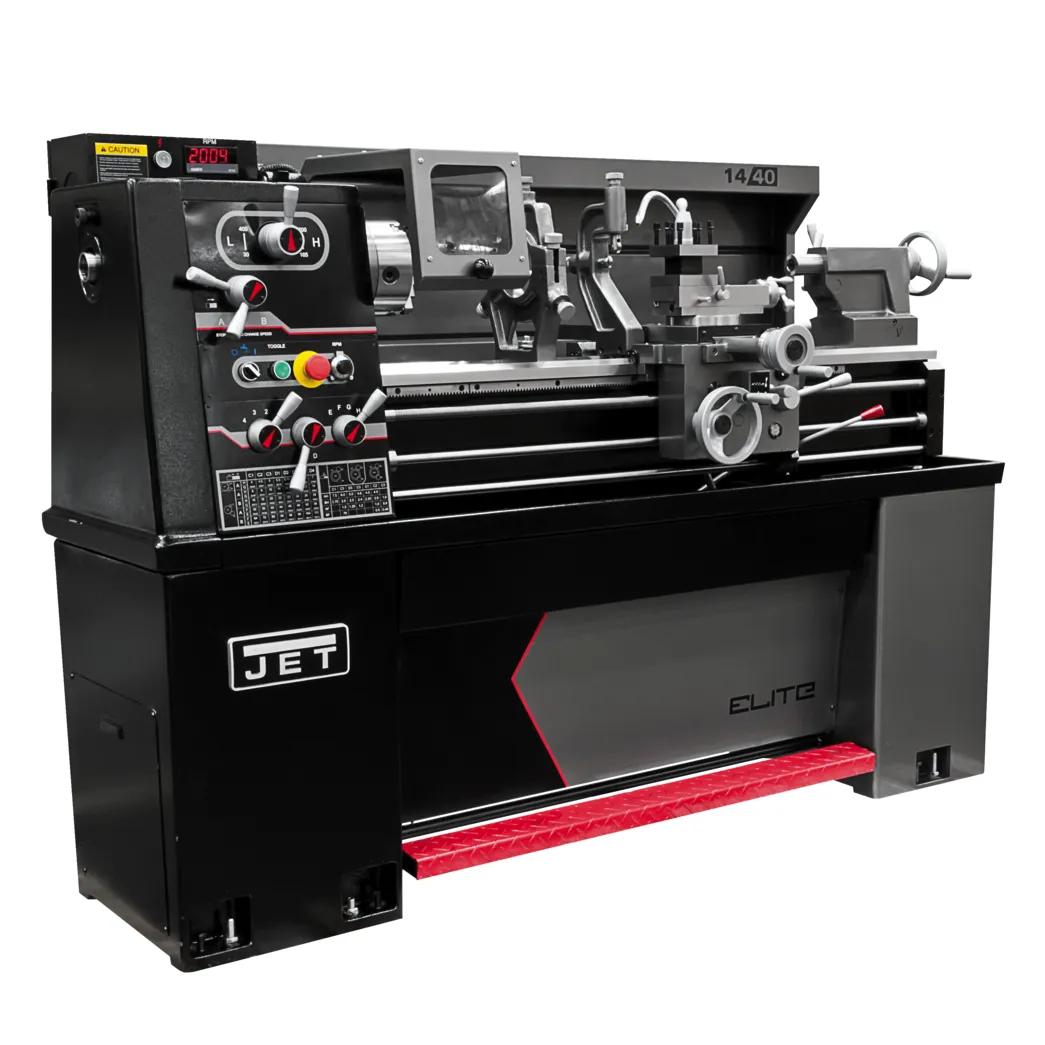

E-1340VS With Newall DP700 DRO With Taper Attachment
Stock Number:
JT9-892420
E-1340VS With Newall DP700 DRO With Taper Attachment
Manual

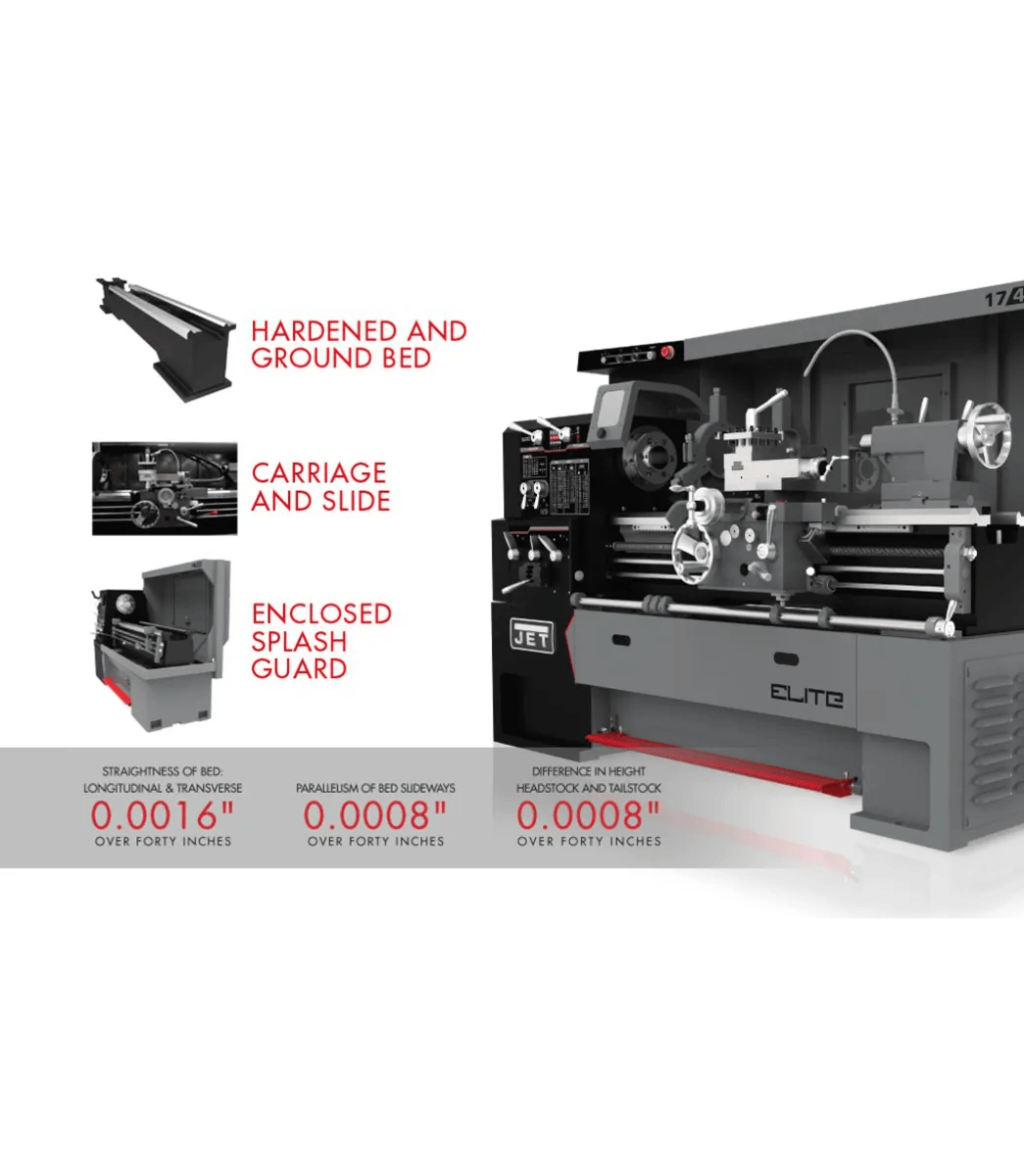

Compact, powerful, perfection. These lathes have a compact footprint and feature certified Meehanite® castings, an electromagnetic brake, 3-jaw chuck, ball bearing-mounted steady and follow rests, and CNC-style lighting with enclosed splash guard. The two-speed gearbox allows low speeds from 40-365 RPM to high speeds from 165-2000 RPM. Perfect for schools, small shops, and engineering labs, these lathes are CSA/CUS Certified and truly are Elite!
4-Position Carriage Stop

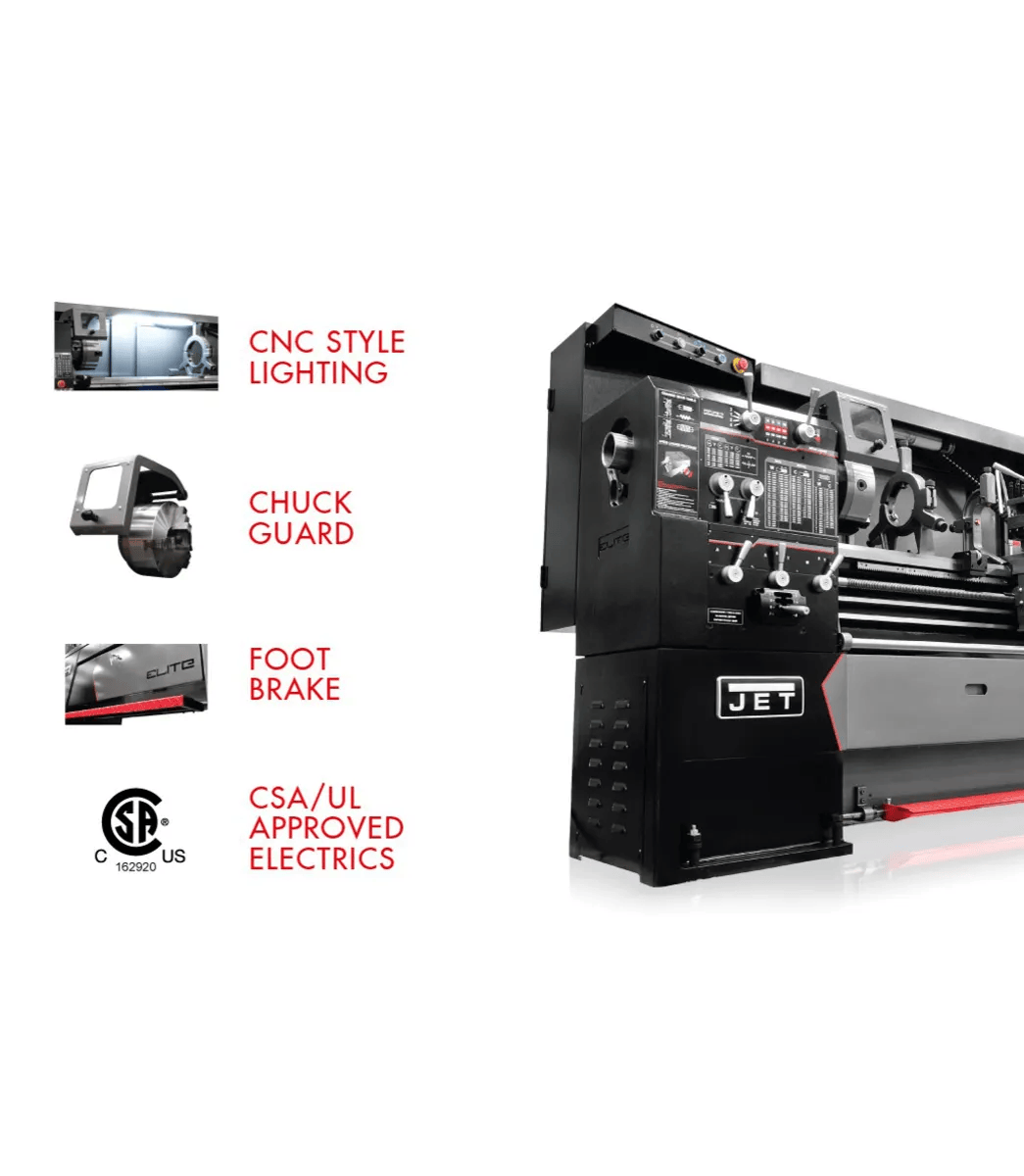

Chuck guards are standard equipment on all ELITE lathes for increased safety
Front facing chip pan allows easy chip removal from the front of the machine

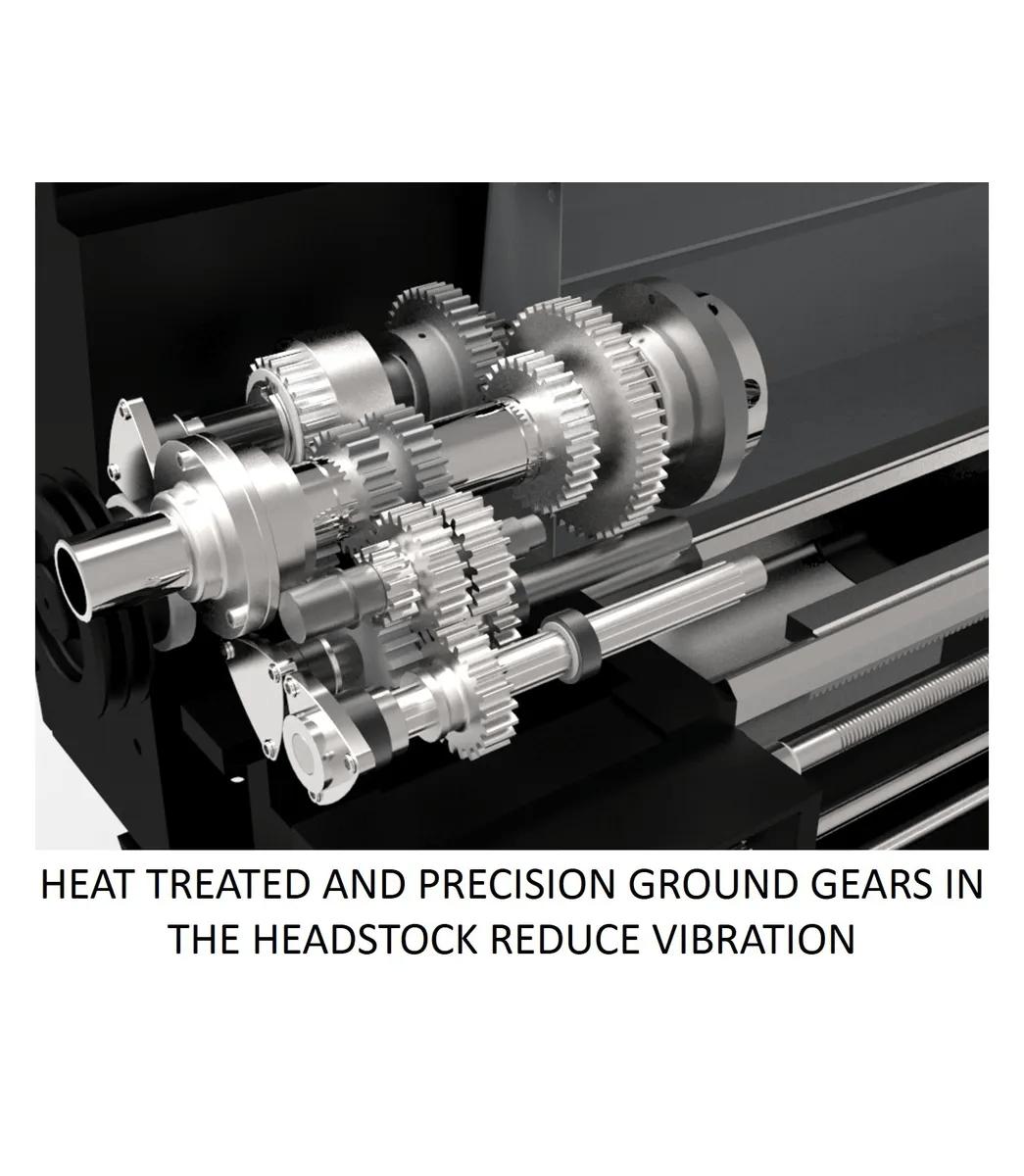

Hardened and ground gears in headstock reduce vibration and deflection

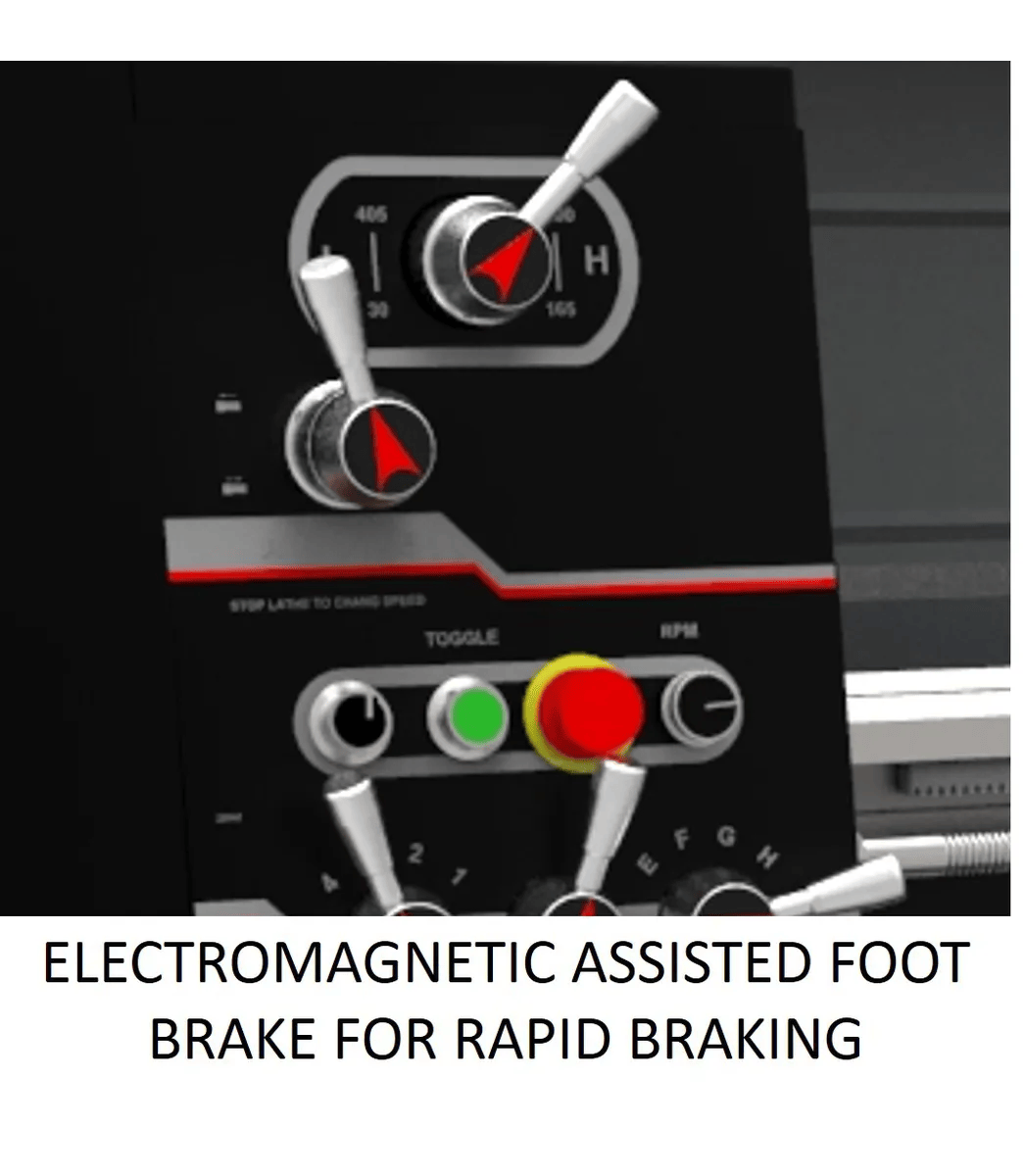

Heavy-duty stand with full length foot brake
Inverter drive system provides infinitely variable spindle speeds
LED RPM readout allows for precise turning speeds
Overload clutch at feed shaft prevents the carriage from crashing into the chuck
Steady Rest-Ball Bearing
Variable spindle speeds
| Stock Number | JT9-892420 |
|---|---|
| Amperage Draw @ 230V 3Ph | 19 |
| Compound Slide Travel (In.) | 3-1/2 |
| Drive | EVS |
| Length of Gap (In.) | 9 |
| Max Tool Size (In.) | 5/8 x 5/8 |
| Model Number | E-1340VS |
| Motor (HP) | 3 HP, 230V, 3Ph |
| Number of Inch Threads | 40.0000 |
| Number of Longitudinal and Cross Feed Rates | 80 |
| Number of Metric Threads | 22.0000 |
| Overall Dimensions (L x W x H) (In.) | 67 x 30 x 57 |
| Prop 65 | Cancer and Reproductive Harm |
| Range of Cross Feeds (IPR) | 0.0003 - 0.01 |
| Range of Inch Threads (TPI) | 4 - 112 |
| Range of Longitudinal Feeds (IPR) | 0.0012 - 0.0294 |
| Range of Metric Threads | 0.45 - 7.5 |
| Range of Spindle Speeds (RPM) | 0 - 2,200 |
| Size | 13 x 40 |
| Spindle Bore (In.) | 1-1/2 |
| Spindle Mount | D1-4 |
| Spindle Taper with Sleeve | MT-5 |
| Steady Rest Capacity (In.) | 1/4 - 2-3/4 |
| Style (Type) | ELITE EVS |
| Swing Over Bed (In.) | 13 |
| Swing Over Cross Slide (In.) | 7-5/8 |
| Swing Through Gap (In.) | 19 |
| Tailstock Spindle Travel (In.) | 4-3/4 |
| Taper in Tailstock Spindle | MT-3 |
| Warranty | 3 Year Elite |
| Weight (Lbs.) | 1433 |
| Width of Bed (In.) | 8-1/2 |
| Gross Weight | 1697.0 |
| Net weight | 1433.0 |
