EGH-1740, Elite 17x40 Large Spindle Bore Geared Head Lathe
EGH-1740, Elite 17x40 Large Spindle Bore Geared Head Lathe
Manual

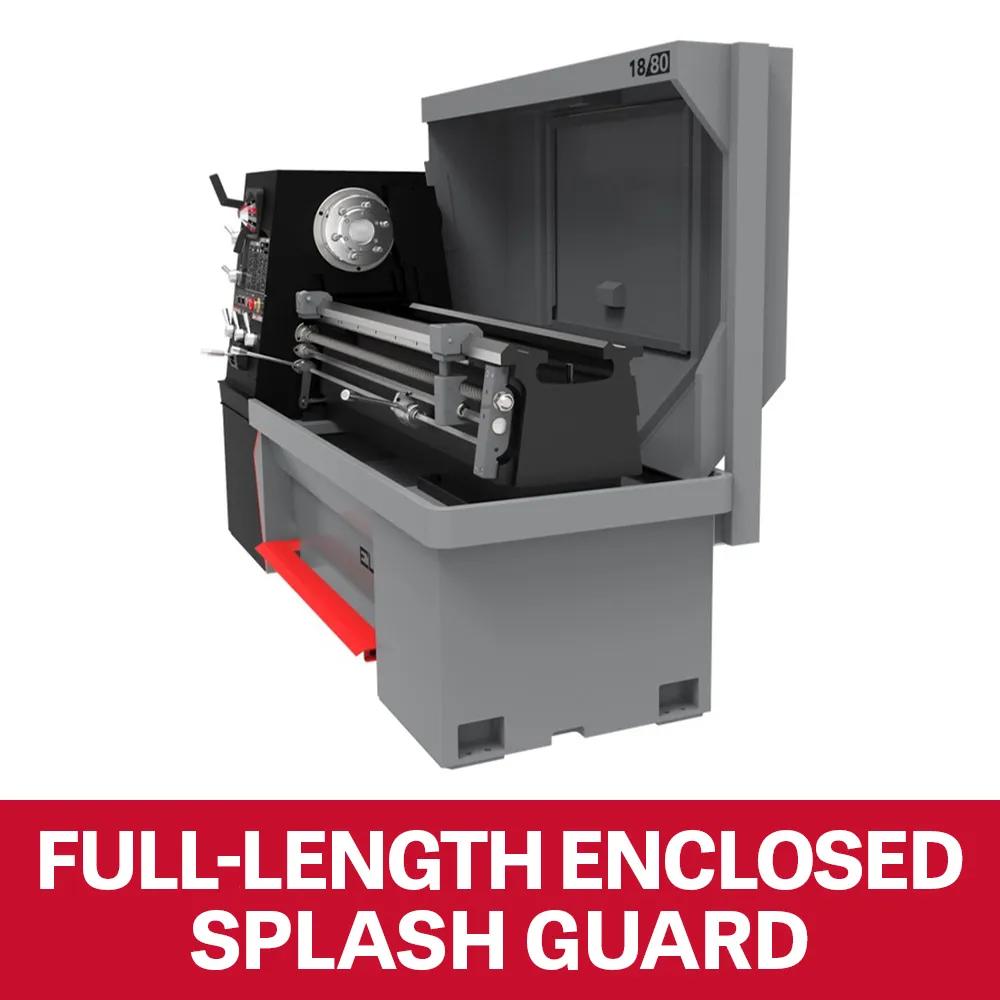

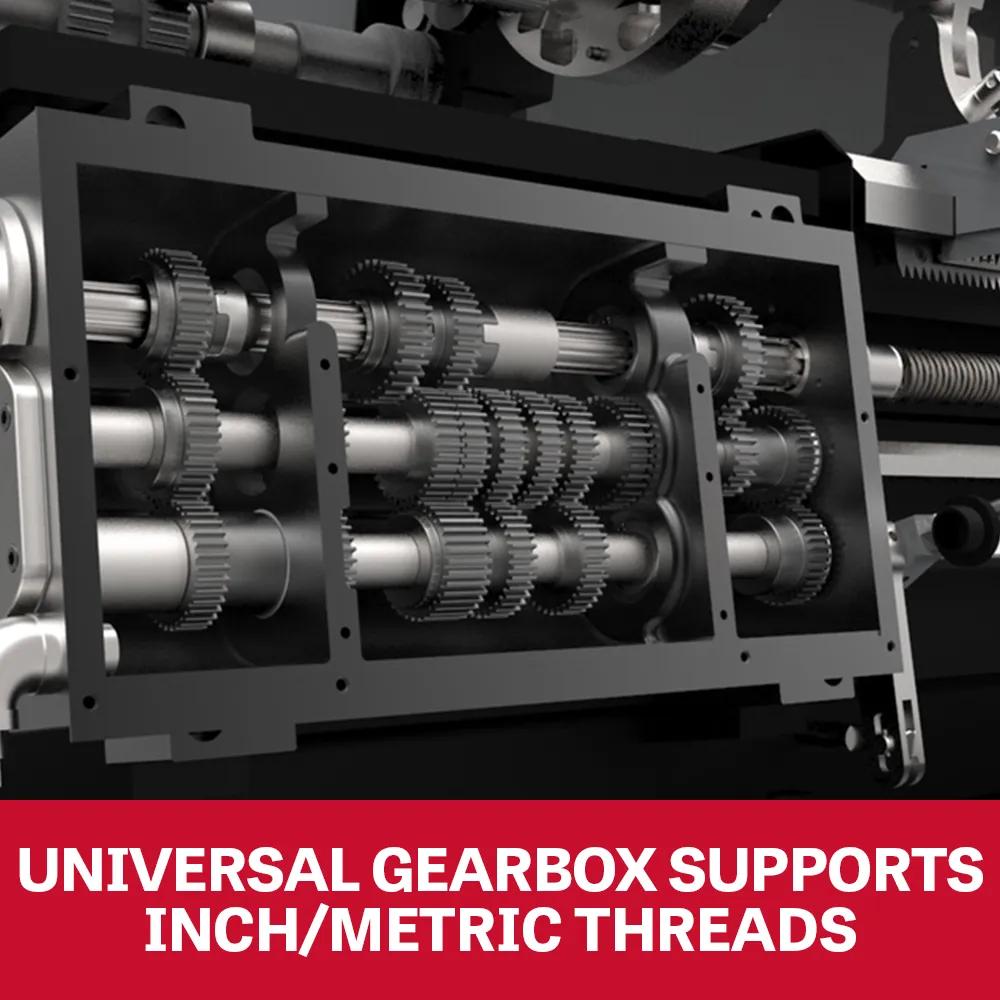

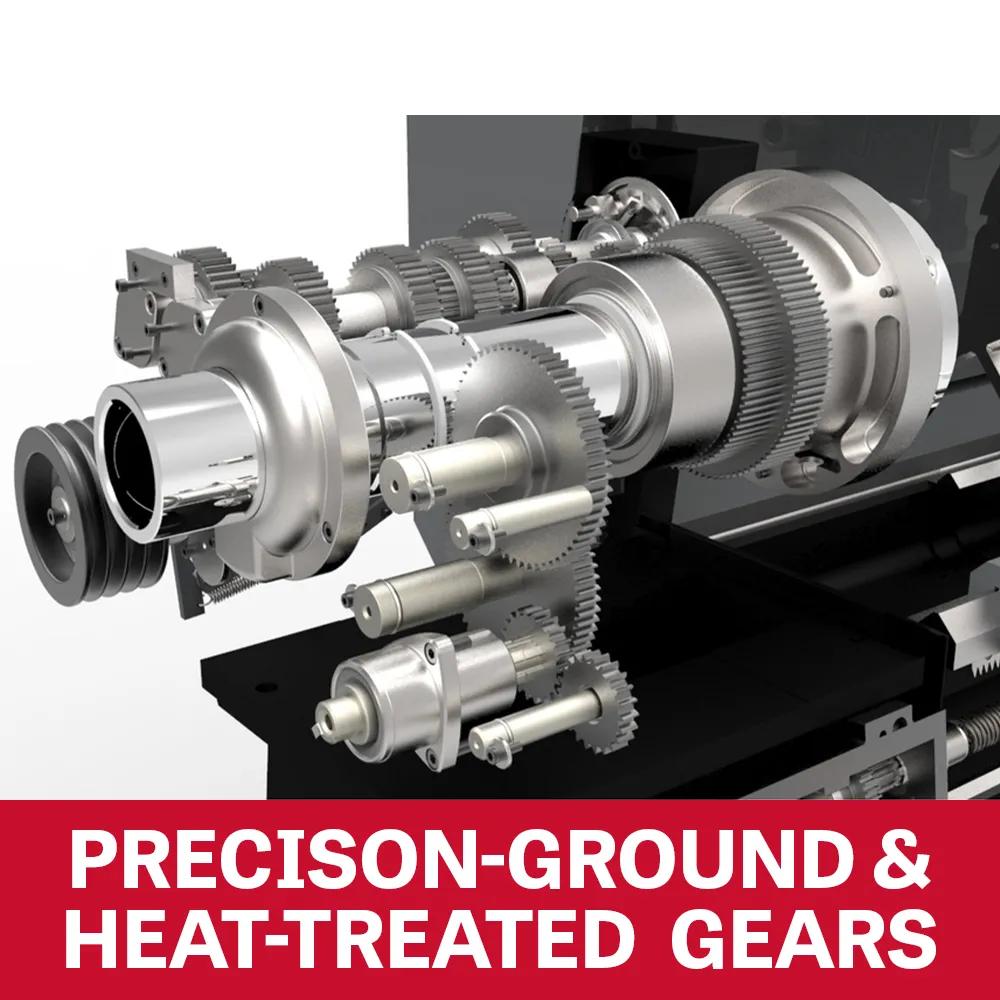

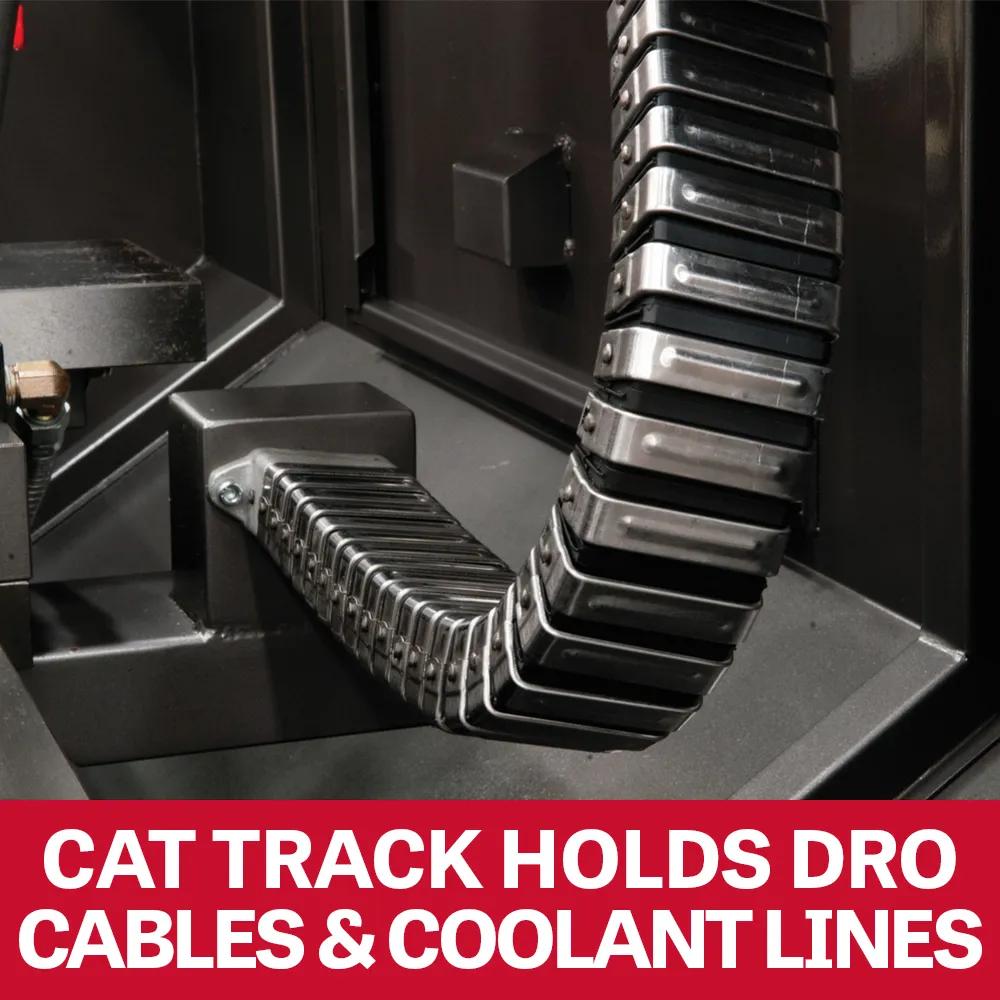

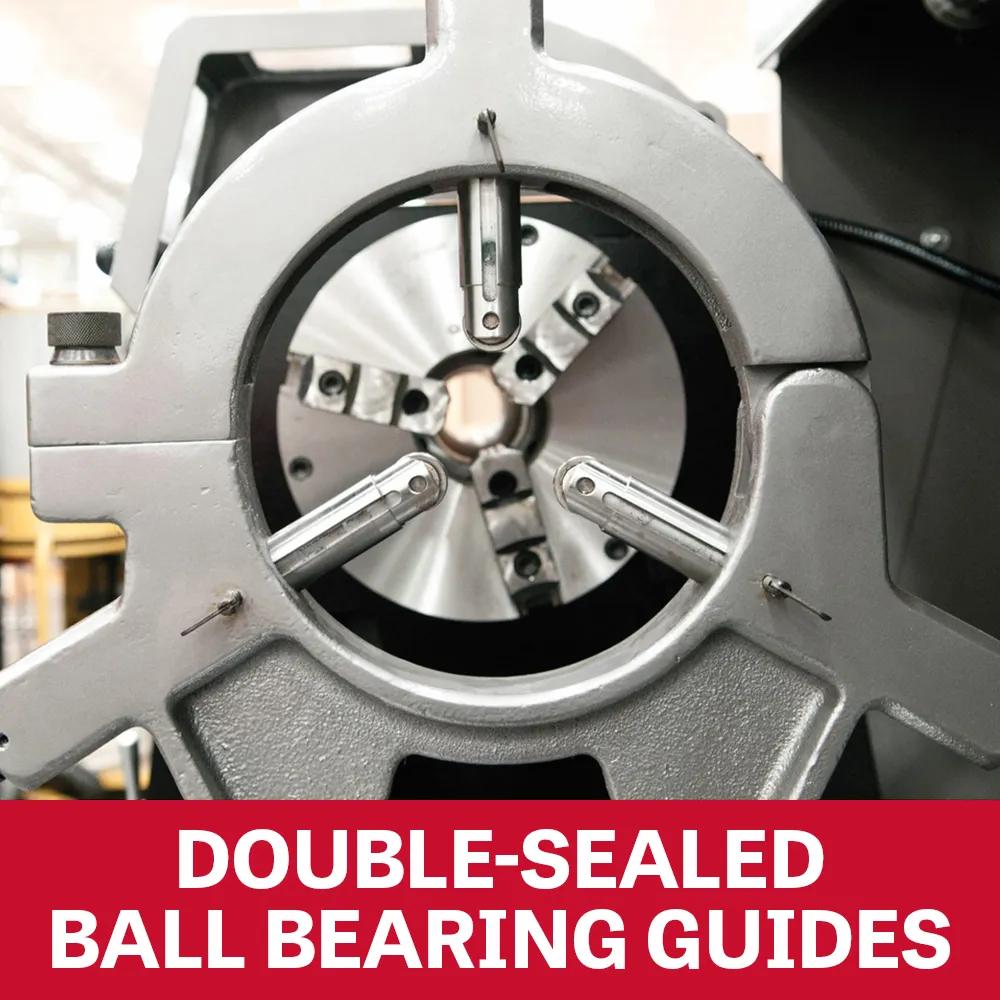

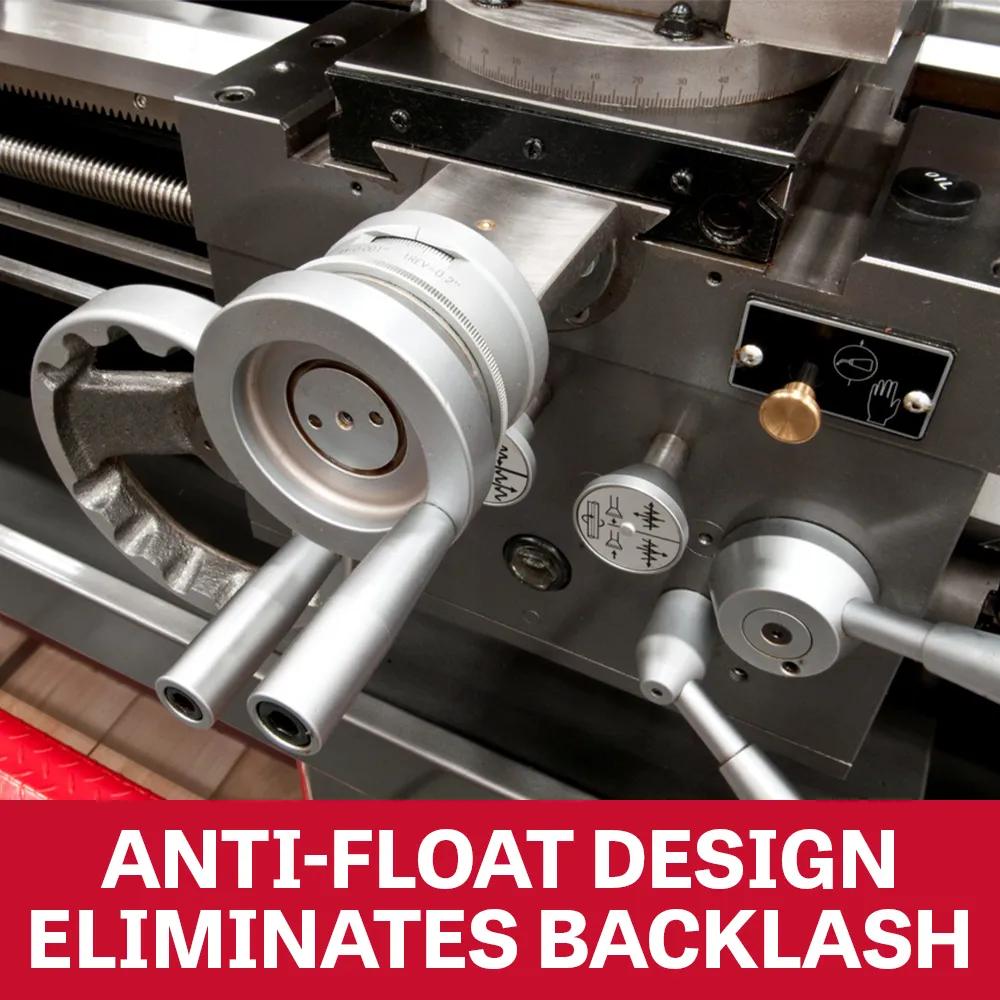

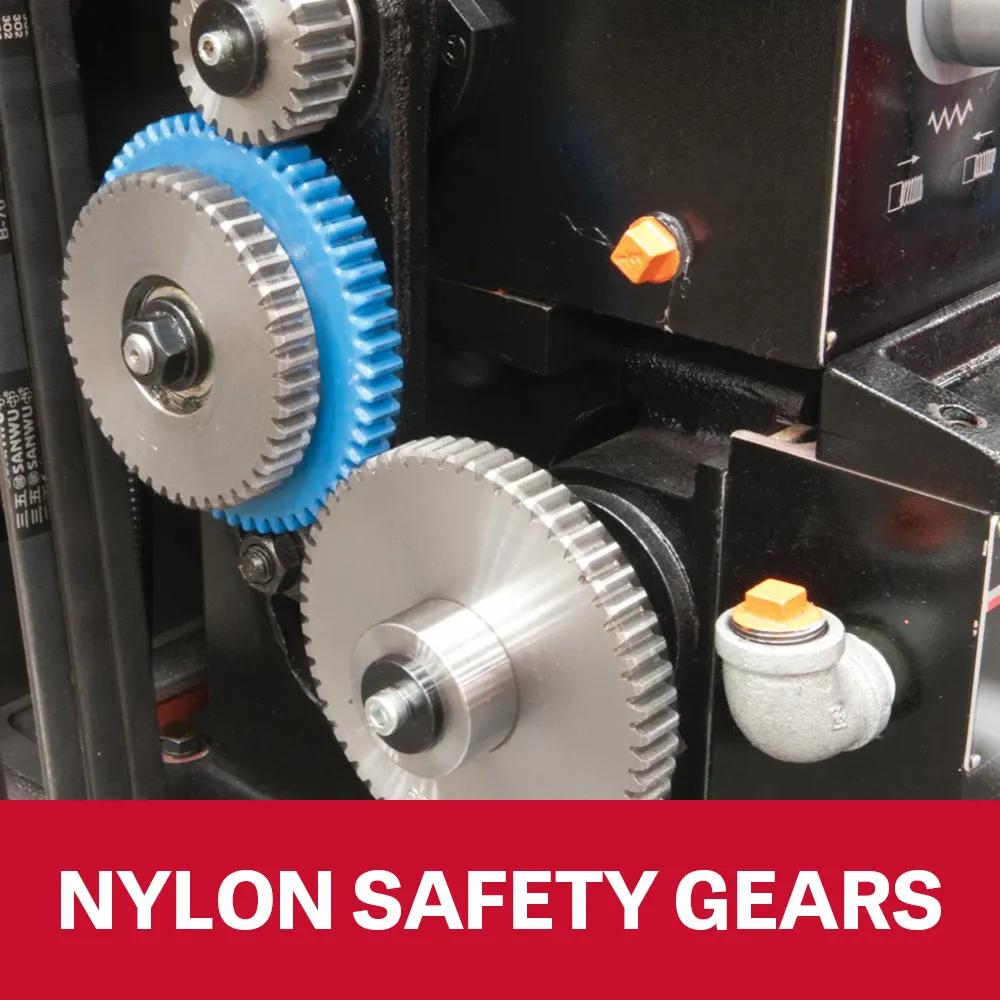

Dependable, reliable, quality. Combining the durability and strength of Meehanite® castings with precision engineering, Elite Geared Head Lathes turn out high quality components turn after turn. Fully lit with CNC style lighting, the enclosed full-length splash guard is expertly designed to contain all chips and coolant. Hardened and ground bedways and gears help reduce vibration, deflection, and provide accurate longitudinal movements. Designed with a universal gearbox to allow for a wide range of threading without gear changes, and Turcite-B coatings between the bed and carriage to provide smooth and accurate movement, these machines provide the perfect blend of performance and reliability you can come to expect from JET Elite.
| Stock Number | JT9-892100 |
|---|---|
| Amperage Draw @ 230V 3Ph | 22 |
| Amperage Draw @ 460V 3Ph | 11 |
| Compound Slide Travel (In.) | 6-2/7 |
| Drive | Geared Head |
| Length of Gap (In.) | 7-2/3 |
| Max Tool Size (In.) | 1 x 1 |
| Model Number | EGH-1740 |
| Number of Inch Threads | 45.0000 |
| Number of Metric Threads | 39.0000 |
| Number of Spindle Speeds | 12 |
| Overall Dimensions (L x W x H) (In.) | 94 x 44 x 68 |
| Prop 65 | Cancer and Reproductive Harm |
| Range of Cross Feeds (IPR) | 0.00075 - 0.02 |
| Range of Inch Threads (TPI) | 2 - 72 |
| Range of Longitudinal Feeds (IPR) | 0.0015 - 0.04 |
| Range of Metric Threads | 0.2 - 14 |
| Range of Spindle Speeds (RPM) | 36 - 1,800 |
| Size | 17 x 40 |
| Spindle Bore (In.) | 3-1/8 |
| Spindle Mount | D1-6 |
| Spindle Taper with Sleeve | MT5 |
| Steady Rest Capacity (In.) | 3/8 - 6-3/4 |
| Style (Type) | Engine |
| Swing Over Bed (In.) | 17 |
| Swing Over Cross Slide (In.) | 11 |
| Swing Through Gap (In.) | 24-1/2 |
| Tailstock Spindle Travel (In.) | 5 |
| Taper in Tailstock Spindle | MT 4 |
| Warranty | 3 Year Elite |
| Weight (Lbs.) | 3747 |
| Width of Bed (In.) | 12 |
| Gross Weight | 4409.0 |
| Net weight | 3748.0 |
