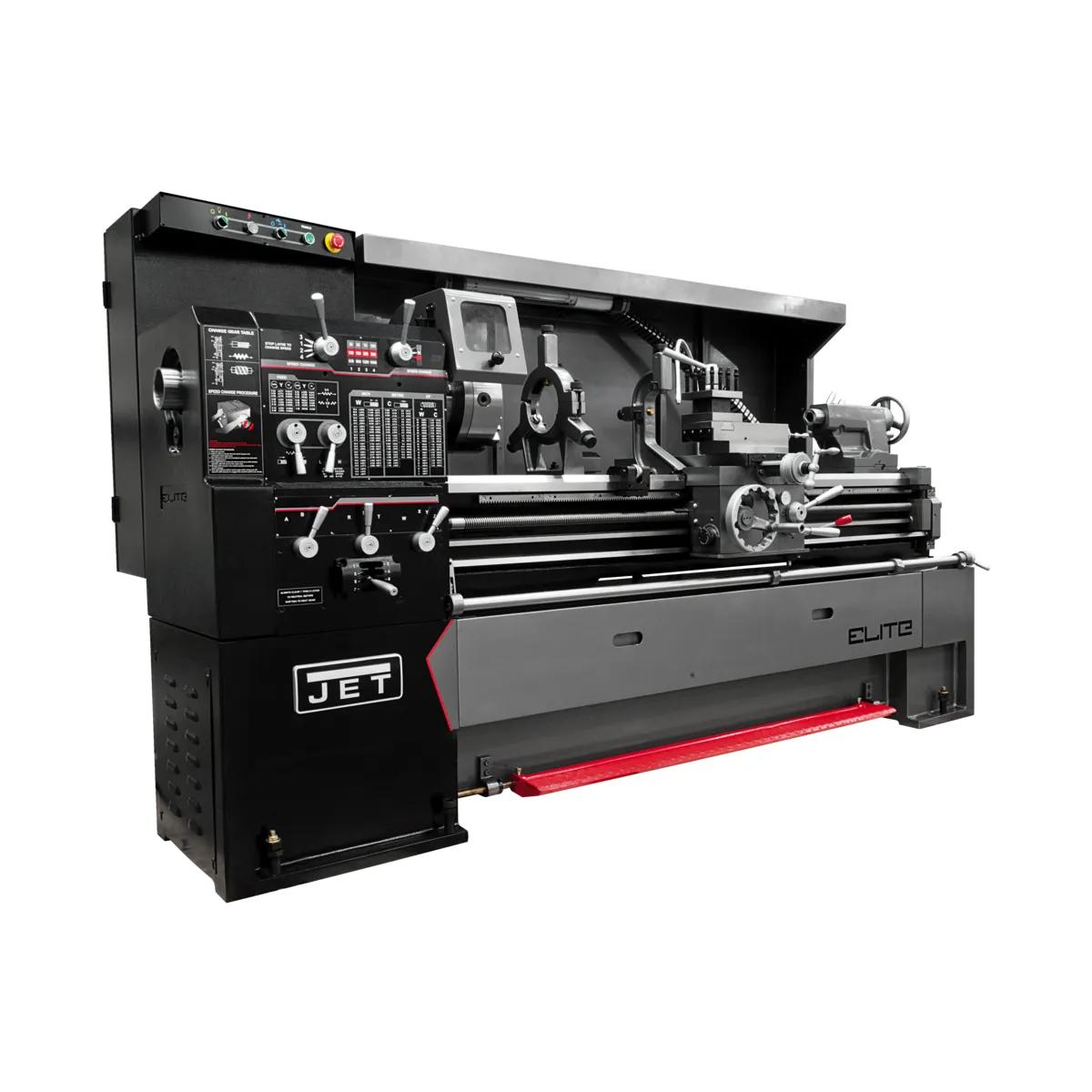

EGH-1740 With Newall DP700 DRO With Collet Closer

Stock Number
JT9-892513

EGH-1740 With Newall DP700 DRO With Collet Closer

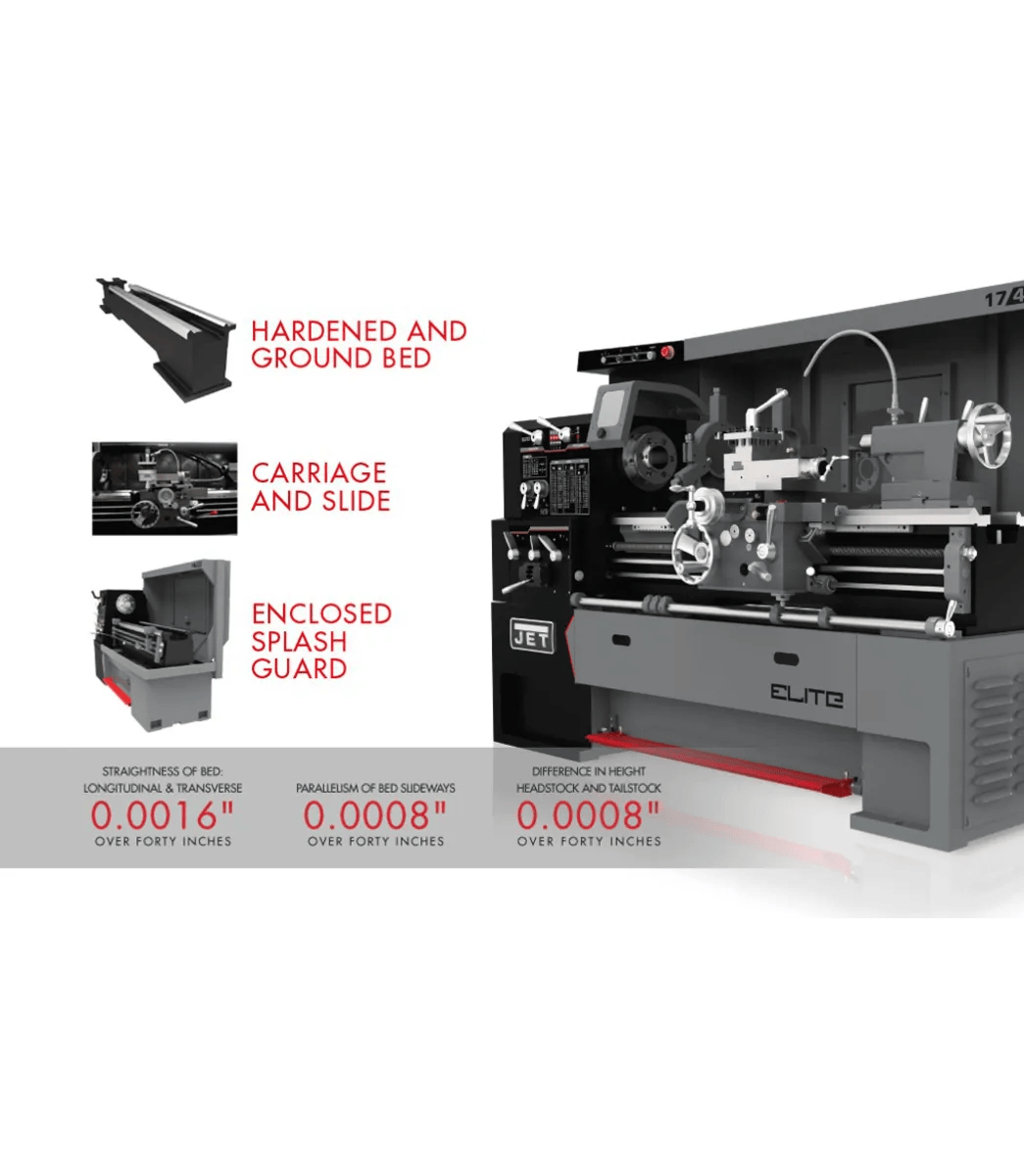

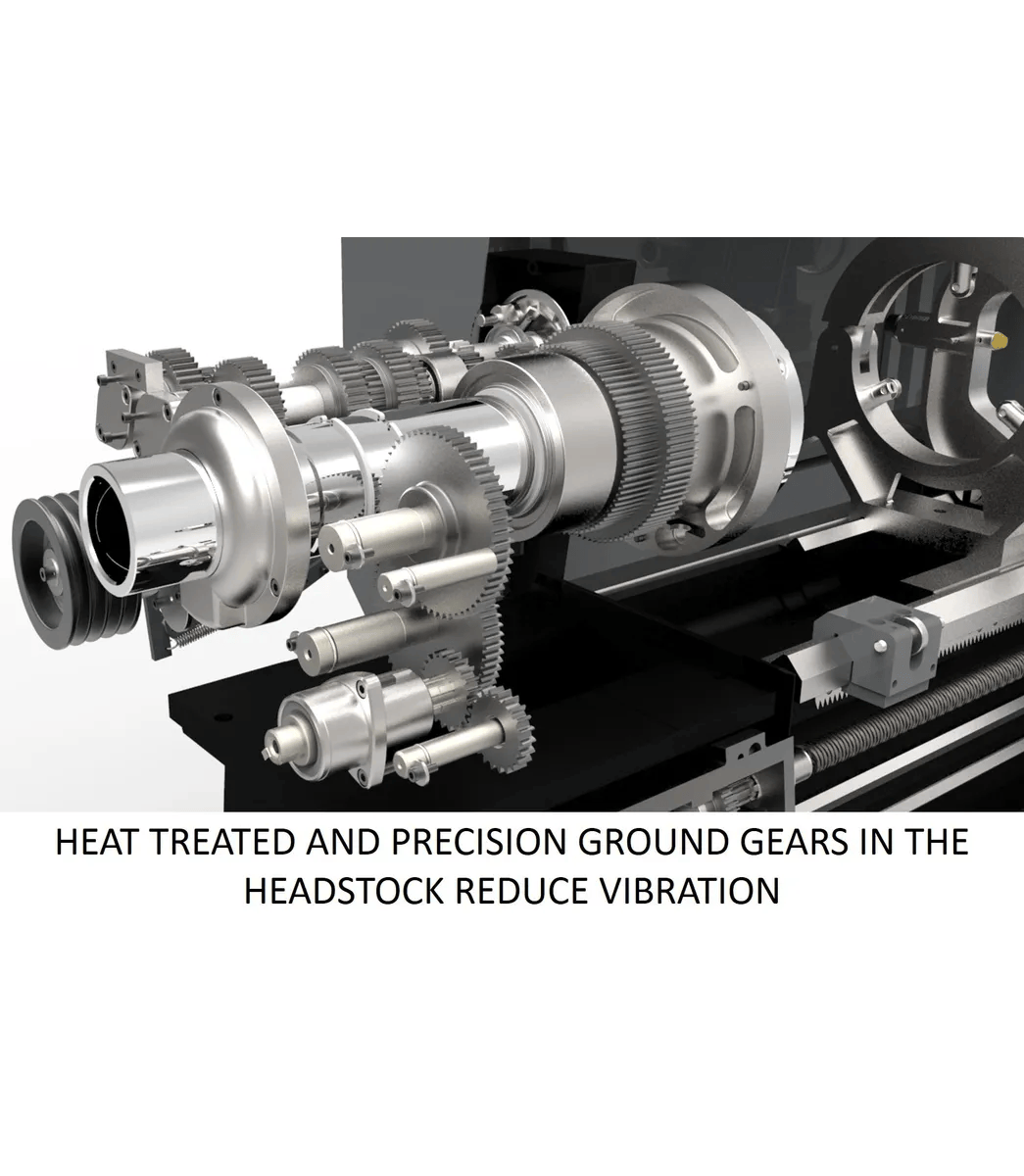

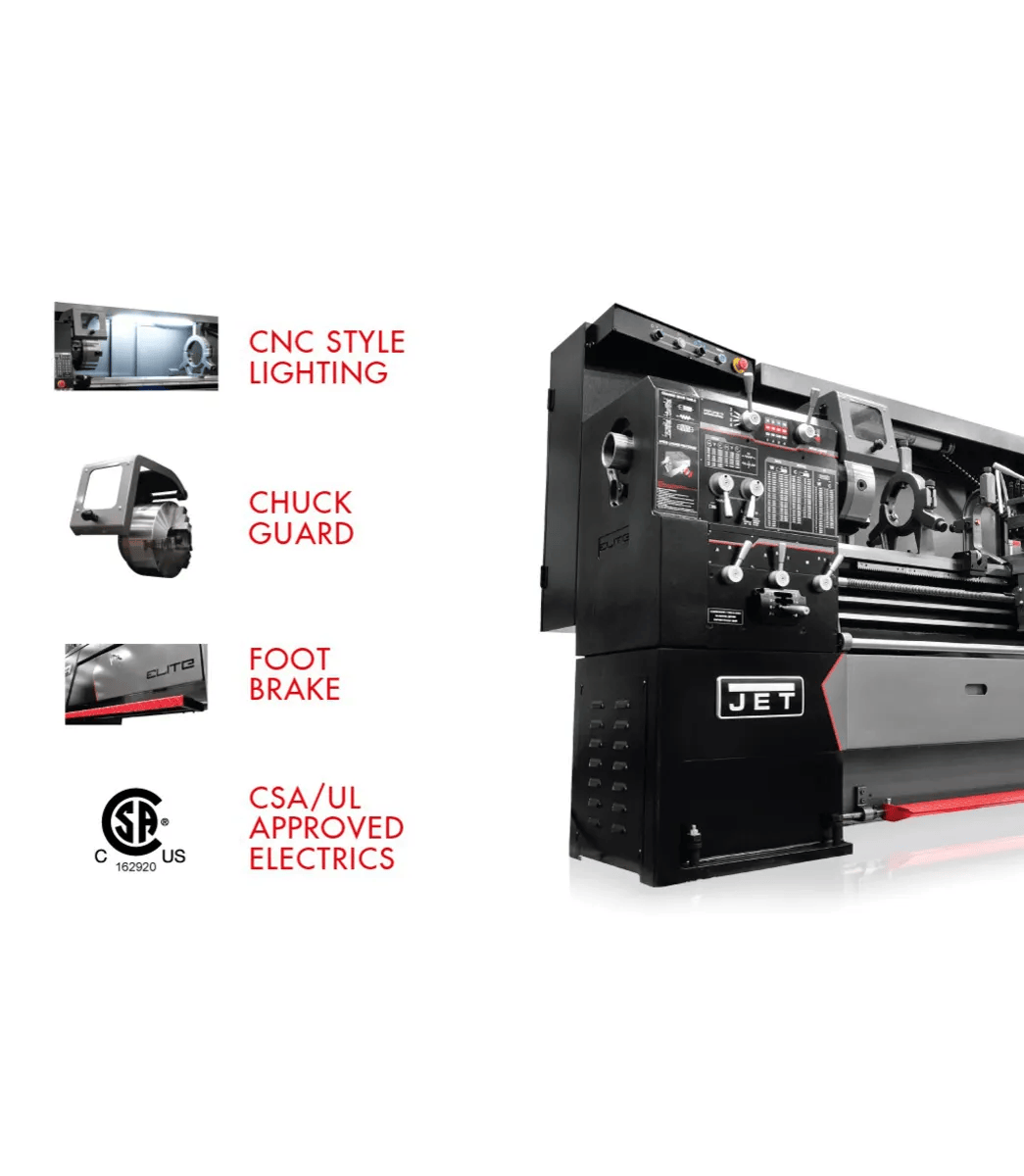

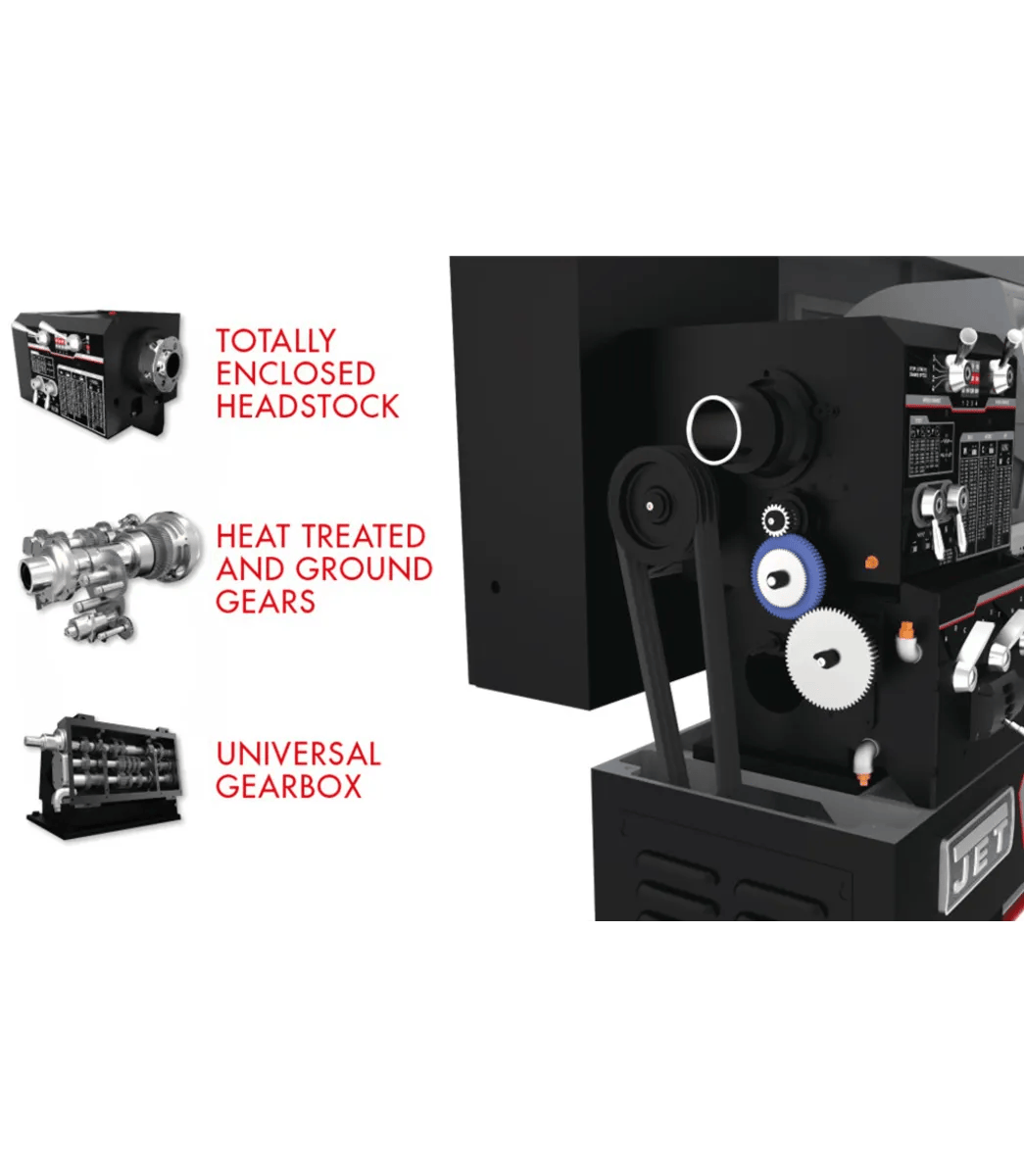

Dependable, reliable, quality. Combining the durability and strength of Meehanite® castings with precision engineering, Elite Geared Head Lathes turn out high quality components turn after turn. Fully lit with CNC style lighting, the enclosed full-length splash guard is expertly designed to contain all chips and coolant. Hardened and ground bedways and gears help reduce vibration, deflection, and provide accurate longitudinal movements. Designed with a universal gearbox to allow for a wide range of threading without gear changes, and Turcite-B coatings between the bed and carriage to provide smooth and accurate movement, these machines provide the perfect blend of performance and reliability you can come to expect from JET Elite.


4-Position Carriage Stop

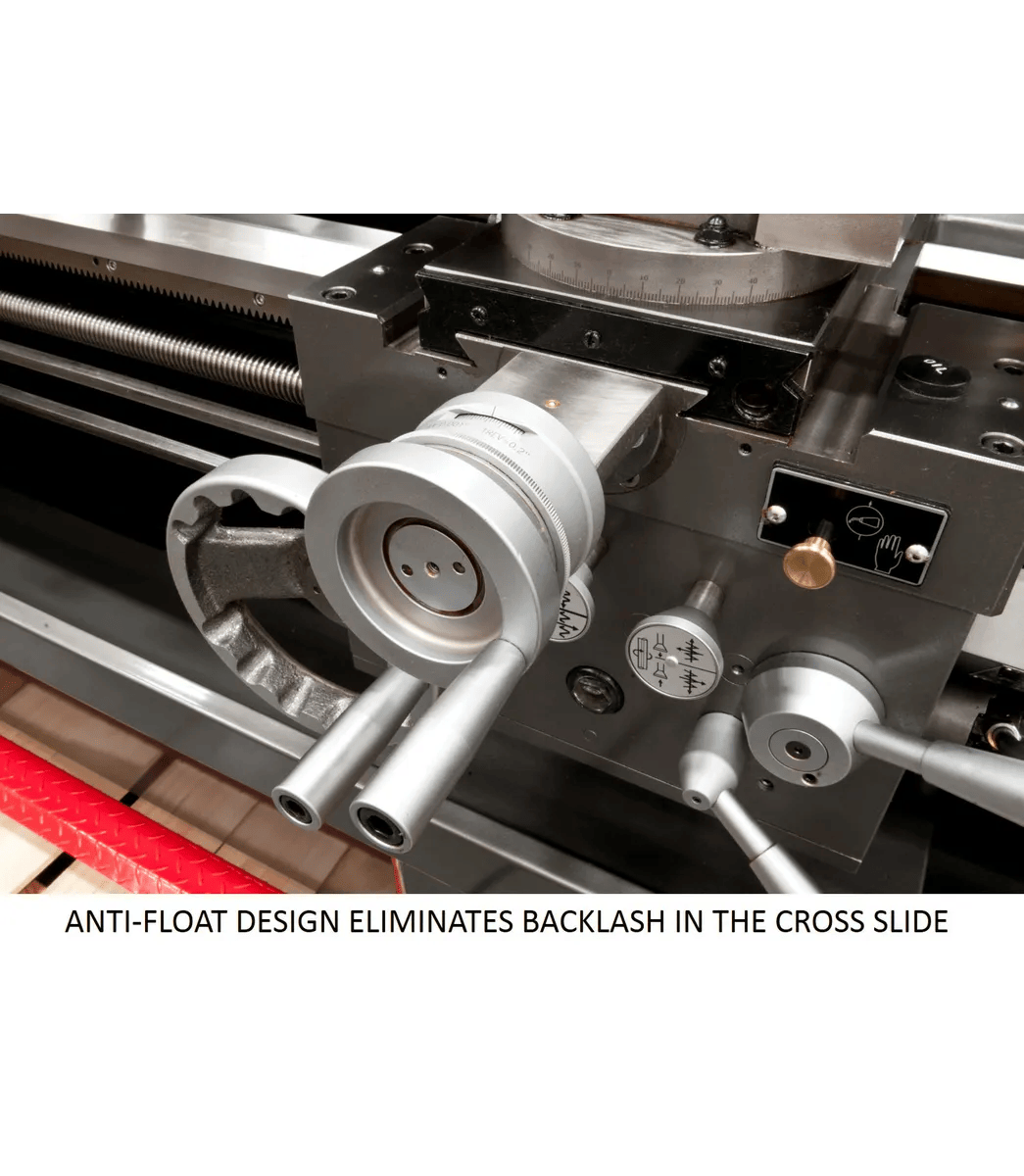

Anti-Float design eliminates backlash in the cross slide
Enclosed coolant system contains excess coolant for increased safety
Front facing chip pan allows easy chip removal from the front of the machine
Full Length Splash Guard

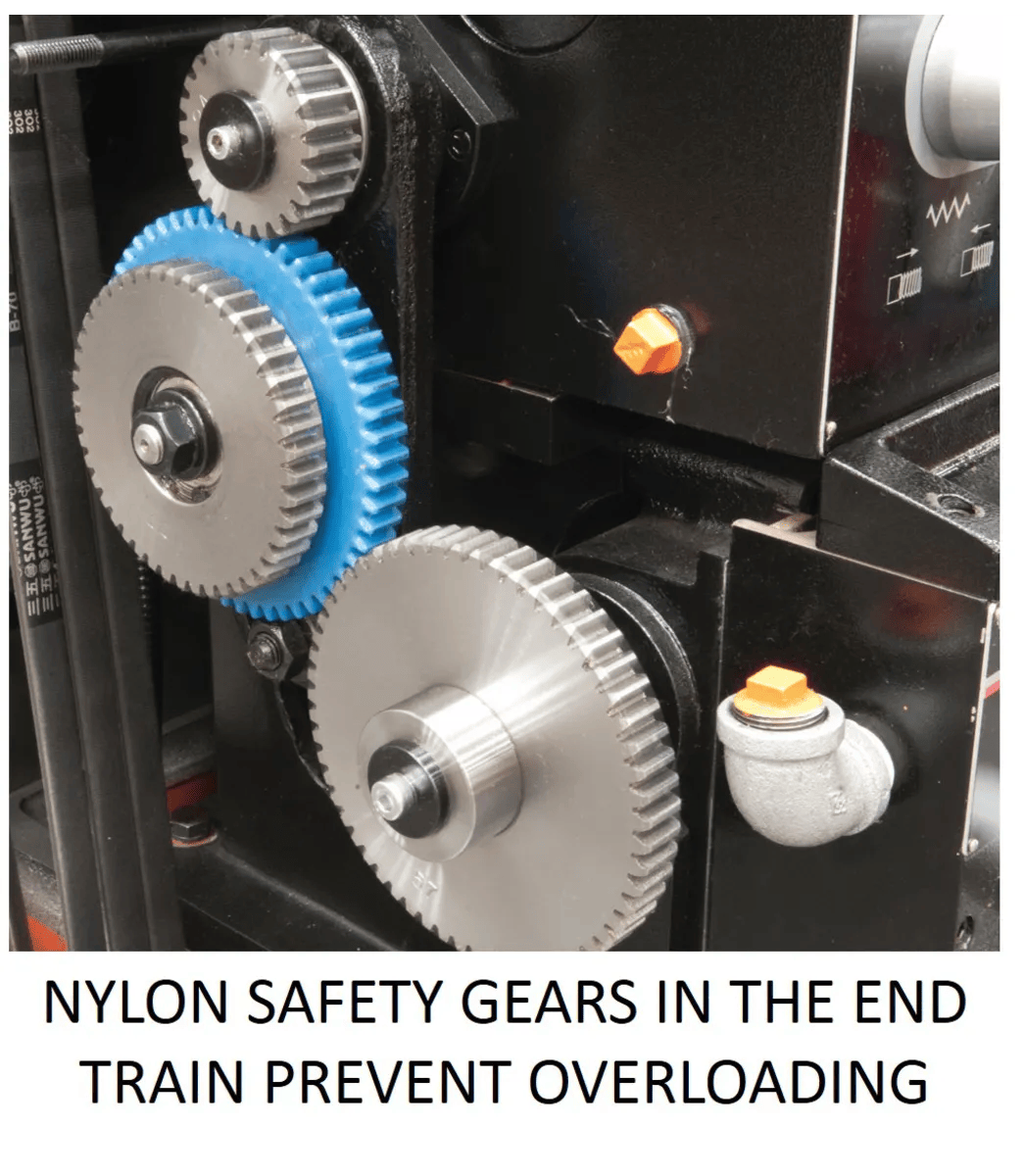

Nylon safety gears in the end train prevent overloading, increasing safety
One-Shot lubrication in the carriage reduces maintenance
Shear pin in the lead screw disengages the feed when overloaded, preventing damage to the apron and headstock
Steady rests feature ball bearing guides for smooth material movements
More Information
Stock NumberJT9-892513
Amperage Draw @ 230V 3Ph22
Amperage Draw @ 460V 3Ph11
Compound Slide Travel (In.)6-2/7
Diametral Pitch Threads Number21.0000
DriveGeared Head
Length of Gap (In.)7-2/3
Max Tool Size (In.)1 x 1
Model NumberEGH-1740
Modular Pitch Threads Number18.0000
Number of Inch Threads45.0000
Number of Metric Threads39.0000
Number of Spindle Speeds12
Overall Dimensions (L x W x H) (In.)94 x 44 x 68
Prop 65Cancer and Reproductive Harm
Range of Cross Feeds (IPR)0.00075 - 0.02
Range of Inch Threads (TPI)2 - 72
Range of Longitudinal Feeds (IPR)0.0015 - 0.04
Range of Metric Threads0.2 - 14
Range of Spindle Speeds (RPM)36 - 1,800
Size17 x 40
Spindle Bore (In.)3-1/8
Spindle MountD1-6
Spindle Taper with SleeveMT-5
Steady Rest Capacity (In.)3/8 - 6-3/4
Style (Type)Engine
Swing Over Bed (In.)17
Swing Over Cross Slide (In.)11
Tailstock Spindle Travel (In.)5
Warranty3 Year Elite
Weight (Lbs.)3747
Width of Bed (In.)12
Gross Weight4409.0
Net weight3748.0
