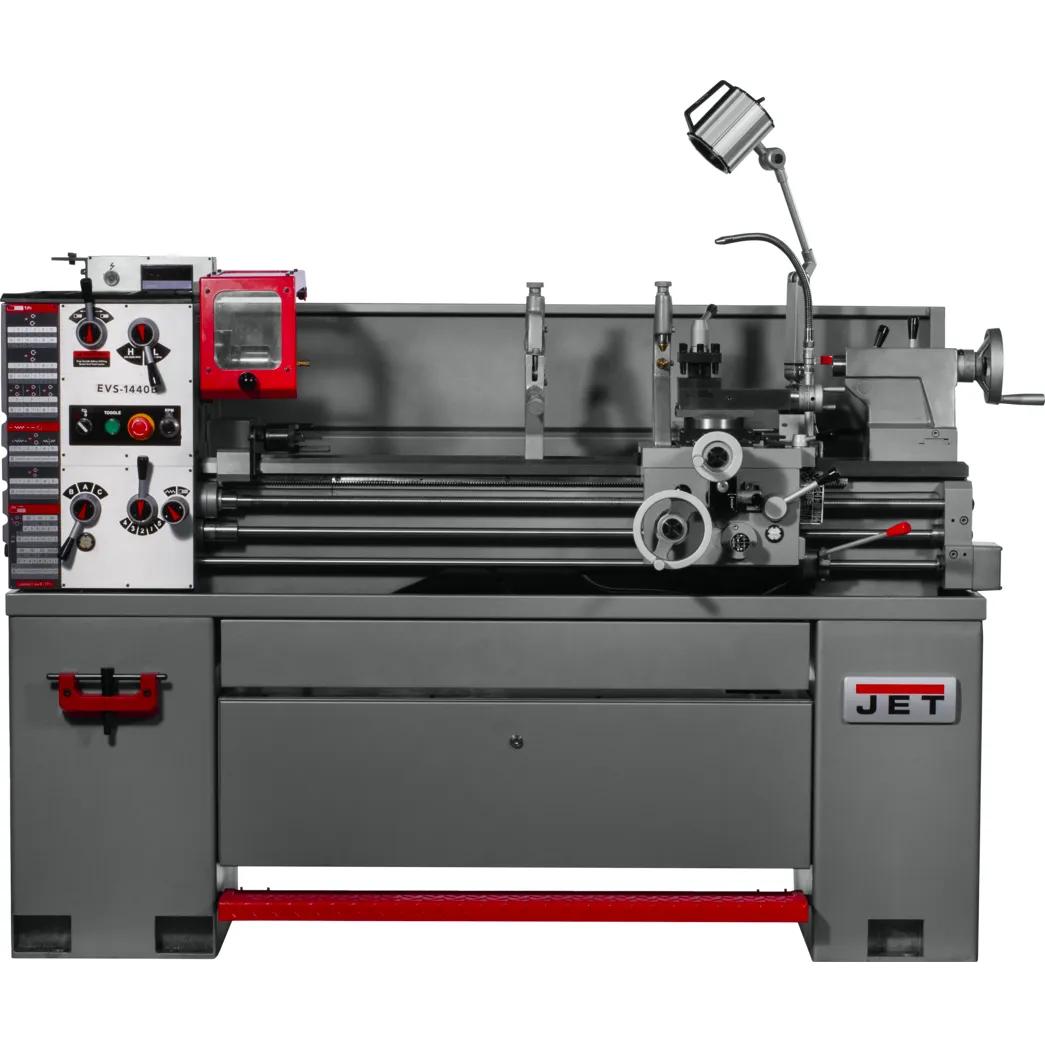

EVS-1440 Electronic Variable Speed lathe with Taper Attachment, 3HP
Stock Number:
JT9-311441
EVS-1440 Electronic Variable Speed lathe with Taper Attachment, 3HP, 230, 3Ph
Manual

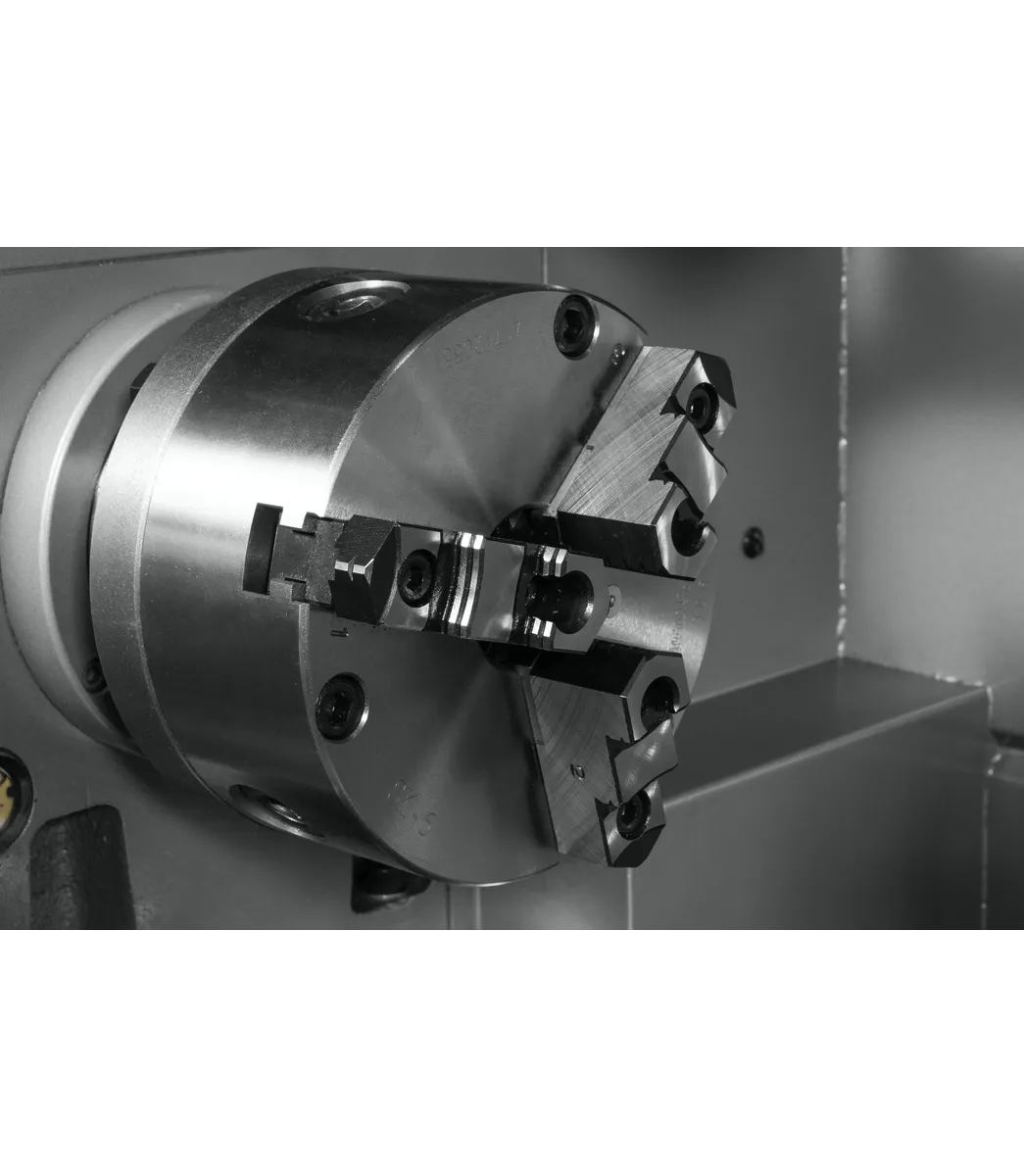

The EVS-1440B is engineered to maximize your shop’s output. The D1 4 Spindle is precision ground for accuracy and supported by class 7 tapered roller bearings capable of a run out maximum of .0004’’. The spindle also features an apron-mounted actuation control and jog button for easy gear engagement and spindle inching. The two-speed gearbox allows operators to easily work at low speeds from 40 to 365 RPM, and at high speeds from 220 to 2,000 RPM. Additionally, the tailstock may be offset for turning taper. Meehanite castings retain their tolerance and remain rigid over many years of machining.

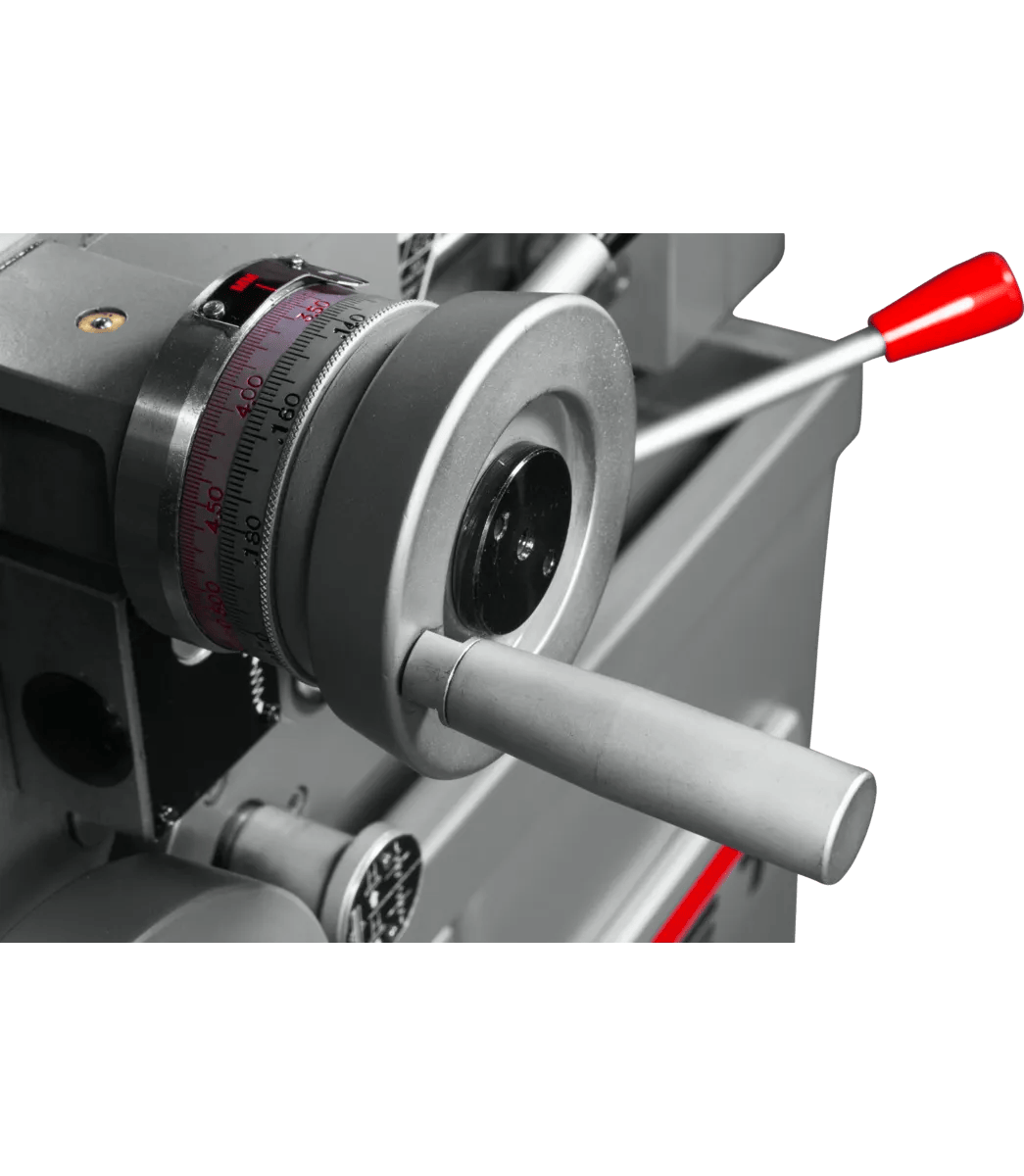

Compound and cross slide have backlash elimination

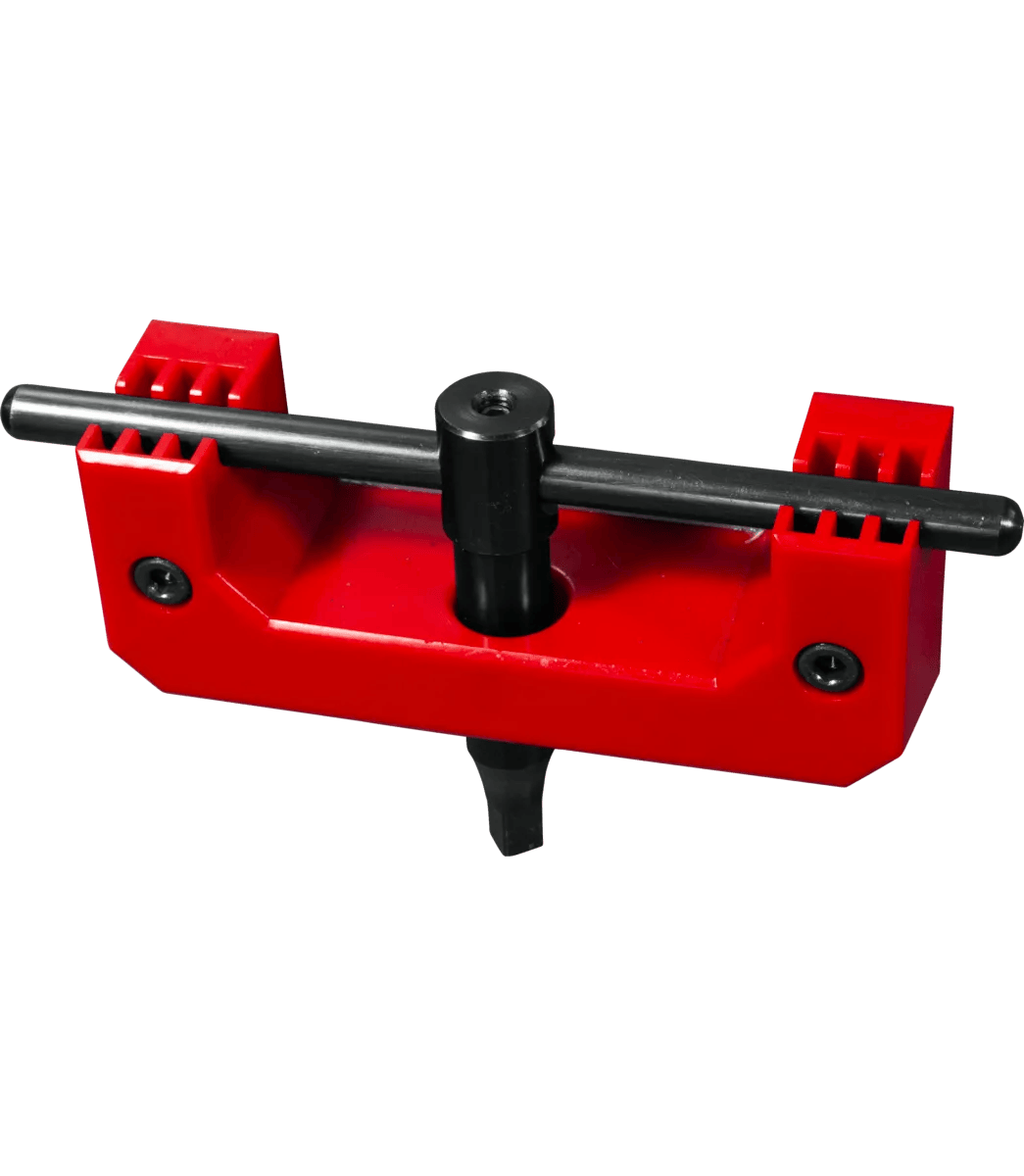

Electronic Chuck Key Docking Station
Front Removable Chip Tray
Full Length Splash Guard
Independent lead screw and feed rod
Integrated locking tool storage cabinet in the stand

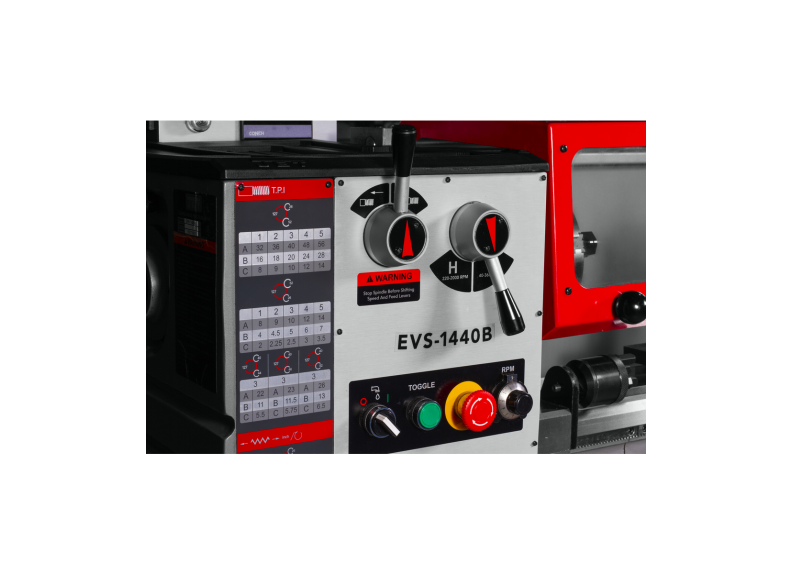

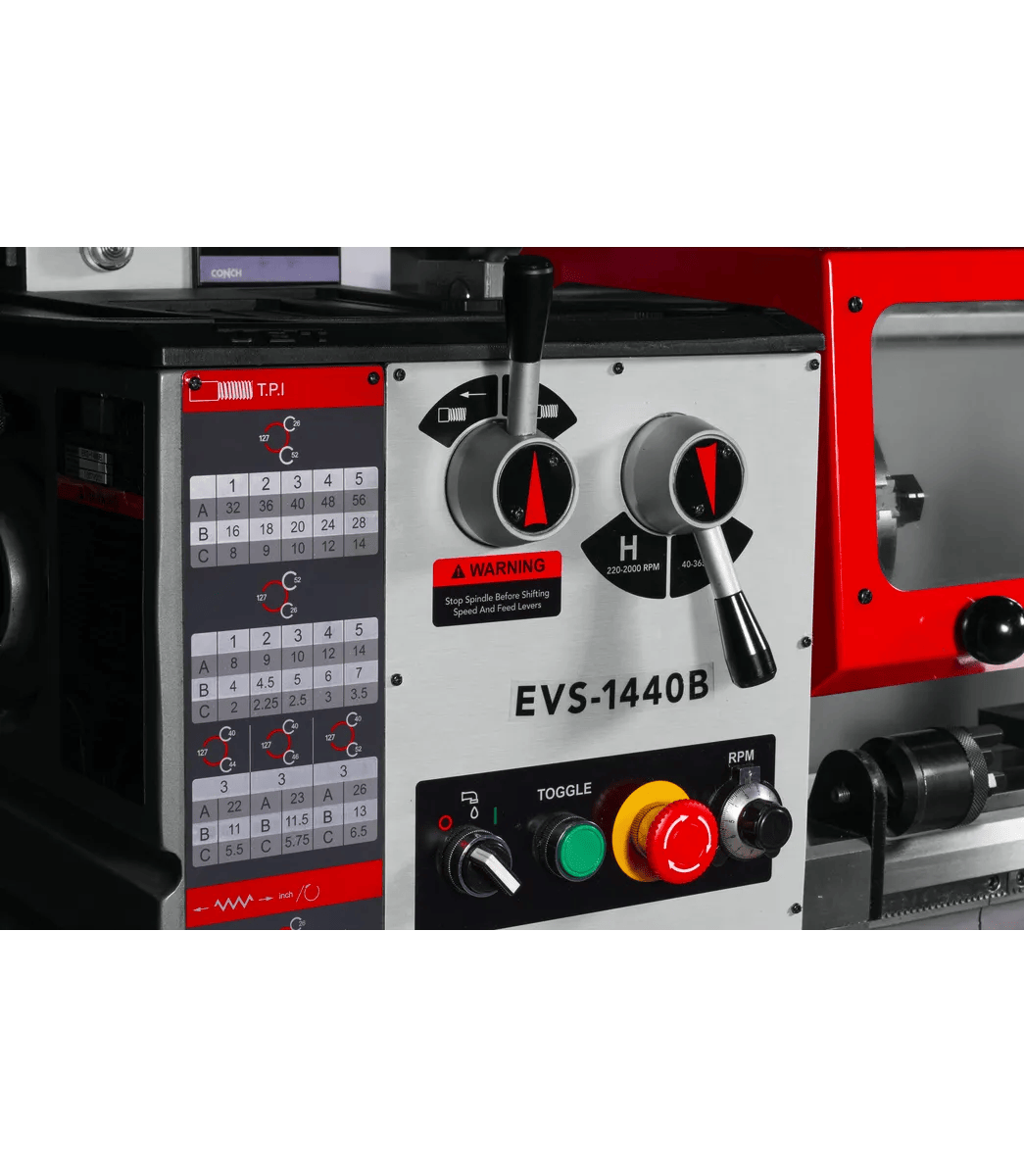

LED RPM readout allows for precise turning speeds
Safety on/off switch

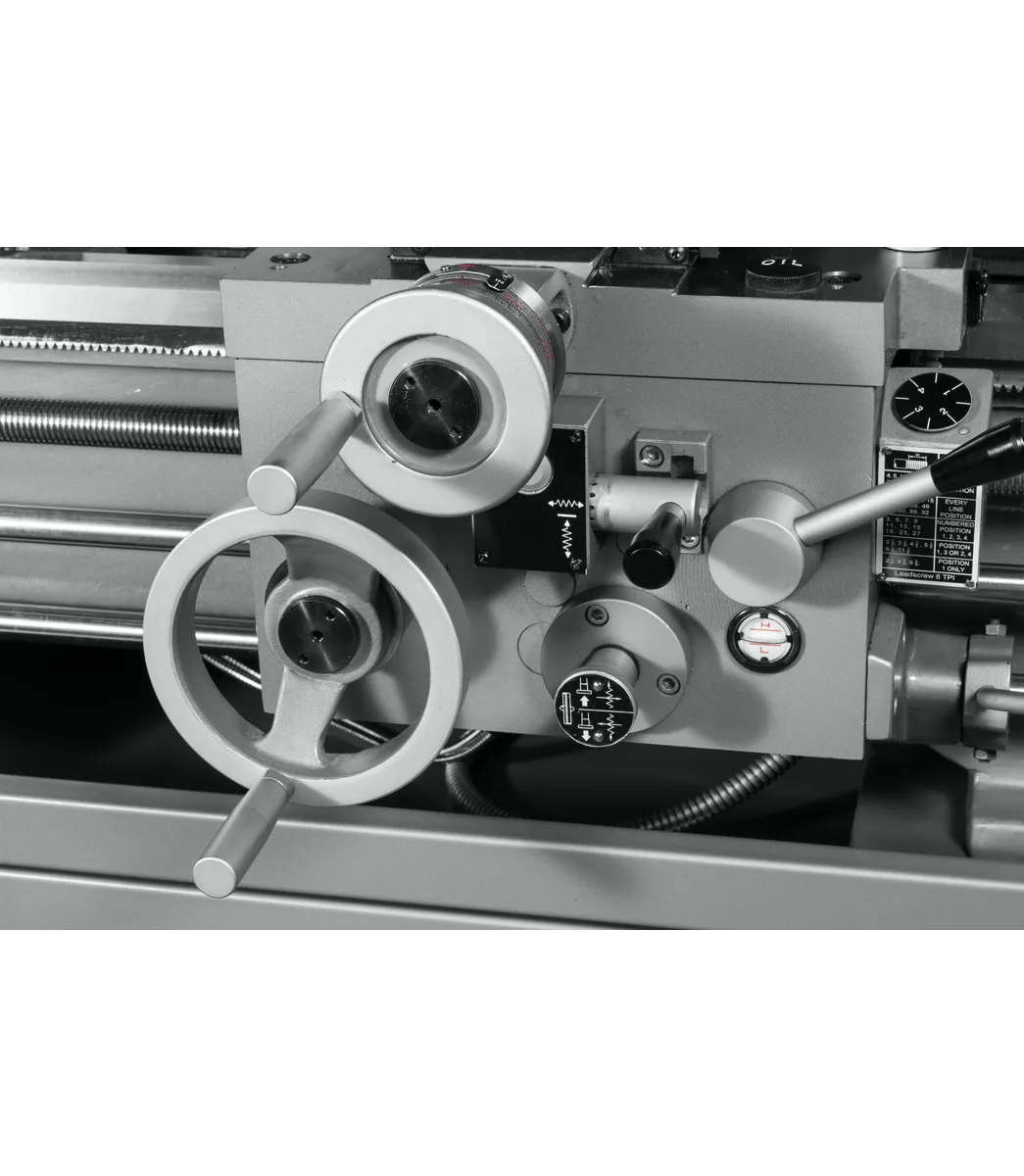

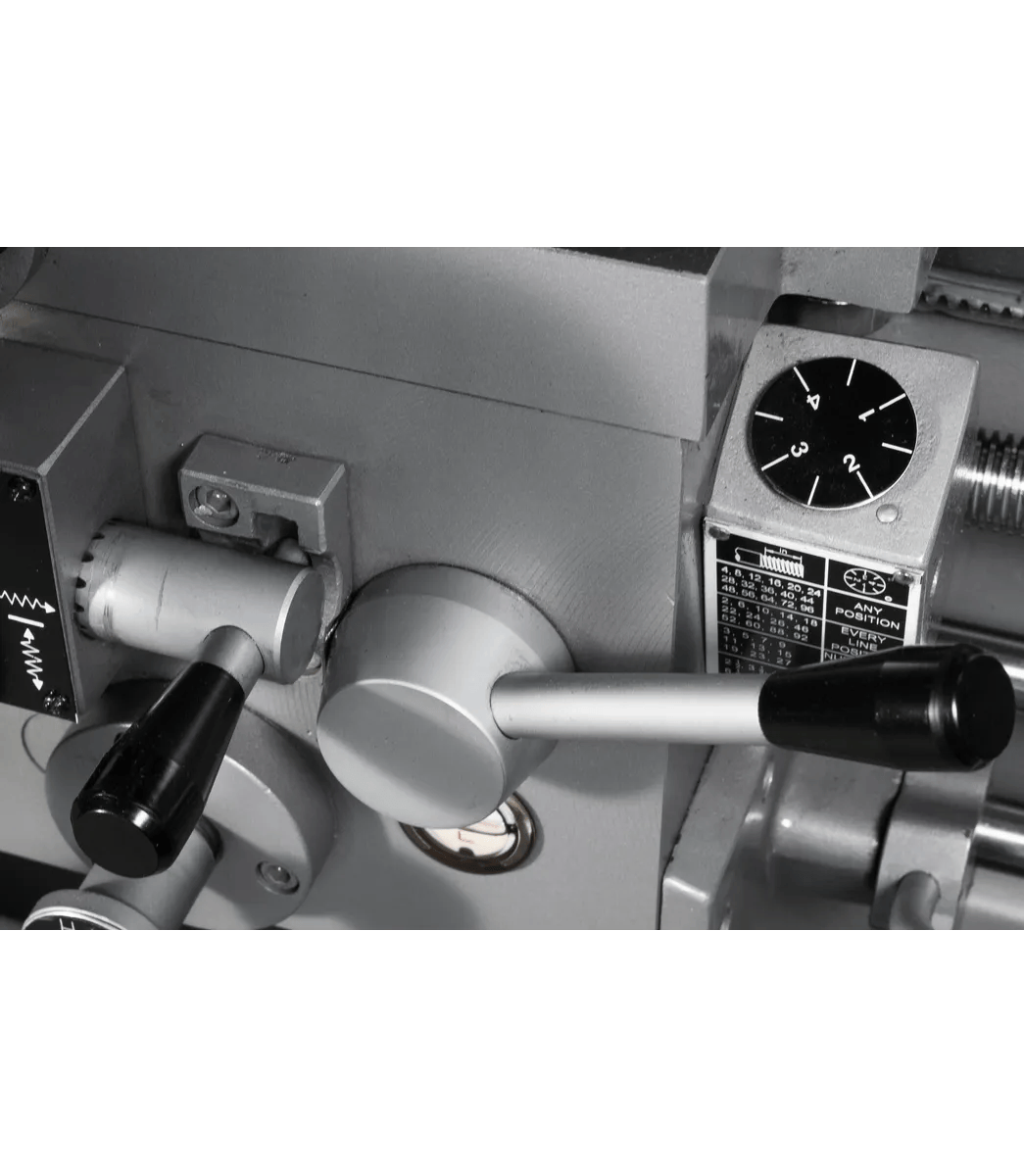

Treading Dial Indicator
V-Way bed design is induction hardened and ground
| Stock Number | JT9-311441 |
|---|---|
| Compound Slide Travel (In.) | 3-1/2 |
| Cross Slide Travel (In.) | 7 |
| Gross Weight (Lbs) | 1584 |
| Length of Gap (In.) | 9-1/2 |
| Max Tool Size (In.) | 3/4 x 3/4 |
| Model Number | EVS-1440B |
| Motor (HP) | 3 HP, 230V, 3-Phase |
| Number of Inch Threads | 34.0000 |
| Number of Longitudinal and Cross Feed Rates | 25 |
| Number of Metric Threads | 34.0000 |
| Overall Dimensions (L x W x H) (In.) | 68.5 x 28.3 x 50 |
| Prop 65 | Cancer and Reproductive Harm |
| Range of Cross Feeds (IPR) | 25 |
| Range of Inch Threads (TPI) | 2-56 |
| Range of Longitudinal Feeds (IPR) | 0.0016-0.0460 |
| Range of Metric Threads | 0.5-12 |
| Range of Spindle Speeds (RPM) | 40-2000 |
| Spindle Bore (In.) | 1-1/2 |
| Spindle Mount | D1-4 |
| Spindle Taper with Sleeve | MT-5 |

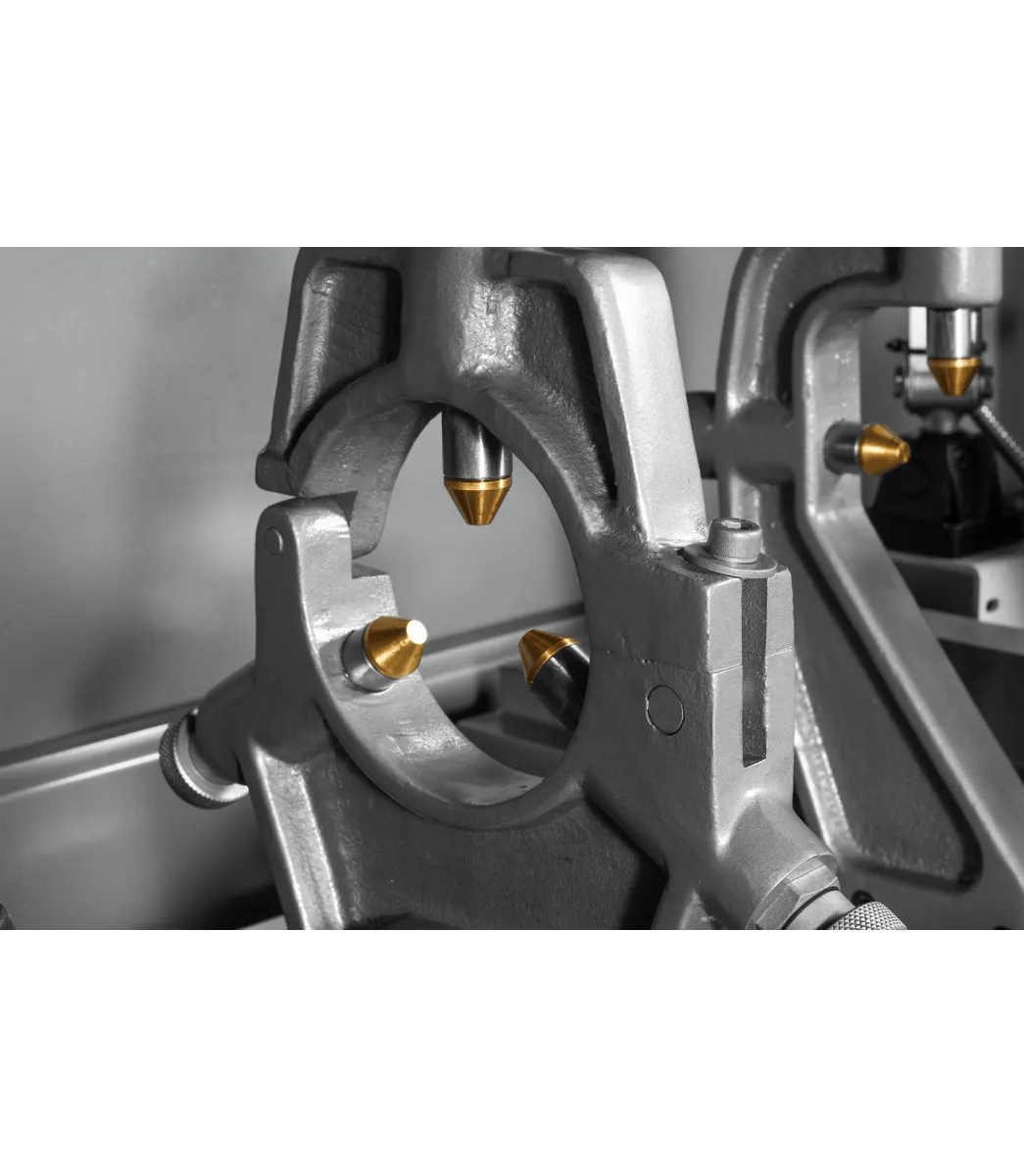

| Steady Rest Capacity (In.) | 0.23-0.61 Copper Shaft ( Standard) 0.20-2.36 Bearing Roller(OP) |
| Swing Over Bed (In.) | 14 |
| Swing Over Cross Slide (In.) | 9-1/16 |
| Tailstock Spindle Travel (In.) | 6-1/8 |
| Taper in Tailstock Spindle | MT-3 |
| Warranty | 2 Year |
| Width of Bed (In.) | 7.48 |
| Gross Weight | 1584.0 |
| Net weight | 1320.0 |
