EVS-1440B Electronic Variable Speed Bench Lathe, 3HP
Stock Number:
JT9-311440
EVS-1440B Electronic Variable Speed Bench Lathe, 3HP, 230V, 3Ph
Manual

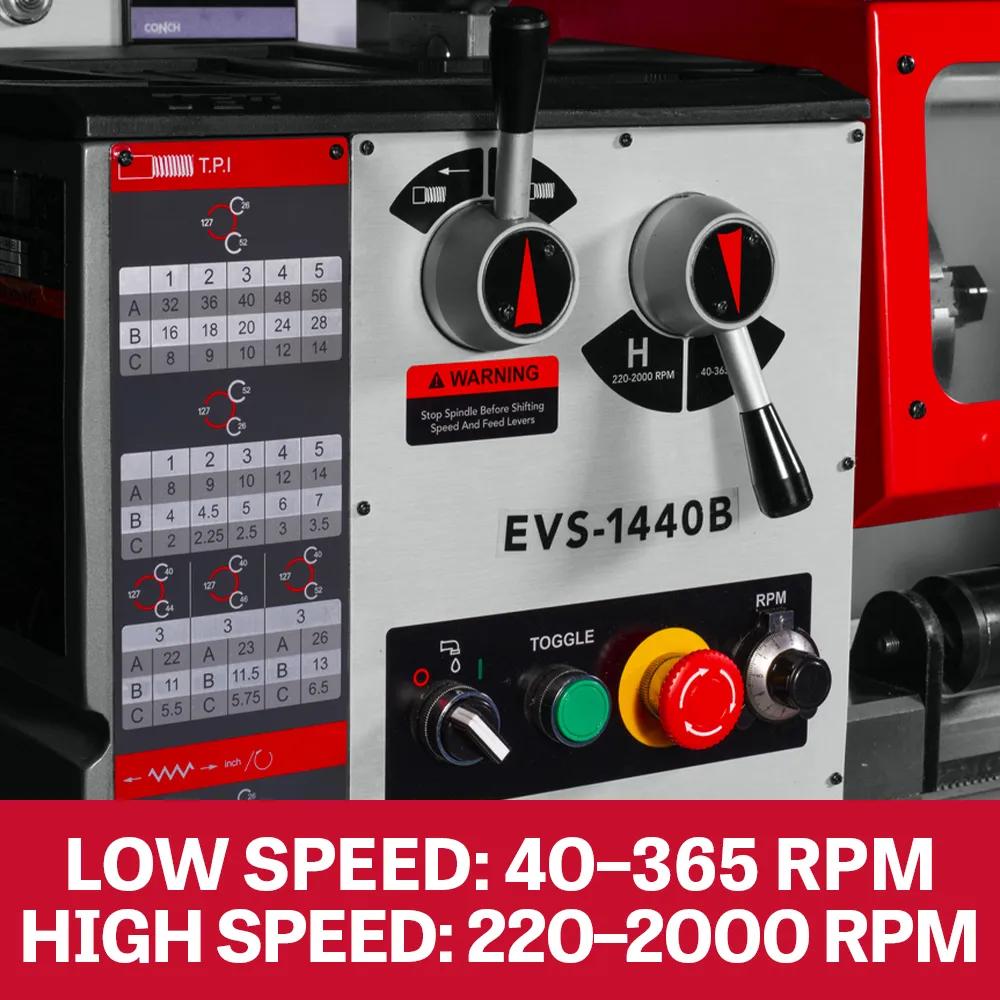

The EVS-1440B is engineered to maximize your shop’s output. The D1 4 Spindle is precision ground for accuracy and supported by class 7 tapered roller bearings capable of a run out maximum of .0004’’. The spindle also features an apron-mounted actuation control and jog button for easy gear engagement and spindle inching. The two-speed gearbox allows operators to easily work at low speeds from 40 to 365 RPM, and at high speeds from 220 to 2,000 RPM. Additionally, the tailstock may be offset for turning taper. Meehanite castings retain their tolerance and remain rigid over many years of machining.
Standard Equipment

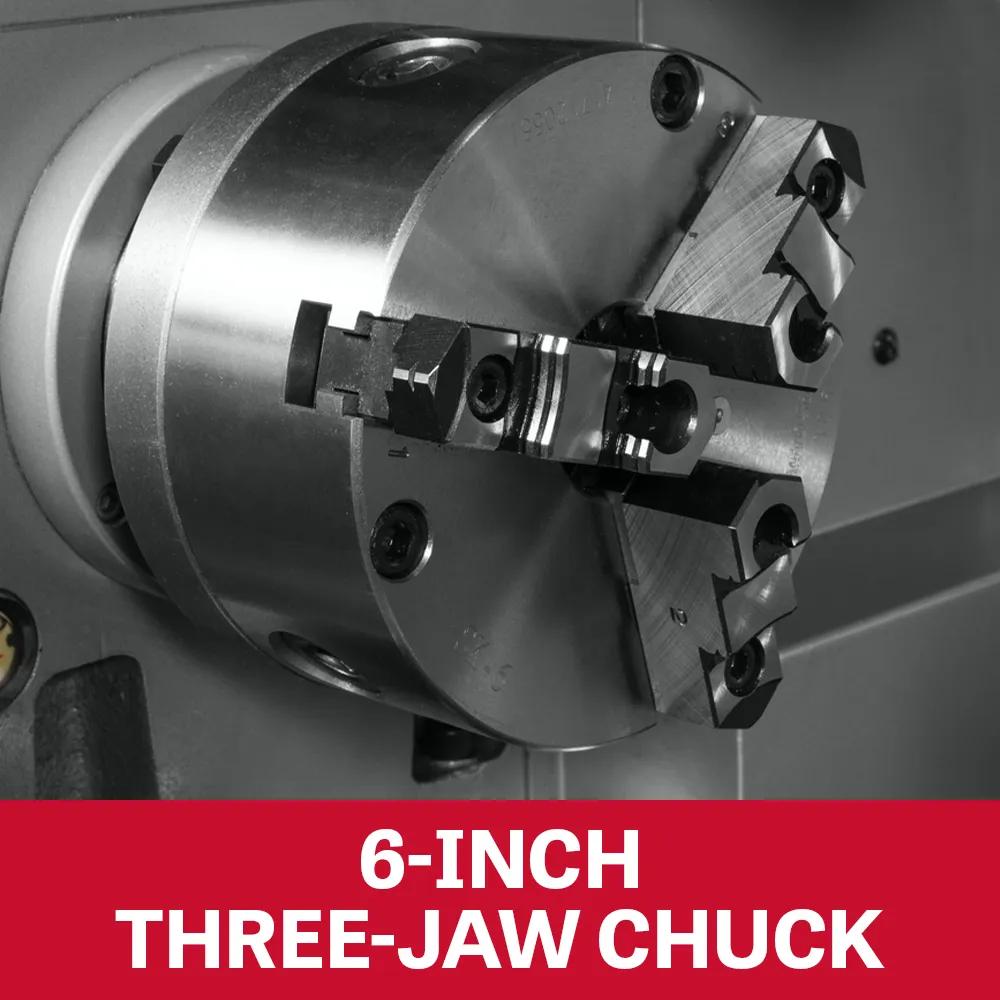

6" 3-Jaw Chuck
Threading Dial Indictor

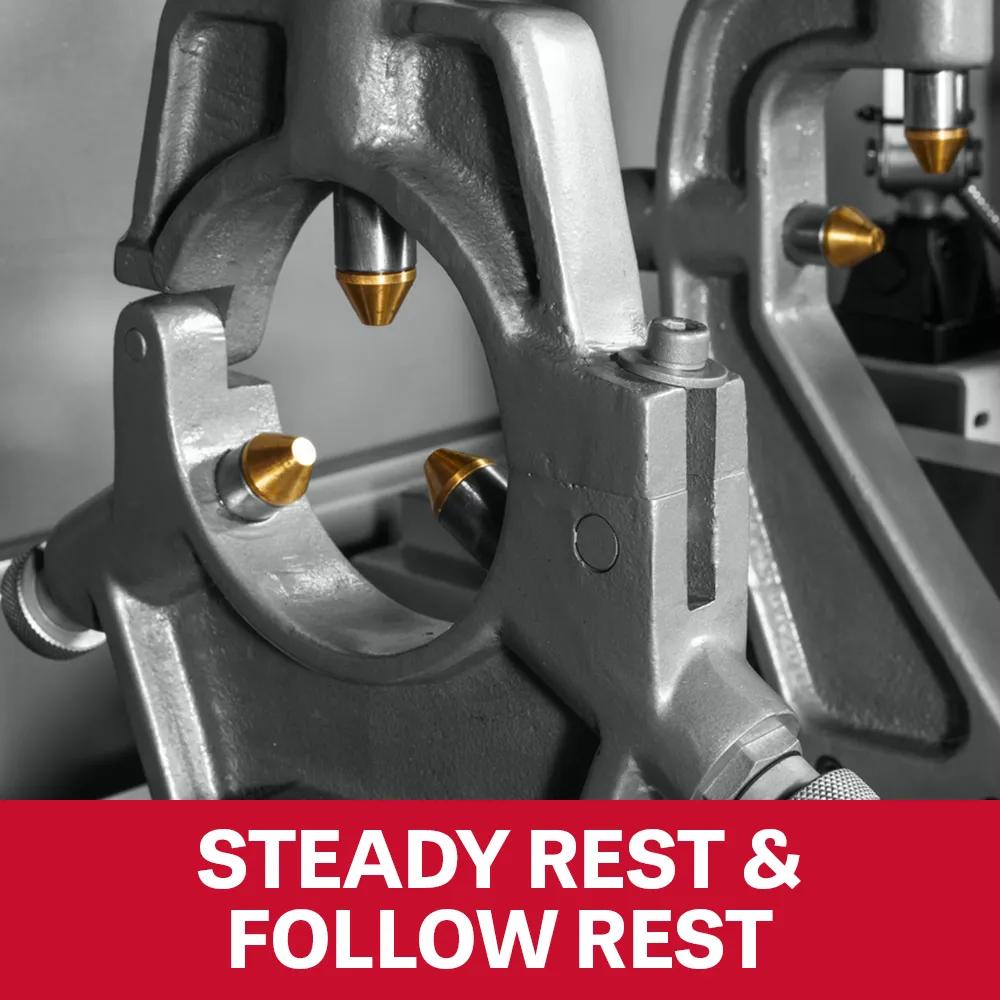

Steady & Follow Rest

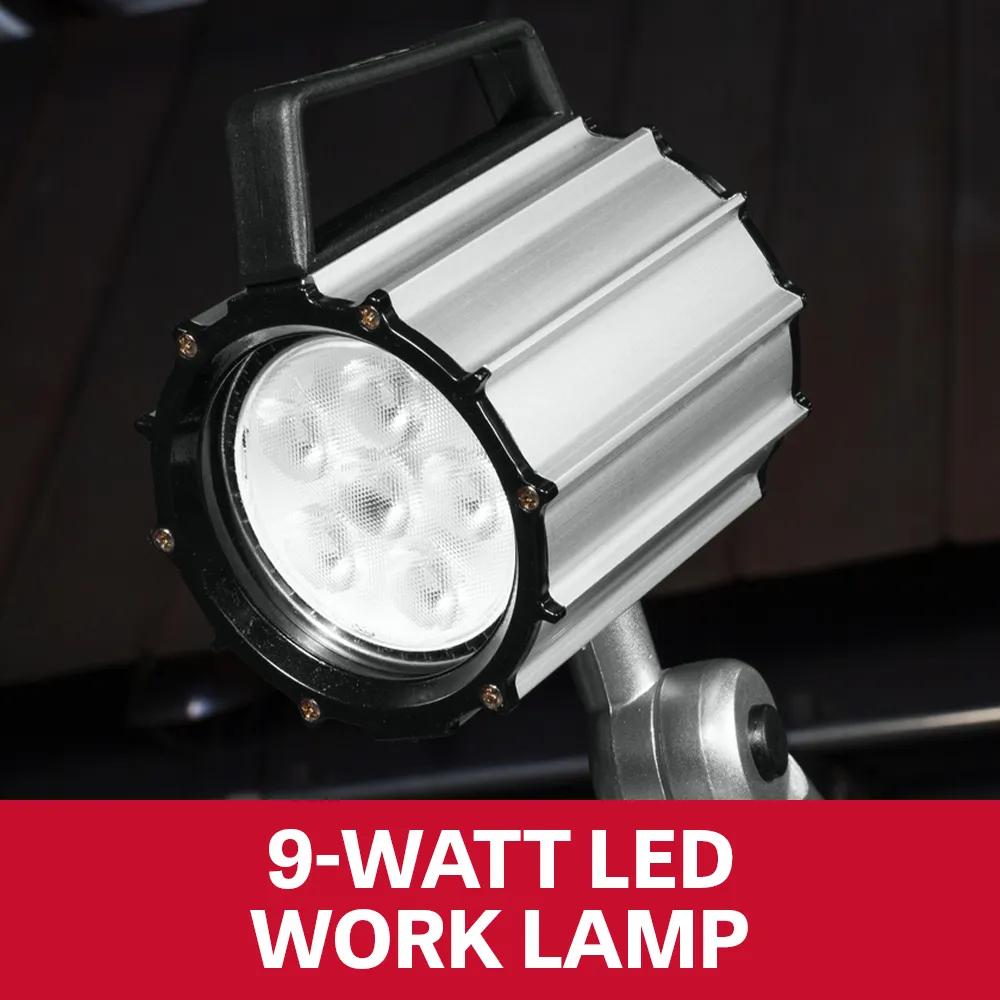

LED Work Lamp

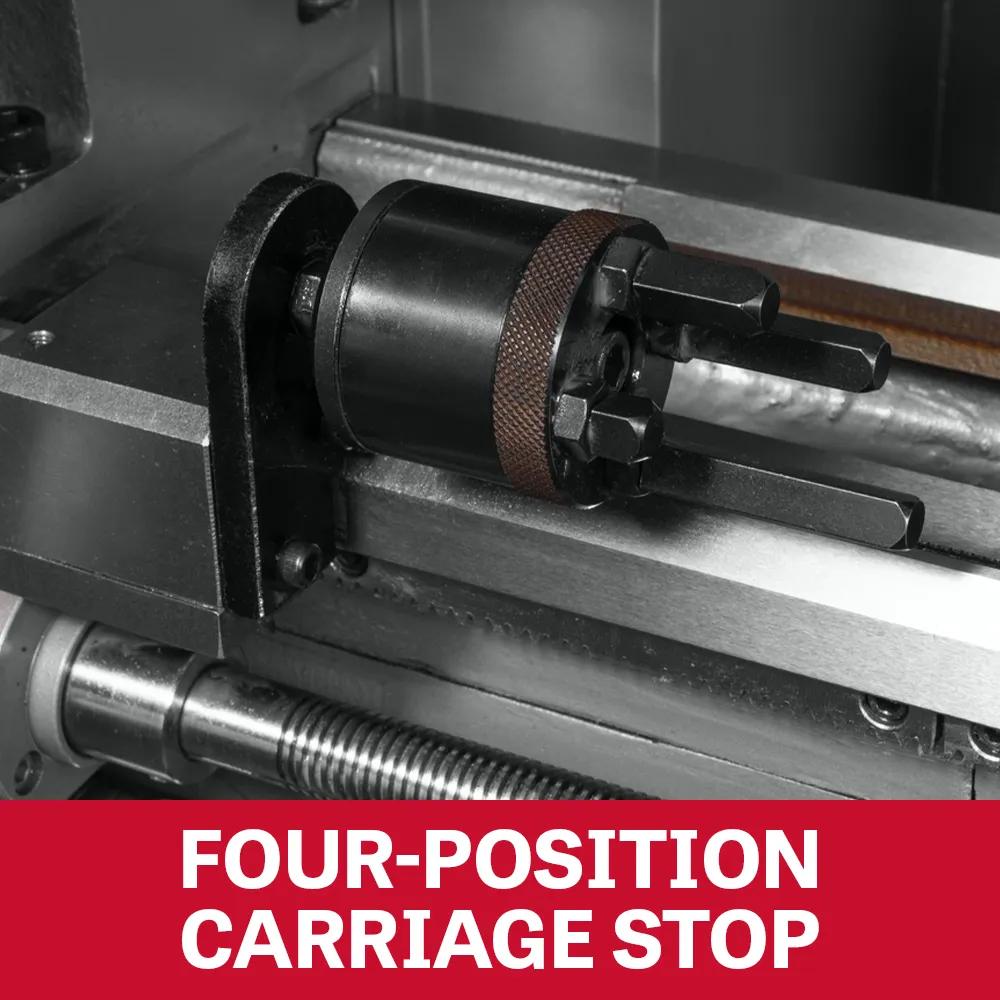

4-Position Carriage stop
Chuck Guard
Threading Dial Indicator

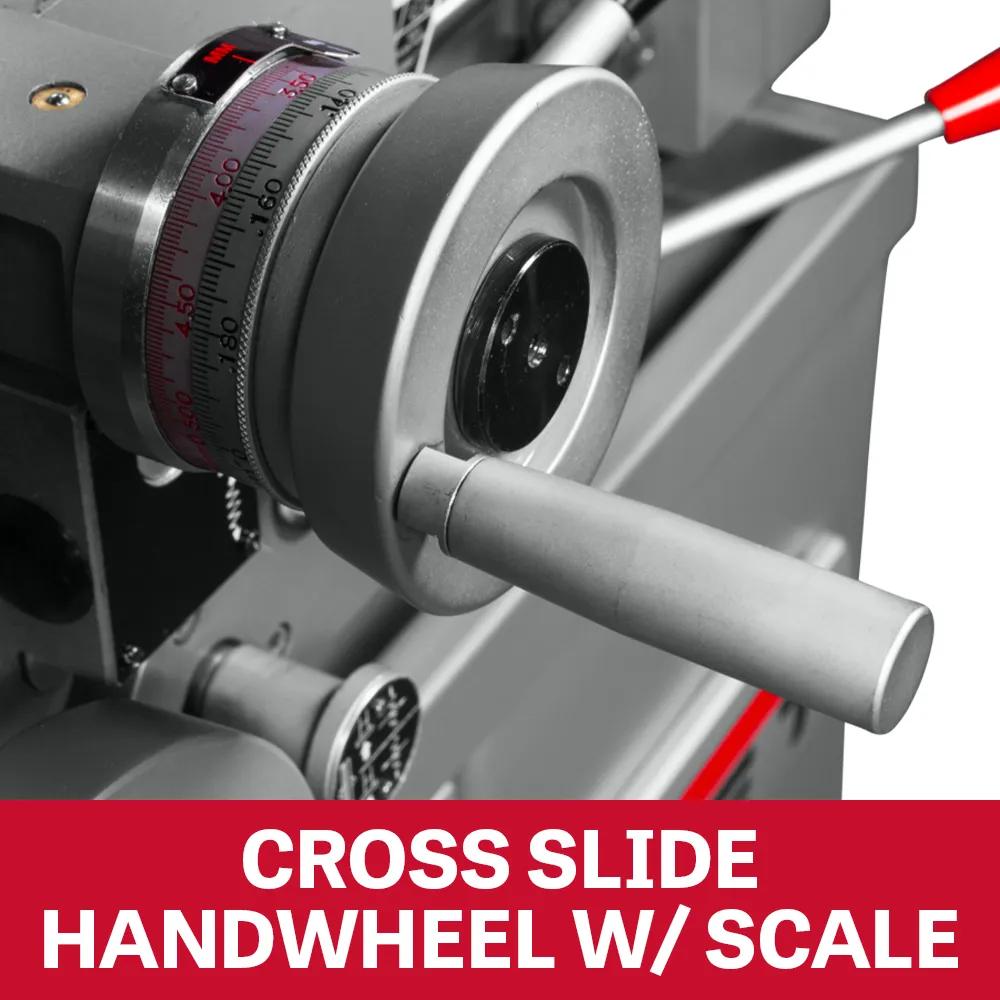

Compound and cross slide have backlash elimination

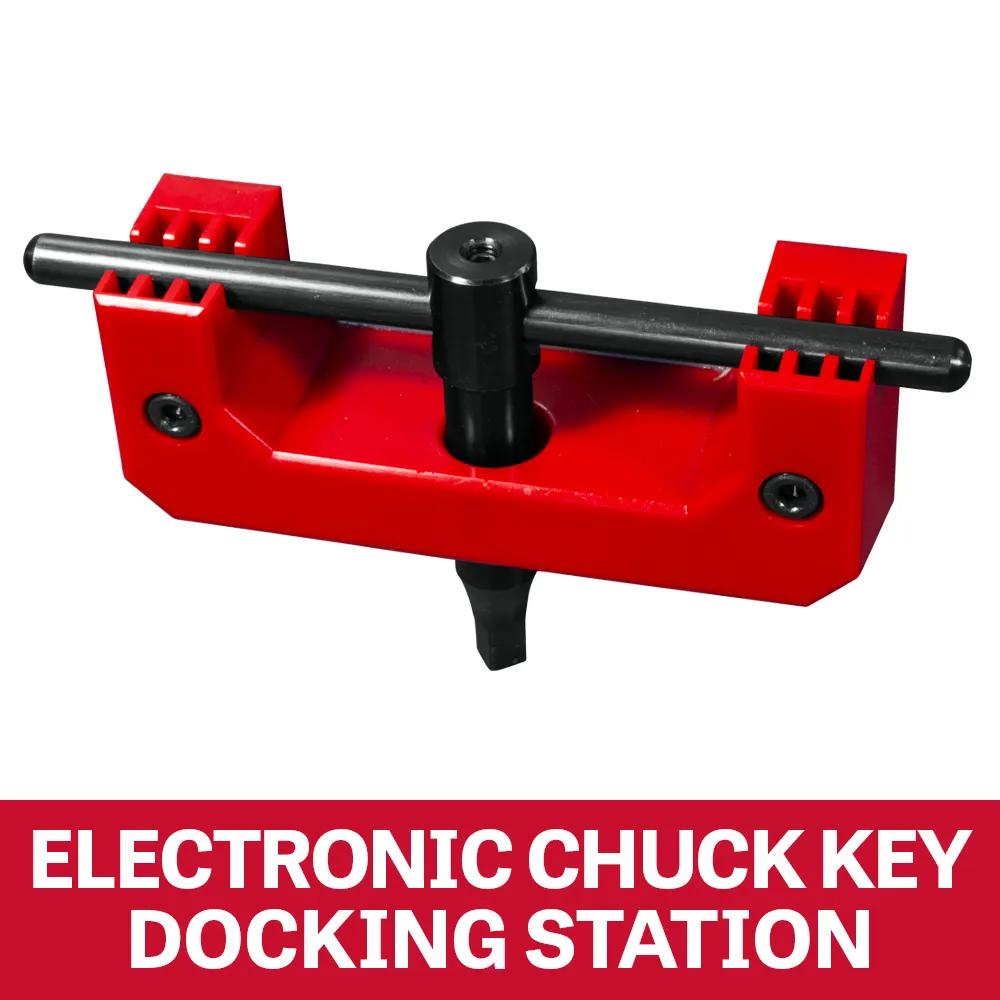

Electronic Chuck Key Docking Station
| Stock Number | JT9-311440 |
|---|---|
| Compound Slide Travel (In.) | 3-1/2 |
| Cross Slide Travel (In.) | 7 |
| Distance Between Centers (In.) | 40 |
| Drive | EVS |
| Gross Weight (Lbs) | 1584 |
| Input Power | 230V 3ph |
| Length of Gap (In.) | 9-1/2 |
| Max Tool Size (In.) | 3/4 x 3/4 |
| Model Number | EVS-1440B |
| Motor (HP) | 3 HP, 230V, 3-Phase |
| Motor Phase | 3 |
| Motor Power (HP) | 3 |
| Motor Voltage (V.) | 230 |
| Net Weight (Lbs.) | 1320 |
| Number of Inch Threads | 34.0000 |
| Number of Longitudinal and Cross Feed Rates | 25 |
| Number of Metric Threads | 34.0000 |
| Number of Spindle Speeds | Variable |
| Overall Dimensions (L x W x H) (In.) | 68.5 x 28.3 x 50 |
| Prewired Voltage (V.) | 230 |
| Prop 65 | Cancer and Reproductive Harm |
| Range of Cross Feeds (IPR) | 25 |
| Range of Inch Threads (TPI) | 2-56 |
| Range of Longitudinal Feeds (IPR) | 0.0016-0.0460 |
| Range of Metric Threads | 0.5-12 |
| Range of Spindle Speeds (RPM) | 40-2000 |
| Shipping Dimensions (L x W x H) (In.) | 76 x 30 x 61 |
| Spindle Bore (In.) | 1-1/2 |
| Spindle Mount | D1-4 |
| Spindle Taper | Morse #5 |
| Spindle Taper with Sleeve | MT-5 |
| Spindle Thread (In./TPI) | 2 - 56 |
| Steady Rest Capacity (In.) | 0.23-0.61 Copper Shaft ( Standard) 0.20-2.36 Bearing Roller(OP) |
| Swing Over Bed (In.) | 14 |
| Swing Over Cross Slide (In.) | 9-1/16 |
| Tailstock Spindle Travel (In.) | 6-1/8 |
| Taper in Tailstock Spindle | MT-3 |
| Warranty | 2 Year |
| Weight (Lbs.) | 1584 |
| Width of Bed (In.) | 7.48 |
| Gross Weight | 1584.0 |
