EVS-949 Mill with 2-Axis ACU-RITE 203 DRO and X-Axis JET Powerfeed and USA Made Air Draw Bar
EVS-949 Mill with 2-Axis ACU-RITE 203 DRO and X-Axis JET Powerfeed and USA Made Air Draw Bar
Manual

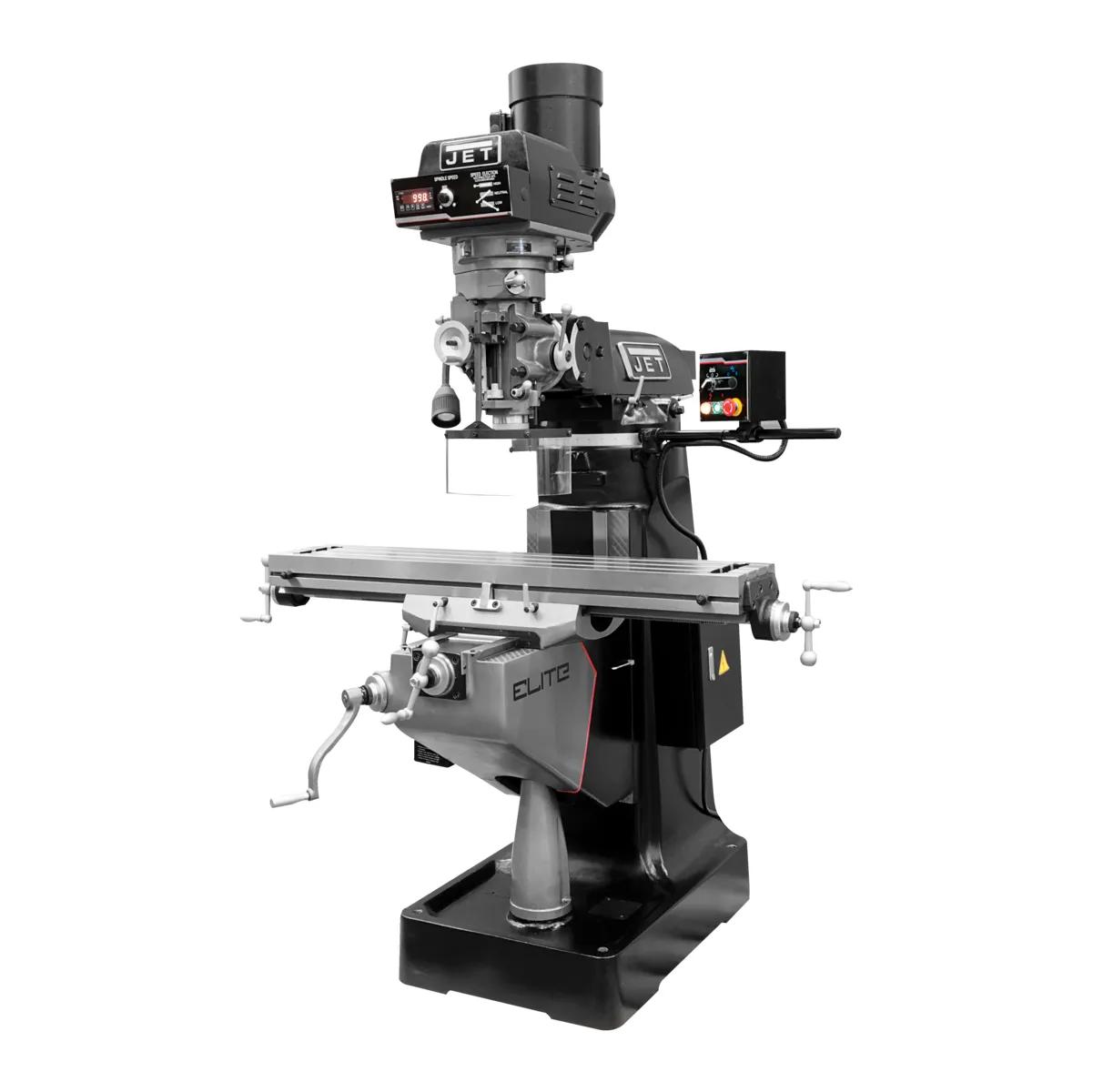

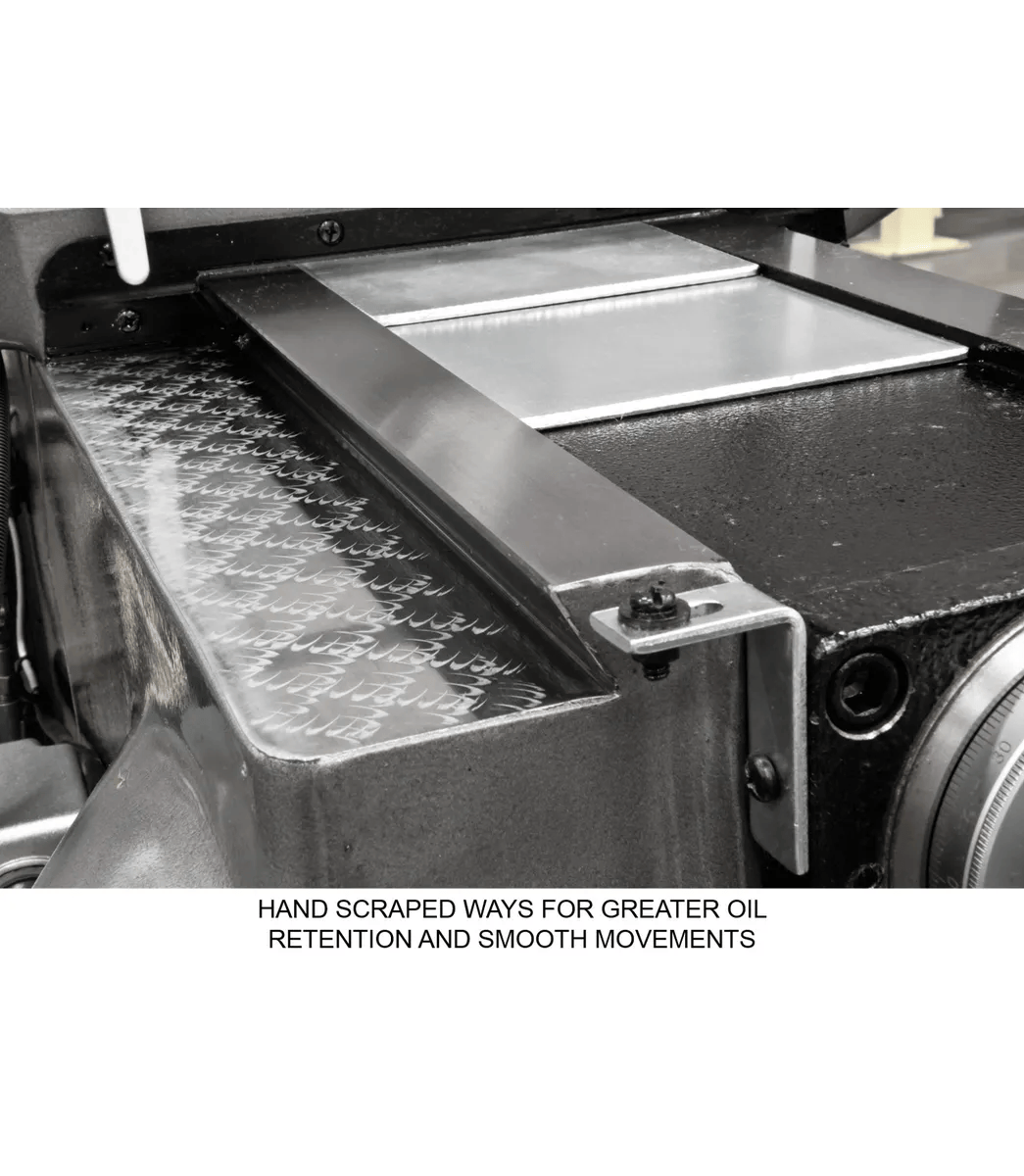

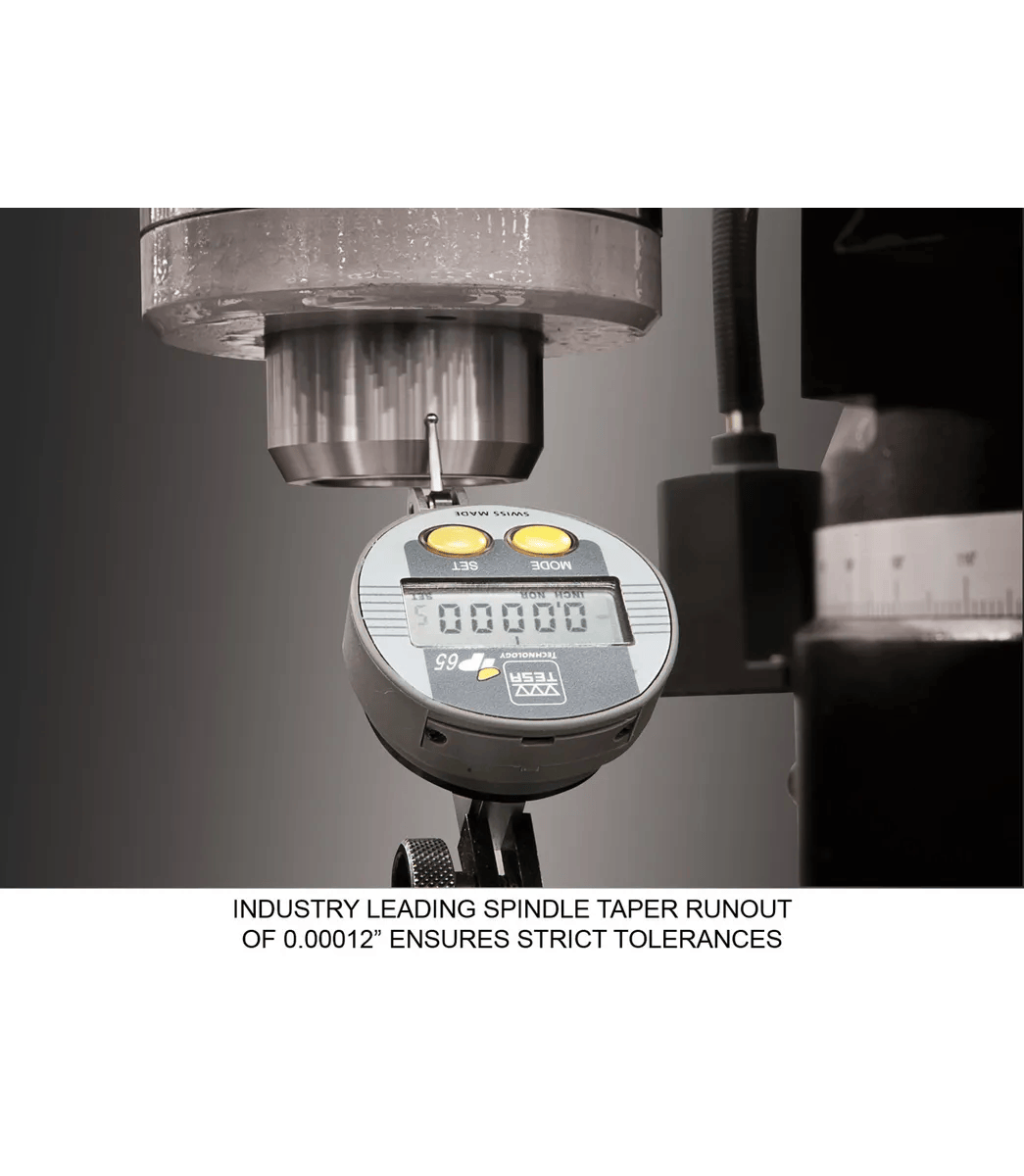

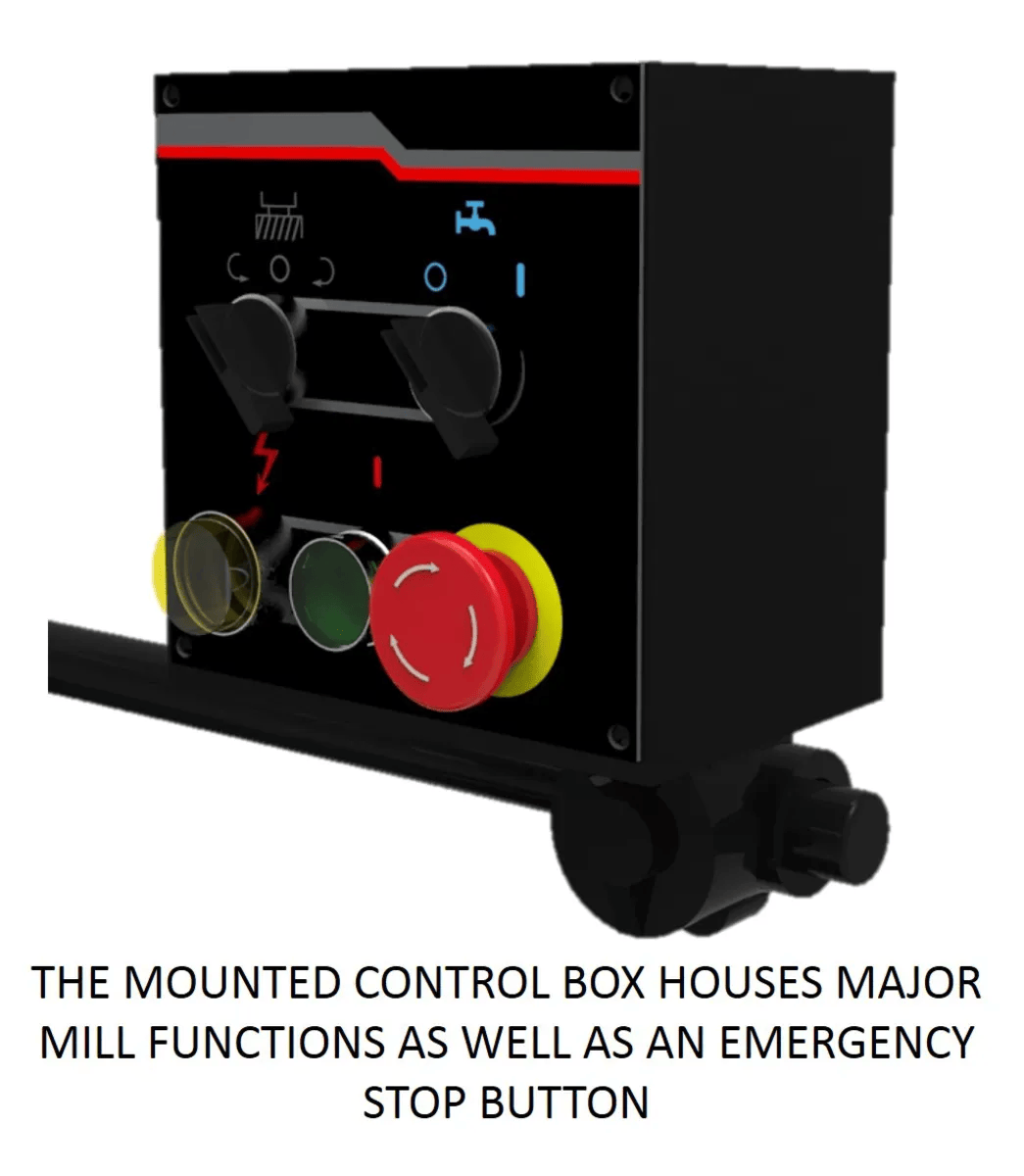

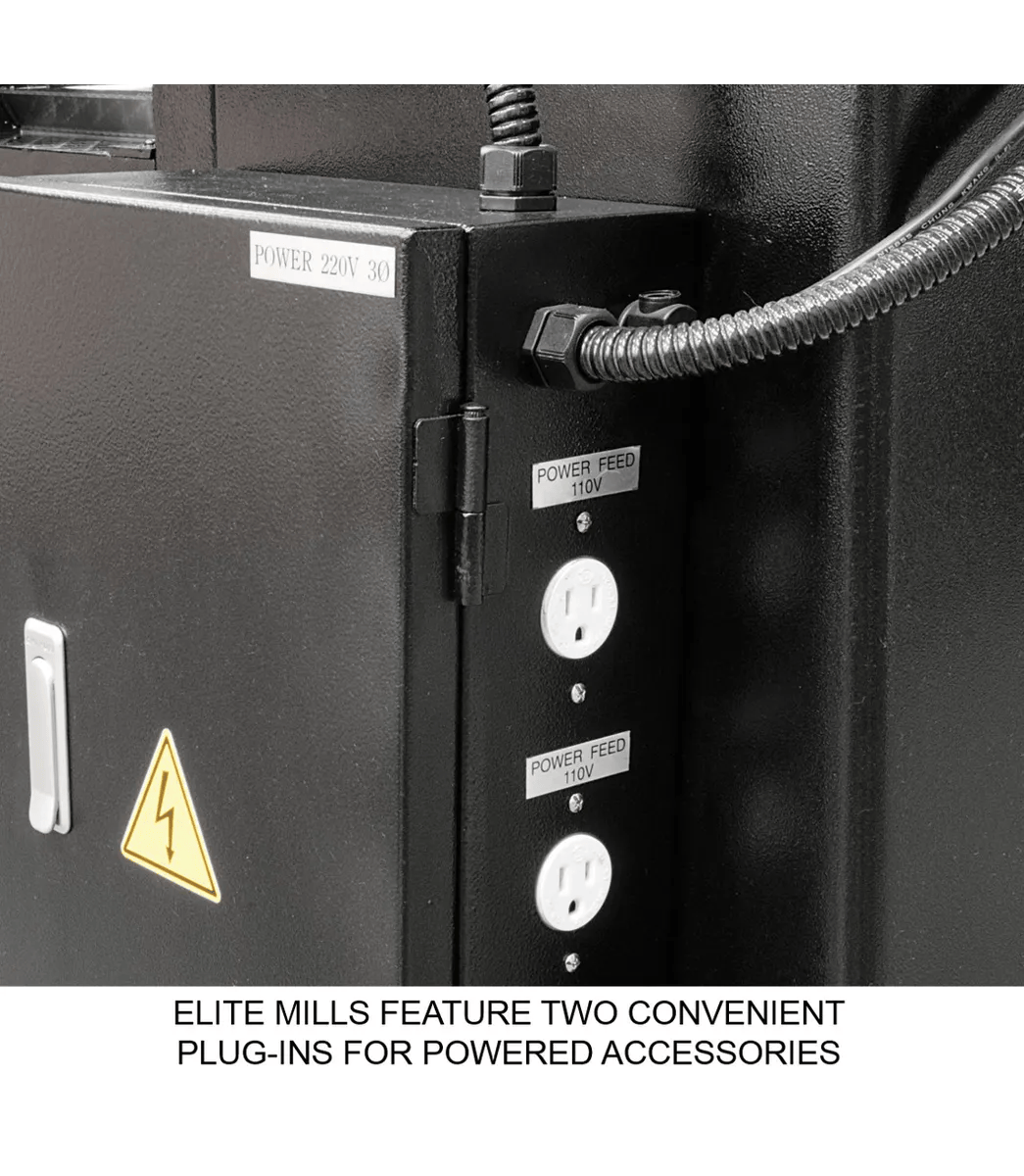

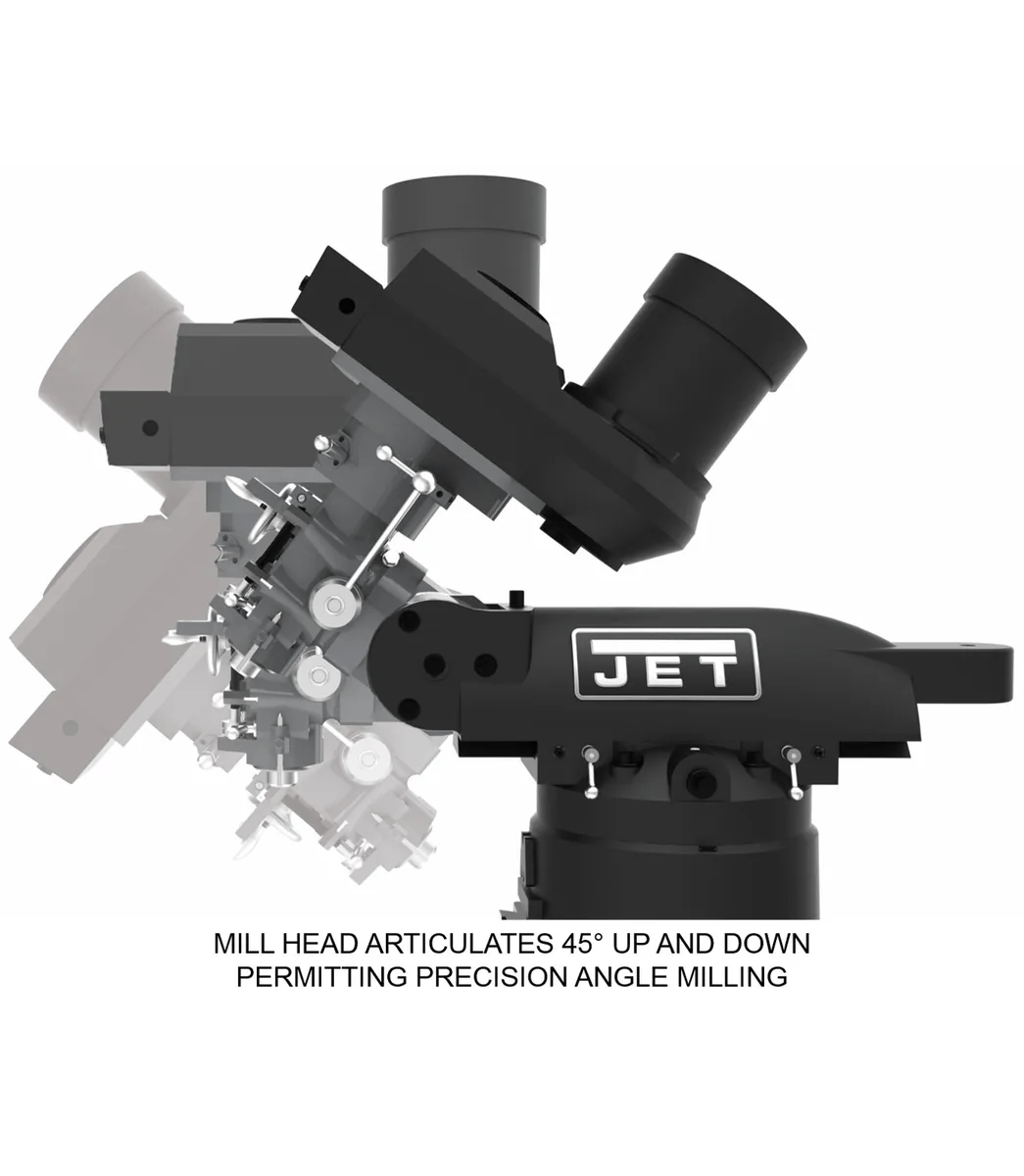

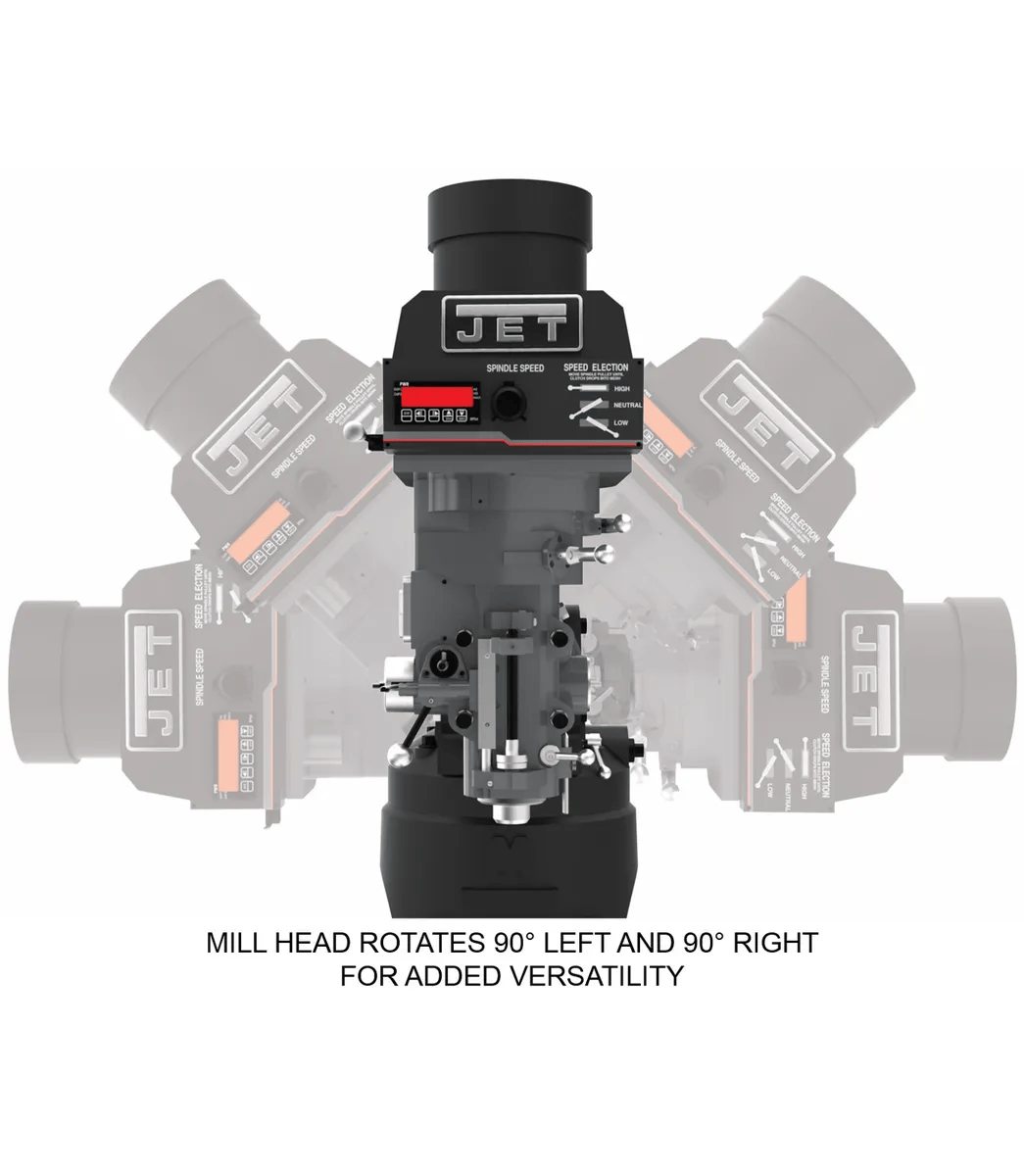

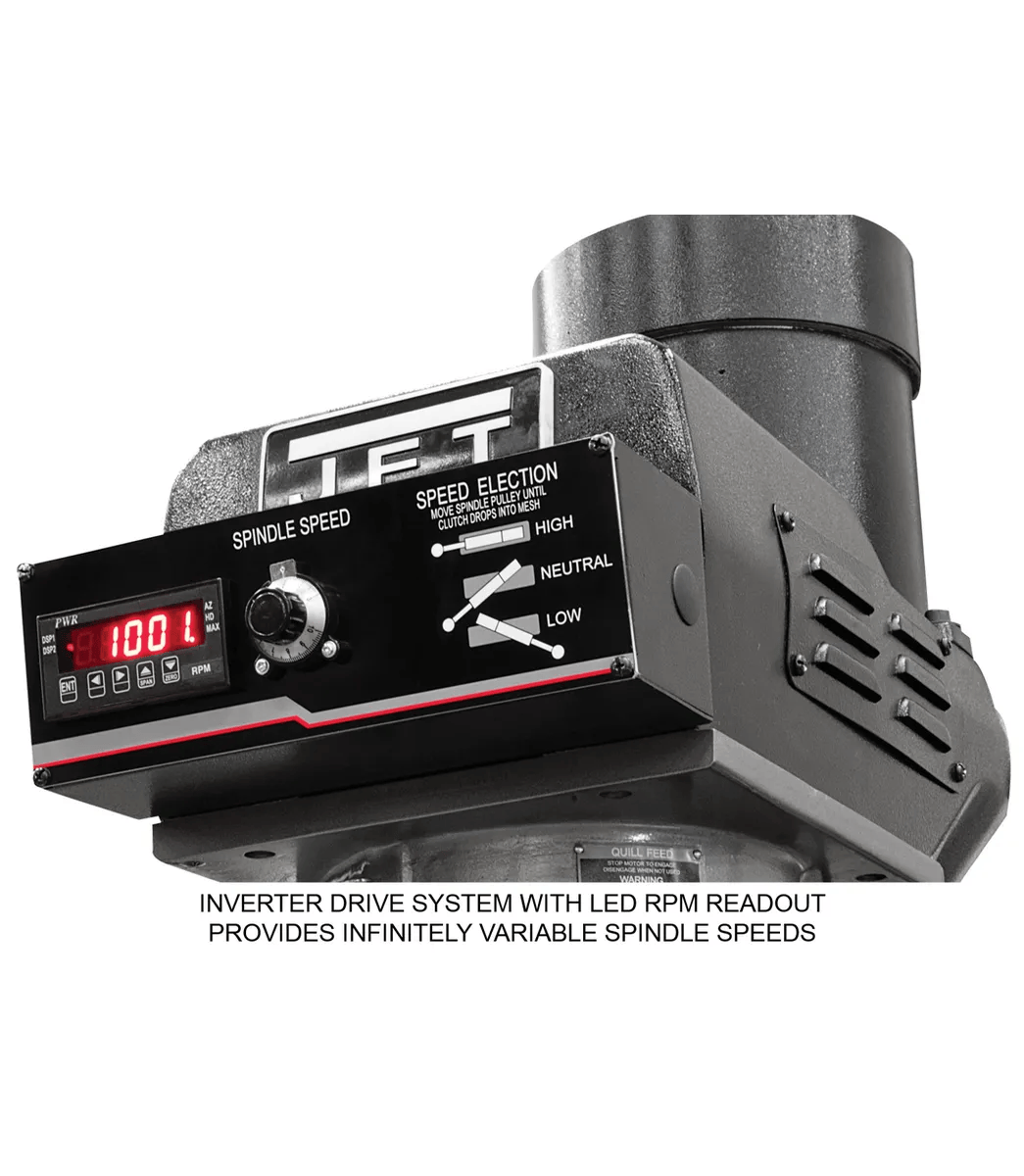

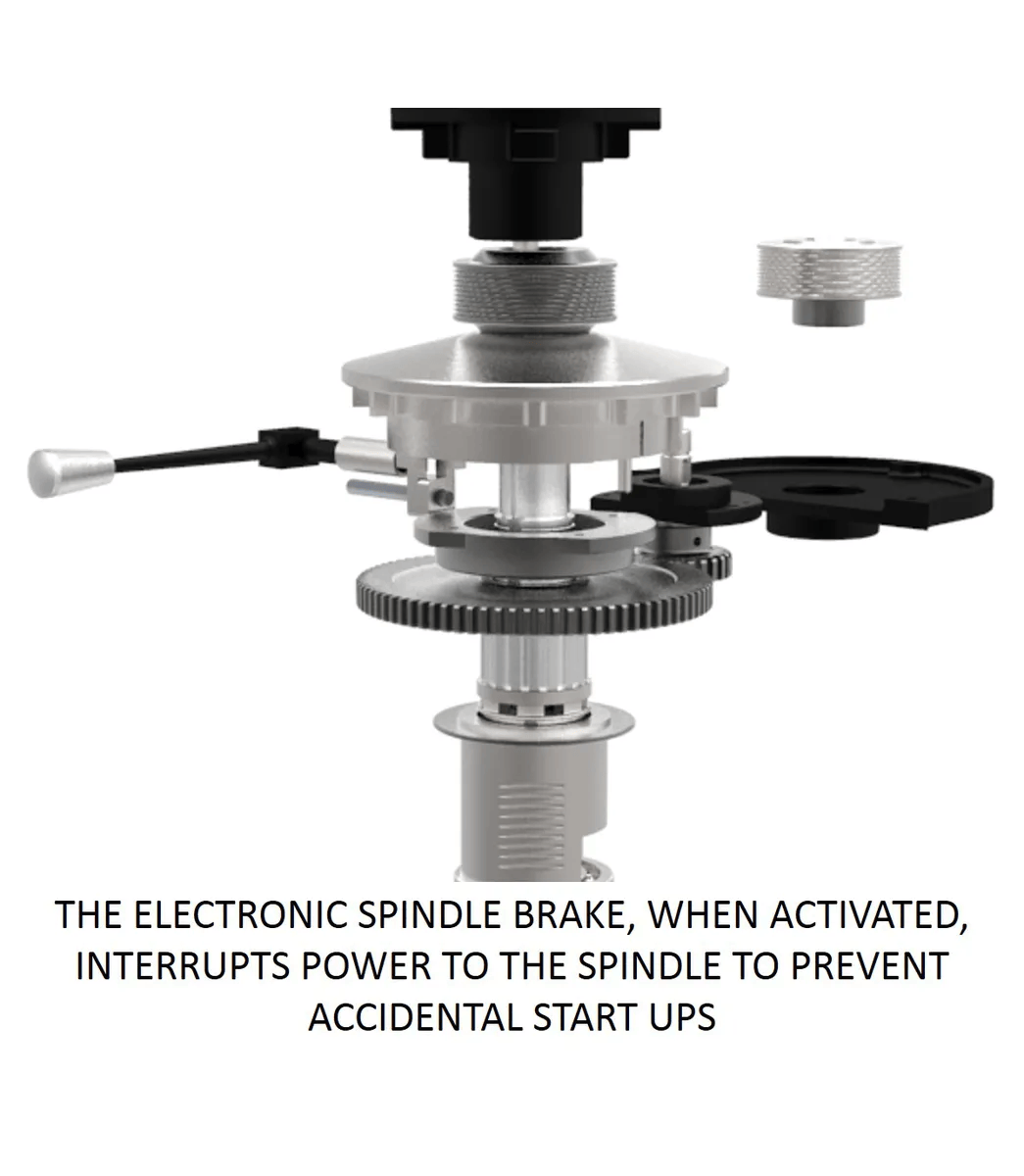

Elite offers world class mills fully loaded with features, including certified Meehanite® castings, a Chromium Molybdenum spindle, and a hardened and ground table that provides a stable and accurate platform for milling. When working on the design of the mills we focused our efforts on the most accurate spindle assembly to meet strict tolerance requirements. This spindle utilizes class 7210 (P4, ABEC-7) precision angular bearings for an industry-leading spindle taper runout of 0.00012". To improve the reliability and durability we went back and did things the old fashioned way, we hand scraped the ways to a minimum of 16-point per inch. Every 30 minutes, your Elite mill is automatically lubricated with a flow of 3 to 6 cc/cy. For operator safety all Elite Mills are CSA/CUS Certified and all come with a spindle safety guard.
| Stock Number | JT9-894311 |
|---|---|
| Amperage Draw @ 230V 3Ph | 18 |
| Collet Capacity | 1/8 - 7/8 |
| Distance Spindle to Column (Max.) (In.) | 21-2/5 |
| Max Distance Spindle to Table (In.) | 18-3/4 |
| Model Number | ETM-949EVS |
| Motor (HP) | 3 HP, 230V, 3 Ph |
| Number of Axis | 2 |
| Overall Dimensions (L x W x H) (In.) | 68 x 63 x 84 |
| Power Draw Bar | USA Made |
| Powerfeed | X-Axis |
| Prop 65 | Cancer |
| Quill Diameter (In.) | 3-3/8 |
| Quill Down Feed Rates (IPR) | 0.0015 - 0.003 - 0.006 |
| Range of Spindle Speeds (RPM) | 60 - 5,000 |
| Spindle Taper (In. x TPI) | R-8 |
| Spindle Travel (In.) | 5 |
| Style (Type) | Variable Speed |
| T-Slot Centers (In.) | 2-1/2 |
| Table Cross Travel (In.) | 12 |
| Table Longitudinal Travel (In.) | 36 |
| Table Size (L x W) (In.) | 9 x 49 |
| Travel of Knee (In.) | 16 |
| Travel of Ram (In.) | 14 |
| Warranty | 3 Year Elite |
| Weight (Lbs.) | 2300 |
| Work Table Weight Capacity (Lbs.) | 550 |
| Gross Weight | 2450.0 |
| Net weight | 2200.0 |
