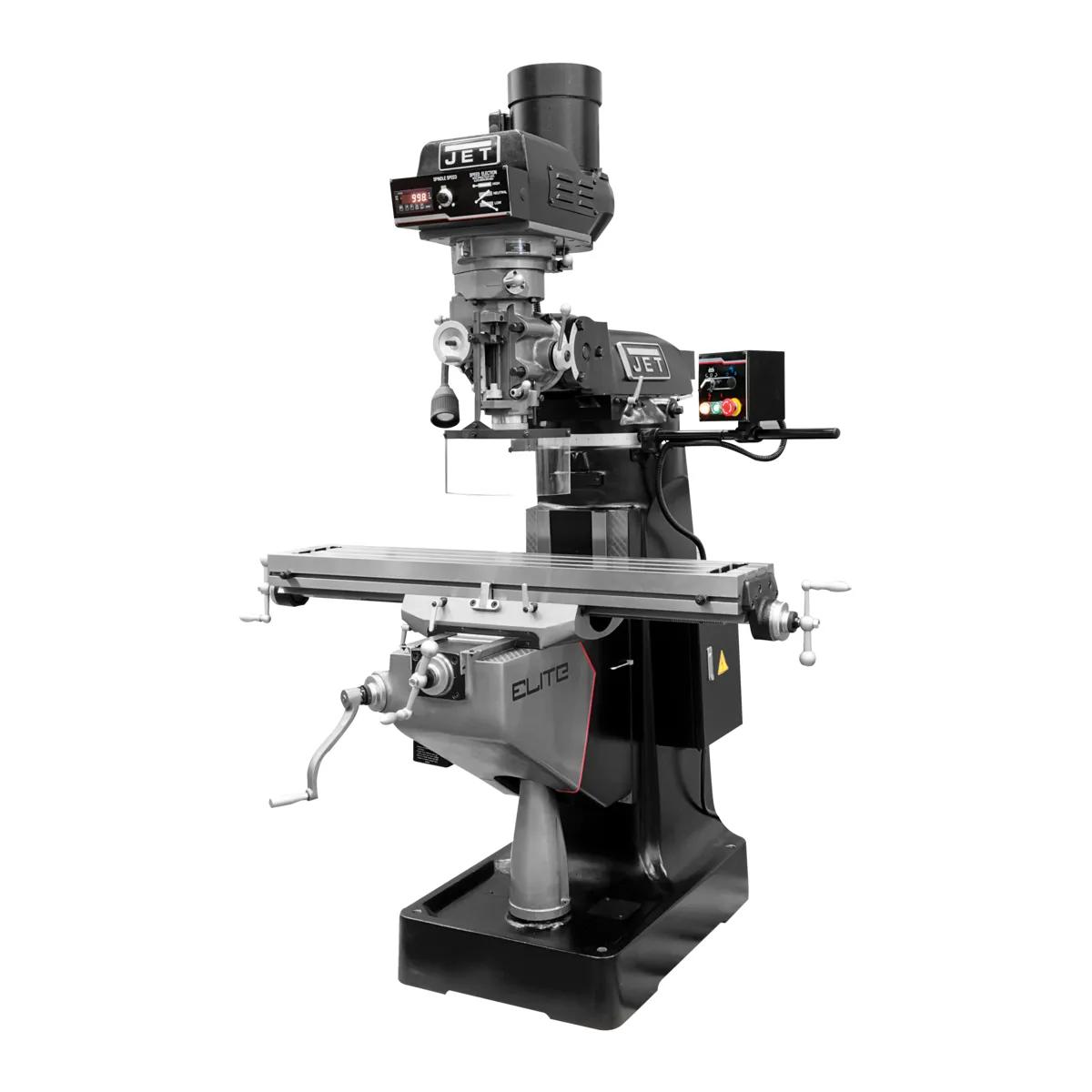

EVS-949 Mill with 2-Axis Newall DP700 DRO
EVS-949 Mill with 2-Axis Newall DP700 DRO
Manual

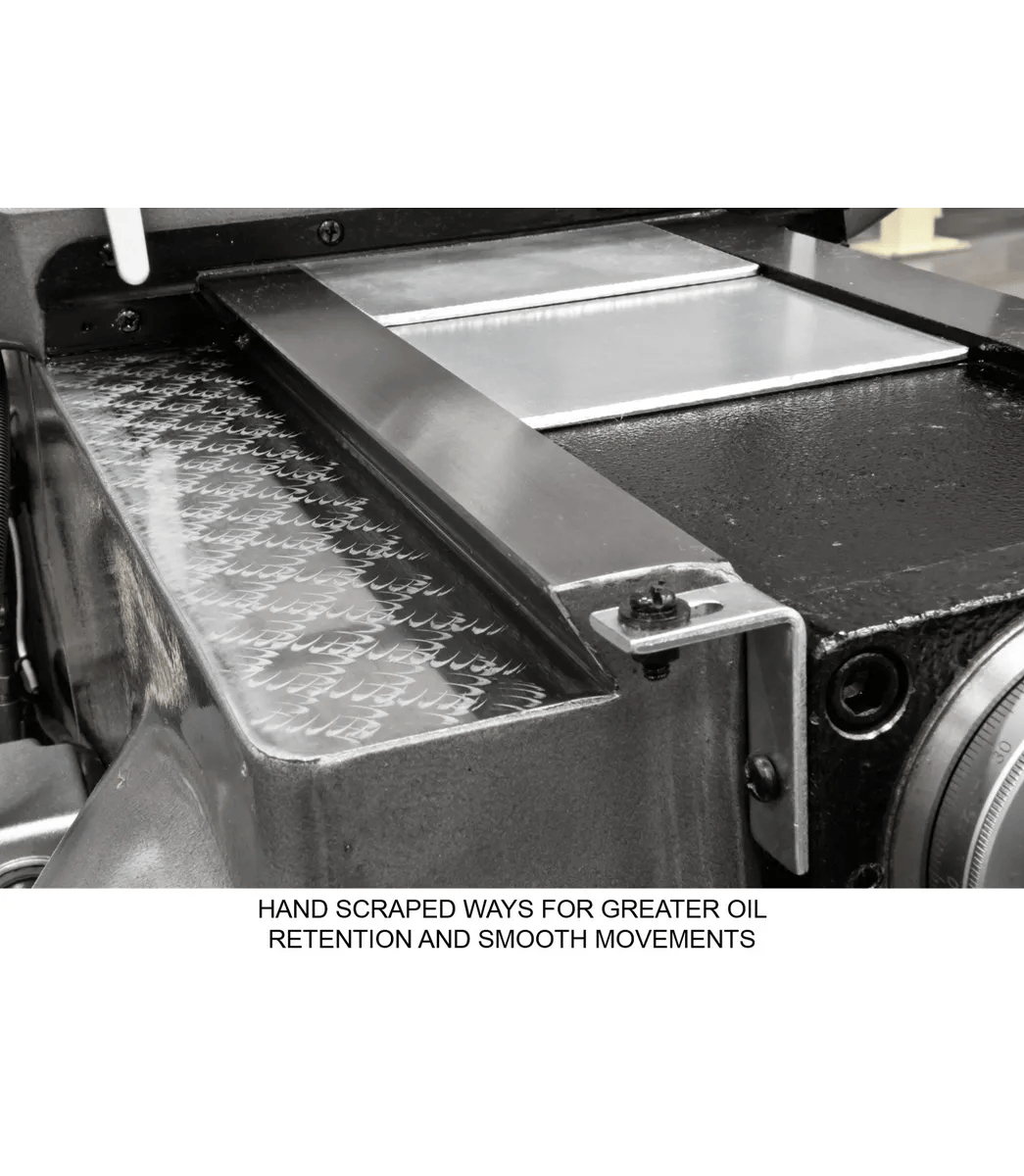

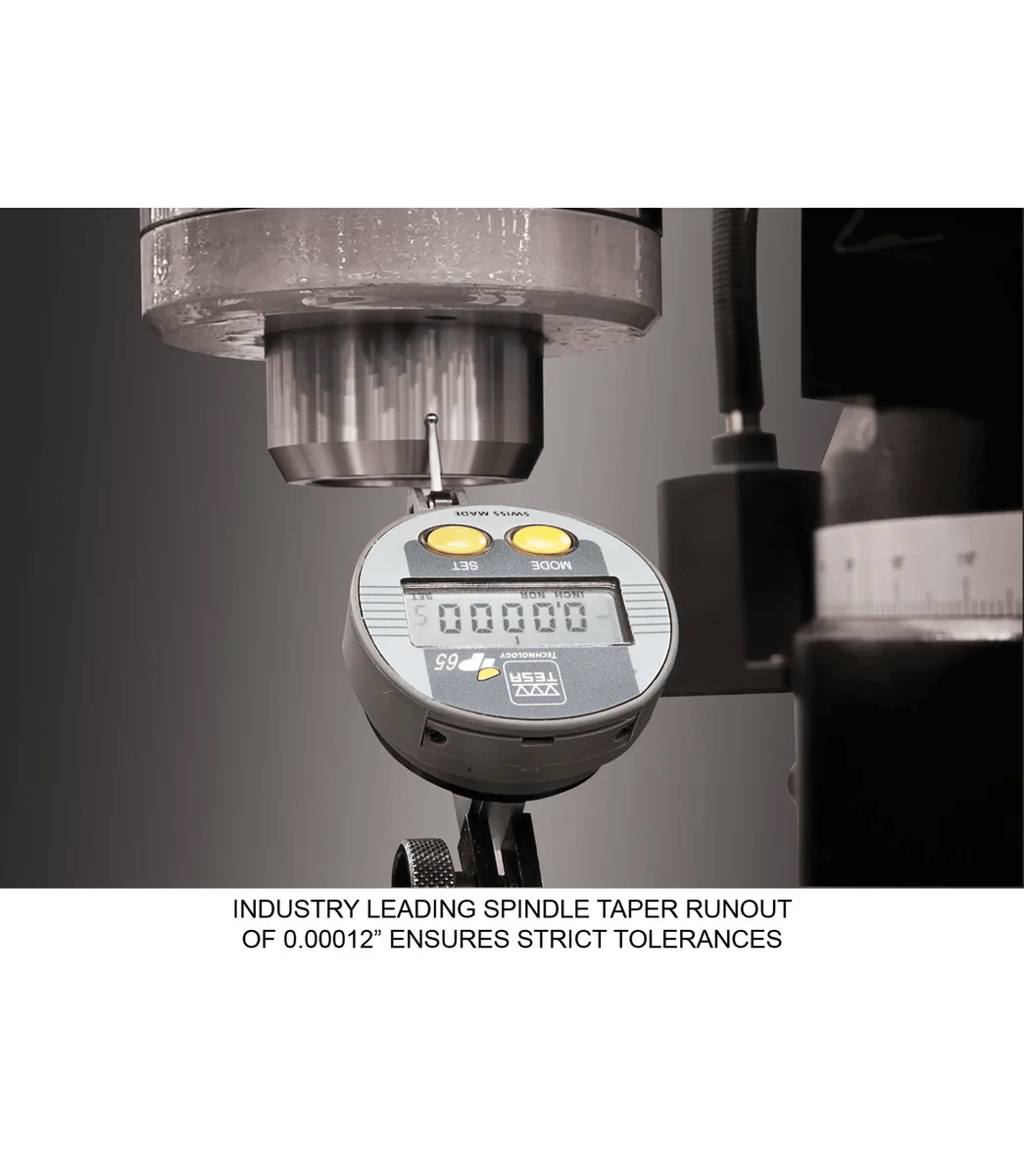

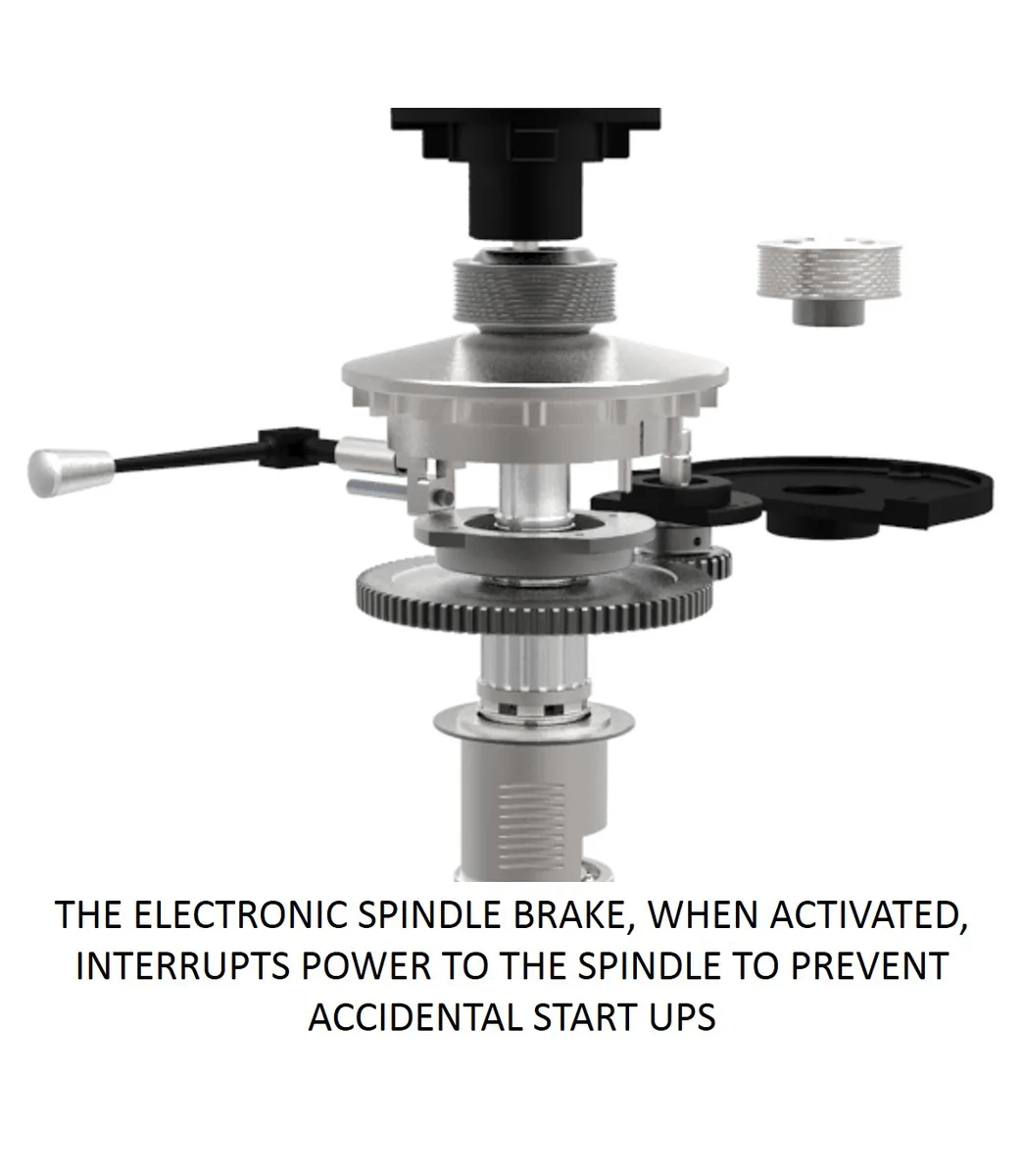

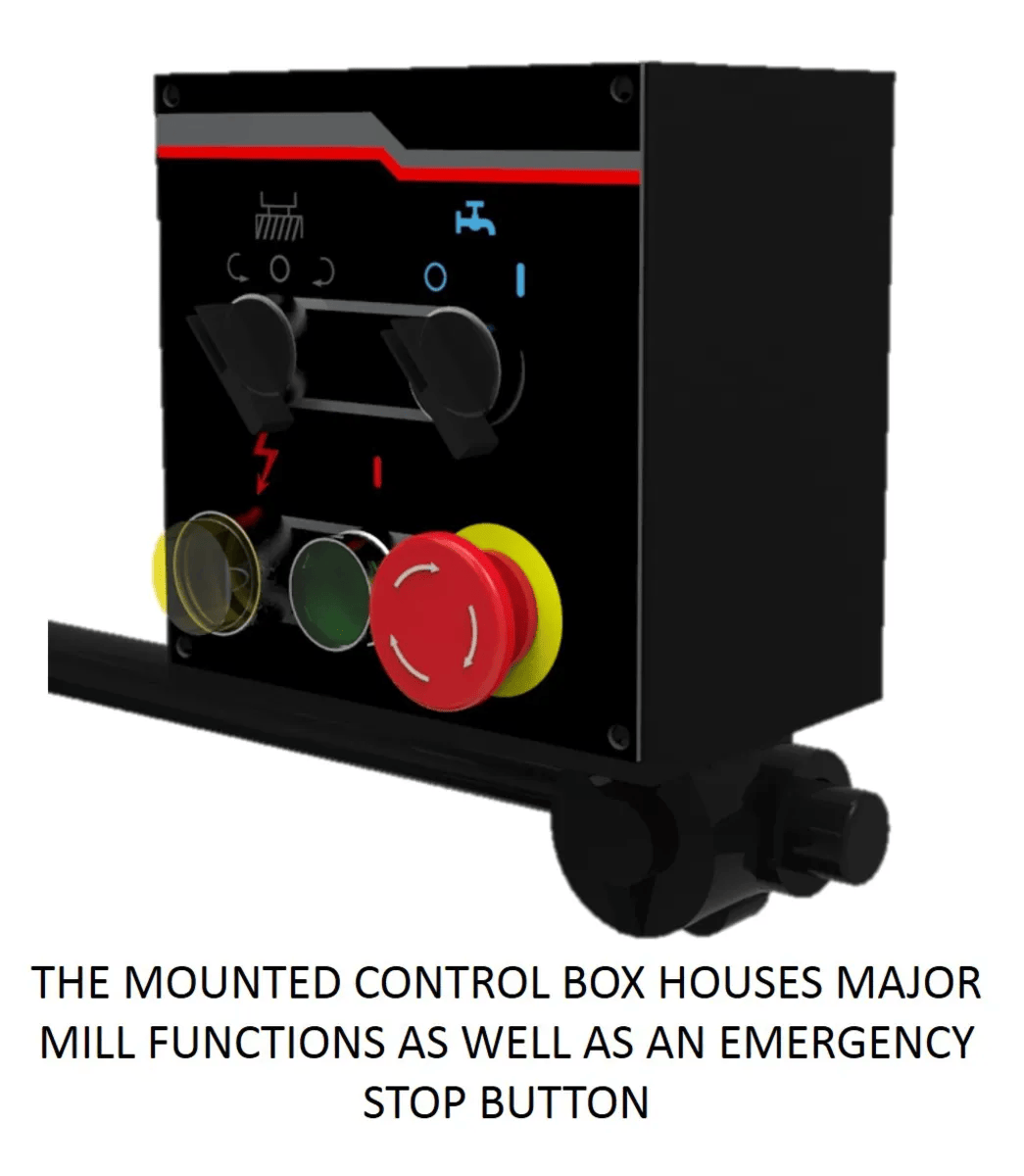

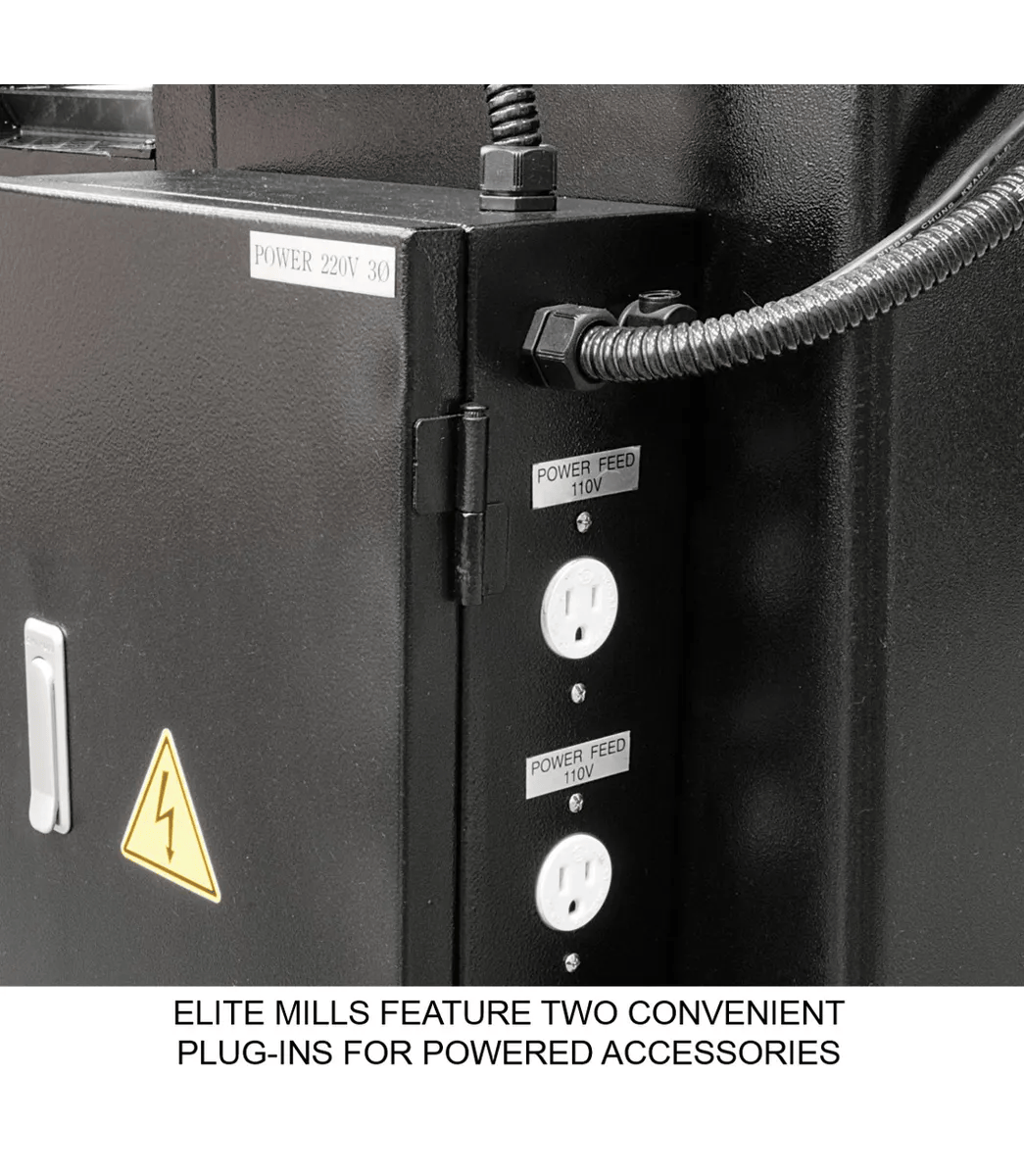

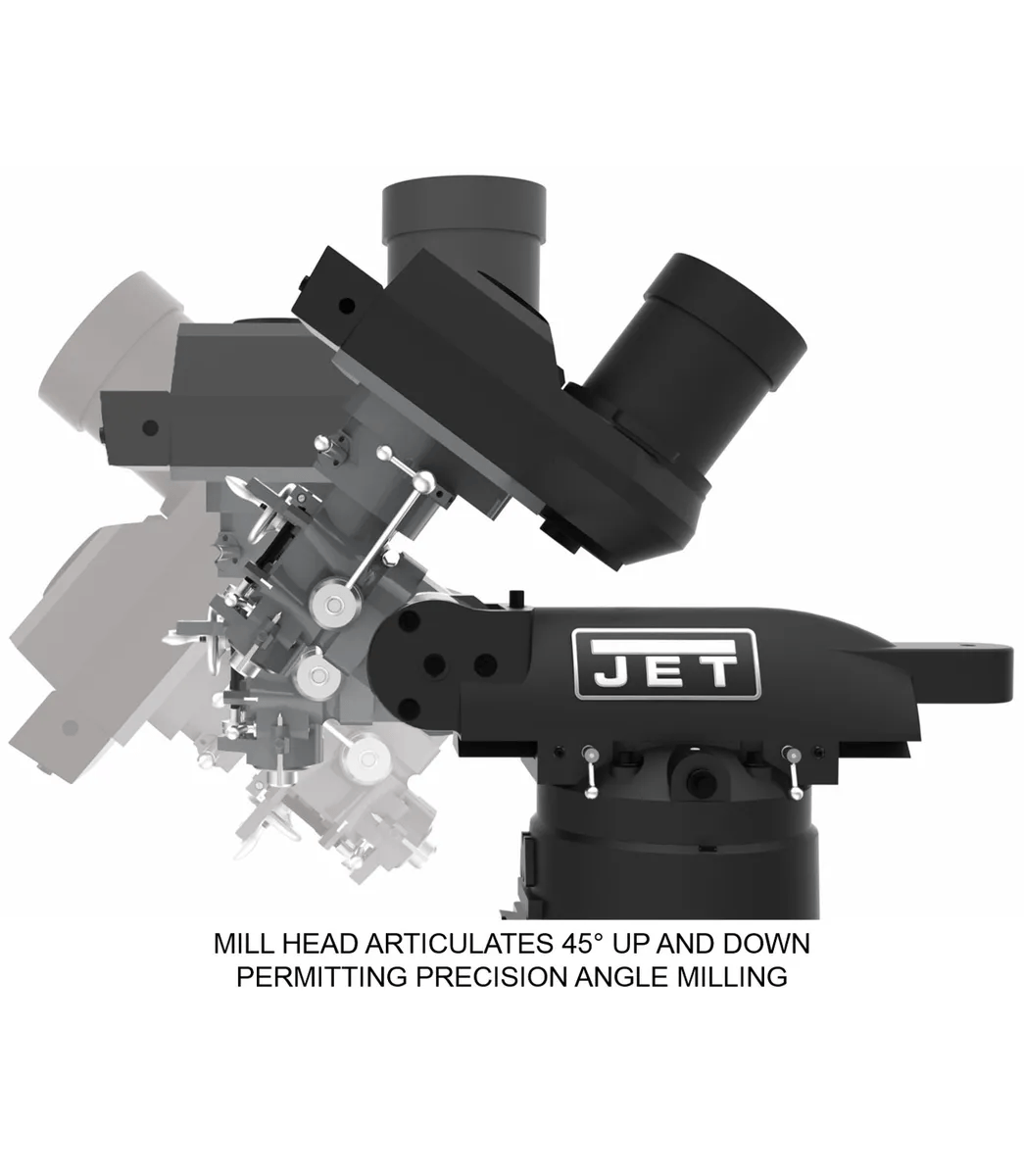

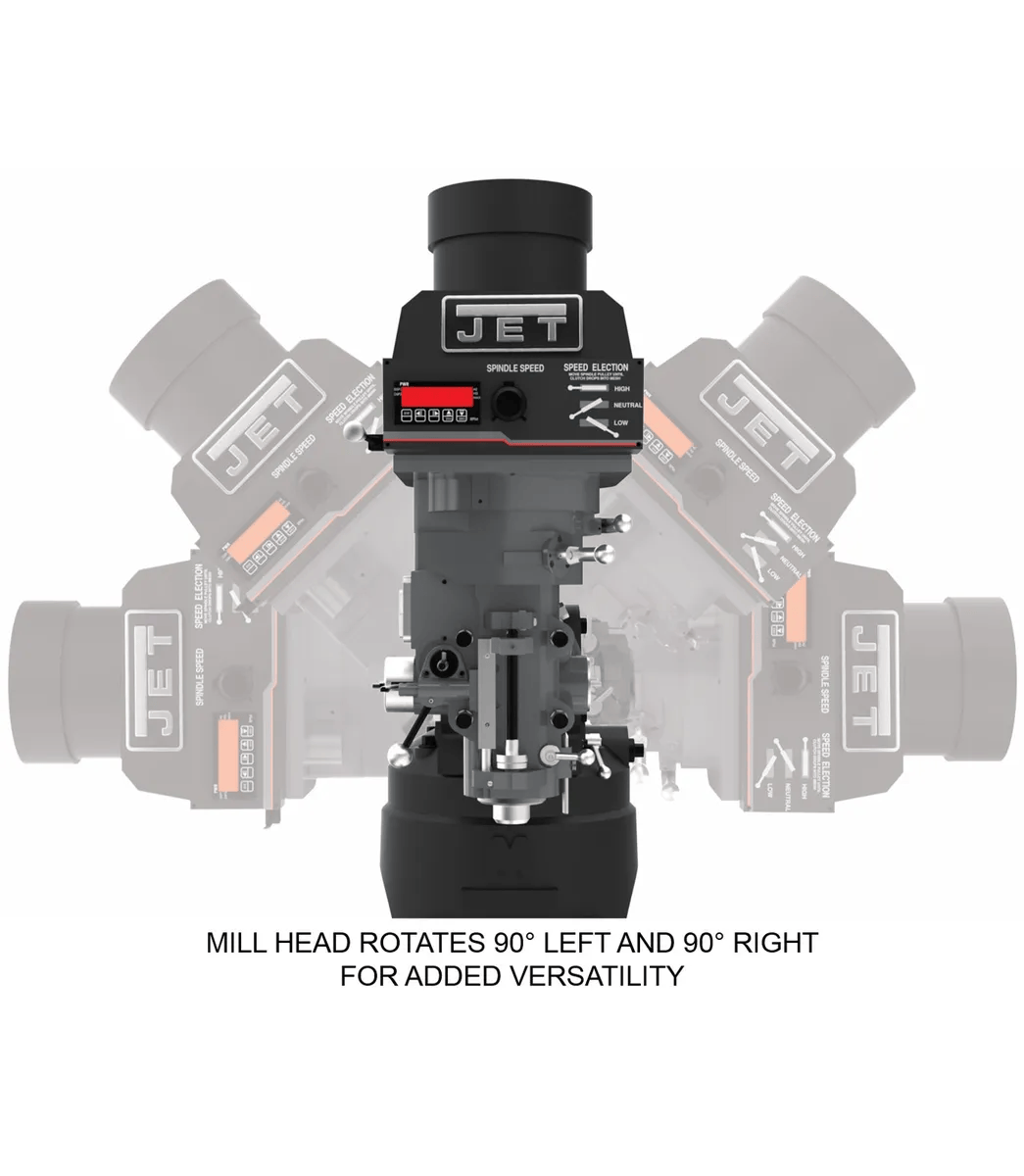

Elite offers world class mills fully loaded with features. With Certified Meehanite® castings, an electronic spindle brake that prevents accidental startups, and a hardened and ground table, this mill provides reliability and durability for milling a diverse variety of materials. Our patented vari-disc key provides up to 10 times the wear resistance than aluminum or brass keys. The fully hardened Chromium Molybdenum spindle meets strict tolerance requirements and utilizes class 7210 (P4, ABEC-7) precision angular bearings for the industry-leading spindle taper runout of 0.00012". The Y- and Z-axis ways are hand scraped to a minimum of 16 points per square inch for greater oil retention and smooth movements. Additionally, every 30 minutes, your Elite mill is automatically lubricated with a flow of 3 to 6 cc/cy. For operator safety, all Elite Mills are CSA/CUS Certified and come with a spindle safety guard.
| Stock Number | JT9-894351 |
|---|---|
| Amperage Draw @ 230V 3Ph | 18 |
| Collet Capacity | 1/8 - 7/8 |
| Distance Spindle to Column (Max.) (In.) | 21-2/5 |
| Max Distance Spindle to Table (In.) | 18-3/4 |
| Model Number | ETM-949EVS |
| Motor (HP) | 3 HP, 230V, 3 Ph |
| Number of Axis | 2 |
| Overall Dimensions (L x W x H) (In.) | 68 x 63 x 84 |
| Prop 65 | Cancer |
| Quill Diameter (In.) | 3-3/8 |
| Quill Down Feed Rates (IPR) | 0.0015 - 0.003 - 0.006 |
| Range of Spindle Speeds (RPM) | 60 - 5,000 |
| Spindle Taper (In. x TPI) | R-8 |
| Spindle Travel (In.) | 5 |

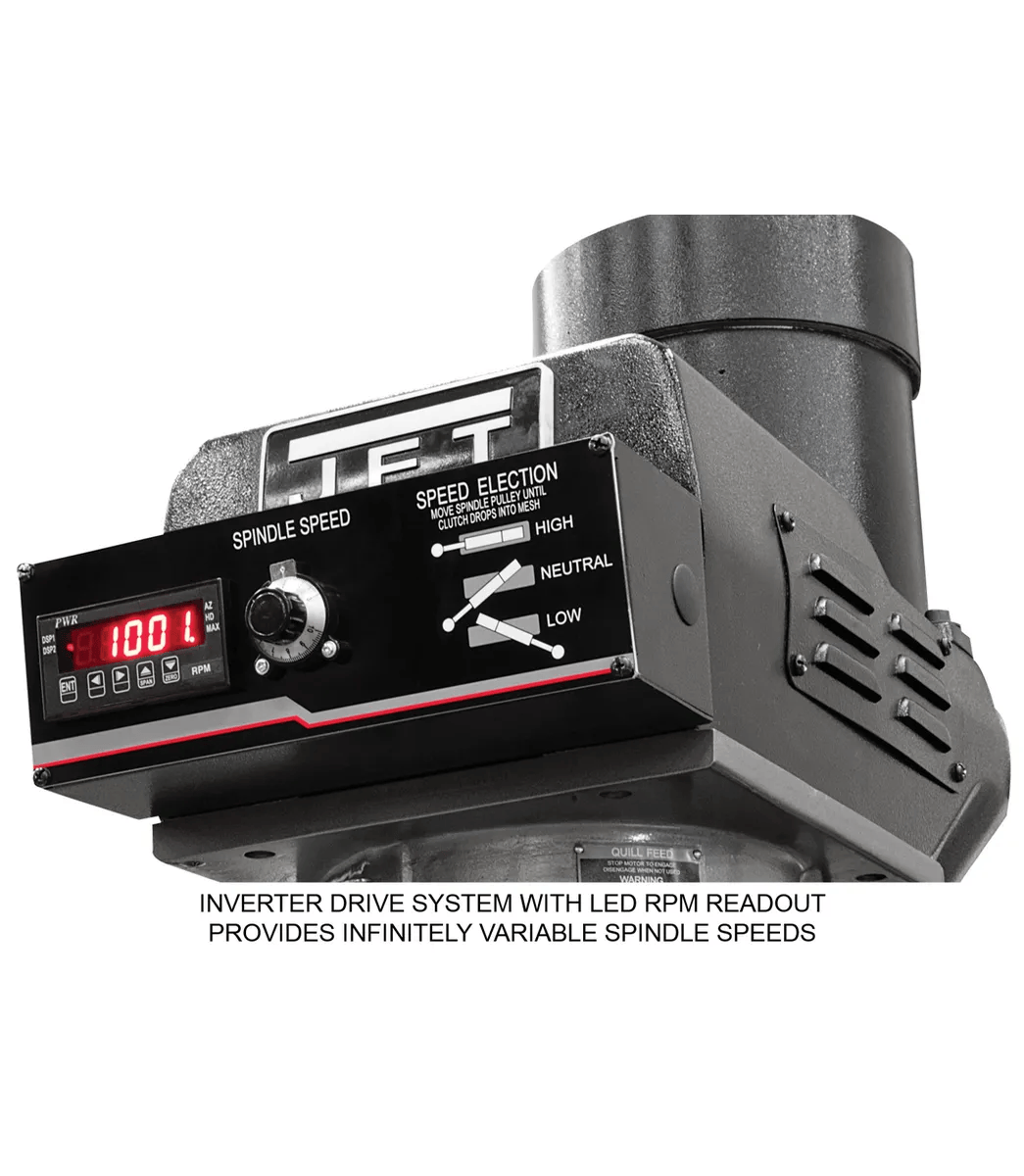

| Style (Type) | Variable Speed |
| T-Slot Centers (In.) | 2-1/2 |
| Table Cross Travel (In.) | 12 |
| Table Longitudinal Travel (In.) | 36 |
| Table Size (L x W) (In.) | 9 x 49 |
| Travel of Knee (In.) | 16 |
| Travel of Ram (In.) | 14 |
| Warranty | 3 Year Elite |
| Weight (Lbs.) | 2300 |
| Work Table Weight Capacity (Lbs.) | 550 |
| Gross Weight | 2450.0 |
| Net weight | 2200.0 |
