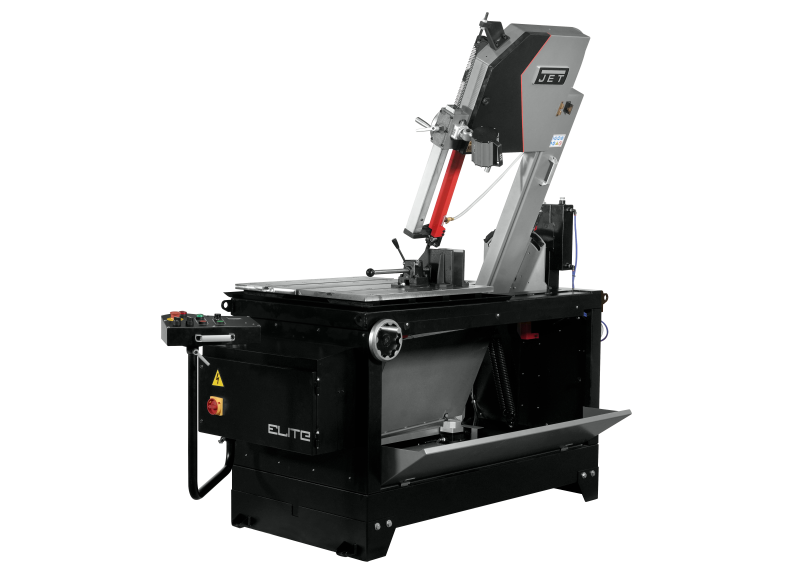

EVS Vertical Tilt Frame Bandsaw 460V, 3Ph | EVTBS16V-460
At the heart of every metalworking operation, there is a saw. Saws that are being challenged to cut a wider variety of materials in different ways than ever before. Saws that need to demonstrate new kinds of flexibility, are counted on to last longer and operate more safely at the same time.
The Elite EVTBS-16" EVS Vertical Tilt Frame Bandsaw is the answer to your shops needs.

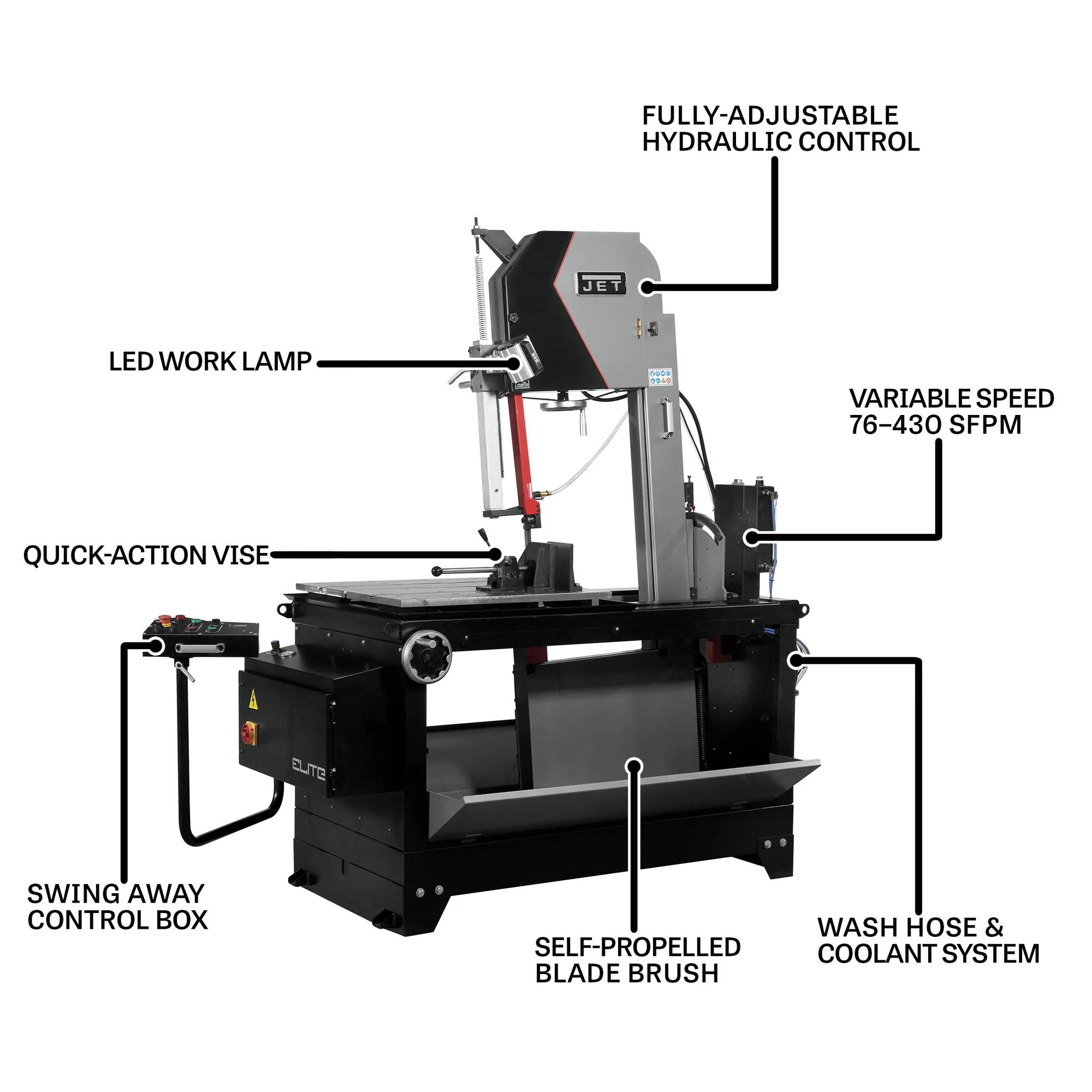

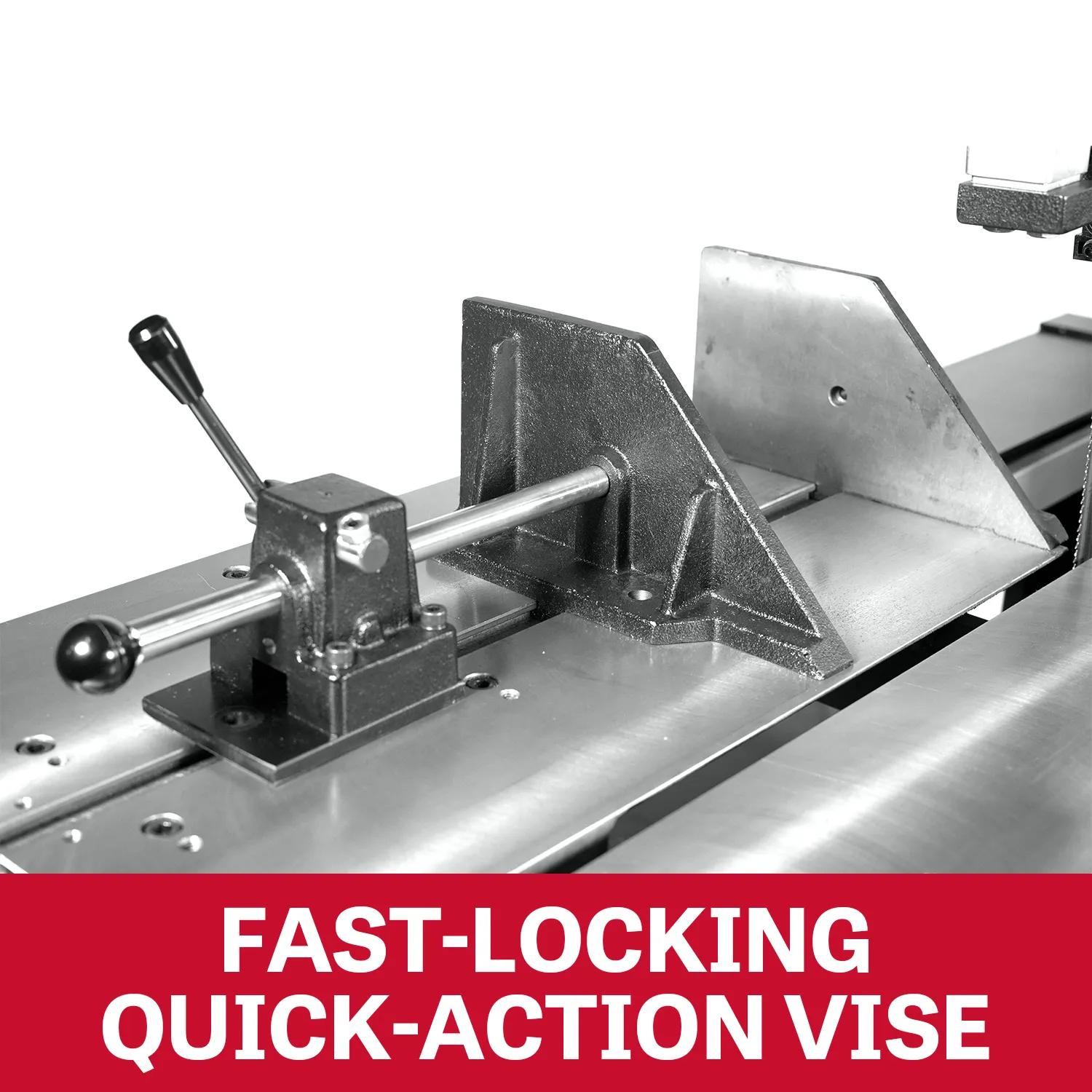

The 3 degree forward approach angle allows for increased efficiency in cutting structural materials. Inverter drive with speed range of 76-30 SFPM and a Digital Readout to always let you know what speed you are at. The quick action vise saves set up time and can be moved in either the right or left of the blade and fast locking.

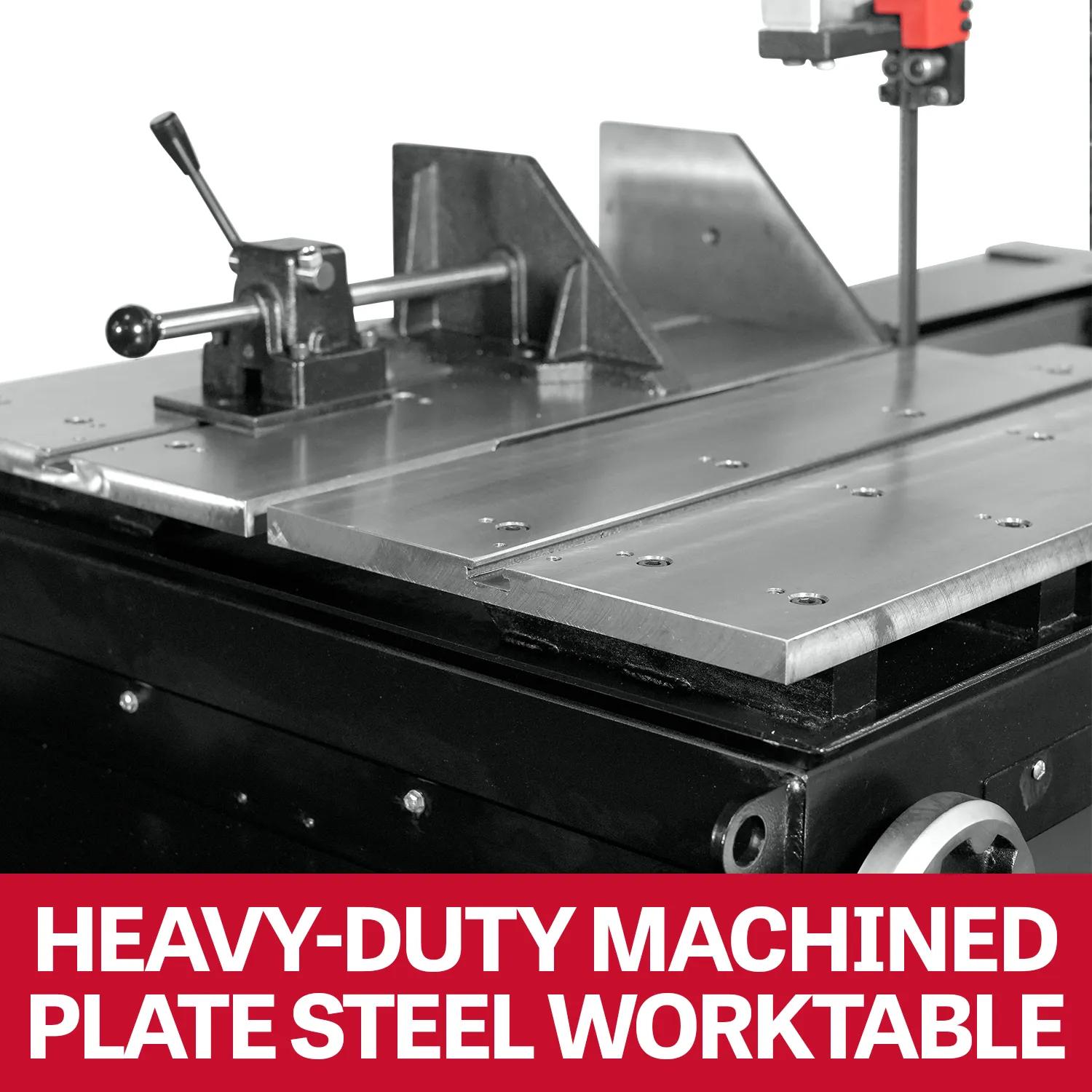

Durability is built into the steel frame construction that reduces vibrations and deflection. Safety is a must with CSA/US Certification, the blade is fully guarded and a strong internal spring allows the operator to safely move the bow and fix at any angle.
Elite saws are the most precise, more durable and safest bandsaws you could ever have in your shop.
| Stock Number | JT9-891210 |
|---|---|
| Blade Size (In.) | 1-1/16 x 0.035 x 168-1/2 |

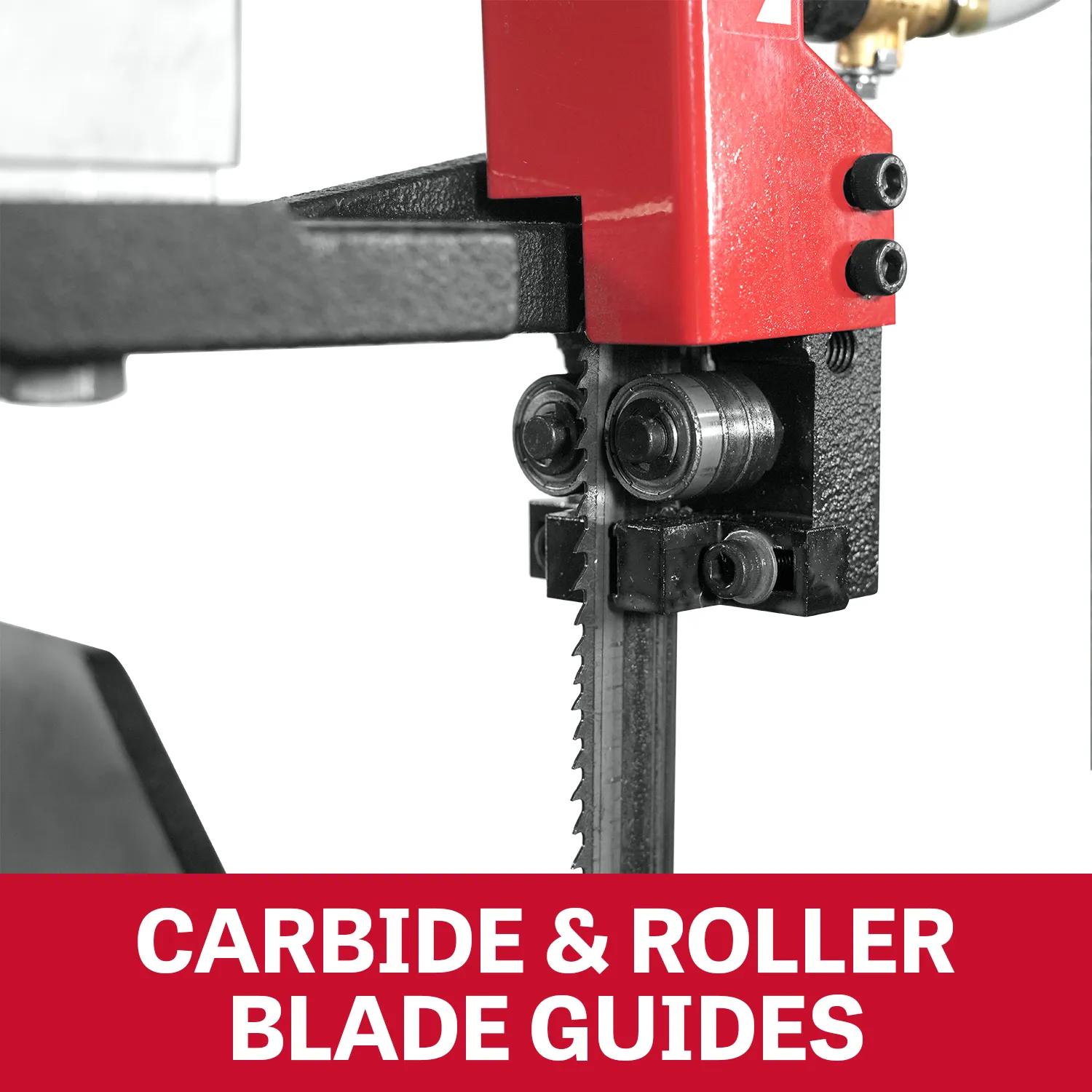

| Blade Guide | Carbide & Roller |
| Blade Length (In.) | 168-1/2 |
| Blade Speed (RPM) | 76-430 Variable |
| Blade Speeds (SFPM) | 76-430 |
| Blade Thickness | 0.035 |
| Blade Width (In.) | 0.035 |
| Coolant Pump Motor | 32W |
| Drive | EVS |
| Drive Type | Inverter Driven |
| Height (In.) | 90.5 |
| Input Power | 460V, 3Ph |
| Maximum Vise Opening (In.) | 17-1/2 |
| Miter Angle Range (Deg.) | 45 - 90 - 45 |
| Model Number | EVTBS16V-460 |
| Motor (HP) | 2 HP, 460V, 3Ph |
| Overall Dimensions (L x W x H) (In.) | 94-1/2 x49-1/8 x 90-1/2 |
| Prop 65 | Cancer |
| Rectangle at 45 Degrees (In.) | 13-1/4 x 16 |
| Round Stock Capacity (Max.) (In.) | 16 |
| Shipping Dimensions (L x W x H) (In.) | 94-1/2 x 49-1/8 x 90-1/2 |
| Speeds | Variable |
| Table Length (In.) | 29-1/2 |
| Table Size (In.) | 29-1/2 x 14-3/16 |
| Table T-Slot (In.) | 3/4 |
| Table Width (In.) | 14-3/16 |
| Throat Depth (In.) | 16 |
| Warranty | 3 Year |
| Weight (Lbs.) | 1408 |
| Work Height (In.) | 39-3/8 |
| Gross Weight | 1510.0 |
| Net weight | 1408.0 |
| Speed Control | Electronic Variable Speed |
| Reservoir (Gal.) | 60 Litter |
| Blade Wheel Diameter (In.) | 18.11 |
| Round Capacity at 45° Right (in.) | 13-1/4 |
| Rectangle Capacity at 45° Left (in.) (HxW) | 11-1/2 x 11-1/2 |
| Rectangle Capacity at 45° Right (in.)(HxW) | 13-1/4 x 13-1/4 |
| Rectangle Capacity at 90° (in.) (HxW) | 20 x 16 |
| Round Capacity at 45° Left (in.) | 11-1/2 |
| Round Capacity at 90°(in.) | 16 |
| Square Capacity at 45° Left (in.) (H x W) | 11-1/2 x 11-1/2 |
| Square Capacity at 45° Right (in.) (HxW) | 13-1/4 x 13-1/4 |
| Square Capacity at 90° (in.) (HxW) | 16 x 16 |
