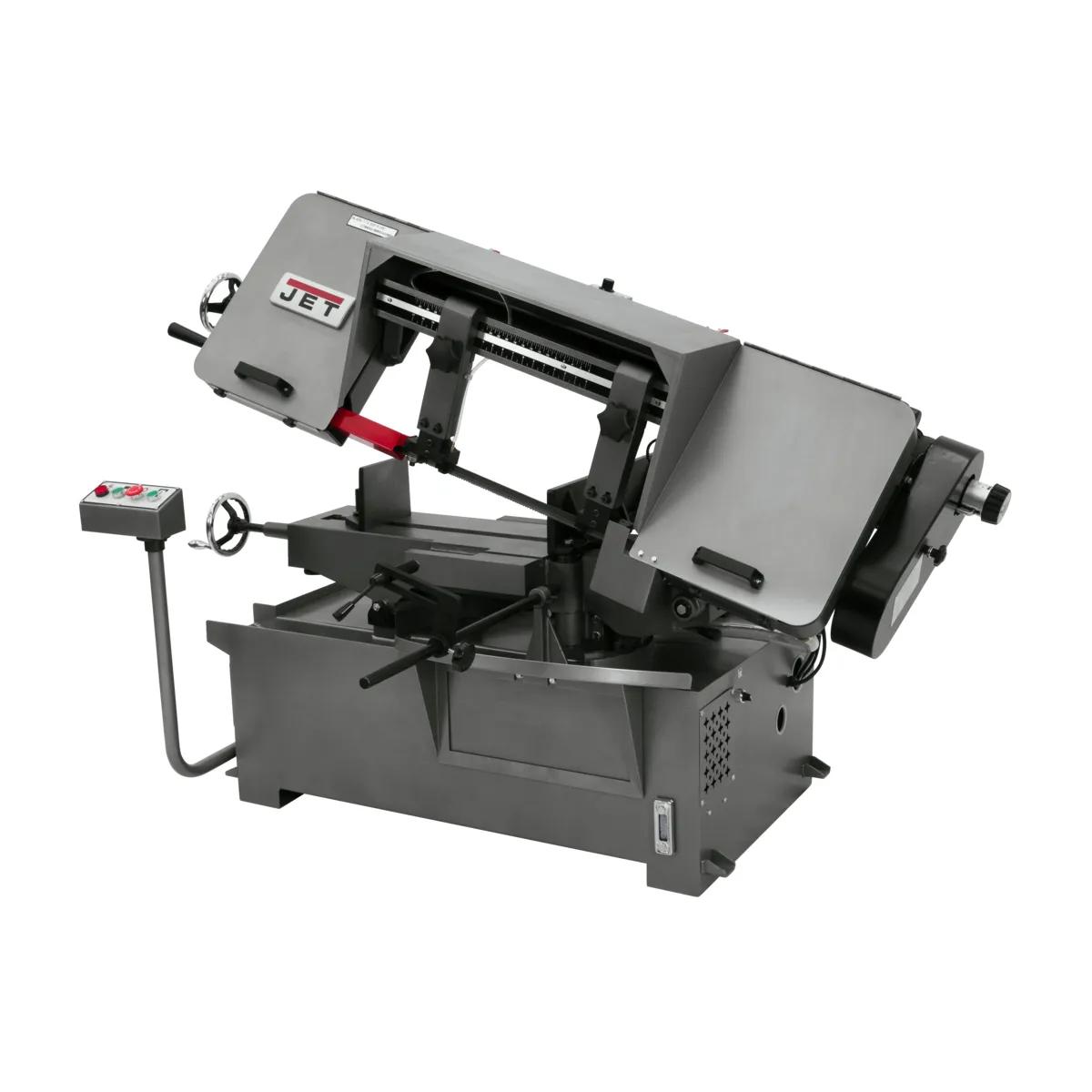

J-7040M, 10" x 16" Horizontal Mitering Bandsaw
Stock Number:
JT9-414475
J-7040M, 10" x 16" Horizontal Mitering Bandsaw 230/460 3Ph
Manual (1)
JET Mitering Horizontal bandsaws unique design features a swiveling head while the base remains stationary. This allows the stock to remain same position while making accurate crosscuts and miters. Backed by the industry leading two year warranty, JET Mitering Bandsaws are built to last and deliver precision results.

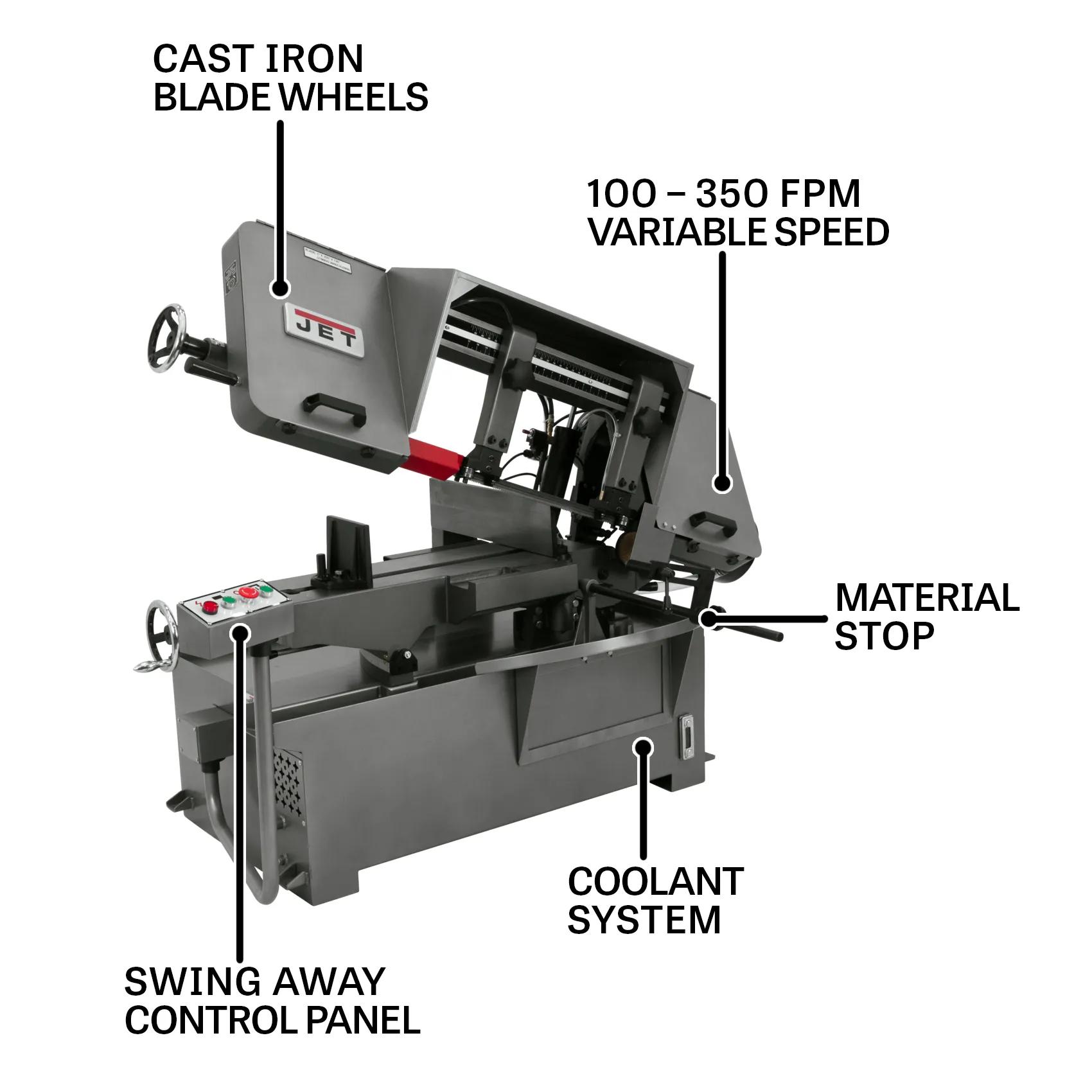

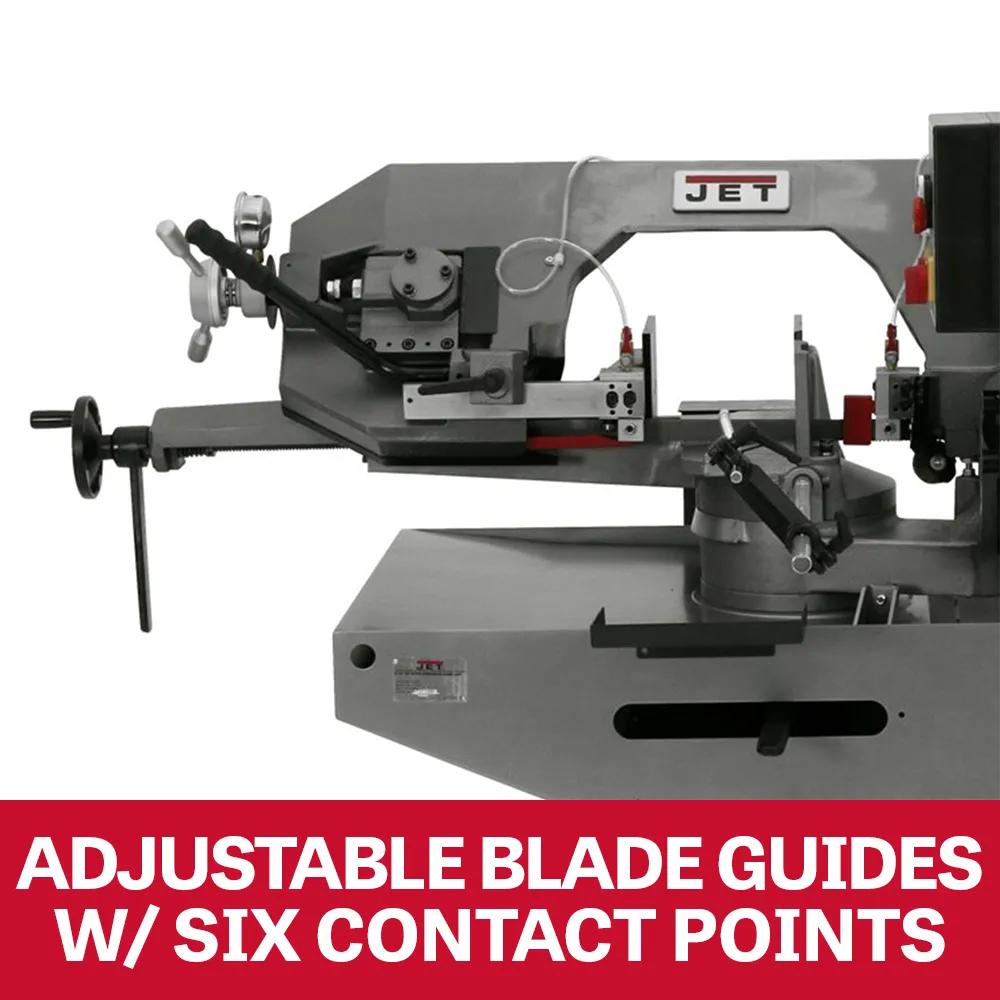

Adjustable blade guide with six contact point system that utilizes cam follower bearings mounted on eccentric shafts on both sides of the blades
Adjustable Material Stop
Cast iron blade wheels
Downfeed system is controlled by a dual system of counterbalance springs working with a hydraulic cylinder
Heavy-duty transmission utilizes hardened and ground gears operating in an oil bath

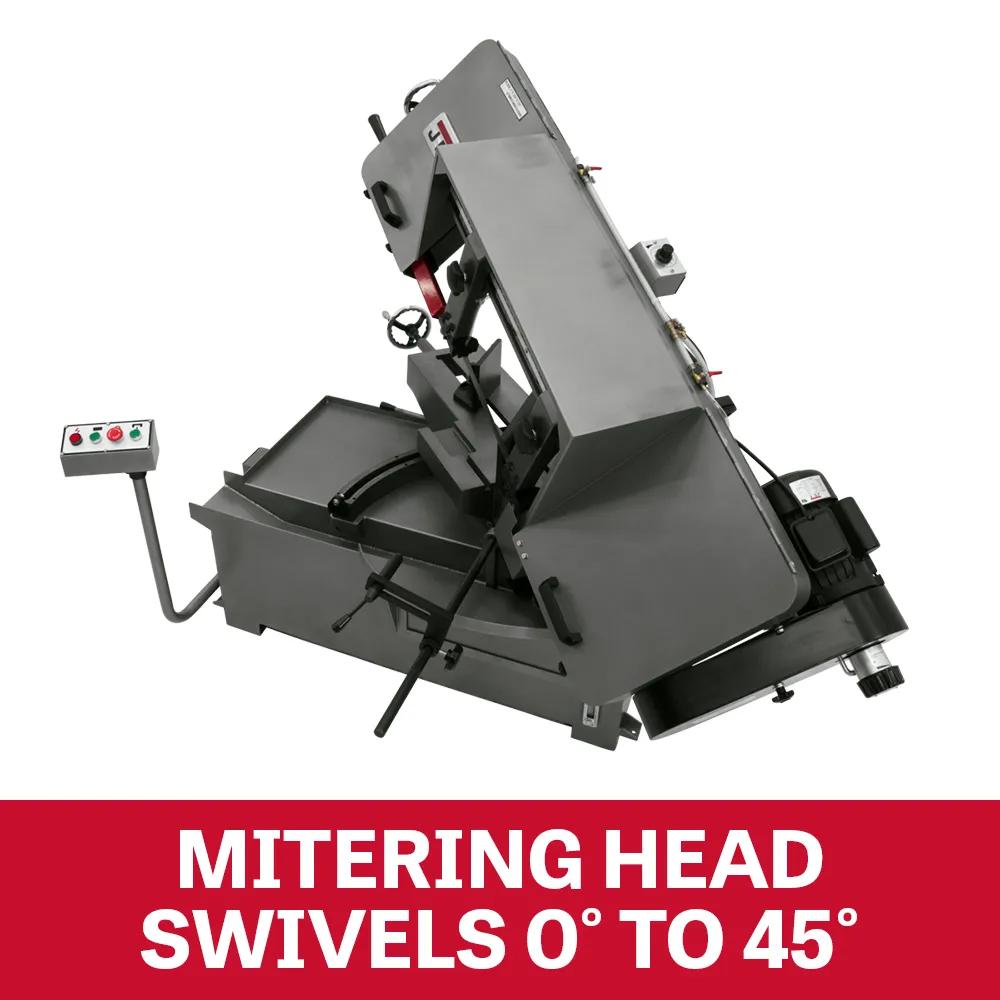

Mitering head swivels to cut any angle 0° - 45° while the work piece remains secured
Swing away control panel houses major saw controls
Blade rides on two load bearings mounted on a pivot shaft with the side bearings and carbide pads assisting in distributing the load equally
Variable speed drive system
| Stock Number | JT9-414475 |
|---|---|
| Blade Wheel Diameter (In.) | 14 |
| Drive | Variable Speed |
| Model Number | J-7040M |
| Motor (HP) | 2 HP, 230/460, 3Ph |
| Overall Dimensions (L x W x H) (In.) | 76 x 30 x 48 |
| Prop 65 | Cancer and Reproductive Harm |
| Rectangle at 45 Degrees (In.) | 8-1/2 x 9 |
| Rectangle at 90 Degrees (In.) | 10 x 14 and 2 x 16 |
| Round at 45 Degrees (In.) | 8-1/2 |
| Round at 90 Degrees (In.) | 10 |
| Vise Swivels (Deg.) | 45° |
| Warranty | 2 Year |
| Weight (Lbs.) | 924 |
| Gross Weight | 1200.0 |
| Net weight | 1125.0 |
