JAT-483, 4", 1 HP Extended Cut-Off Tool
Stock Number:
JT9-505483
$367.99
JET JAT-483, 4-Inch Pneumatic Extended Cut-Off Tool (505483)
Manual
The JAT-483 4'' Extended Cut-Off Tool will exceed your expectations for power, comfort, reach, and durability. With its 1hp motor driving this tool and its extended shaft you won't have to worry about reaching the work or stalling when you get there.

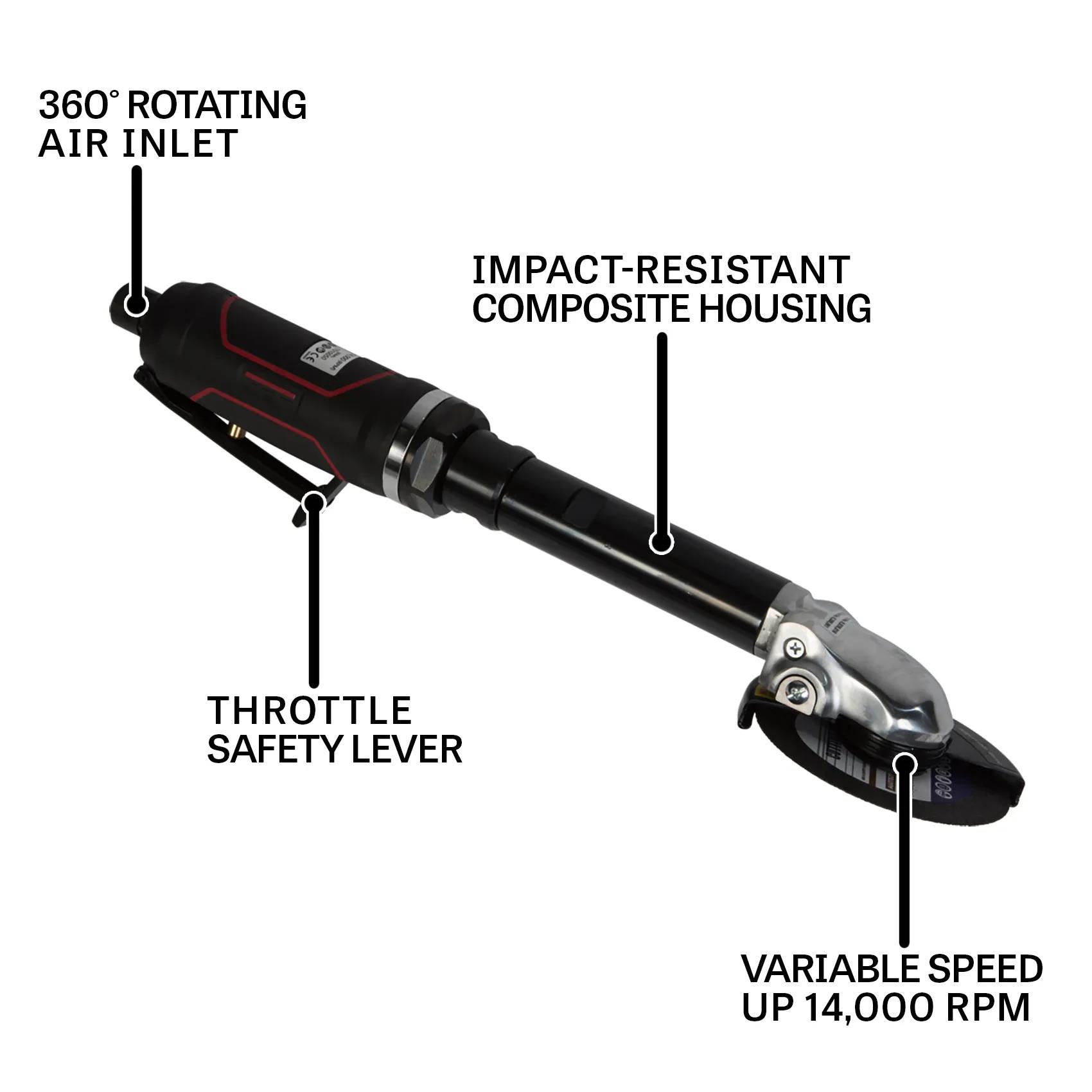

360° Rotating air inlet keeps the air hose tangle free for added safety

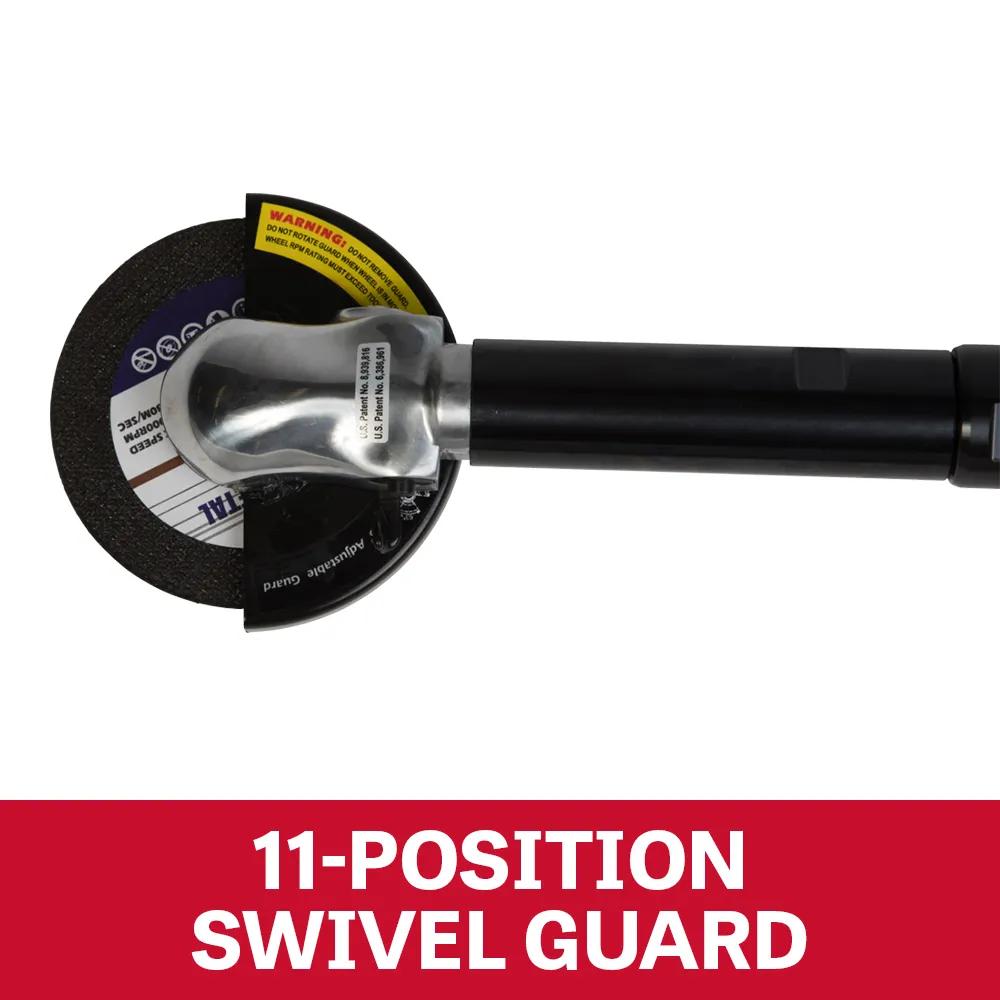

Easy-to-use spindle lock system holds the cutting wheel when choosing one of 11 adjustable positions of the swivel guard
Impact resistant composite housings reduce tool weight and user fatigue.
Precision spiral bevel gears transfer torque and speed to spindle for added durability
Right-angle head design for reaching tight or angled grinding jobs
Tapered angle gear housing allows greater visibility of targeted work area
Upgraded Full, 1 HP motors provide the heavy-duty power needed for harsh industrial environments
Variable-speed throttle ramps up to maximum RPM
Variable-speed throttle ramps up to maximum RPM, while the safety lock prevents accidental engagement
| Stock Number | JT9-505483 |
|---|---|
| Air Consumption (CFM) | 5.3000 |
| Air Hose (ID/In.) | 3/8 |
| Air Inlet (NPT) | 1/4 |
| Air Pressure (PSI) | 90 |
| Body Type | Full, Extended |
| Free Speed (RPM) | 14000.0000 |
| Horse Power (HP) | 1.0000 |
| Min. Air Hose (ID) | 3/8 |
| Model Number | JAT-483 |
| Overall Length (In.) | 14.6 |
| Prop 65 | Cancer and Reproductive Harm |
| Sound Power (db) (A) | 96.5000 |
| Sound Pressure (db) (A) | 85.5000 |
| Spindle Thread (In./TPI) | 3/8"-24 UNF |
| Vibration Value (m/s²) | 3.8000 |
| Warranty | 2 Year |
| Weight (Lbs.) | 4.1 |
| Wheel Size (In.) | 4 |
| Gross Weight | 4.2 |
| Net weight | 3.7 |
