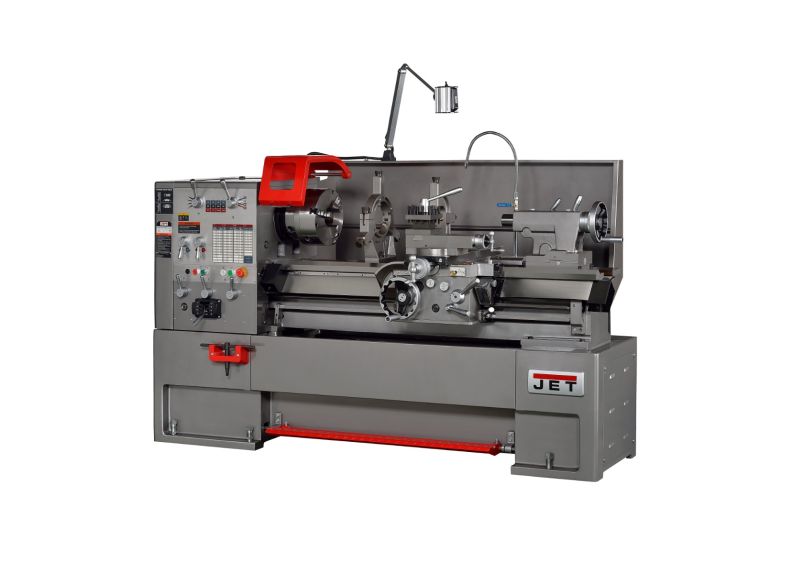

18" x 60" Heavy-Duty Large Spindle Bore Gear Head Lathe(GH-1860ZX)
The JET GH-1860ZX is built for shops that demand greater swing capacity, longer turning length, and uncompromising rigidity for heavy industrial applications. With an expanded 18" swing and 60" between centers, this lathe provides the clearance and stability required for large-diameter components, heavy shafts, industrial rollers, and high-mass workpieces.
Powered by a 10HP, 3-phase motor, the GH-1860ZX delivers consistent torque for aggressive roughing cuts and dependable performance under sustained load. The 3.15" spindle bore allows larger material to pass directly through the headstock, reducing secondary operations and improving shop throughput.
The one-piece cast iron base is engineered to dampen vibration and resist flex during heavy cuts, supporting improved surface finish, dimensional accuracy, and repeatable results in demanding environments. Twelve spindle speeds ranging from 26–1500 RPM provide the flexibility to move from heavy stock removal to precision threading and finishing operations.
Operator protection is standard — not optional. The GH-1860ZX includes:
- Electronic chuck key holder
- Foot brake for rapid stopping
- Chuck guard at point of operation
- Full-length splash guard
- Lead screw cover
- UL 987 Certification
Each machine undergoes a documented pre-shipment inspection process to verify accuracy, safety systems, and operational readiness before arriving at your facility.
Backed by an industry-leading 2-year parts and labor warranty, the GH-1860ZX is ideal for fabrication facilities, oil and gas suppliers, energy contractors, heavy repair operations, and industrial production shops that require durability, safety, and long-term reliability.

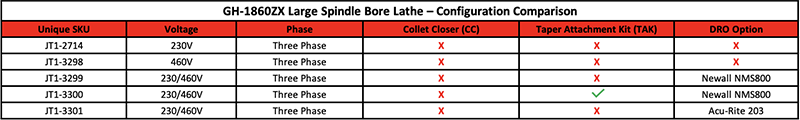

OPTIONAL ACCESSORIES
- Collet Closer (Optional)
- Taper Attachment (Optional)
- 2-Axis DRO (Optional)
| Stock Number | JT1-2714 |
|---|---|
| Carriage Travel (In.) | 35 |
| Compound Slide Travel (In.) | 2-11/16 |
| Drive | Geared Head |
| Length of Gap (In.) | 8 |
| Max Tool Size (In.) | 5/8 x 5/8 |
| Model Number | GH-1340 |
| Motor (HP) | 2 HP, 230V, 1Ph |
| Number of Inch Threads | 38.0000 |
| Number of Longitudinal and Cross Feed Rates | 40 |
| Number of Metric Threads | 23.0000 |
| Number of Spindle Speeds | 8 |
| Overall Dimensions (L x W x H) (In.) | 79 x 28-1/2 x 30 |
| Prop 65 | Cancer and Reproductive Harm |
| Range of Cross Feeds (IPR) | .0006 - .0130 |
| Range of Inch Threads (TPI) | 3-1/2 - 80 |
| Range of Longitudinal Feeds (IPR) | .0018 - .0374 |
| Range of Metric Threads | .45 - 10 |
| Range of Spindle Speeds (RPM) | 70 - 2,000 |
| Size | 13 x 40 |
| Spindle Bore (In.) | 1-3/8 |
| Spindle Mount | D1-4 |
| Spindle Taper with Sleeve | MT-5 (MT-3) |
| Steady Rest Capacity (In.) | 2-3/4 |
| Style (Type) | Bench - Geared Head |
| Swing Over Bed (In.) | 13 |
| Swing Over Cross Slide (In.) | 7-25/32 |
| Swing Through Gap (In.) | 18-3/4 |
| Tailstock Spindle Travel (In.) | 3-3/4 |
| Taper in Tailstock Spindle | MT-3 |
| Warranty | 2 Year |
| Width of Bed (In.) | 7-3/8 |
| Gross Weight | 1236.0 |
| Net weight | 1154.0 |
