18" x 80" Long-Bed Large Spindle Bore Gear Head Lathe(GH-1880ZX)
The JET GH-1880ZX is engineered for heavy fabrication environments where extended bed length and uncompromising rigidity are critical. With 80 inches between centers, this long-bed lathe expands your ability to machine structural shafts, hydraulic cylinders, rollers, threaded rods, and large industrial components in a single setup.
The 18" swing provides generous diameter clearance, while the 3.15" spindle bore allows larger material to pass directly through the headstock — reducing cutoffs, minimizing re-chucking, and improving workflow efficiency on long stock.
Powered by a 10HP, 3-phase motor, the GH-1880ZX delivers consistent torque for aggressive roughing passes and sustained heavy cuts. The one-piece cast iron base absorbs vibration and resists deflection under load, supporting better surface finish and dimensional consistency across long workpieces.
Twelve spindle speeds (26–1500 RPM) provide flexibility for deep roughing, precision threading, boring, grooving, and finish turning applications. The extended bed and increased swing over gap (25.6") offer additional versatility when working with oversized components.
Designed for real-world fabrication shops, the GH-1880ZX includes:
- Electronic chuck key holder
- Foot brake for rapid spindle stopping
- Chuck guard at the point of operation
- Full-length splash guard
- Lead screw cover
- Integrated coolant system
- UL 987 Certification
Every machine is inspected prior to shipment and backed by a 2-year parts and labor warranty, supporting predictable ownership and long-term reliability.
The GH-1880ZX is ideal for fabrication facilities, oil & gas suppliers, heavy repair operations, energy contractors, steel processing shops, and industrial manufacturers that require long-part turning capability with industrial-grade durability.

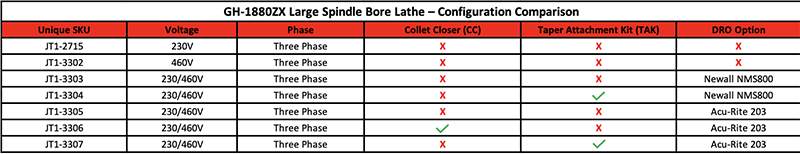

OPTIONAL ACCESSORIES
- Collet Closer (Optional)
- Taper Attachment (Optional)
- 2-Axis DRO (Optional)
| Stock Number | JT1-2715 |
|---|---|
| Carriage Travel (In.) | 35 |
| Compound Slide Travel (In.) | 5.9 |
| Cross Slide Travel (In.) | 11.8 |
| Diametral Pitch Threads Number | 21 |
| Distance Between Centers (In.) | 80 |
| Drive | Geared Head |
| Length of Gap (In.) | 7-2/3 |
| Max Tool Size (In.) | 5/8 x 5/8 |
| Model Number | GH-1880ZX |
| Modular Pitch Threads Number | 18 |
| Modular Pitch Threads Range | 0.3 - 3.5 |
| Motor Phase | 3 |
| Motor Power (HP) | 10 |
| Motor Voltage (V.) | 230 |
| Number of Inch Threads | 45 |
| Number of Longitudinal and Cross Feed Rates | 40 |
| Number of Metric Threads | 39 |
| Number of Spindle Speeds | 12 |
| Prop 65 | Cancer and Reproductive Harm |
| Range of Cross Feeds (IPR) | 0.00075" - 0.02" |
| Range of Inch Threads (TPI) | 2-72 |
| Range of Longitudinal Feeds (IPR) | 0.0015" - 0.04" |
| Range of Metric Threads | 0.2 - 14mm |
| Range of Spindle Speeds (RPM) | 26-1500 RPM |
| Size | 18 x 80 |
| Spindle Bore (In.) | 3-1/8 |
| Spindle Mount | D1-8 |
| Spindle Taper | MT-7 (with sleeve MT-5) |
| Spindle Taper with Sleeve | MT-5 |
| Steady Rest Capacity (In.) | 3-3/4 |
| Style (Type) | Engine - Large Spindle Bore |
| Swing Over Bed (In.) | 18" |
| Swing Over Cross Slide (In.) | 12" |
| Swing Through Gap (In.) | 25.6" |
| Tailstock Spindle Travel (In.) | 6" |
| Taper in Tailstock Spindle | MT-4 |
| Warranty | 2 Year |
| Width of Bed (In.) | 12-1/4 |
| Gross Weight | 5842 |
| Net weight | 5181 |
