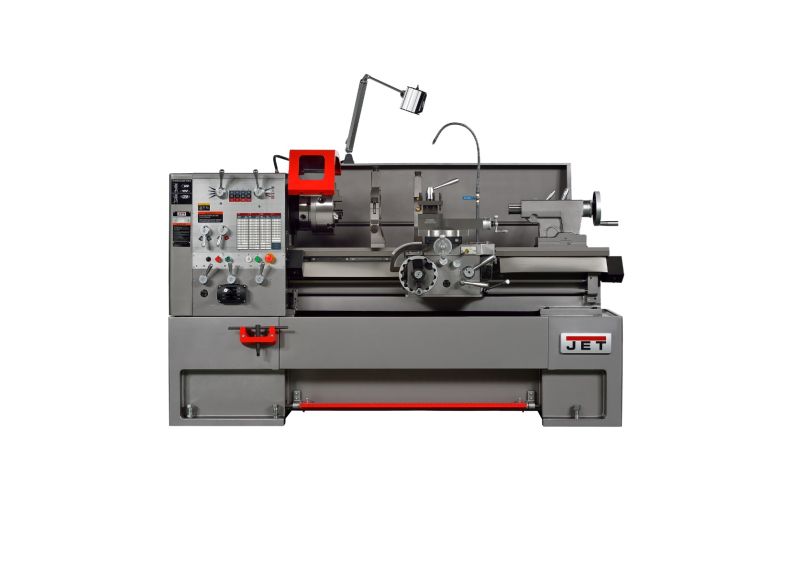

21" x 80" Large Spindle Bore Gear Head Lathe(GH-2180ZX)
The JET GH-2180ZX represents the maximum-capacity offering in the ZX Large Spindle Bore lineup — engineered for shops that demand the largest swing, extended bed length, and uncompromising industrial strength.
With an expansive 21" swing and 80" between centers, the GH-2180ZX is built to machine large-diameter shafts, rollers, hydraulic cylinders, structural components, and oversized industrial parts with confidence and stability. This machine is designed for high-mass workpieces and fabrication environments where rigidity and power are non-negotiable.
The 10HP, 3-phase motor delivers consistent torque for heavy roughing passes and sustained cutting operations. The 3.15" spindle bore allows larger stock to pass directly through the headstock, reducing re-chucking and secondary operations on long material.
The one-piece cast iron base provides the mass required to dampen vibration and maintain alignment across the full 80" bed length. Increased swing over gap capacity (28.7") expands clearance for oversized components and specialty workholding setups, making the GH-2180ZX the most capable ZX model for large-part turning.
Twelve spindle speeds (26–1500 RPM) provide flexibility for heavy material removal, precision threading, boring, grooving, and finishing across a wide range of materials.
Standard industrial safety features include:
- Electronic chuck key holder
- Foot brake for rapid stopping
- Chuck guard at point of operation
- Full-length splash guard
- Lead screw cover
- Integrated coolant system
- UL 987 Certification
Each machine is inspected prior to shipment and backed by a 2-year parts and labor warranty, supporting predictable ownership costs and long-term reliability.
The GH-2180ZX is ideal for heavy fabrication shops, oil and gas suppliers, industrial OEMs, energy contractors, large repair facilities, and operations that routinely machine oversized cylindrical components.

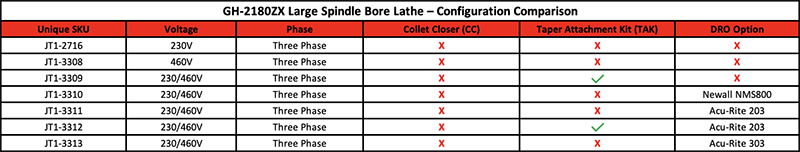

OPTIONAL ACCESSORIES
- Collet Closer (Optional)
- Taper Attachment (Optional)
- 2-Axis DRO (Optional)
| Stock Number | JT1-2716 |
|---|---|
| Carriage Travel (In.) | 35 |
| Compound Slide Travel (In.) | 5.9 |
| Cross Slide Travel (In.) | 11.8 |
| Diametral Pitch Threads Number | 21 |
| Distance Between Centers (In.) | 80 |
| Drive | Geared Head |
| Length of Gap (In.) | 7-2/3 |
| Max Tool Size (In.) | 5/8 x 5/8 |
| Model Number | GH-2180ZX |
| Modular Pitch Threads Number | 18 |
| Modular Pitch Threads Range | 0.3 - 3.5 |
| Motor Phase | 3 |
| Motor Power (HP) | 10 |
| Motor Voltage (V.) | 230 |
| Number of Inch Threads | 45 |
| Number of Longitudinal and Cross Feed Rates | 40 |
| Number of Metric Threads | 39 |
| Number of Spindle Speeds | 12 |
| Prop 65 | Cancer and Reproductive Harm |
| Range of Cross Feeds (IPR) | 0.00075" - 0.02" |
| Range of Inch Threads (TPI) | 2-72 |
| Range of Longitudinal Feeds (IPR) | 0.0015" - 0.04" |
| Range of Metric Threads | 0.2 - 14mm |
| Range of Spindle Speeds (RPM) | 26-1500 RPM |
| Size | 21 x 80 |
| Spindle Bore (In.) | 3-1/8 |
| Spindle Mount | D1-8 |
| Spindle Taper | MT-7 (with sleeve MT-5) |
| Spindle Taper with Sleeve | MT-5 |
| Steady Rest Capacity (In.) | 3-1/2 |
| Style (Type) | Engine - Large Spindle Bore |
| Swing Over Bed (In.) | 21 |
| Swing Over Cross Slide (In.) | 15.2" |
| Swing Through Gap (In.) | 25.6" |
| Tailstock Spindle Travel (In.) | 6" |
| Taper in Tailstock Spindle | MT-4 |
| Warranty | 2 Year |
| Width of Bed (In.) | 12.5" |
| Gross Weight | 5952 |
| Net weight | 5291 |
