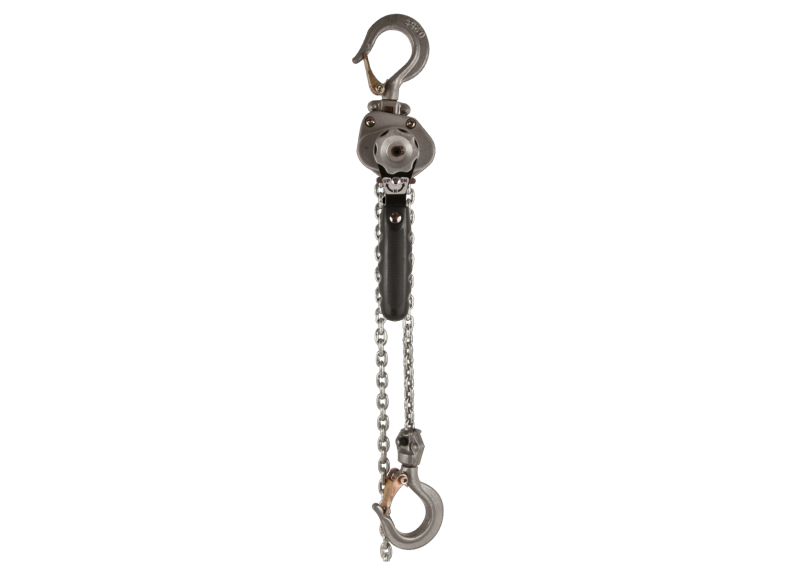

JLH-50-15, 1/2-Ton Compact Lever Hoist With 15' Lift
JET JLH-50-15, 1/2-Ton Compact Lever Hoist, 15' Lift (181515)
Manual
The JET® JLH Compact Lever Hoist integrates safety, durability and innovation enabling it to operate in the most demanding industrial environments. The lightweight design is achieved with a durable aluminum alloy housing that reduces weight for ease of transport. The dual pawl Weston style brake system splits the load to opposite sides of the ratchet gear for greater load security. Mechanical advantage is gained by the JET® exclusive addition of the five gear drive train requiring less force to lift or secure a load. Included is a nylon carrying case for convenient transportation, reducing trips to the tool room and prevents any unnecessary damage to the hoist. The JET® JLH Compact Lever Hoist is available in ¼ ton and ½ ton capacities with standard lifts of 5, 10 and 15 feet (custom lifts available). Whether it’s inverted, vertical, horizontal, or any other load angle, the JET® JLH Compact Lever Hoist is the solution for your heavy-duty industrial needs. Complies with OSHA Regulations, ANSI / ASME B30.21, and HST-3
standards.
| Stock Number | JT9-181515 |
|---|---|
| Headroom (in.) | 9-7/10 |
| Capacity (Lbs.) | 1000 |
| Lift (Ft.) | 15 |
| Load Capacity (Tons) | 1/2 |
| Load Chain Dimensions dia/mm) | 4.3 x 12 |
| Model Number | JLH-50-15 |
| Prop 65 | Cancer and Reproductive Harm |
| Warranty | Lifetime |
| Weight (Lbs.) | 8.6 |
| Lever Length (in.) | 6-3/10 |
| Lbs. of Pull to Lift Capacity | 54.0000 |
| Gross Weight | 9.0 |
| Net weight | 8.0 |
