JLP-025A-5, 1/4 Ton Mini-Puller, 5' Lift
Stock Number:
JT9-287100
JLP-025A-5, 1/4 Ton Mini-Puller, 5' Lift
Manual
JET® JLP-A Series Lever Hoists combine safety, reliability, and durability that are designed to perform in light to medium-duty industrial applications. The patented Brake Wear Indicator increases safety by letting you know when to replace the friction disks. JET® also offers the option of shipyard hooks, virtually eliminating stretched hooks caused by point or tip loading. The JET® JLP-A Lever Hoist is available in ¼ ton to 6 ton capacities with standard lifts of 5, 10, 15, and 20 feet (custom lifts available). The JET® JLP-A Series is the perfect choice for a contractor grade Lever Hoist.

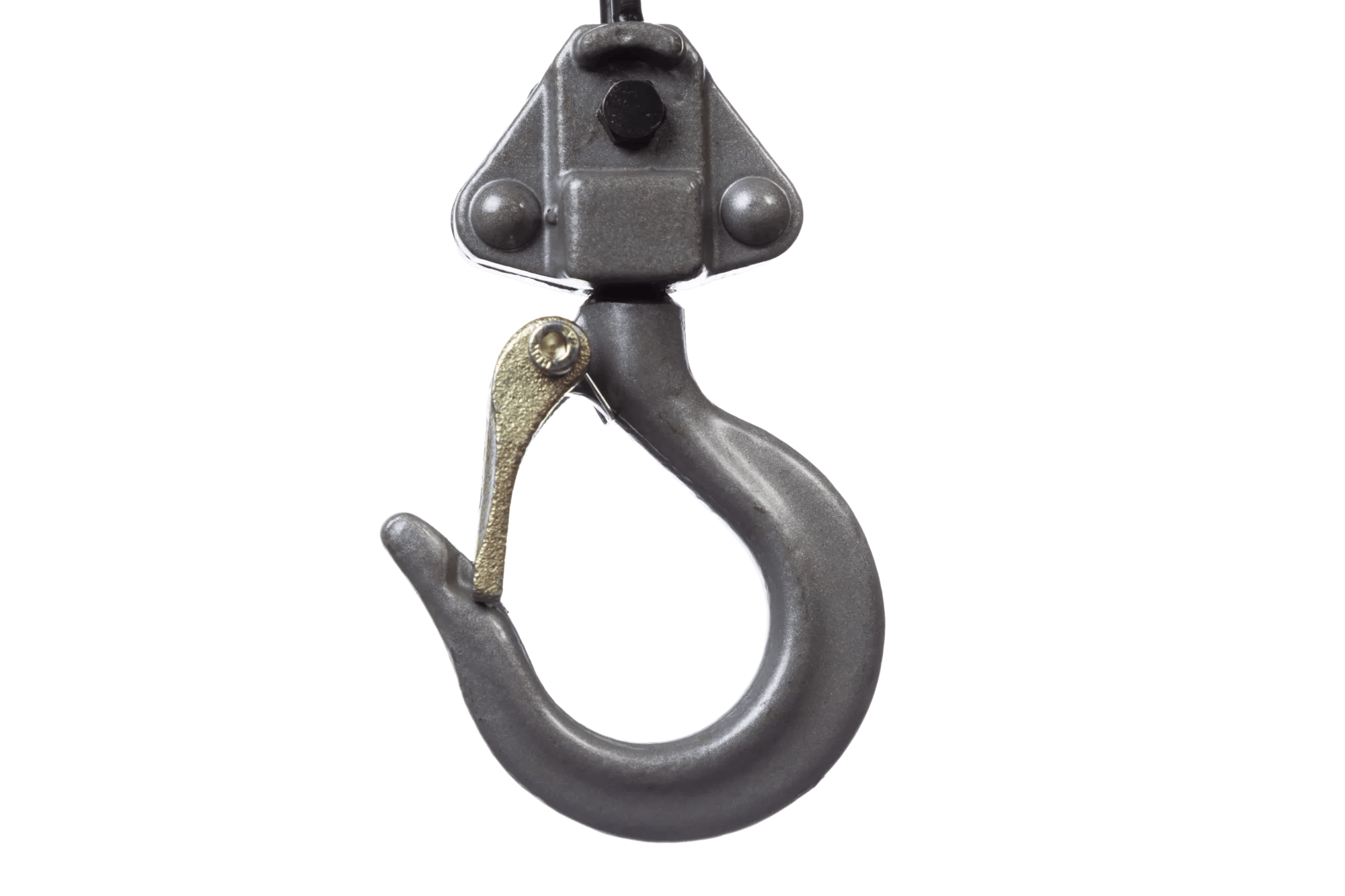

Cast steel safety latches are secured with Allen screws and lock nuts
Compact design with smaller body and lightweight design for low headroom applications and use in confined areas

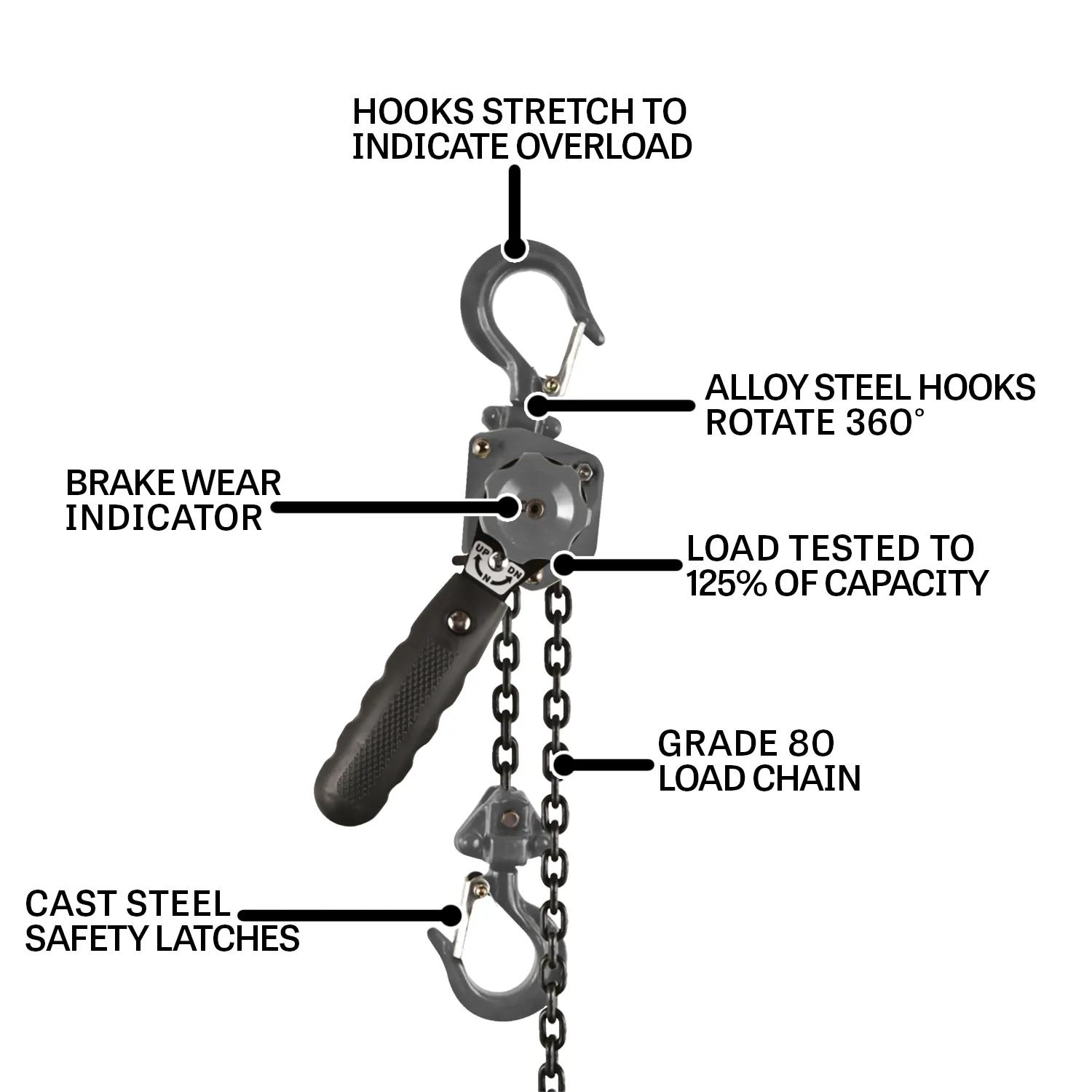

Hooks slowly stretch to indicate an overload situation increasing jobsite safety
Impact resistant all steel construction for added durability and protection
Industrial rated alloy steel hooks rotate 360 degrees for easy rigging
Needle bearing design increases efficiency and promotes smooth operation
This product complies with ANSI / ASME B30.21 and HST-3 Impact resistant all steel construction for added durability and protection
Weston Style, double pawl brake design splits the load to opposite sides of the ratchet gear for greater load security
| Stock Number | JT9-287100 |
|---|---|
| Headroom (in.) | 8-1/4 |
| Capacity (Lbs.) | 500 |
| Lift (Ft.) | 5 |
| Load Capacity (Tons) | 1/4 |
| Load Chain Dimensions dia/mm) | 4 x 12 |
| Model Number | JLP-025A-5 |
| Prop 65 | Cancer and Reproductive Harm |
| Warranty | Lifetime |
| Weight (Lbs.) | 4.5 |
| Lever Length (in.) | 6 |
| Lbs. of Pull to Lift Capacity | 60.0000 |
| Gross Weight | 4.6 |
| Net weight | 4.45 |
