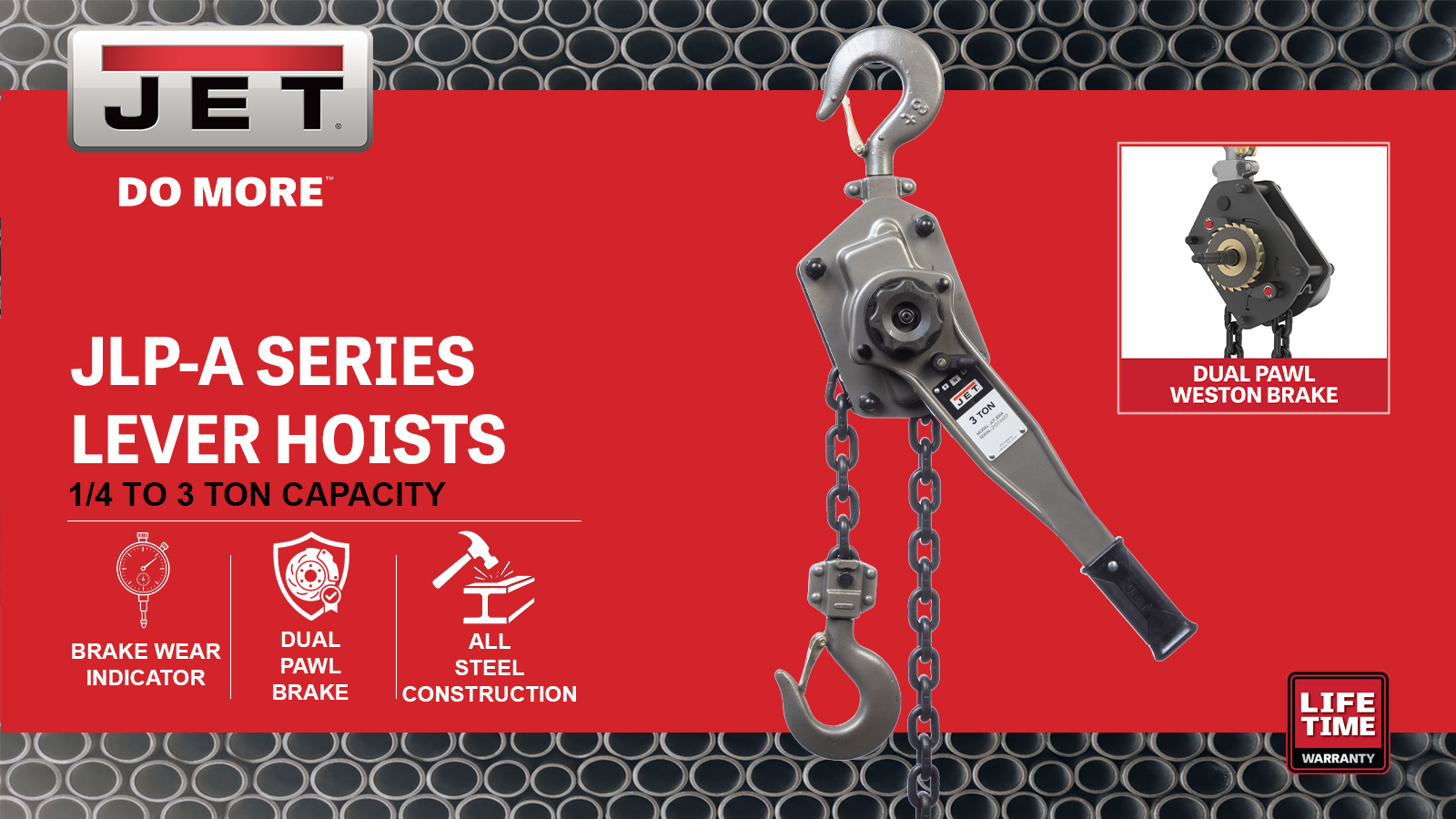

JLP-150A-20, 1-1/2 Ton Lever Hoist with 20' Lift

JET® JLP-A Series Lever Hoists combine safety, reliability, and durability that are designed to perform in light to medium-duty industrial applications. The patented Brake Wear Indicator increases safety by letting you know when to replace the friction disks. JET® also offers the option of shipyard hooks, virtually eliminating stretched hooks caused by point or tip loading. The JET® JLP-A Lever Hoist is available in ¼ ton to 6 ton capacities with standard lifts of 5, 10, 15, and 20 feet (custom lifts available). The JET® JLP-A Series is the perfect choice for a contractor grade Lever Hoist.

Features

Grade 80 black oxide coated load chain for added durability

Impact resistant all steel construction for added durability and protection

Industrial rated alloy steel hooks rotate 360 degrees for easy rigging and slowly stretch to indicate an overload situation

Needle bearings support the load sheave to increase efficiency and promote smooth operation

JET’s improved easy free chain design is a two-step, no load, free chaining system. The system permits quicker hoist positioning and take up of slack chain, and is engineered not to free chain under load

NEW! Redesigned ergonomic grip allows for greater operator control and increased comfort

Secured with Allen screws and lock nuts, the cast-steel safety latches are more durable than stamped steel latches and will not bend out of compliance with lifting regulations

Weston style double ratchet pawl brake design splits the load to opposite sides of the ratchet gear for greater load security

Specifications

More Information
Stock Number	JT9-287403
Headroom (in.)	15
Capacity (Lbs.)	3300
Lift (Ft.)	20
Load Capacity (Tons)	1-1/2
Load Chain Dimensions dia/mm)	8 X 24
Model Number	JLP-150A-20
Prop 65	Cancer and Reproductive Harm
Warranty	Lifetime
Weight (Lbs.)	39
Lever Length (in.)	16-1/7
Lbs. of Pull to Lift Capacity	49.0000
Gross Weight	41.22
Net weight	39.02
