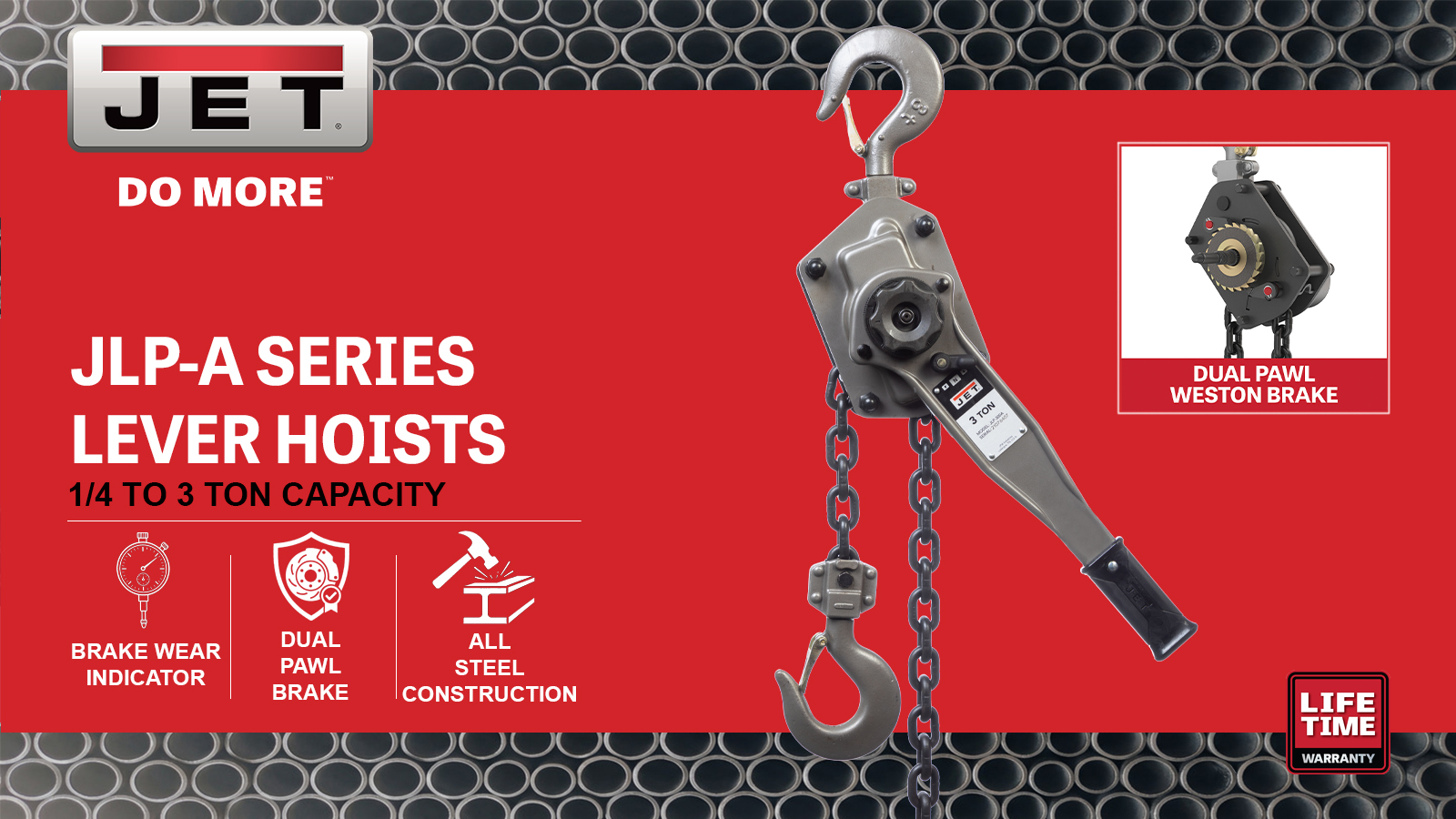

JLP-300A-10SH, 3 Ton Lever Hoist, 10' Lift & Shipyard Hooks
Stock Number:
JT9-287801
JLP-300A-10SH, 3 Ton Lever Hoist, 10' Lift & Shipyard Hooks
Manual
JET® JLP-A Series Lever Hoists combine safety, reliability, and durability that are designed to perform in light to medium-duty industrial applications. The patented Brake Wear Indicator increases safety by letting you know when to replace the friction disks. JET® also offers the option of shipyard hooks, virtually eliminating stretched hooks caused by point or tip loading. The JET® JLP-A Lever Hoist is available in ¼ ton to 6 ton capacities with standard lifts of 5, 10, 15, and 20 feet (custom lifts available). The JET® JLP-A Series is the perfect choice for a contractor grade Lever Hoist.
All steel construction
Impact resistant all steel construction for added durability and protection
Needle bearings support the load sheave to increase efficiency and promote smooth operation
JET’s improved easy free chain design is a two-step, no load, free chaining system. The system permits quicker hoist positioning and take up of slack chain, and is engineered not to free chain under load
NEW! Redesigned ergonomic grip allows for greater operator control and increased comfort
Secured with Allen screws and lock nuts, the cast-steel safety latches are more durable than stamped steel latches and will not bend out of compliance with lifting regulations
The Weston style double ratchet pawl brake design splits the load to opposite sides of the ratchet gear for greater load security and increased safety
| Stock Number | JT9-287801 |
|---|---|
| Headroom (in.) | 18-8/9 |
| Capacity (Lbs.) | 6600 |
| Lift (Ft.) | 10 |
| Load Capacity (Tons) | 3 |
| Load Chain Dimensions dia/mm) | 10 x 30 |
| Model Number | JLP-300A-10SH |
| Prop 65 | Cancer and Reproductive Harm |
| Warranty | Lifetime |
| Weight (Lbs.) | 50 |
| Lever Length (in.) | 16-1/7 |
| Lbs. of Pull to Lift Capacity | 71.0000 |
| Gross Weight | 53.0 |
| Net weight | 50.0 |
