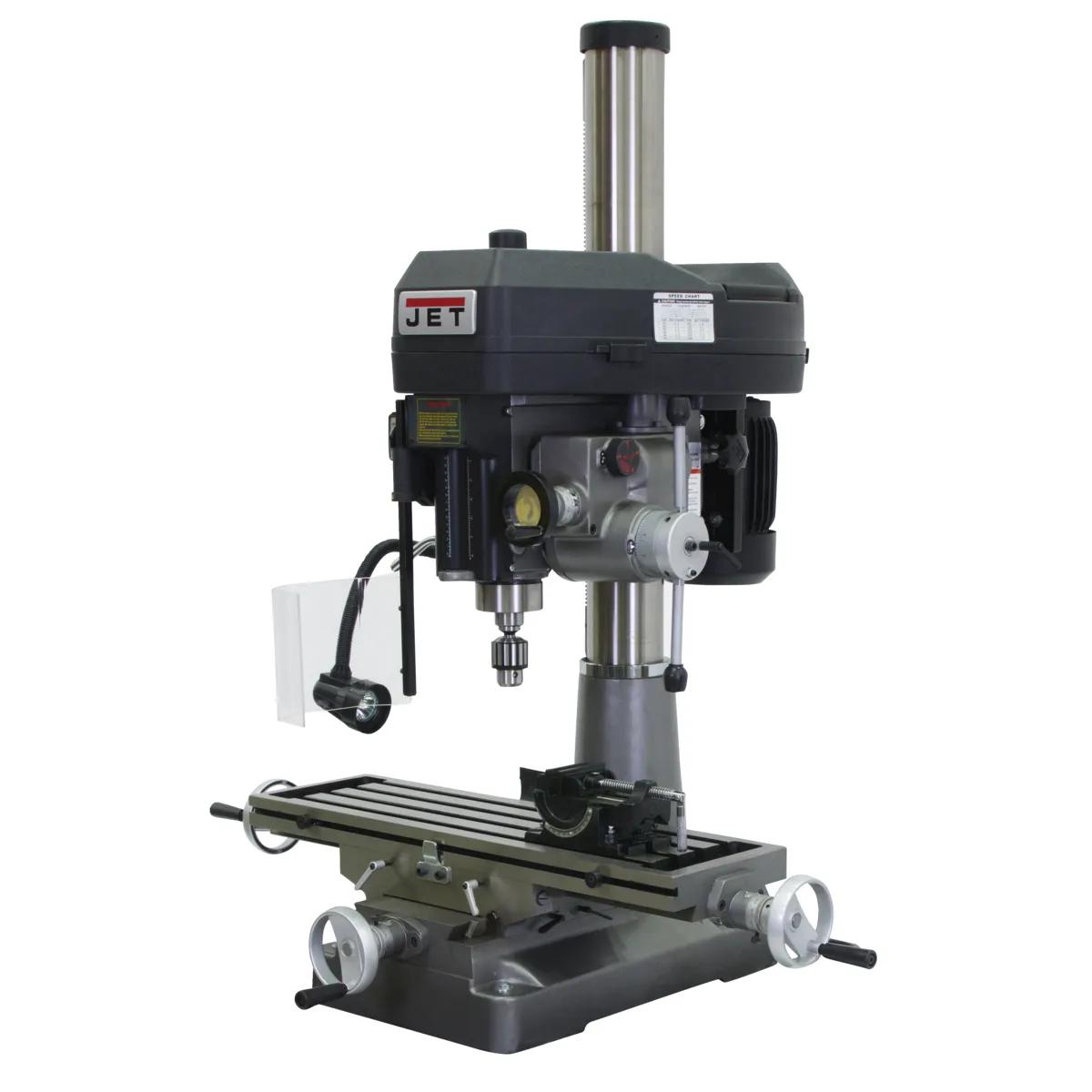

JMD-18PFN Mill/Drill With NEWALL DP500 DRO
Stock Number:
JT9-350135
JMD-18PFN Mill/Drill With NEWALL DP500 DRO
Mill drills are a lighter alternative to a milling machine. These combine a belt driven drill press with the dual coordinate abilities of the milling machine's table for flexibility and efficiency. A locking collet prevents the cutting tool from falling away from the spindle when lateral forces are experienced against the bit. Although light in construction, the JMD Milling Drilling Machines possess the advantages of space-saving versatility, affordability and light machining capability.
1/2” Drill chuck, chuck arbor
360° head swivel
Adjustable carbide facemill
Base taper allows for easier clean up
Easy to read internal depth gauge
Heavy-duty power downfeed with manual feed (JMD-18PFN)
Mill Drill Stand, p/n 320020, shown in some images, is optional
One-piece cast iron column for added support
Positive quick-stop knob and easy to read internal depth gauge
UL Listed
Stock Number | JT9-350135 |
---|---|
Face Mill Capacity (In.) | 3 |
Max Distance Spindle to Table (In.) | 28 |
Model Number | JMD-18PFN |
Motor (HP) | 2 HP,115/230V, 1 Ph, Prewired 115V |
Number of Spindle Speeds | 12 |
Overall Dimensions (L x W x H) (In.) | 47 x 40 x 51 |
Prop 65 | Cancer and Reproductive Harm |
Quill Diameter (In.) | 3 |
Quill Down Feed Rates (IPR) | 0.0047, 0.007, 0.001 |
Range of Spindle Speeds (RPM) | 150 - 3,000 |
Spindle Taper (In. x TPI) | R-8 |
Spindle Travel (In.) | 5 |
T-Slot Centers (In.) | 1-13/16 |
T-Slots Number and Size (In.) | 4 and 5/8 |
Table Longitudinal Travel (In.) | 20-1/2 |
Table Size (L x W) (In.) | 9-1/2 x 31-3/4 |
Warranty | 2 Year |
Weight (Lbs.) | 700 |
Work Table Weight Capacity (Lbs.) | 400 |
Gross Weight | 700.0 |
