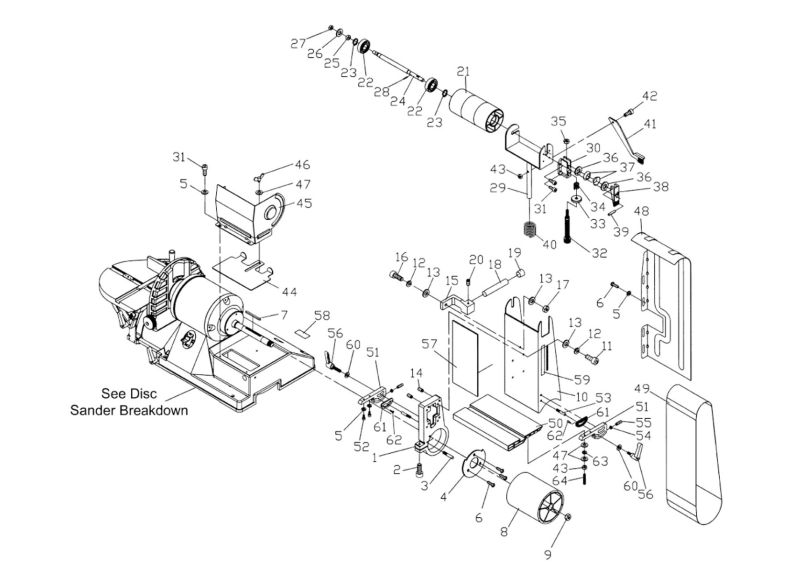

Index Number | Part Number | Description | Size | Qty |
1 | JSG96-201 | Bracket | 1 | |
2 | TS-0208071 | Hex Socket Cap Screw | 5/16x1-1/4 | 1 |
3 | JSG96-203 | Pin | 1 | |
4 | JSG96-204 | Fixed Plate | 1 | |
5 | TS-0680021 | Flat Washer | 1/4 | 8 |
6 | JSG96-206 | Screw | 1/4x3/8 | 3 |
7 | JSG96-207 | Key | 5x5x70 | 1 |
8 | JSG96-208 | Drive Drum | 1 | |
9 | JSG96-209 | Lock Nut | 5/8-18UNF | 1 |
10 | JSG96-210 | Belt Support | 1 | |
11 | JSG96-211 | Hex Socket Cap Screw | 5/16x5/8 | 4 |
12 | TS-0720081 | Lock Washer | 5/16 | 5 |
13 | TS-0680031 | Flat Washer | 5/16 | 6 |
14 | TS-0270031 | Set Screw | 5/16x3/8 | 4 |
15 | JSG96-215 | Bracket | 1 | |
16 | TS-0208061 | Hex Socket Cap Screw | 5/16x1 | 1 |
17 | TS-0561021 | Hex Nut | 5/16 | 1 |
18 | JSG96-218 | Rod | 1 | |
19 | JSG96-219 | Pad | 1 | |
20 | JSG96-220 | Set Screw | 1/4x3/8 | 1 |
21 | JSG96-221 | Follow Roller | 1 | |
22 | BB-6201ZZ | Ball Bearing | 2 | |
23 | JSG96-223 | C-Ring | STW-11 | 2 |
24 | JSG96-224 | Shaft | 1 | |
25 | JSG96-225 | Bushing | 1 | |
26 | TS-0680041 | Flat Washer | 3/8 | 1 |
27 | JSG96-227 | Lock Nut | 3/8 | 1 |
28 | JSG96-228 | Roll Pin | 3x20 | 1 |
29 | JSG96-229 | Support Bracket | 1 | |
30 | JSG96-230 | Micro-Adjusting Seat | 1 | |
31 | TS-0207021 | Hex Socket Cap Screw | 1/4x1/2 | 6 |
32 | JSG96-232 | Screw | 1 | |
33 | JSG96-233 | Adjusting Knob | 1 | |
34 | JSG96-234 | Spring | 1 | |
35 | JSG96-235 | Lock Nut | M6 | 1 |
36 | JSG96-236 | Washer | 2 | |
37 | JSG96-237 | Disc Spring | 2 | |
38 | JSG96-238 | Lock Handle | 1 | |
39 | JSG96-239 | Roll Pin | 3x20 | 1 |
40 | JSG96-240 | Spring | 1 | |
41 | JSG96-241 | Eccentric Handle | 1 | |
42 | JSG96-242 | Hex Socket Cap Screw | 1/4x1-1/4 | 1 |
43 | JSG96-243 | Lock Nut | 1/4 | 2 |
44 | JSG96-244 | Air Controller (Belt) | 1 | |
45 | JSG96-245 | Dust Chute | 1 | |
46 | JSG96-246 | Wing Screw | 1/4x1/2 | 1 |
47 | JSG96-247 | Flat Washer | 1/4x3/4 | 3 |
48 | JSG96-248 | Back Cover | 1 | |
49 | JSG96-249 | Sanding Belt | 1 | |
50 | JSG96-250 | Belt Table | 1 | |
51 | JSG96-251 | Trunnion | 2 | |
52 | TS-0050021 | Hex Socket Cap Screw | 1/4x5/8 | 2 |
53 | JSG96-253 | Guide Pin | 2 | |
54 | TS-0561011 | Hex Nut | 1/4 | 2 |
55 | JSG96-255 | Set Screw | 1/4x3/4 | 2 |
56 | JSG96-256 | Lock Handle | 2 | |
57 | JSG96-257 | Graphite Pad | 1 | |
58 | JSG96-155 | Indication Label | 1 | |
59 | JSG96-259 | Loosen/Tighten Label | 1 | |
60 | JSG96-260 | Flat Washer | 1/4x9/16x1/8 | 2 |
61 | JSG96-261 | Serrated Plate | 2 | |
62 | JSG96-262 | Phillips Tap Screw | M3x10 | 4 |
63 | JSG96-263 | Lock Washer | ¼ | 1 |
64 | JSG96-264 | Set Screw | 1/4x1-1/2 | 1 |
Stock Number | 708597K-2 |
---|
