JTJ-10ST, 10 Ton-Hydraulic Toe Jack
Stock Number:
JT9-454510
JTJ-10ST, 10 Ton Toe Jack
Manual
JET® JTJ Series Toe Jacks are heavy-duty, industrial, dual purpose jacks. They are designed for lifting loads with low or high clearances. This makes the JET Toe Jack ideal for house moving, machinery installation and applications at shipyards, bridge building, or plant construction sites. JET JTJ Series Toe Jacks comply with ANSI/ASME B30.1 standards.
Complies with ANSI/ASME B30.1 standards

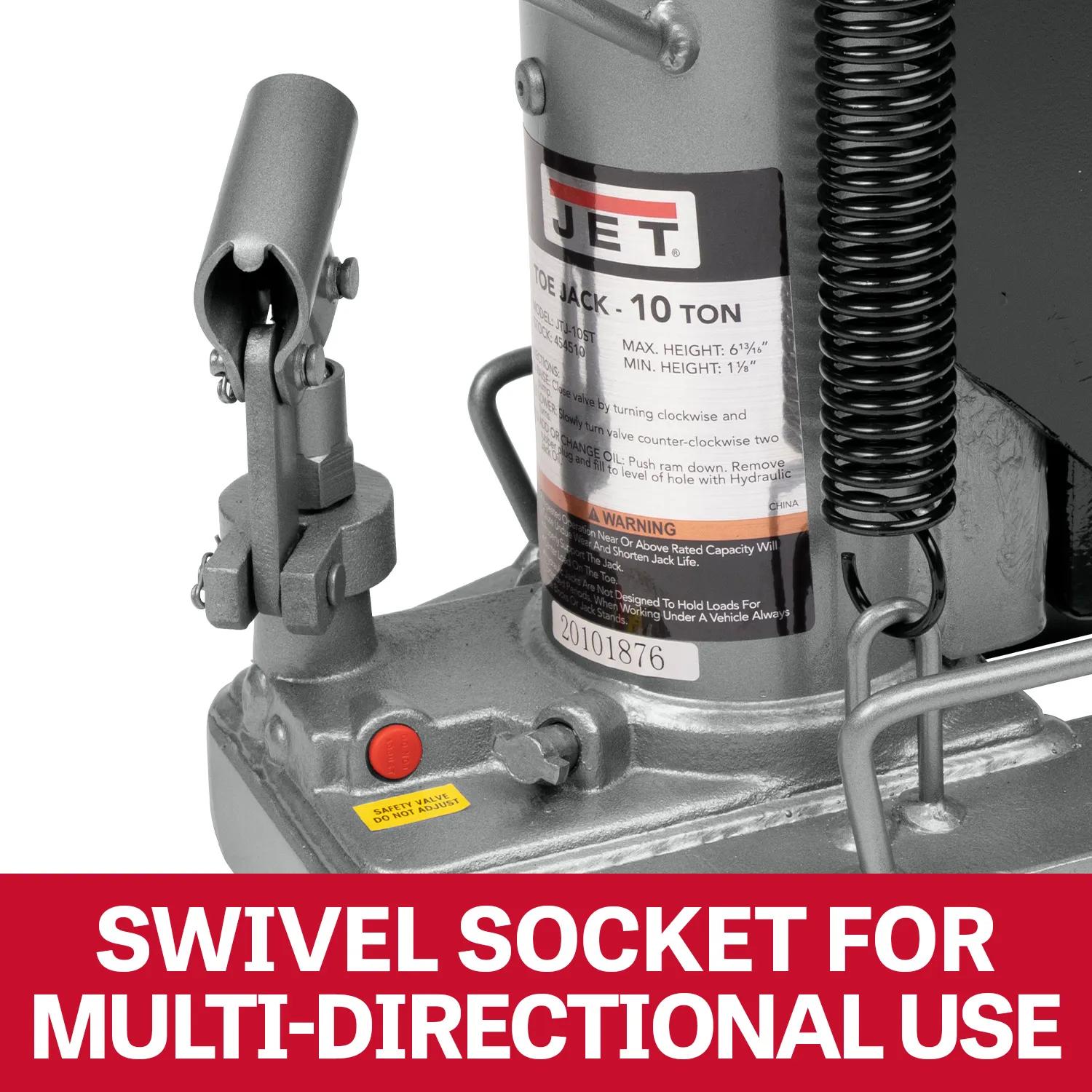

Convenient swivel socket for multi-directional use
Dual purpose jack designed for low or high clearances increases versatility

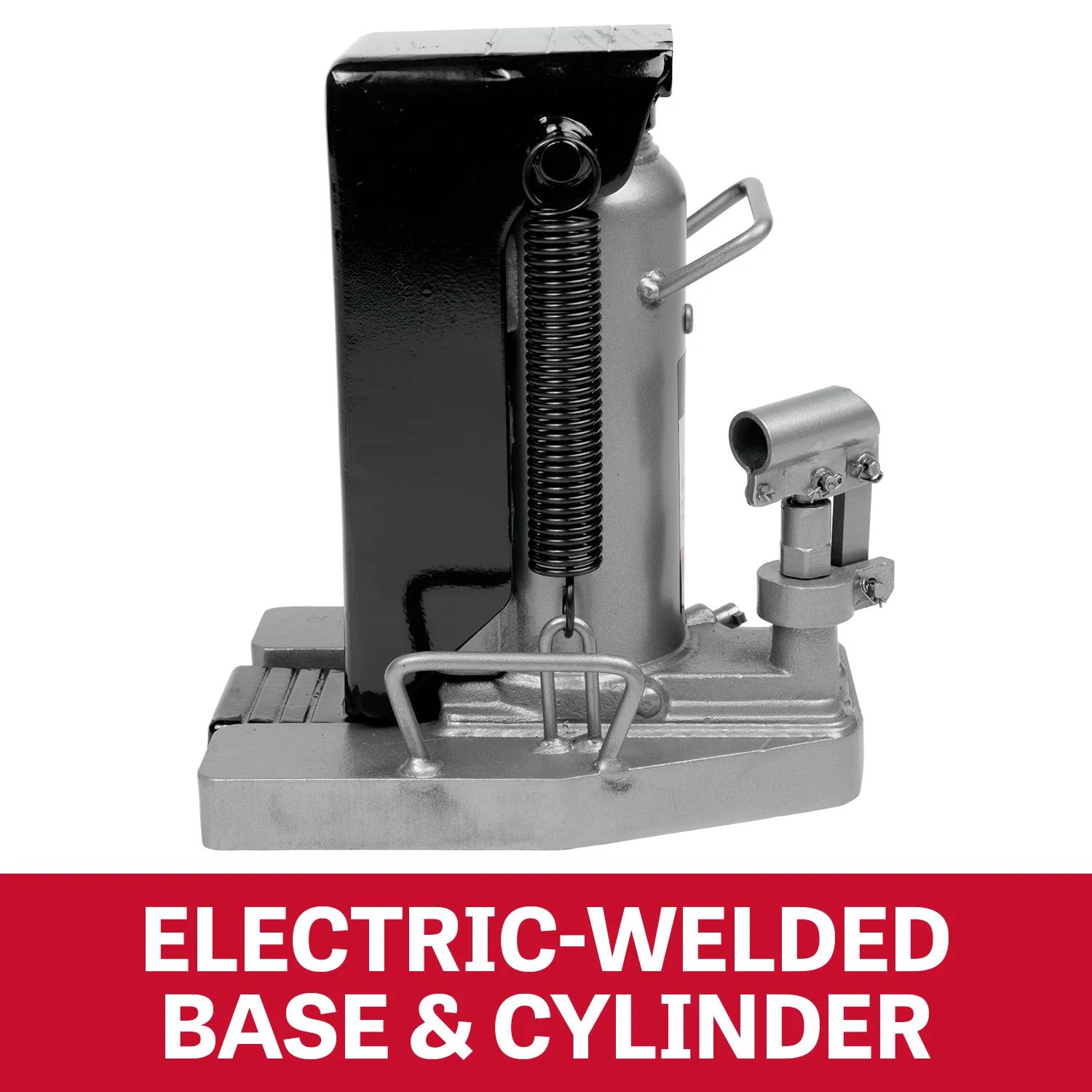

Electric welded bases and cylinders virtually eliminating leaks for proven reliability
Heat treated piston resists corrosion
Lifting, pushing, spreading, bending, pressing or straightening capabilities for multi-function use

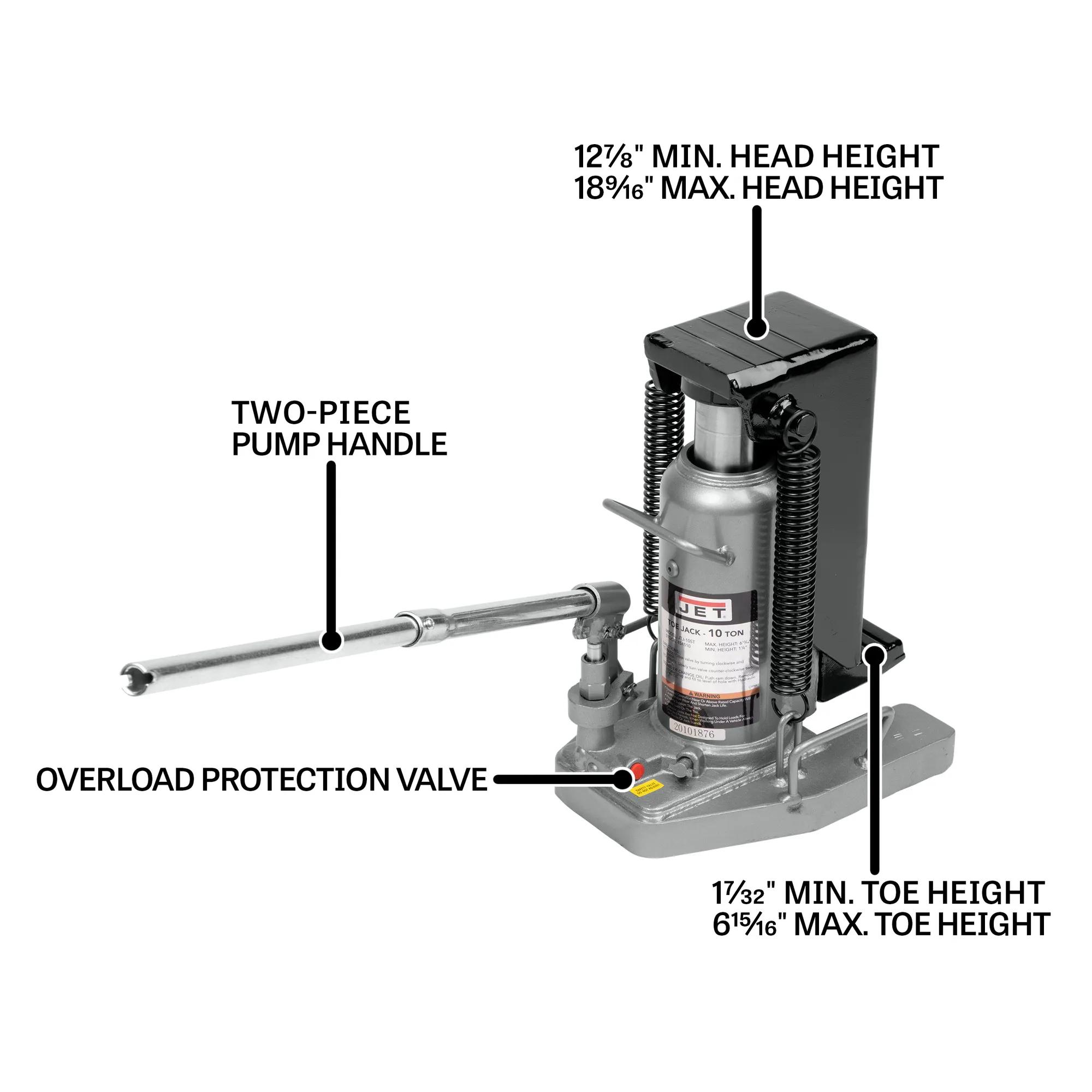

Overload Protection valve prevents lifting loads past maximum capacity
Pump handle included
| Stock Number | JT9-454510 |
|---|---|
| Base Size (In.) | 11-9/32 x 9-7/16 |
| Head Maximum Height (In.) | 18-9/16 |
| Head Minimum Height (In.) | 12-7/8 |
| Model Number | JTJ-10ST |
| Prop 65 | Cancer and Reproductive Harm |
| Rated Head Capacity (Tons) | 14 |
| Rated Toe Capacity (Tons) | 10 |
| Toe Lift (In.) | 5-23/32 |
| Toe Maximum Height (In.) | 6-15/16 |
| Toe Size (L x W) (In.) | 2-5/7 x 3-2/7 |
| Warranty | 2 Year |
| Weight (Lbs.) | 81 |
| Gross Weight | 85.1 |
| Net weight | 85.1 |
