JTX-2748B, 27" x 48" 8,000 LB Capacity Pallet Truck

Stock Number
JT9-141800

JET JTX-2748A, 27" x 48" Pallet Jack, 8,000 Lb. Capacity (141800)

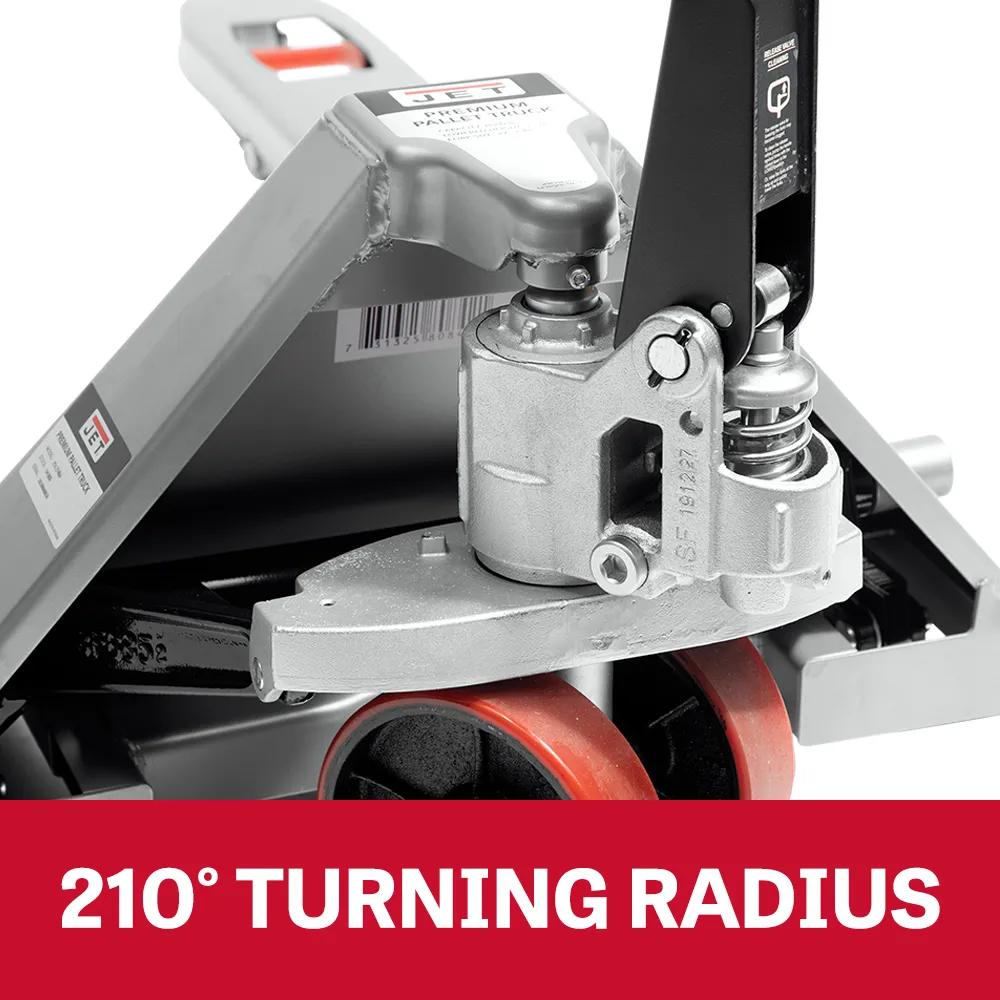

JET® JTX Series Pallet Trucks have a heavy duty capacity of 8,000 pounds. Each JET JTX Pallet Truck has a low profile of 3-1/4 inches, a width of 27 inches, and a length of 48 inches. The 210 degree turning radius increases maneuverability and the easy-to-use fingertip controls permit single handed operation. JET JTX Series Pallet Trucks are built to handle heavy lifting.

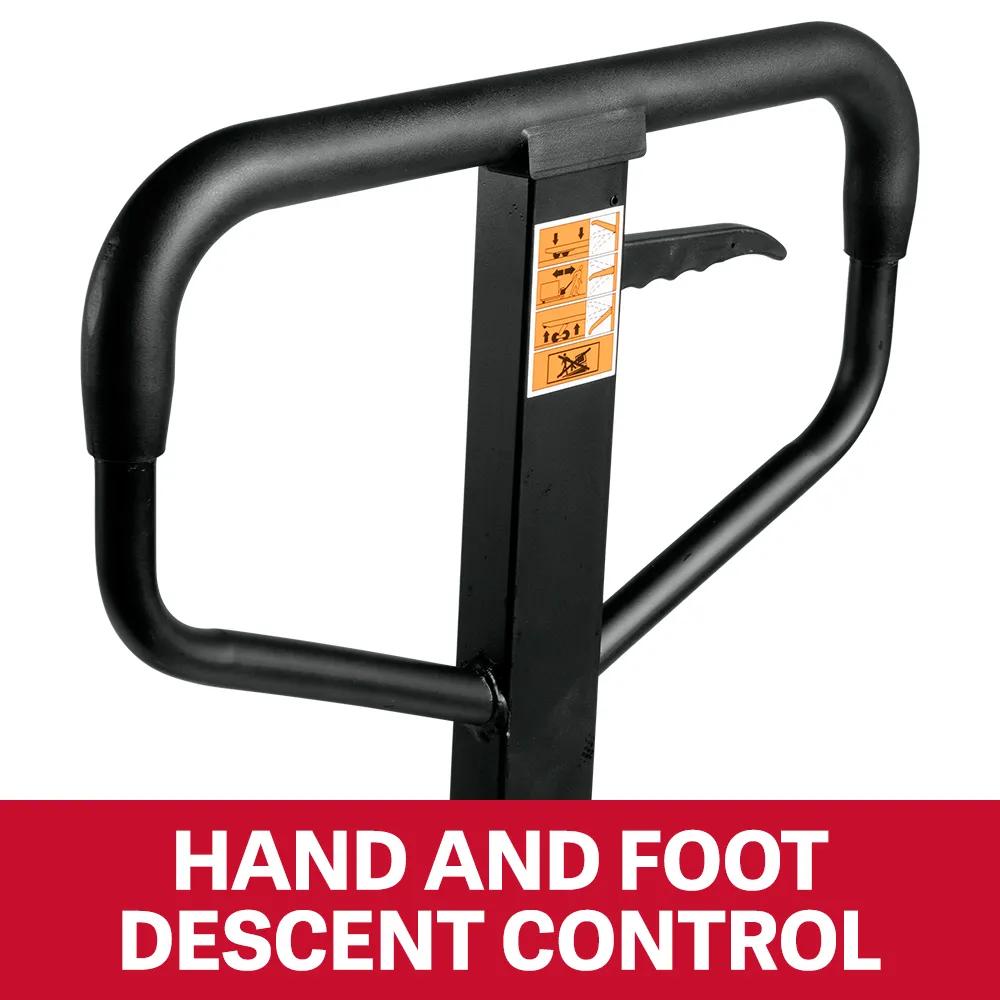

Lower material in a controlled decent with either hand or foot control for operator convenience
Overload Protection prevents lifting loads past maximum capacity

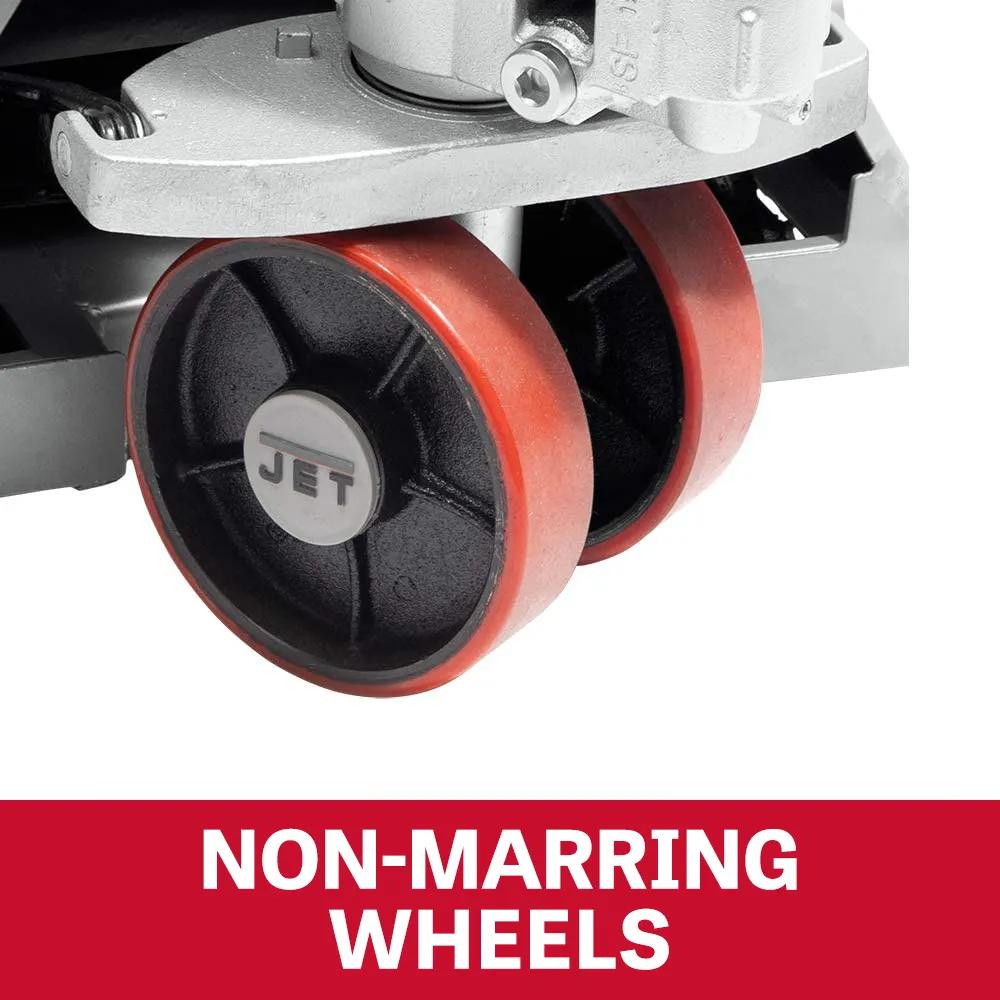

Polyurethane 6-1/4 x 2 inch steer wheels for non marking of floors and quieter rolling
Pump designed so that cylinder will not extend beyond maximum height
Pumps designed for any industrial environment
More Information
Stock NumberJT9-141800
Capacity (Lbs.)8000
Fork Width (In.)6-1/4
Load Wheel Size (OD x W) (In.)2-7/8 x 3-11/16
Lowered Height (In.)2.95

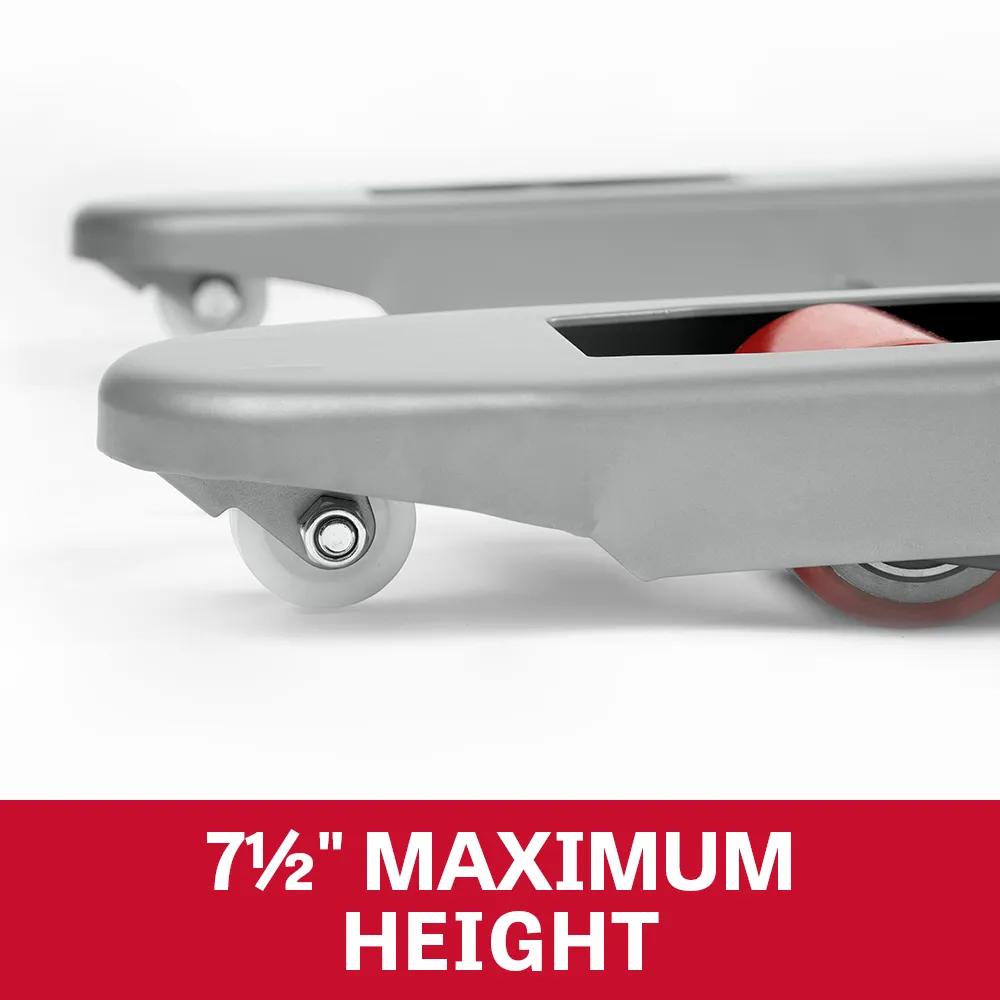

Maximum Height (In.)7-1/2
Model NumberJTX-2748B
Overall Dimensions (L x W x H) (In.)63 x 27 x 48
Overall Fork Dimensions (L x W) (In.)48 x 27
Prop 65Cancer and Reproductive Harm
Steer Wheel Size (In.)6-1/4 x 2
Turning Radius (Deg)200
WarrantyLimited
Weight (Lbs.)167
Gross Weight183.0
Net weight178.0
