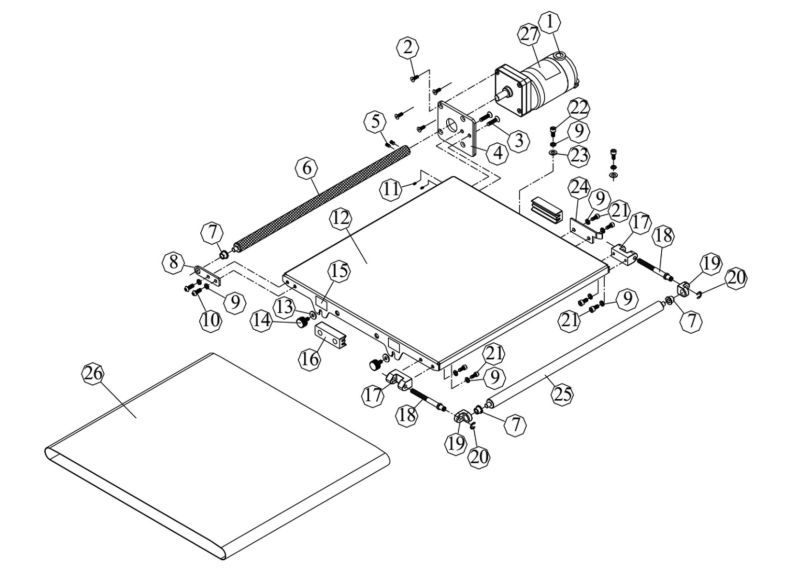

| Index Number | Part Number | Description | Size | Qty |
| 1 | JWDS1632-201 | Belt Motor | 1 | |
| JWDS1632-201-1 | Carbon Brush (not shown) | 2 | ||
| 2 | F010839 | Socket Head Flat Screw | #10-32 x 1/2”L | 4 |
| 3 | F010985 | Socket Head Flat Screw | M6 x 1.0P x 35L | 2 |
| 4 | JWDS1632-204 | Belt Motor Plate | 1 | |
| 5 | TS-1522011 | Socket Head Set Screw | M5 x 0.8P x 5L | 2 |
| 6 | JWDS1632-206 | Drive Roller | 1 | |
| 7 | PM2244-130 | Oilite Bushing | 3 | |
| 8 | JWDS1632-208 | Drive Roller Bracket | 1 | |
| 9 | TS-2361061 | Lock Washer | M6 | 8 |
| 10 | TS-2246162 | Socket Head Button Screw | M6 x 1.0P x 16L | 2 |
| 11 | TS-1521021 | Socket Head Set Screw | M4 x 0.7P x 5L | 2 |
| 12 | JWDS1632-212 | Conveyor Table | 1 | |
| 13 | TS-1550041 | Flat Washer | 6.4 x 19 x 1.5T | 2 |
| 14 | JWDS1632-214 | Table Lock Knob | 2 | |
| 15 | LM000236 | Caution Label – Table Lock | 2 | |
| 16 | PM2244-213 | Tracker Kit (set of 2) | 2 | |
| 17 | JWDS1632-217 | Bracket | 2 | |
| 18 | JWDS1632-218 | Adjusting Rod | 2 | |
| 19 | JWDS1632-219 | Driven Roller Bracket | 2 | |
| 20 | JWDS1632-220 | Retaining Ring | ETW-7 | 2 |
| 21 | TS-1503031 | Socket Head Cap Screw | M6 x 1.0P x 12L | 6 |
| 22 | TS-1503041 | Socket Head Cap Screw | M6 x 1.0P x 16L | 2 |
| 23 | TS-0680021 | Flat Washer | 1/4" x 16 x 2T | 2 |
| 24 | JWDS1632-224 | Guide Plate | 1 | |
| 25 | JWDS1632-225 | Driven Roller | 1 | |
| 26 | JWDS1632-226 | Conveyor Belt | 1 | |
| 27 | JWDS1632-227 | Belt Motor Label | 1 |
| Stock Number | 723520K-2 |
|---|
