MT200, 2 Ton Two Speed Electric Trolley 3-Phase 230V
Stock Number:
JT9-140187
MT200, 2TON, ELECTRIC 2 SPEED TROLLEY 3Ph 230V
Manual
JET® MT Series Electric Trolley is designed and built for safety, durability, and efficient operation in the toughest industrial applications. Designed with two speeds you can move materials quickly and safely. Allowing your material to then slow down to be placed exactly where you need it without the excessive bump firing. All of this with safe travel speeds up to 79 feet per minute and as low as 20 feet per minute to give you the ability to be more efficient with every load. The MT series is available from 1/2 Ton to 5 Ton capacities. Let’s Get to Work.
Heavy-Duty motor puts out up to 0.8HP making it the strongest in it's class
TAA Approved
Two speeds reduces bump firing to while still allowing high speed movement of materials

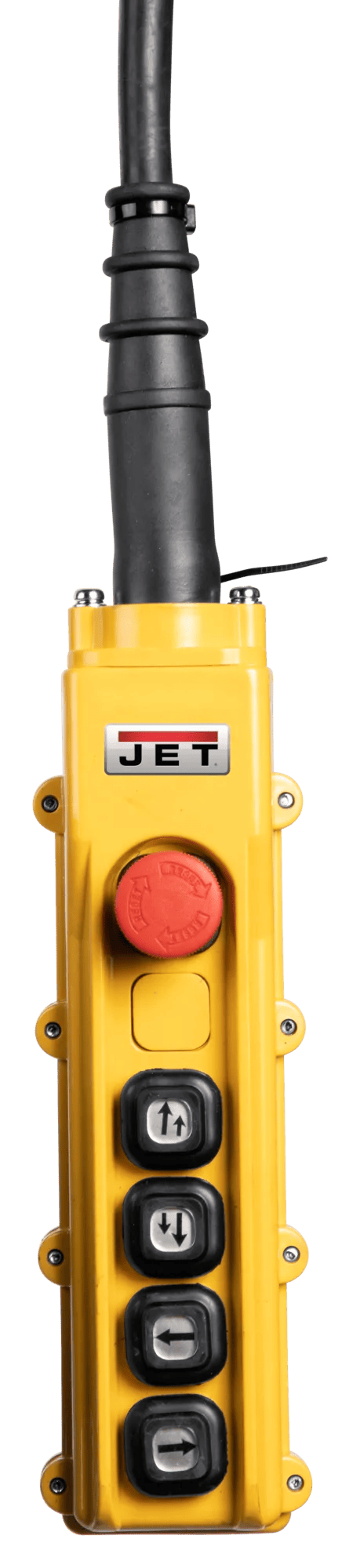

Indoor and Outdoor use with IP-55 rating for trolley and IP-65 rating for the pendant
Expanded flange capacity kits are available
| Stock Number | JT9-140187 |
|---|---|
| Capacity (Lbs.) | 4400 |
| Load Capacity (Tons) | 2 |
| Maximum Beam Flange Width (In.) | 6 |
| Minimum Beam Curve Radius (In.) | 66.9 |
| Minimum Beam Flange Width (In.) | 4 |
| Model Number | MT200 |
| Motor (HP) | .12 / .49 |
| Motor Phase | 3 |
| Motor Voltage (V.) | 230 |
| Prop 65 | Cancer and Reproductive Harm |
| Warranty | 2 Year |
| Weight (Lbs.) | 126 |
| Wheel Diameter (In.) | 1-1/4 |
| Travel Speed - Low (FPM) | 20.0000 |
| Travel Speed - High (FPM) | 79.0000 |
