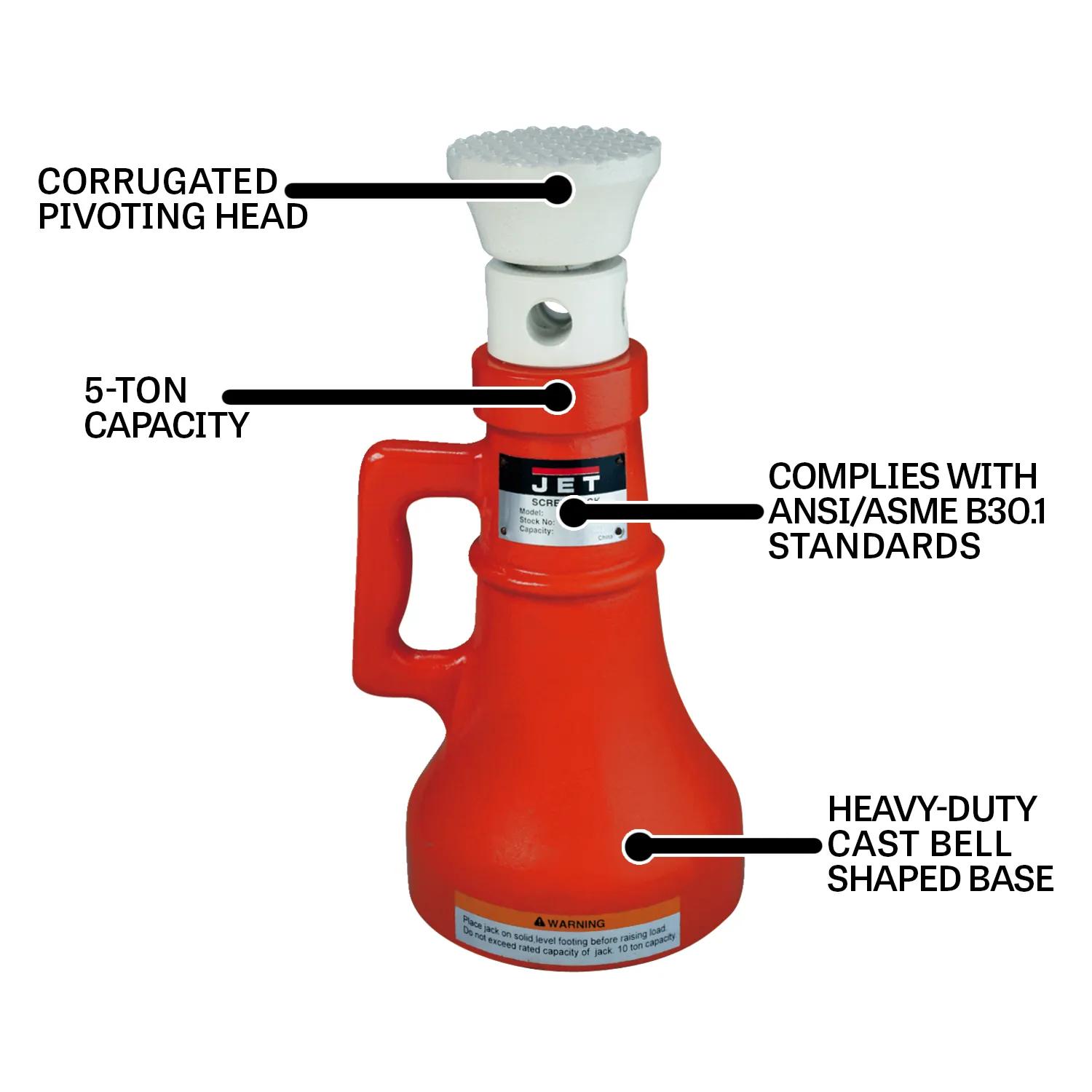

JET® SJ Series Screw Jack is available in five capacities ranging from 5 to 25 Tons that hold the load without creeping. The cast bell shaped housing provides stability while the Jack design requires less effort to raise the load increasing productivity.
Complies with ANSI/ASME B30.1 standards
Corrugated Pivoting Head
Corrugated pivoting head, contours to the load providing maximum surface contact
Heavy-duty cast bell shaped base provides a stable foundation in multiple lifting environments
Improved design requires less effort to lift a maximum capacity load
Industrial design eliminates creeping when holding heavy loads
Turning bar not included (available separately)
Stock Number | JT9-441305 |
---|---|
Bar Hole Size (In.) | 9/16 |
Base Diameter (In.) | 4-1/2 |
Base Size (In.) | 4-15/16 x 7 |
Head Diameter (In.) | 2-3/8 |
Height Closed (In.) | 9-1/2 |
Height Extended (In.) | 13 |
Load Capacity (Tons) | 5 |
Model Number | SJ-5T |
Prop 65 | Cancer and Reproductive Harm |
Screw Size (OD x L) | 1 x 6 |
Warranty | Limited |
Weight (Lbs.) | 9 |
Gross Weight | 10.0 |
